High-Performance Rock Crawler with Advanced Features

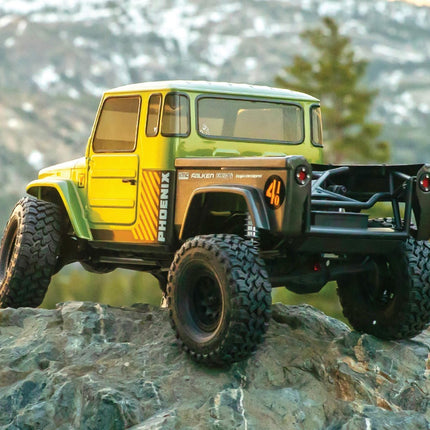

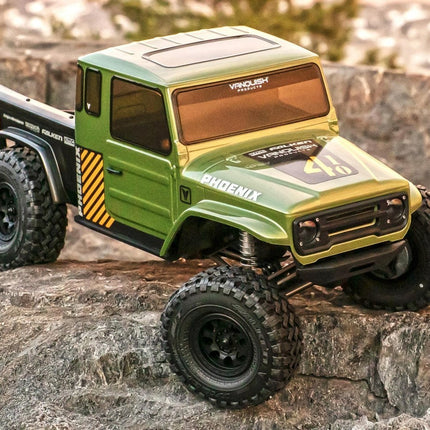

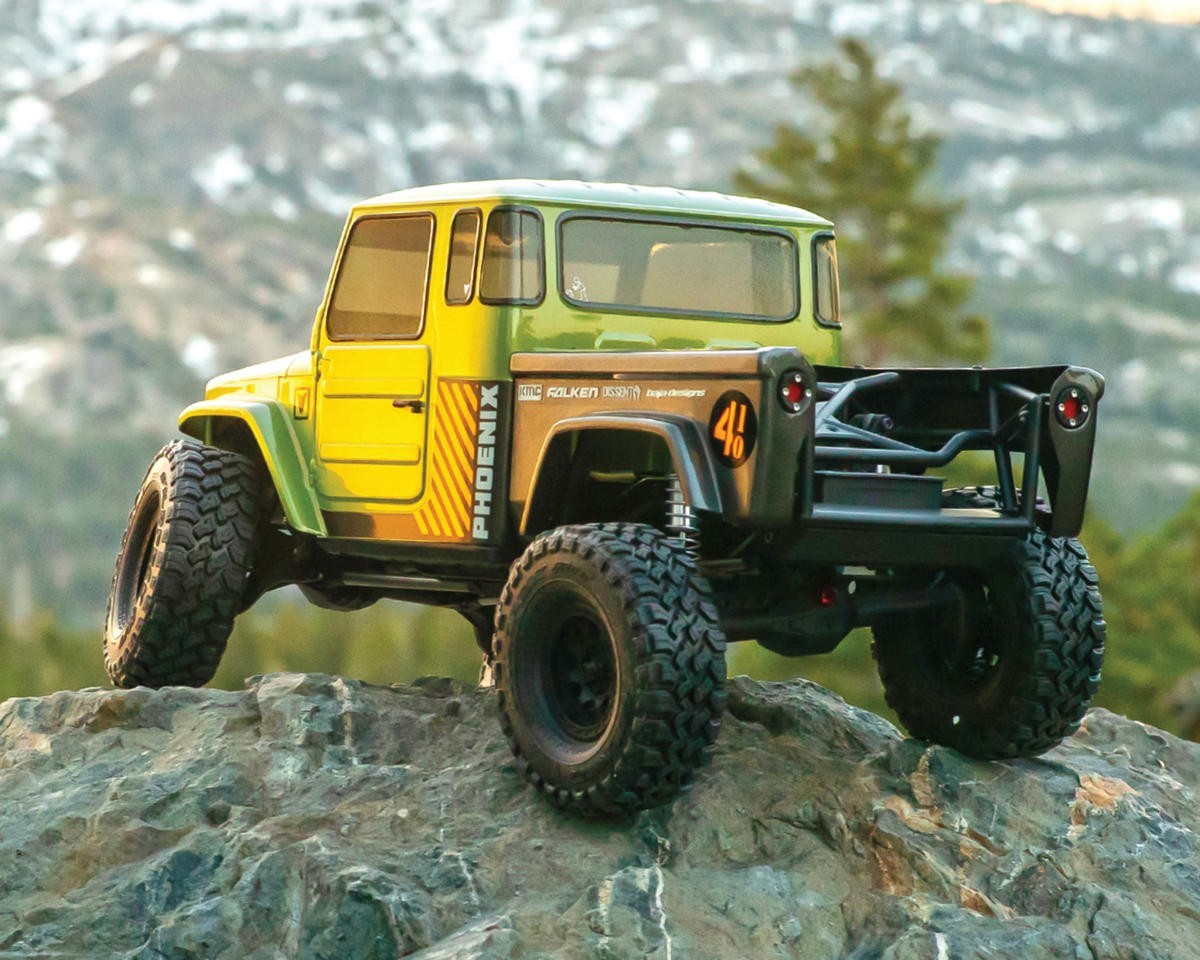

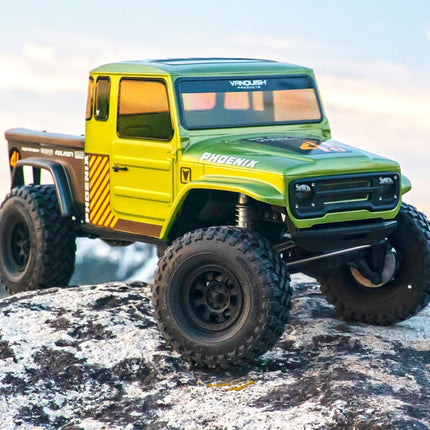

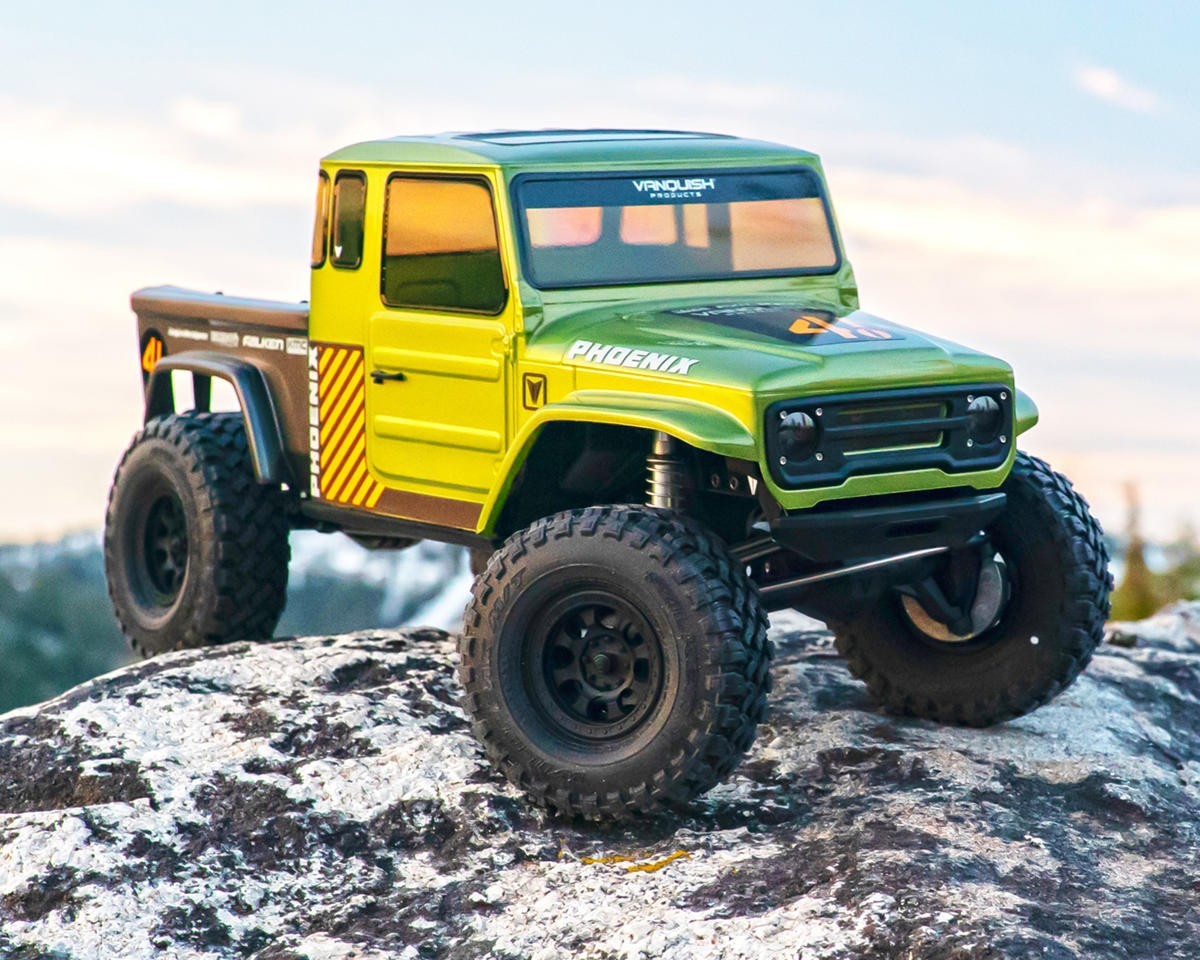

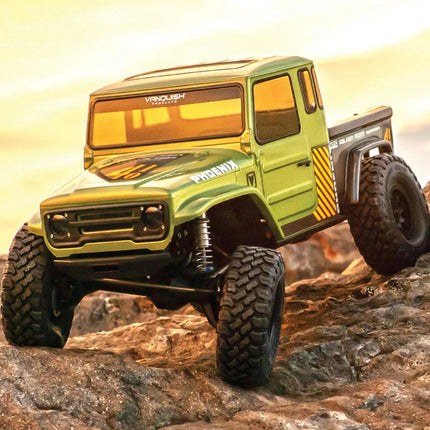

The Vanquish VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler combines classic off-road truck styling with cutting-edge engineering. Designed for those who demand performance and durability, the Phoenix Portal RTR is built to handle rugged trails and rocky terrain with confidence. With high-quality components throughout and a carefully thought-out design, it delivers both scale realism and unmatched capability. Whether you're a seasoned crawler or just getting started, this rig is built to impress.
About the VS4-10 Phoenix Portal RTR Crawler
Advanced Electronics
The VS4-10 Phoenix is equipped with an impressive electronics package tailored for performance and expandability. At its core is the 35T VM-1 Brushed Motor, optimized to deliver strong torque for technical crawling while retaining enough wheel speed for trail driving. Power is managed by the 3S-capable VE-1 ESC, based on the proven Hobbywing 1060 platform, and factory-tuned with adjustable drag brake and LiPo cutoff settings. The VS-1 metal gear servo offers two hundred ounces per inch of torque and is water-resistant, ensuring reliable steering under tough conditions. Control is provided by the VT-1 Digital Four-Channel Transmitter, which includes model memory, multi-position switches, endpoint adjustments, and supports add-ons like a winch or dig unit for even more capability.

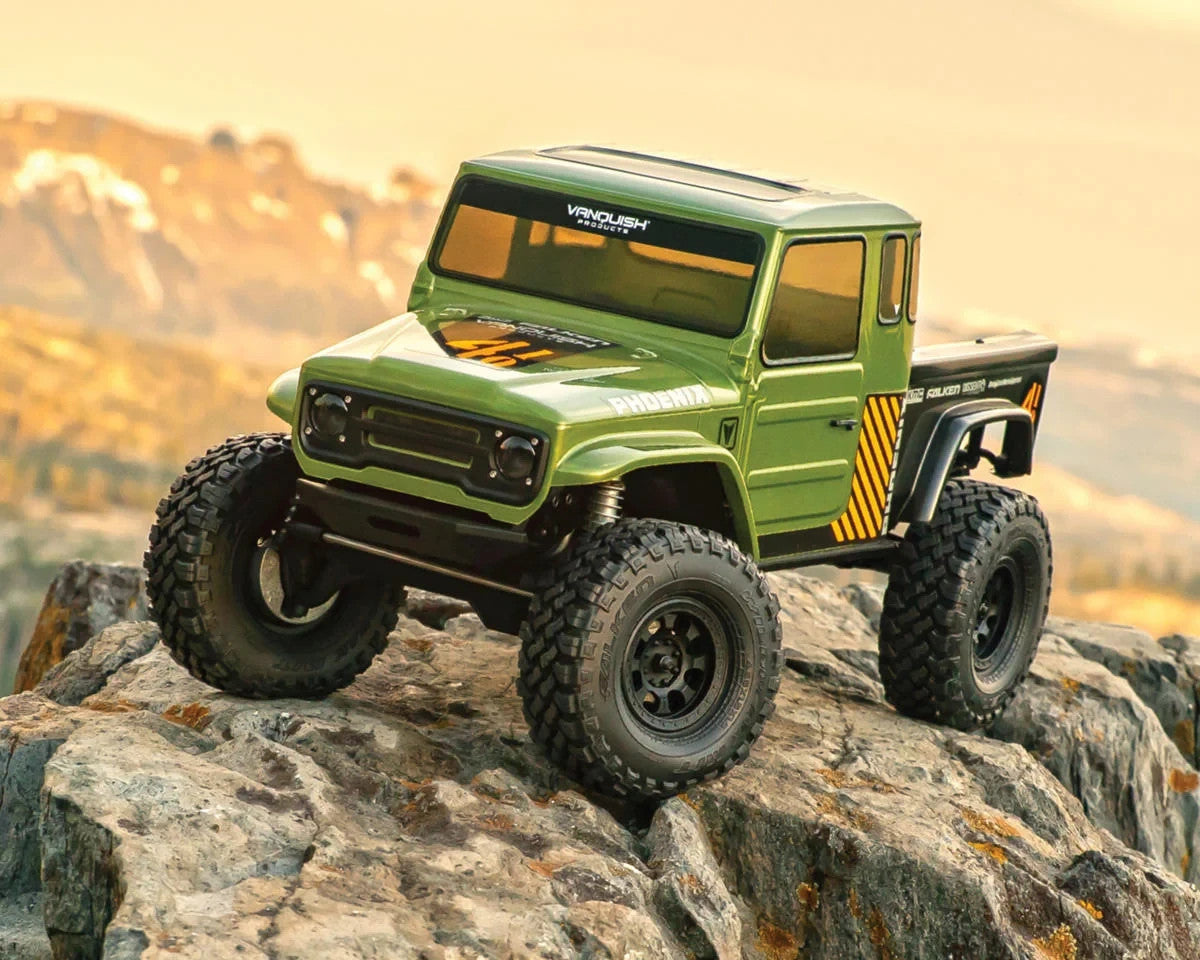

Rugged Body & Scale Details

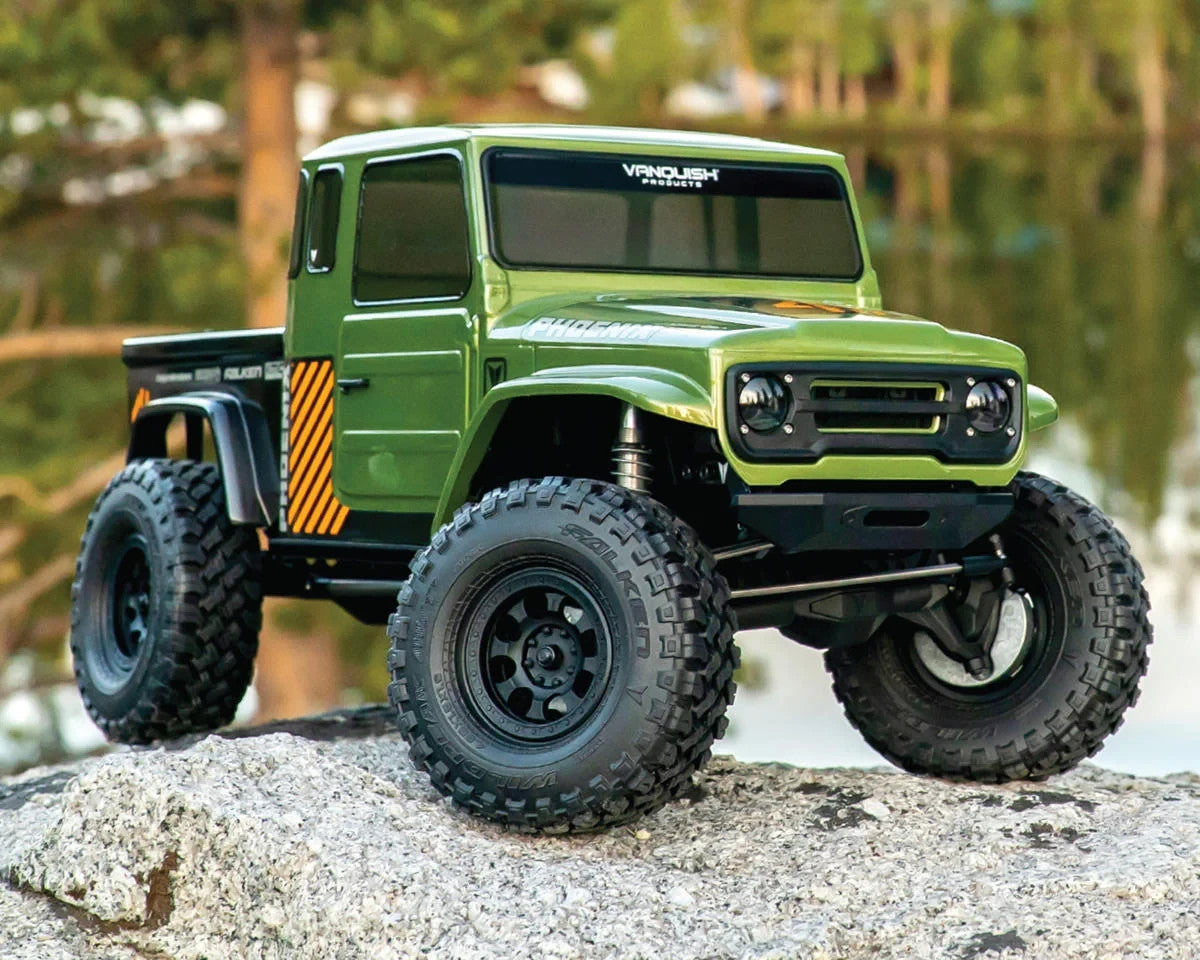

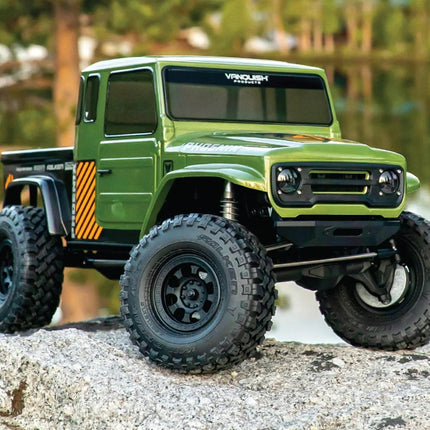

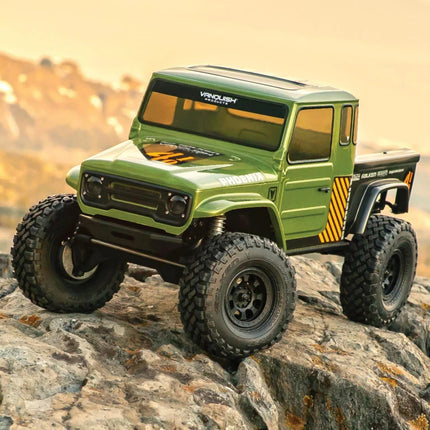

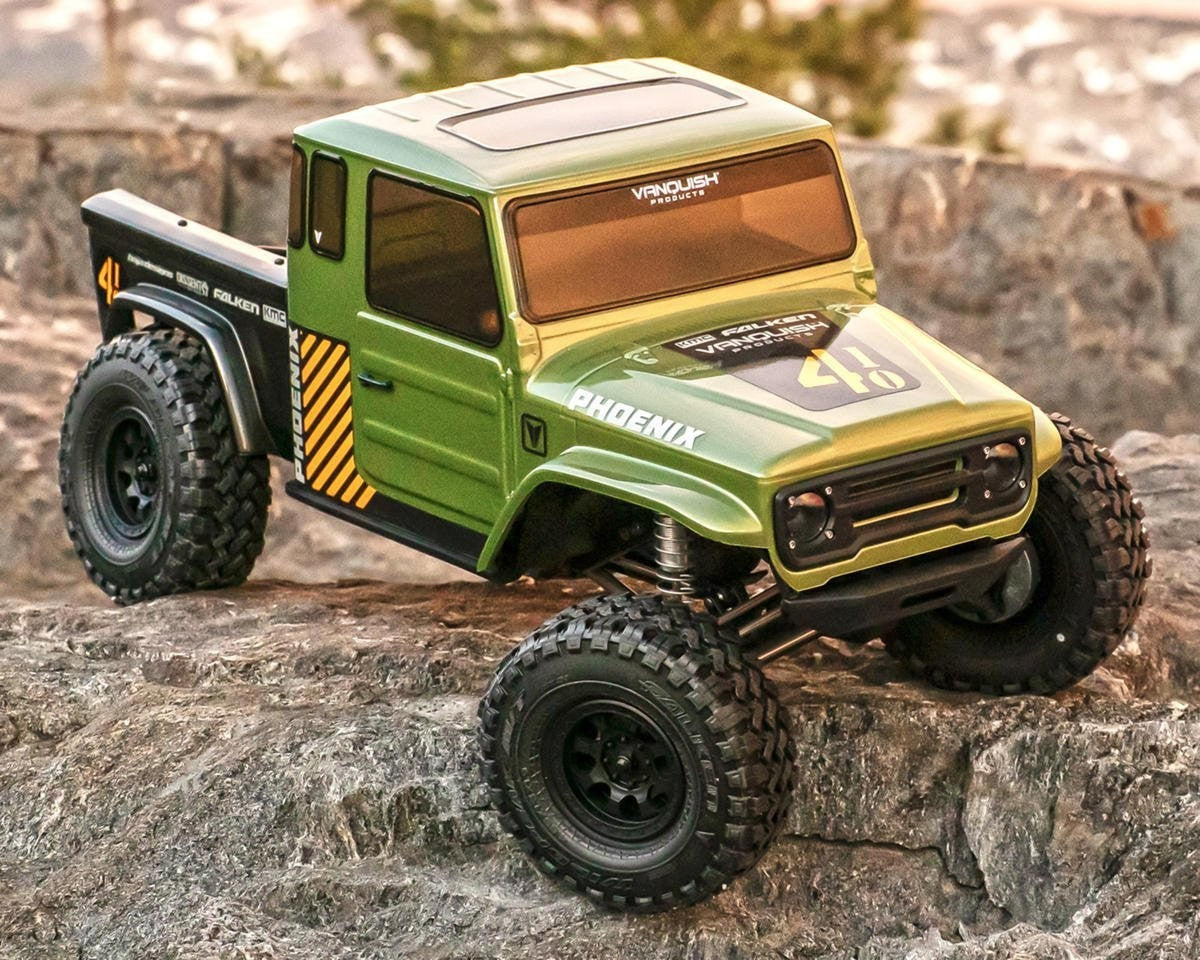

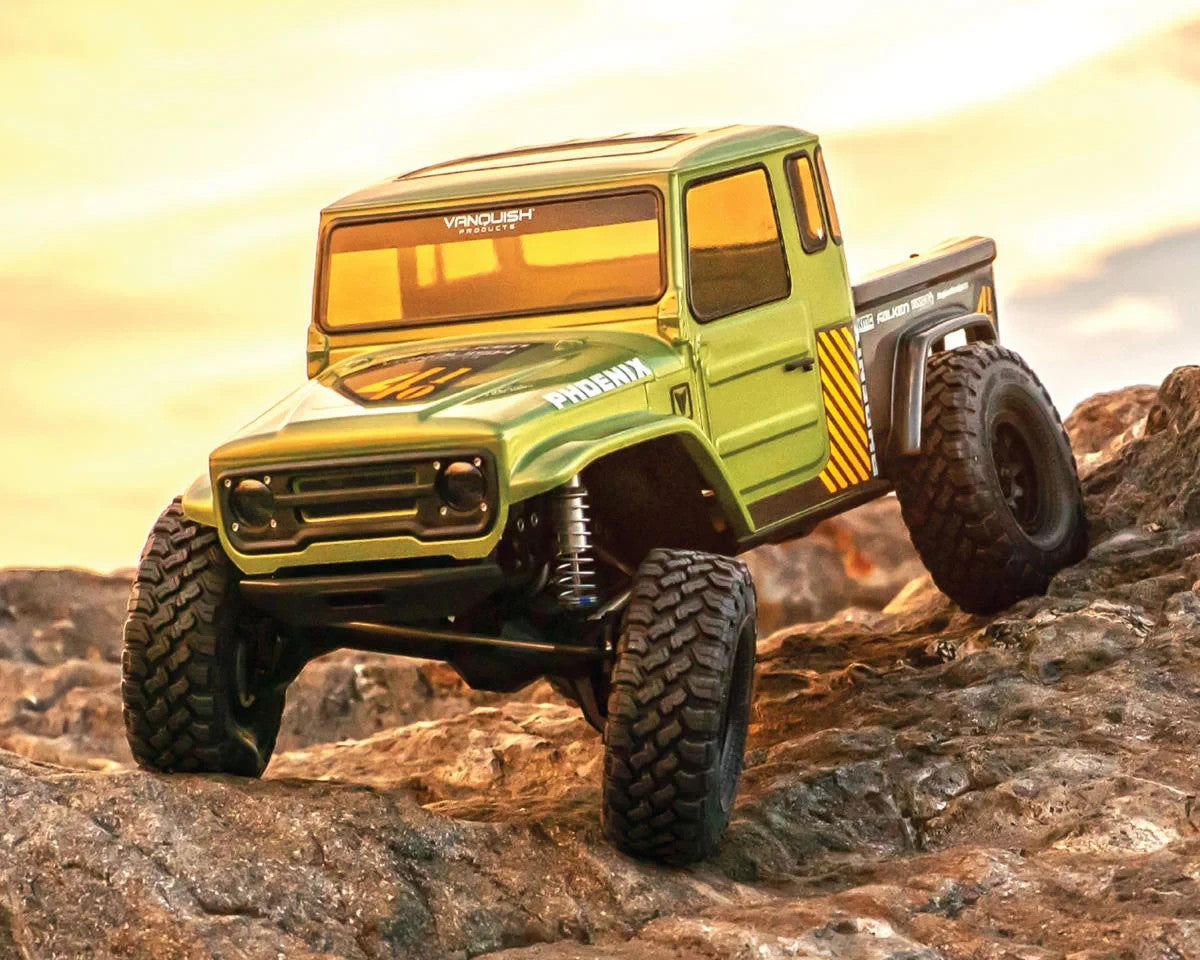

The Phoenix features a bold pre-painted body with a VRD1 rear cage, painted cab and bedsides, and a three-piece design with scale details like molded grill, headlight and tail light buckets, and hidden body clips. A hinged mounting system with a quick-release front pivot pin makes body access simple and clean. The molded rock sliders and high-clearance bumpers not only look great but improve approach and departure angles for serious crawling. Underneath, the 1.9 Falken Wildpeak M/T tires provide excellent grip in a variety of terrain, while the Incision KMC KM237 Hex Beadlock wheels offer scale realism and secure tire mounting for consistent performance.

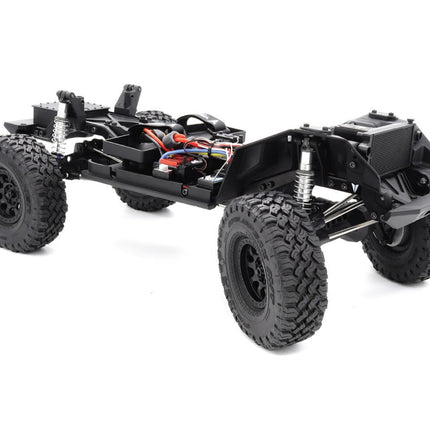

Transmission & Suspension

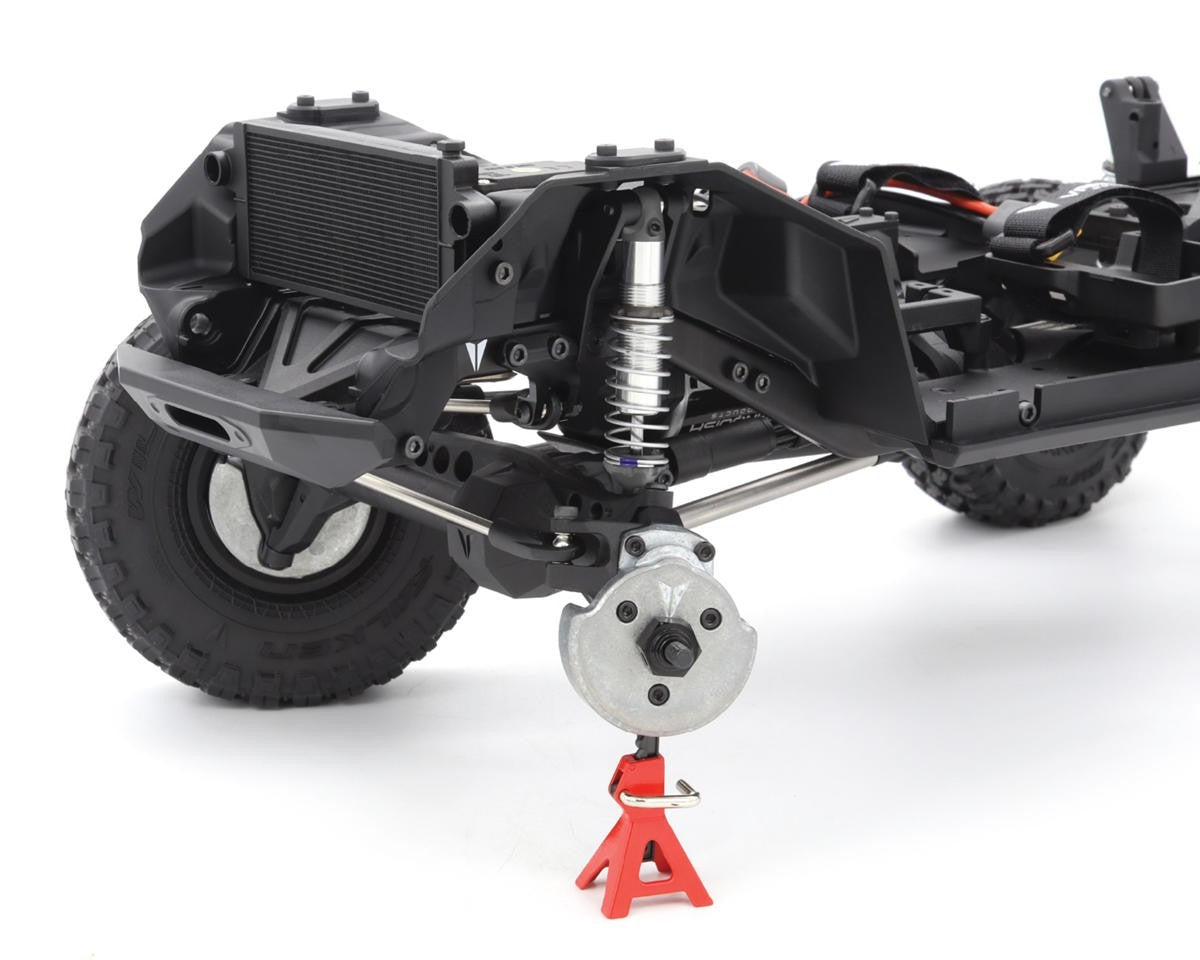

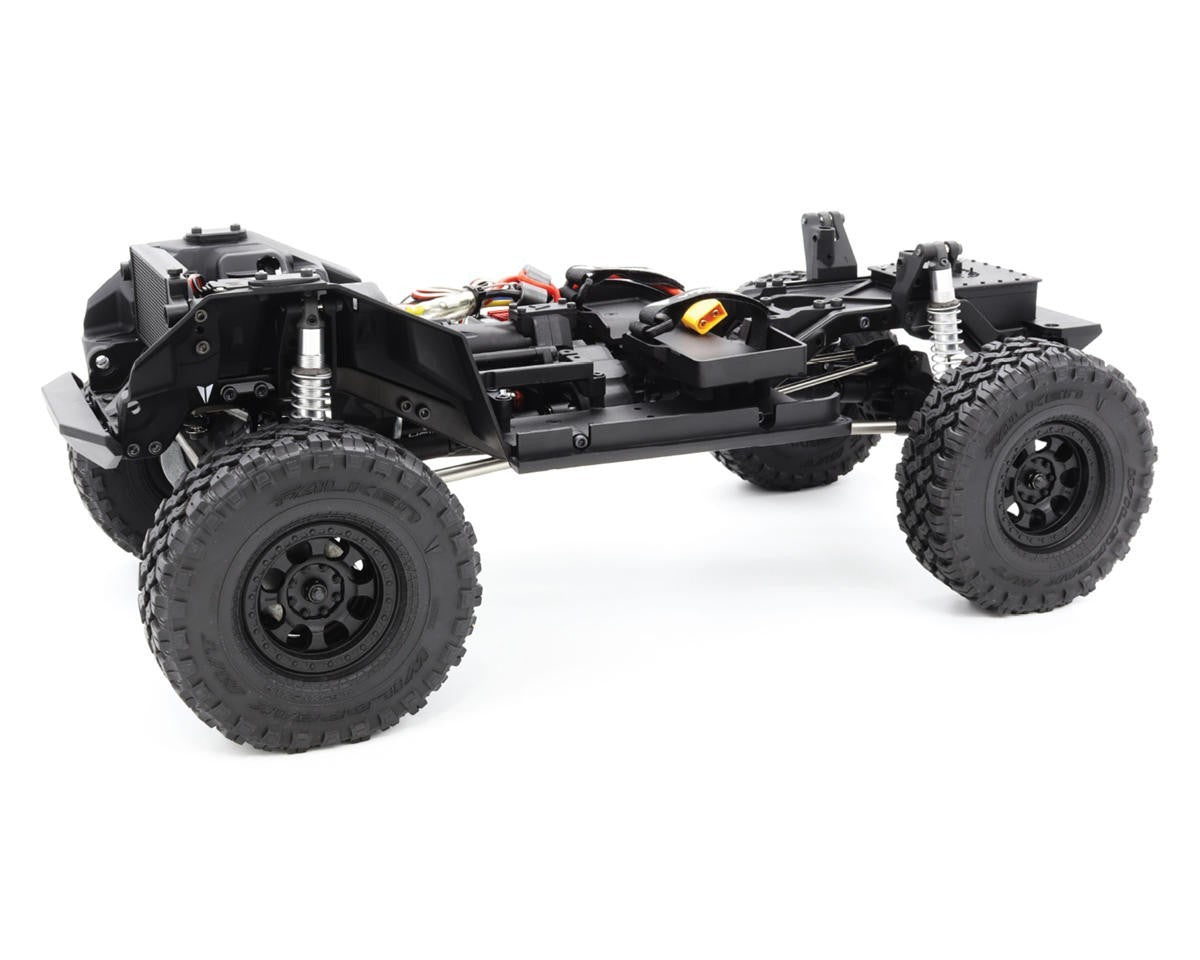

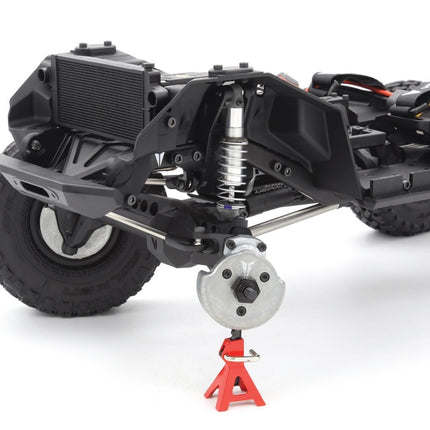

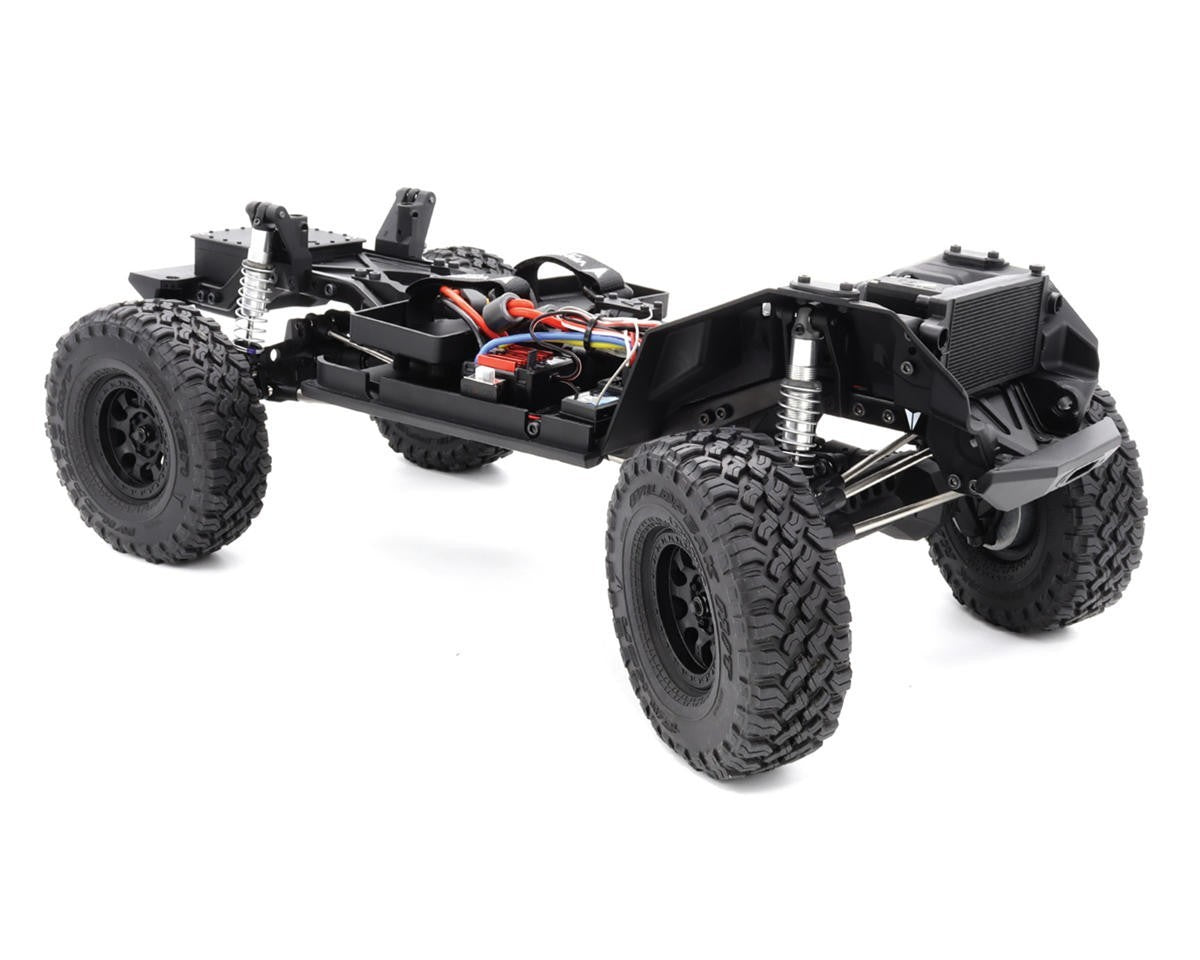

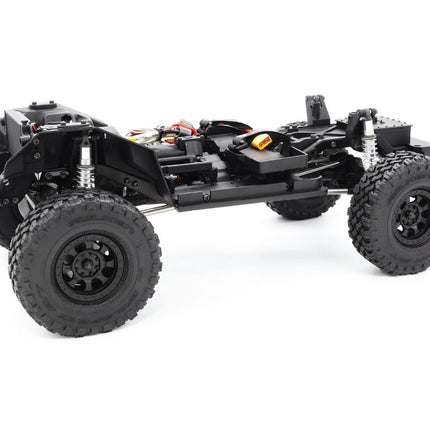

At the heart of the Phoenix's drivetrain is the VFD Spec transmission, which includes 6.5% overdrive for better climbing and tighter turns. It places the motor low and forward for ideal weight balance and is built with wide metal gears for long-lasting strength. The molded F10 Portal Axles include chromoly universal axle shafts with forty-nine degrees of steering, brass reinforcement tubes for added strength and low center-of-gravity weight, and machined gears throughout. The ISD10 driveshafts connect the system with machined CV joints and molded splined shafts for smooth articulation. The eighty-millimeter S8E shocks with dual O-ring cartridges and sealed upper bleeder screws provide consistent dampening, while the stainless steel suspension links and machined aluminum panhard mount ensure trail-ready durability.
Features:
- 6.5% overdrive built into the VFD Spec transmission
- Forward-mounted motor for improved weight distribution
- Chromoly universal axle shafts with 49° steering angle
- Brass inner axle tube reinforcements for added strength and low center of gravity
- Full metal internal transmission gears for durability under load
- High-pinion hypoid machined gear design for improved gear mesh and clearance
- CV-style driveshaft joints for smooth articulation and reduced torque twist
- Hidden body clip system with quick-access hinged front design
- High-clearance bumpers and rock sliders to maximize obstacle clearance
- Double shear shock mounts for increased suspension strength and stability
Includes:
- (1) VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler
- (1) Pre-Installed 3S Capable VE-1 ESC w/XT60 Connector
- (1) Pre-Installed VM-1 35T Brushed Motor
- (1) Pre-Installed VS-1 Metal Gear Servo
- (1) VT-1 4-Channel Transmitter
- Product Manual
Needed To Complete:
- (1) 2-3S LiPo or 6-Cell NiMH Battery w/XT60 Connector
- (1) Compatible Battery Charger
- (4) AA Batteries for Transmitter
Specifications:
| Scale |
1:10 |
| Power Source |
2S-3S LiPo (7.4-11.1V) |
| Length |
- |
| Wheelbase |
12.32in (313mm) |
| Width |
9.84in (250mm) |
| Height |
9.84in (250mm) |
| Weight |
95.24oz (2700g) |
