High-Performance Classic Scale Truck with Updated Features
The Vanquish Products VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit brings back the iconic body style that launched the original Vanquish platform, paired with refined engineering throughout the chassis and drivetrain. Its molded inner fenders feature integrated clipless body mounts and adjustable shock positions, giving builders more tuning flexibility than ever before. With the VFD transmission positioned low and forward, and the F10 straight axles delivering dependable strength, the Origin Classic is built for confident performance on demanding terrain.
About the VS4-10 Origin Classic Kit
VFD Transmission
The VFD transmission is designed to deliver a blend of durability, scale appearance, and optimized weight distribution. By placing the motor low and forward, the drivetrain improves climbing stability and steering response, while the factory 6.5% overdrive enhances turning precision without stressing electronics. Internally, the VFD uses hardened chromoly shafts, sintered gears, and modular bearing plates that allow for optional gear ratio tuning inside the transfer case. A slipper eliminator maximizes power transfer, and the molded extended skid plate protects the motor during rough, technical driving.
F10 Straight Axles & Suspension
The molded F10 straight axles draw from Vanquish's extensive axle design experience, offering a rigid structure with an integrated truss and oversized C-hubs for long-term durability. High-pinion hypoid gears, universal-style axle shafts, and 49° of steering provide smooth, predictable handling on uneven terrain. Paired with Incision 90mm S8E Shocks featuring dual O-ring seals and polished shafts, the suspension delivers controlled articulation and consistent damping. The adjustable lower shock mounts and 3-link front suspension with panhard bar further enhance tuning capability while maintaining scale realism.

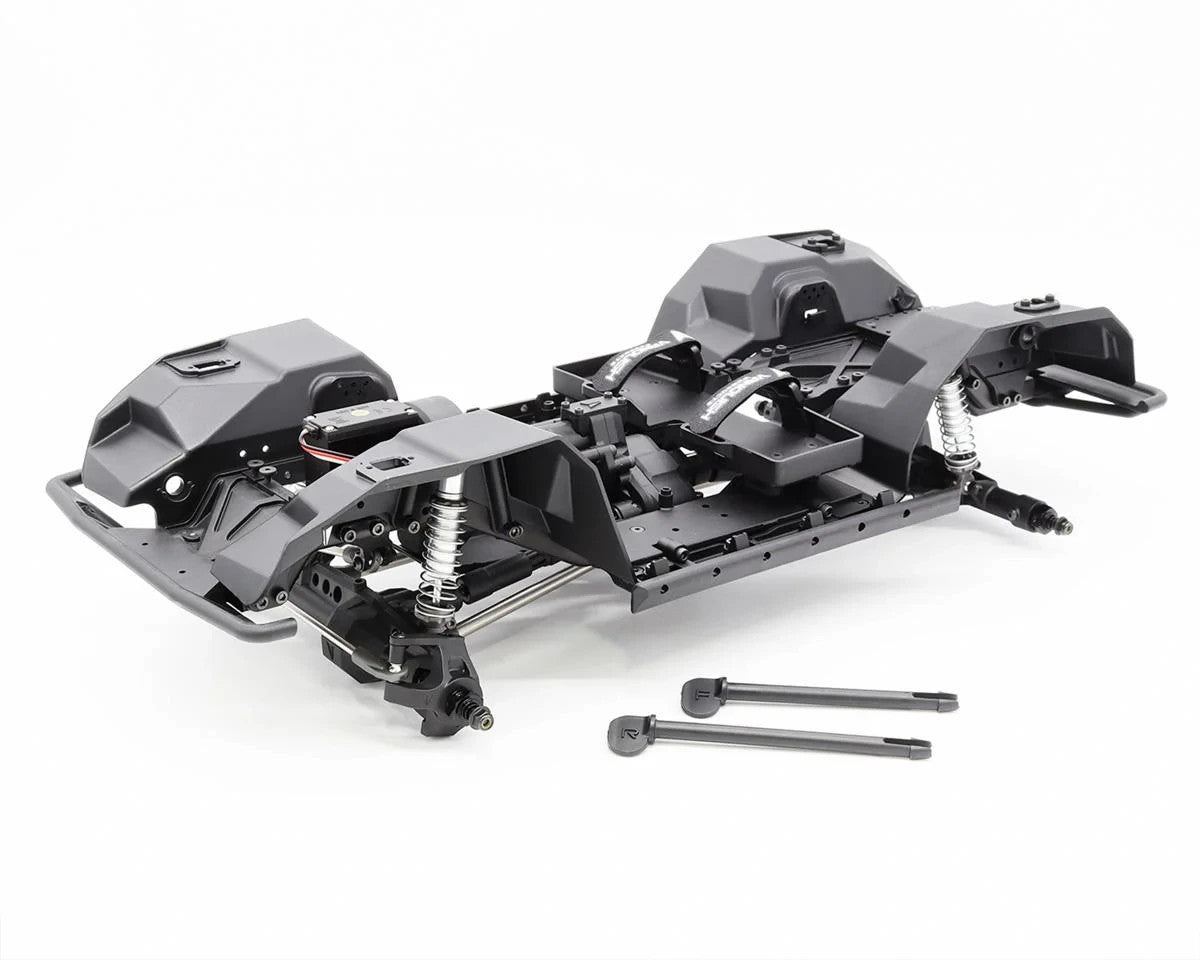

Chassis & Trail-Ready Construction
The VS4-10 chassis uses heavy-duty steel C-channel frame rails for strength and scale authenticity, reinforced by molded crossmembers in high-stress areas. Integrated mounting positions for electronics, dual servo options, and clean winch line routing make the platform adaptable for advanced builds. Molded rock sliders with replaceable outer sections protect the body, while the machined aluminum panhard mount ensures precise suspension geometry under load. The molded inner fenders double as adjustable shock towers, securely capturing the tops of the ninety-millimeter shocks for consistent performance on rugged trails.
Features:
- Low-forward motor placement for improved weight distribution
- 6.5% factory overdrive for enhanced turning and climbing
- Hardened chromoly transmission shafts
- Sintered internal transmission gears
- Molded F10 straight axles with integrated truss
- 49° of steering angle
- Incision 90mm S8E shocks with dual O-ring seals
- Heavy-duty steel C-channel frame rails
- Integrated clipless body mounting system
- Adjustable shock tower positions molded into inner fenders
Includes:
- (1) VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit with:

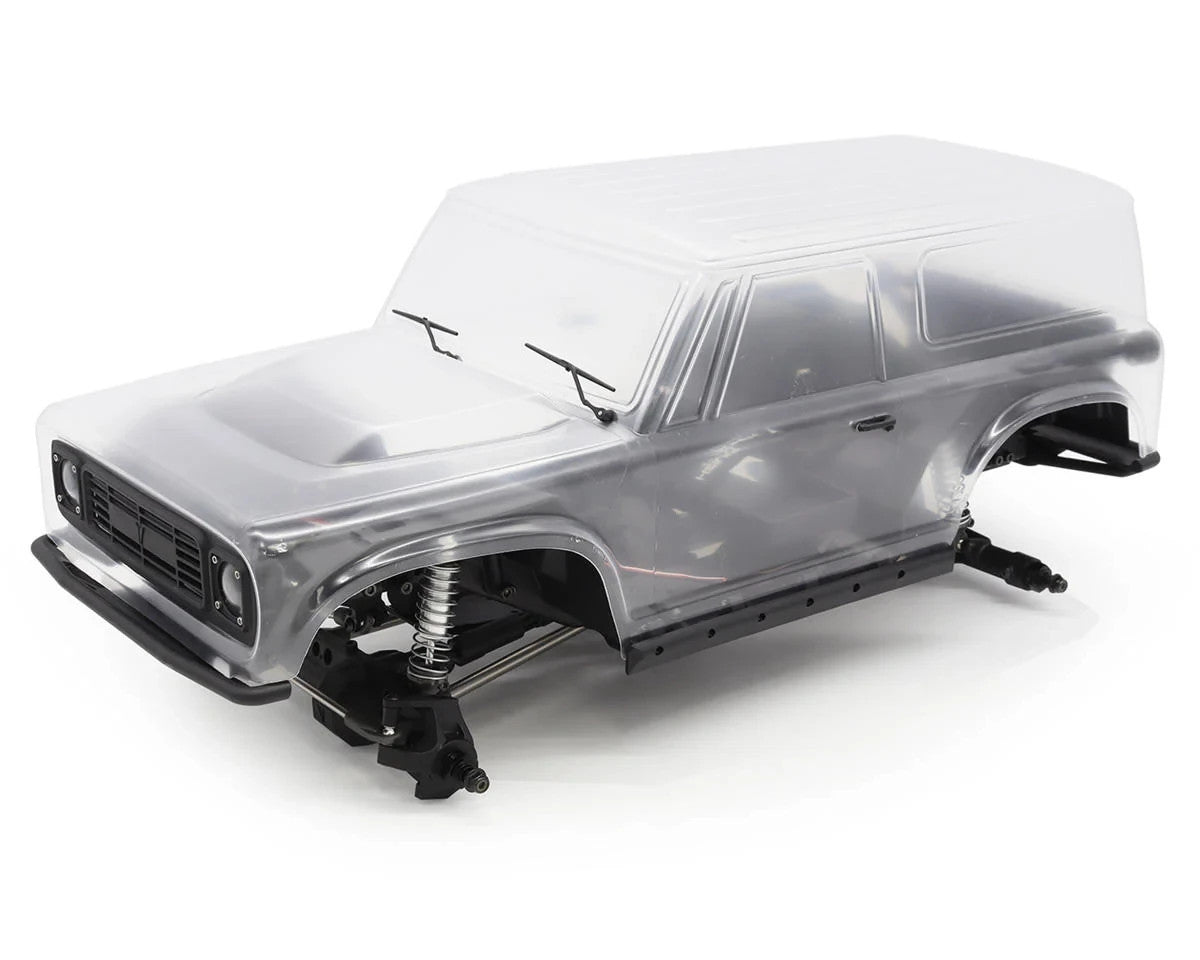

- (1) Clear Origin Classic Body
- (1) VFD Transmission Assembly
- (2) F10 Molded Axles
- (4) Incision 90mm S8E Shocks
- (4) Molded Inner Fenders and Shock Towers
- (1) Stainless Steel Links and Pivot Hardware Set
- (1) 15T 32P Pinion Gear
- (1) 52T 32P Spur Gear
- (1) 25T Servo Horn
- (1) 30wt Shock Oil Bottle
- (1) Threadlock Container
- (1) Grease Container
- Product Manual
Needed To Complete:
- (1) 2+ Channel Transmitter/Receiver System
- (1) 2-4S (7.4V - 20V) LiPo Battery
- (1) 540 Class Motor
- (1) ESC (Electronic Speed Control)
- (1) Compatible Steering Servo (25T Servo Horn Included)
- (4) 1.9x4.65" Tires
- (4) 1.9" SLW Hub Compatible Wheels (See compatible wheels here)
- (1) Compatible Battery Charger
- Paint for Body
- Assembly Tools
Specifications:
| Scale |
1:10 |
| Drive |
4WD |
| Power Source |
2-4S LiPo (7.4V-20V) |
| Length |
- |
| Wheelbase |
12.32in (313mm) |
| Width (Hex to Hex) |
7.17in (182mm) |
| Height |
- |
| Weight |
- |
| Assembly Level |
Kit* |
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
