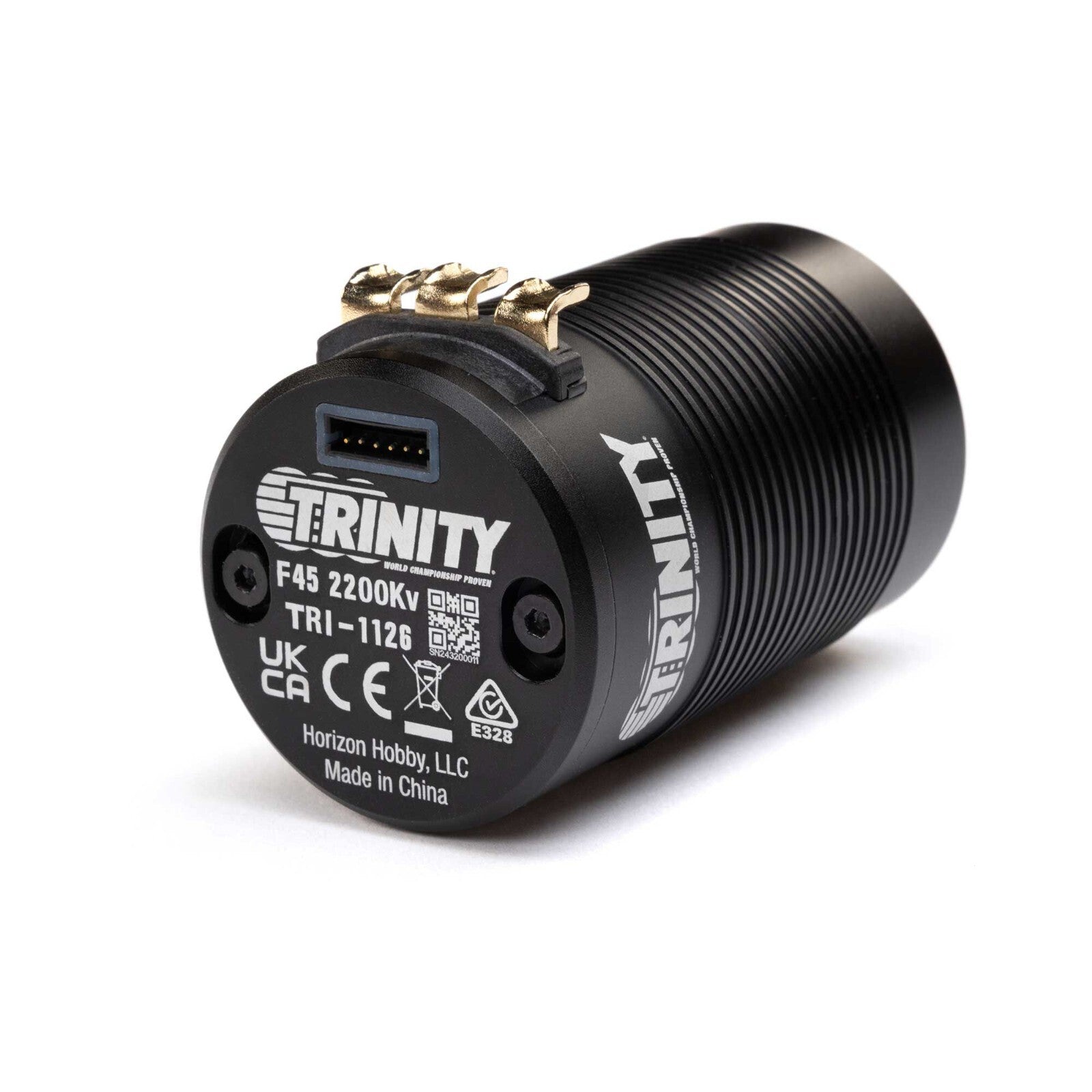

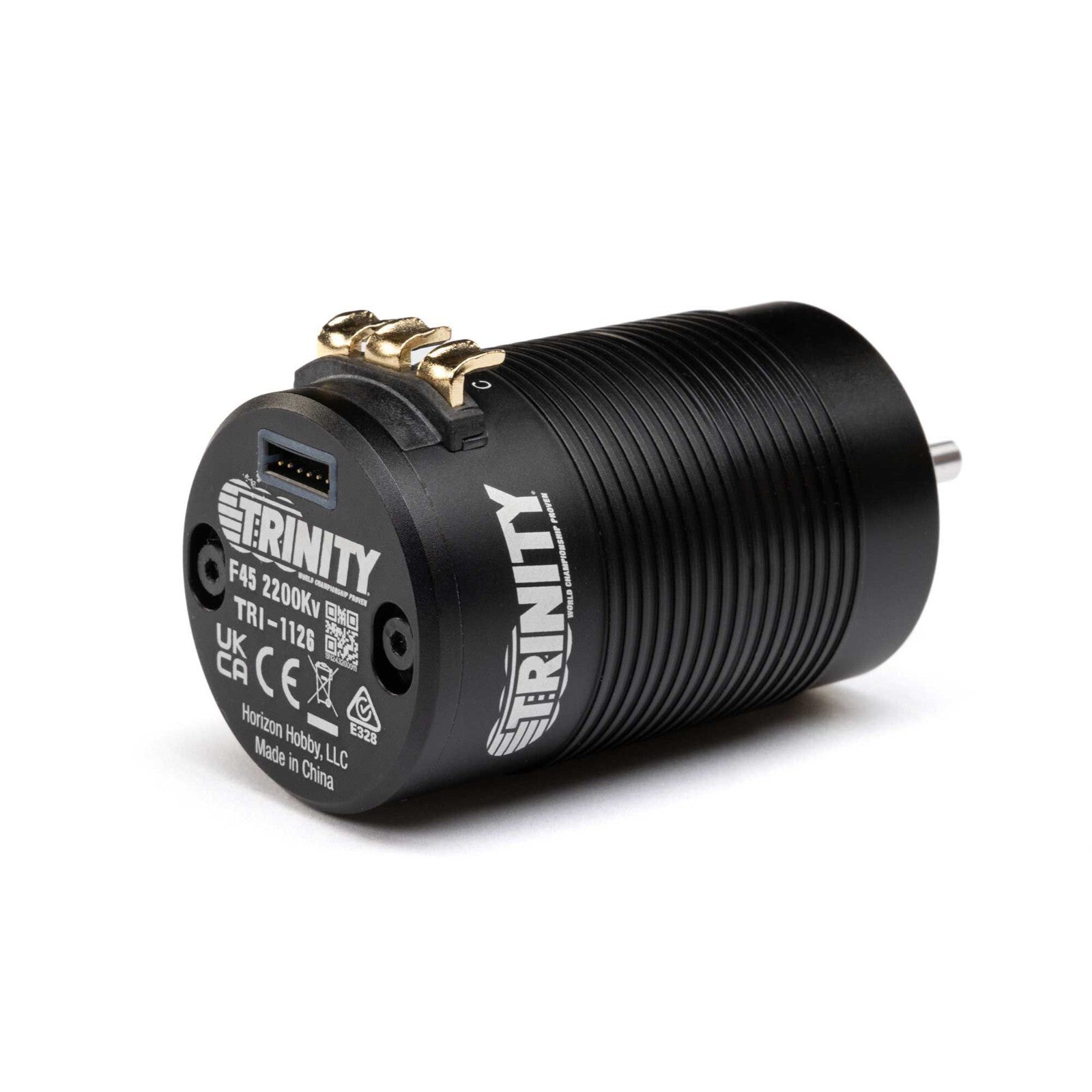

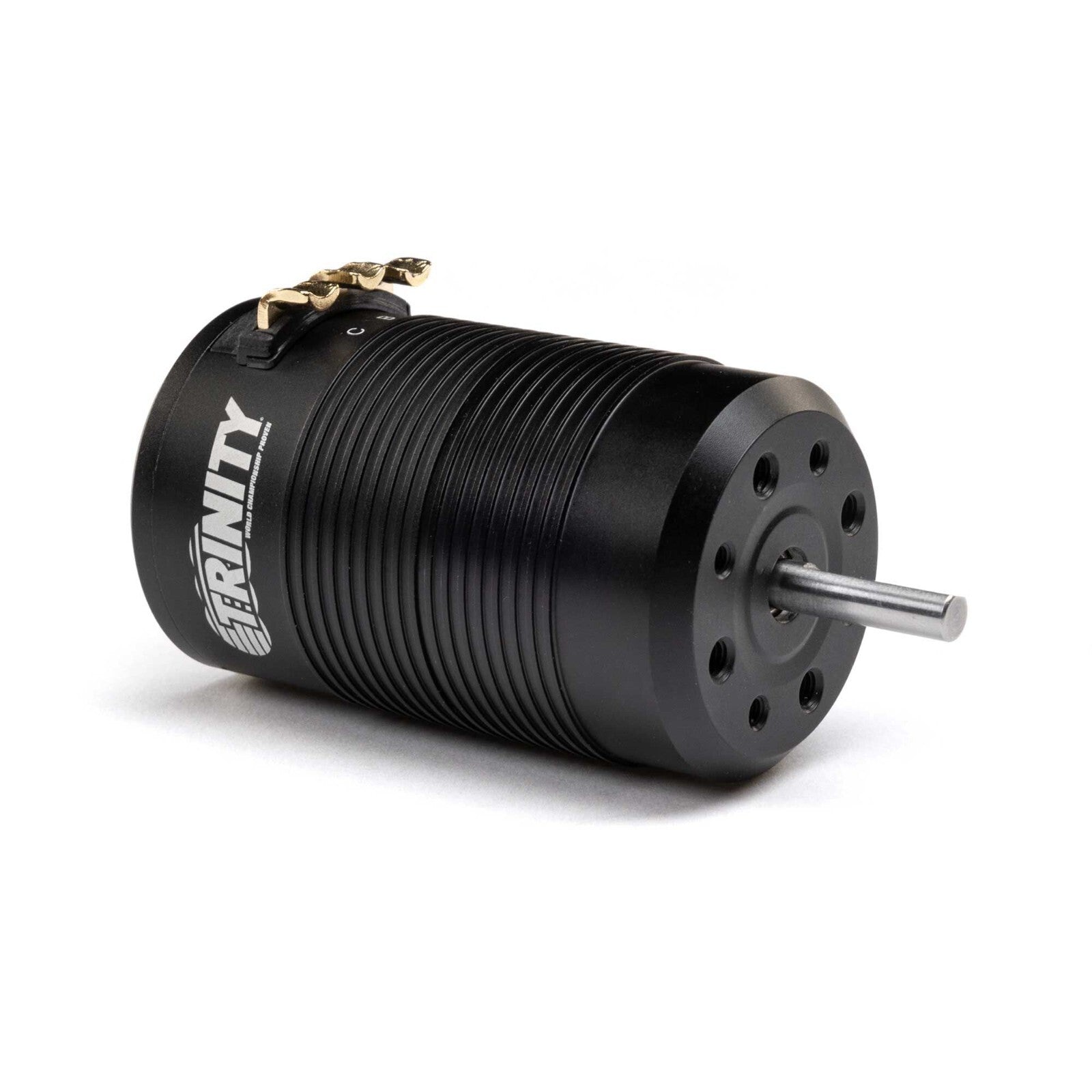

Trinity 1/8 F45 2200Kv Buggy Brushless Race Motor TRI-1126

    Description

    Trinity 1/8 F45 2200Kv Buggy Brushless Race Motor Introduction

    Trinity F45 Brushless Race Motors deliver the muscle you need to make your 1/8 scale buggy or truggy perform like a champion. With 2S-6S LiPo power compatibility, these motors produce high rpm with exceptional efficiency. These power units also offer smooth acceleration and predictable low-speed drivability due to their sensored design.

    F45 Brushless Race Motors offer a completely enclosed design, reducing your maintenance needs and giving them protection and durability to excel in demanding off-road environments. Other features include a 4-pole rotor for high torque, CNC-machined aluminum housing, insulated copper windings, steel 5mm output shaft, and smooth precision bearings.

    Specifications


    Application
    1/8 Scale Off-Road Vehicle
    Bushing Or Bearing
    Bearing
    Maximum Continuous Current
    50A
    Motor Type
    Brushless
    Number of Poles
    4
    Outer Diameter
    1.6" (41 mm)
    Power (watts)
    2400 watts
    Product Length
    2.68" (68 mm)
    Product Weight
    10.2oz (290g)
    RPM/Volt (Kv)
    2200Kv
    Shaft Diameter
    0.19" (5 mm)
    Thread Size
    4xM4 and 4xM3 @ 25.4 Spacing Center to Center
    Voltage
    2S – 6S LiPo (8.4V – 25.2V)
