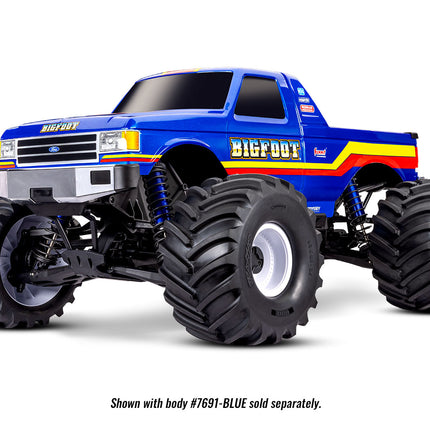

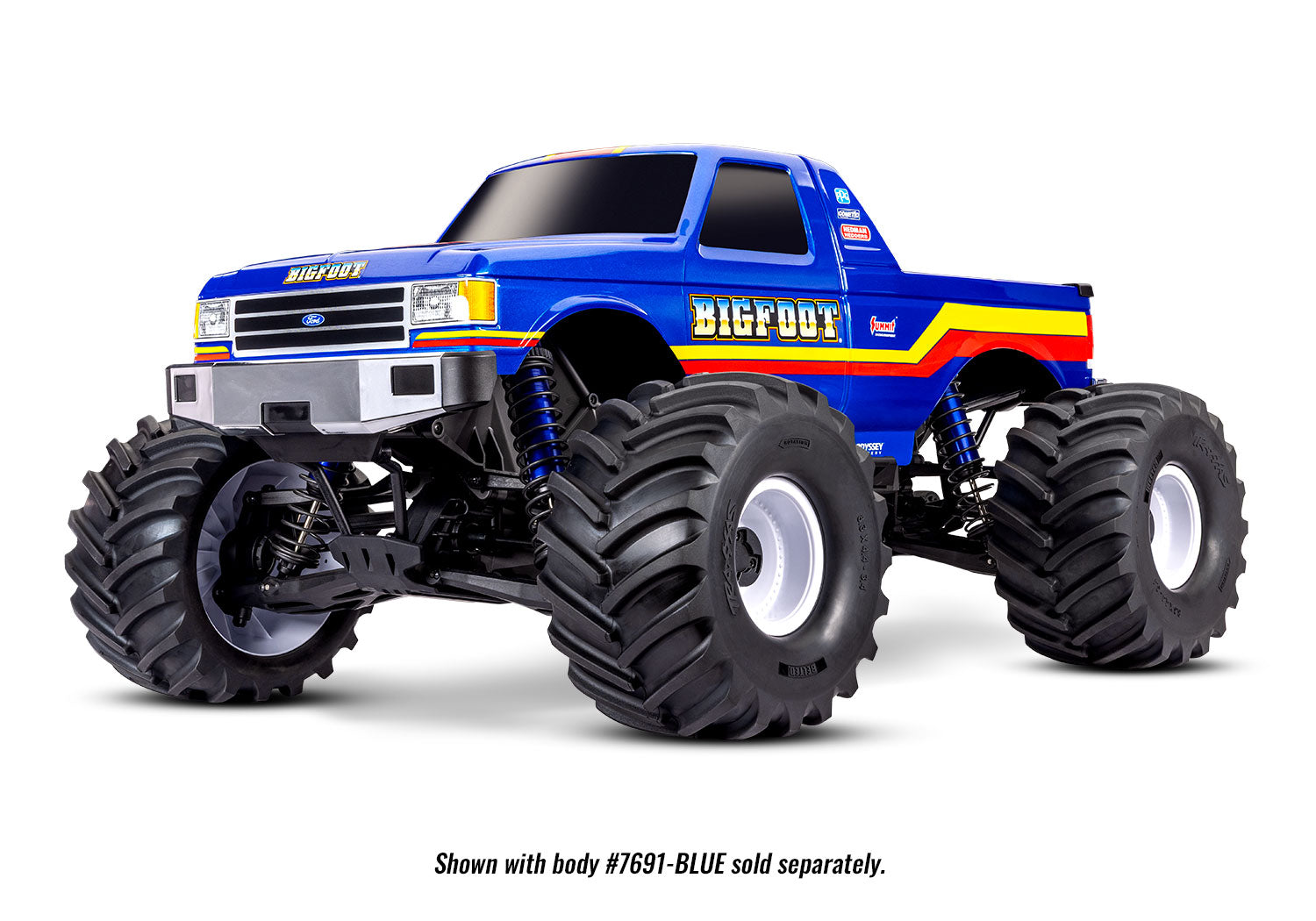

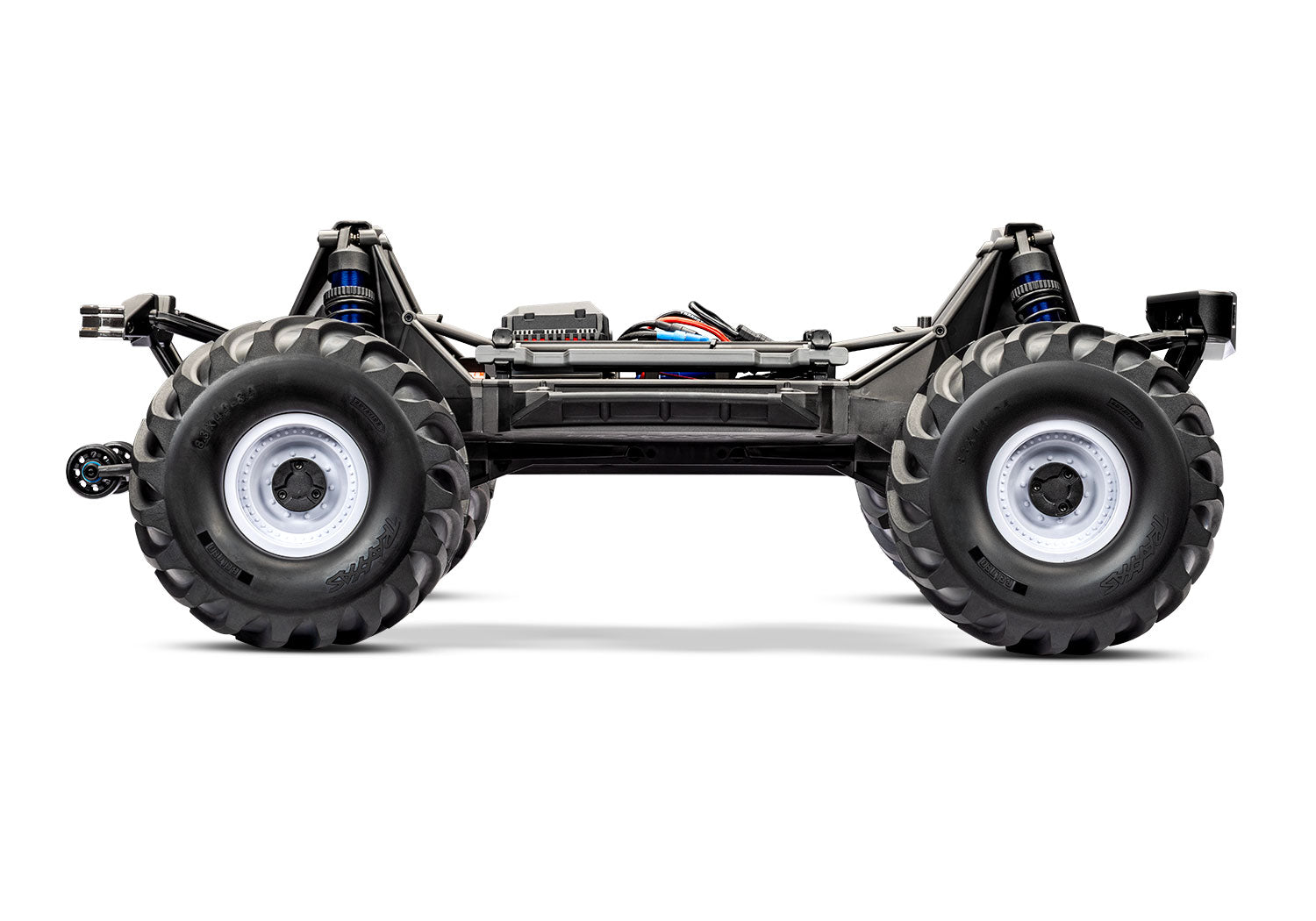

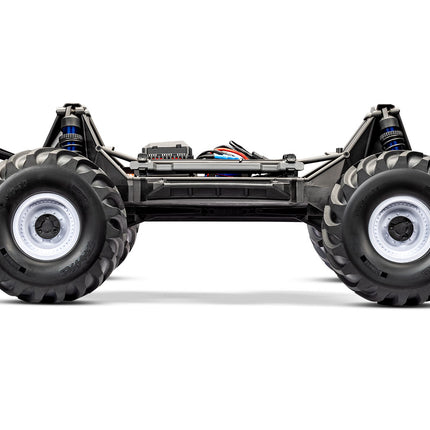

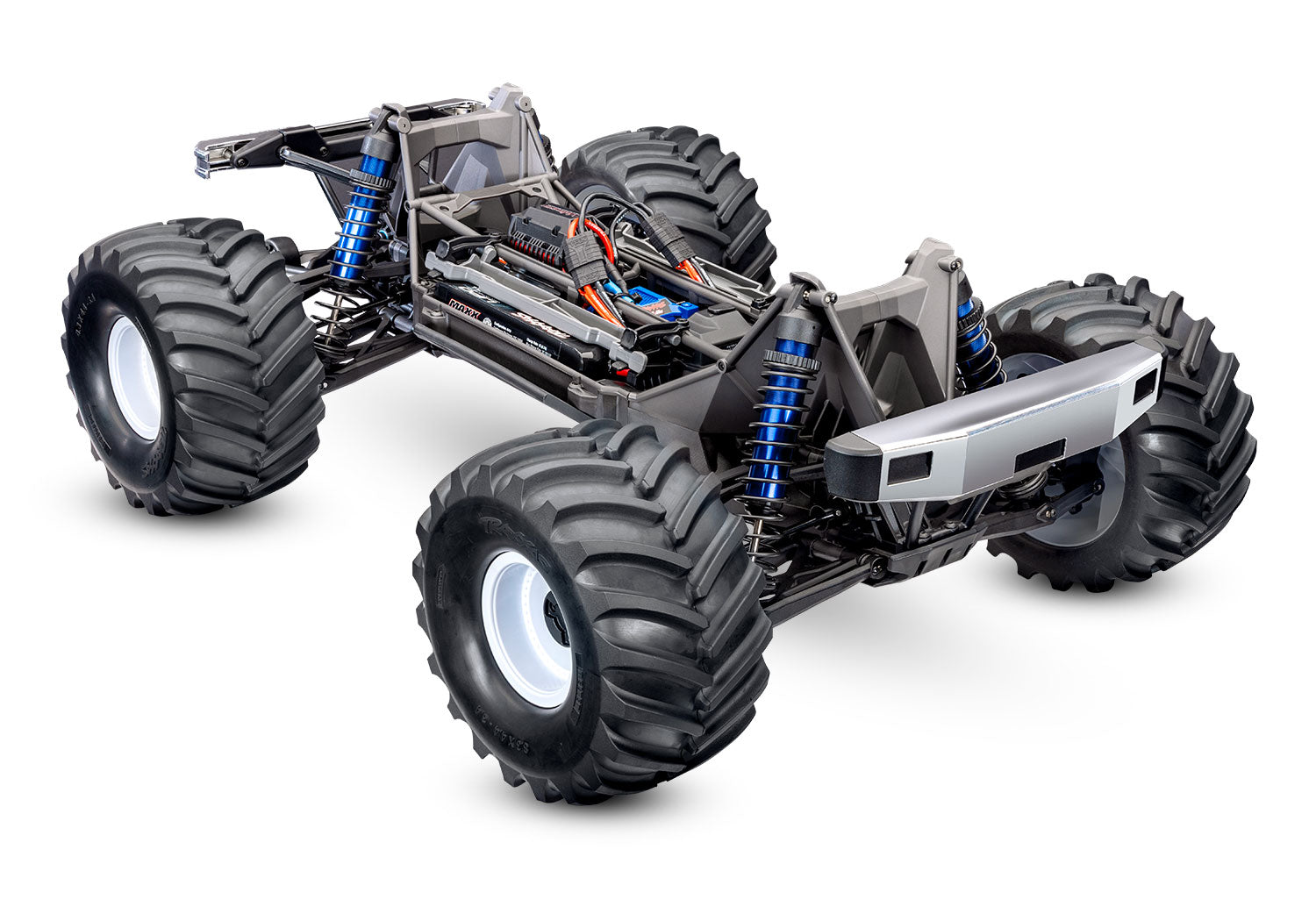

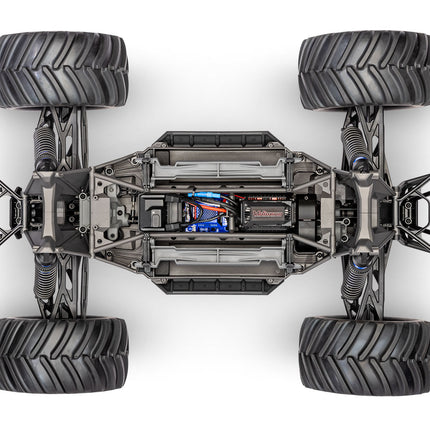

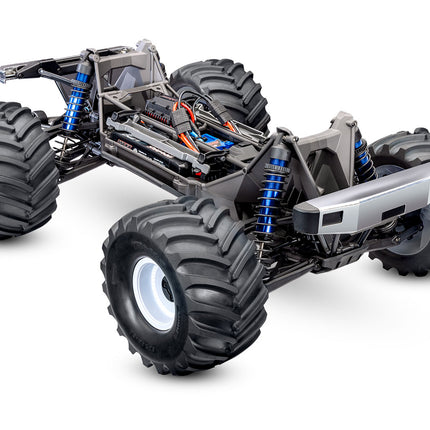

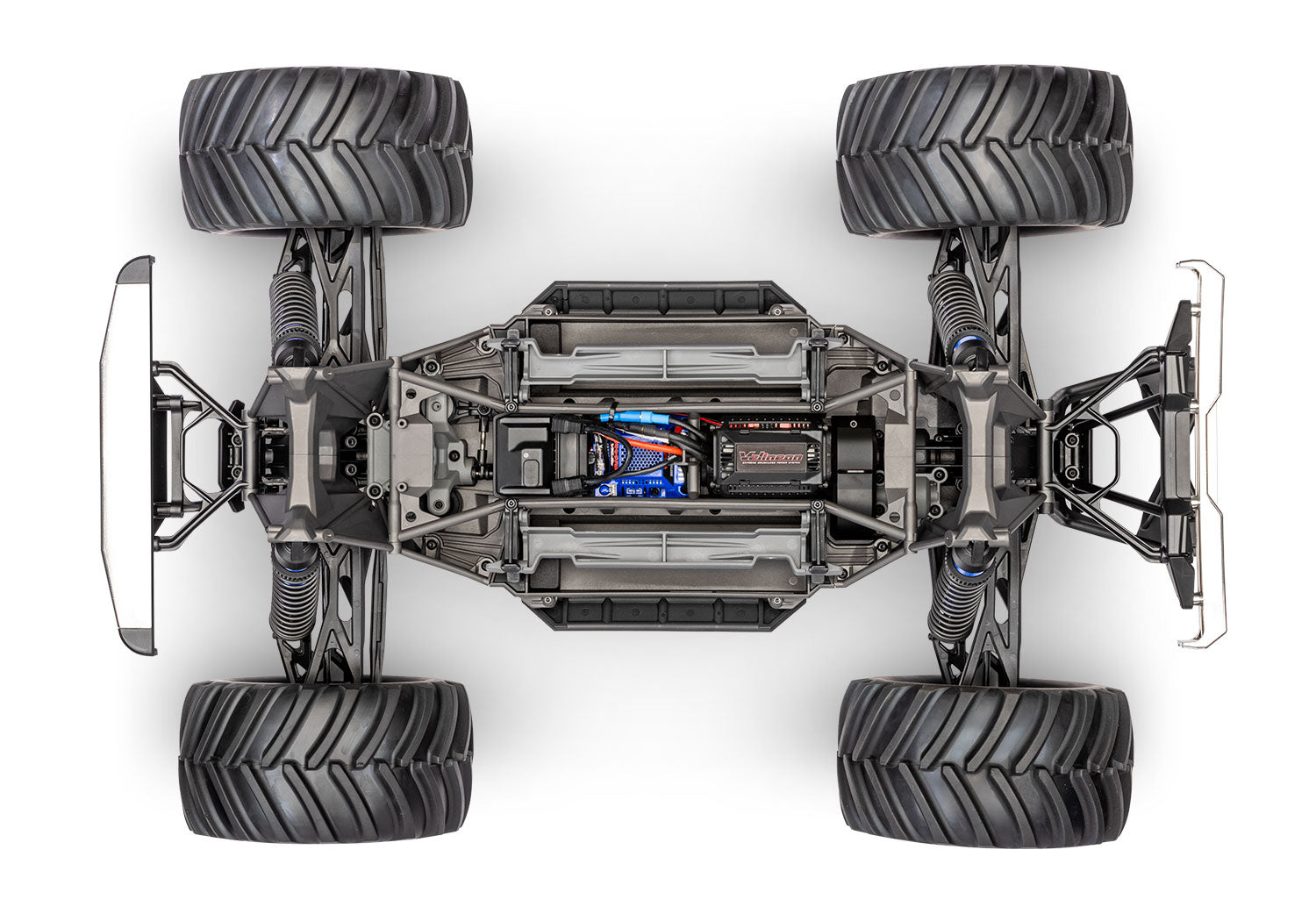

Traxxas 77036-4 X-Monster Chassis TRA77036-4

    Description

    • Choose from Several Clipless Monster Truck Bodies (sold separately)
      • Quick one-hand installation and removal
      • Pivoting rear latch mechanism
      • Eliminates body posts and clips
      • Reinforced for extra protection
    • VXL-8s™ Waterproof Electronic Speed Control
      • 8s LiPo compatible
      • Built-in cooling fan
      • Machined heat sinks
      • 10-gauge silicone wire
      • Integrated protection circuits
      • LED status lights
    • Velineon® 1200XL Brushless Motor
      • 4-pole 1275 Kv
      • 5 mm output shaft
      • Aluminum slip-on heat sink
      • Dual motor cooling fans
    • 50+ mph with Two 4s LiPo Batteries and Included Optional Pinion Gear
    • Traxxas Stability Management® (TSM)
      • Helps prevents spinouts and loss of control
      • Adjusts from off to 100% assistance from the transmitter
    • TQi™ 2.4 GHz High Output Radio System
      • Traxxas Link™ enabled
      • 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
      • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
      • Multi-Function knob
      • Adjustable steering and throttle percentage (dual rates)
      • Adjustable steering and throttle sensitivity
      • BEC Voltage and Motor Temperature Sensor installed
    • 8s Driveline
      • Machined, hardened steel pinion and spur gear
      • Full-time shaft-driven 4-wheel drive
      • Heavy-duty steel CV driveshafts with laser etching
      • Beefed-up steel differential output cups
      • Splined aluminum center driveshaft
      • Machined aluminum stub axles
      • Torque-Biasing Center Drive™ absorbs shocks and distributes power to all four wheels
      • 24 mm splined wheel hexes
      • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Fixed Motor Mounting System
      • Rigid aluminum motor mounts
      • Preset gear mesh adjustments
      • No manual adjustments required
      • Motor retention separate from gear mesh
    • Heavy-Duty Modular Composite Chassis
      • Interlocking front and rear bulkheads
      • Motor mounts to rear bulkhead to eliminate gear crunching flex
      • Easy to service and access components
      • Driveline is sealed in the chassis to keep out dirt and grit
    • Snap-Lock Battery Retention System
      • No body clips or hook and loop straps
      • Battery hold-downs pivot for easy access
      • Adjustable for battery size
      • More secure than conventional retention systems
      • Integrated into chassis top brace for improved battery tray and chassis stiffness
    • Bumpers & Skid Plates
      • Front energy absorbing rubber impact cushion
      • Lower front and rear skids for impact and abrasion resistance
      • Integrated nerf bars for side impact resistance
    • Steering
      • 2085XL high-output metal-gear steering servo
        • 450 oz-in torque
        • Aluminum cooling fins
      • Fully-supported case mounting
      • Double-shear, bearing supported servo horn
    • Suspension
      • Heavy-duty suspension arms with double-shear connections
      • High strength steel suspension pins used throughout
      • Captured outer lower suspension pins with locknuts
      • C-hub and steering block geometry maximizes steering angle
      • Adjustable roll center
      • Steel upper and lower tie bars
      • Full contact sealed bearings used in exposed locations
    • Aluminum GTX™ Shocks
      • Machined aluminum threaded body
      • Extra-large bore and capacity
      • 5.2 mm damper shaft
      • Lower seal cartridge includes integrated wiper seal combination
      • Adjustable upper spring retainer
      • Plastic shock caps with pivot balls
      • Fixed shock locations
      • Lower spring perches bolted on
    • Wheels & Tires
      • Dual-profile white monster truck wheels
        • Replica military-style axle hubs
      • Huge 8.6" belted chevron-pattern monster truck tires
        • Super-soft rubber compound for exceptional grip
        • Internal belting virtually eliminates ballooning
    Product form

    SKU: 77036-4-WB
    Barcode: 020334074232

    Free pickup in our shop(s)

    Be quick! Only 1 products left in stock!

    1 in stock Ships within 24hr of Purchase

    $999.95

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on orders over $150
      Pay whenever you want

      Easily pay within 30 days after you have received your package.
      Read more
