Description

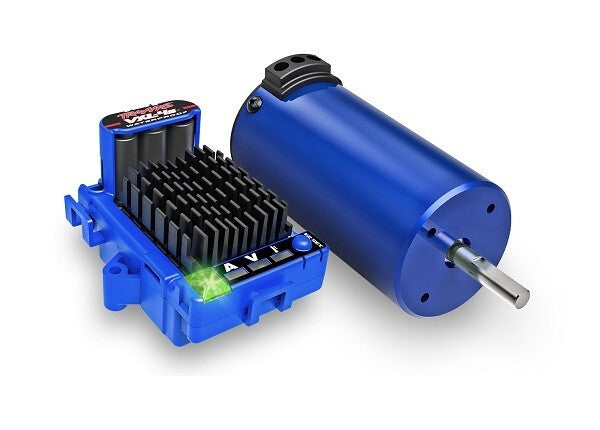

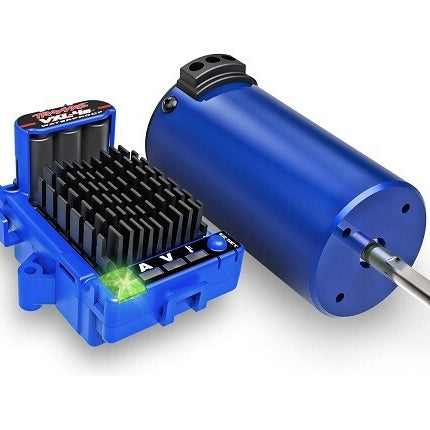

The Velineon® 4s brushless power system takes your RC experience to the extreme with the monstrous torque of the Velineon 540XL brushless motor and innovative VXL-4s™ ESC. New High-Resolution Linear Braking provides the most intuitive and precise braking ever offered by Traxxas. Outfitted with built-in telemetry and a selectable 6.0 or 7.4-volt BEC, the VXL-4s transforms 14.8 volts of LiPo power into staggering performance. An extra large heat sink allows the ESC to run cooler for extended run times.
|
|
|
- VXL-4s Electronic Speed Control
- 2s–4s LiPo compatible
- Real-time telemetry via Traxxas Link™
- Selectable 7.4-volt high-voltage BEC
- High-Resolution Linear Braking
- More precise than conventional systems
- Superior brake modulation on the track
- Large heat sink accepts accessory cooling fan (3340)
- Three programmable drive profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse
- Traxxas EZ-Set® one-button setup
- Integrated protection circuits
- LED status lights
- Velineon 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 Kv
- 5 mm output shaft
- Low-maintenance design
|
|
| |
The Velineon VXL-4s features a high-voltage BEC with a 6.0 volt setting for standard servos and powerful 7.4 volt setting for high-performance servos like the Traxxas 2280, 2255, and 2250. Powerful brushless servos like the High-Torque 600 gain over 20% more torque at 7.4 volts with faster transit times. Selecting a voltage is quick and easy using the Traxxas Link app.
Velineon VXL-4s High-Resolution Linear Braking is a patent-pending Traxxas innovation that delivers next-level smoothness and precision. The High-Resolution communication loop allows instant response to the driver’s input for powerful and intuitive linear braking feel. From feather touch speed correction to full-power late braking to overtake on the inside line of a corner, the driver stays fully connected and in control for a competitive edge on the track. The optional Traxxas Link app adds easy control over brake force to tune for different needs and conditions.
|
|
|
Direct Bolt-In Installation for These Models
- Raptor R™
- Rustler® 4X4
- Stampede® 4X4 (Only 3445 ESC required)
Requires 9030 receiver box
Recommended Upgrades
- Extreme Heavy-Duty Upgrade Kit (9080)
- Center differential (6780, 6780A, 6780R)
- Battery expansion kit
- Spring and suspension tuning for additional weight
- New 5 mm pinion and spur gears to compensate for lower motor kV rating
- Recommend 6-7 tooth increase on pinion gear
|
|
| |
|
| Input Voltage: |
|
2s-4s LiPo (7.4 V - 16.8 V) |
| Case Size: |
|
2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm) |
| Weight: |
|
4.20 ounces (119 g) |
| BEC Voltage: |
|
Selectable 6.0 or 7.4 volts |
| Motor Connectors: |
|
Traxxas 6.5 mm bullet connectors |
| Battery Connectors: |
|
Traxxas High-Current Connectors |
| Thermal Protection: |
|
Two-stage thermal shutdown |
| Ports: |
|
RX input, auxiliary fan connector |
|
|
| Motor Type: |
|
2400 Kv sensorless brushless |
| Weight: |
|
11.18 ounces (317 g) |
| Length: |
|
3.58 inches (91 mm) |
| Diameter: |
|
1.41 inches (36 mm) |
| Connector Type: |
|
6.5 mm bullet connectors |
|
