Description
The Traxxas Telemetry 2.0 Expander & 2.0 GPS Module Combo requires the TQi radio system with Wireless Module (TRA6511), TSM receiver (TRA6533), Apple device running iOS 4.3 or higher, or Android-equipped device with Android 4.4 and higher, and the Traxxas Link App (latest version available free on Google Play and the App Store)
Expanded Innovation

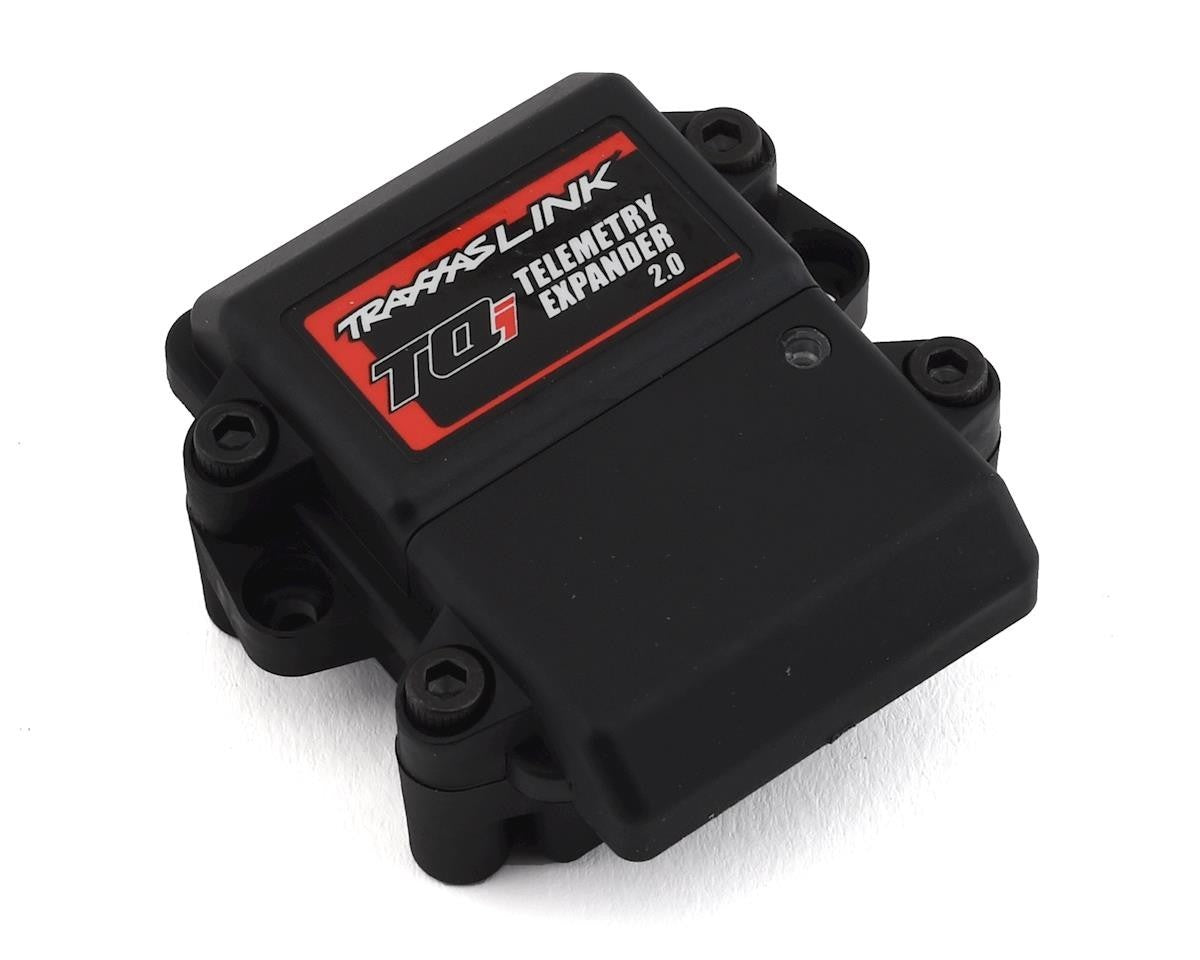

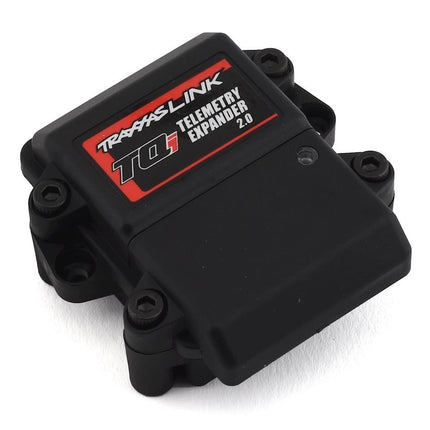

The TQi Telemetry Expander 2.0 (TRA6550X) changes the game by allowing you to monitor and record real-time data from your vehicle while you drive. The Telemetry Expander accepts up to six auto-detectable sensors in addition to the three standard Traxxas sensors. There are currently three auto-detectable sensors to select from: voltage, temperature, and GPS. The Traxxas Link application automatically recognizes sensors, so setup takes only a few moments! Advanced communication bus technology allows you to connect the telemetry expander to your TSM receiver or to your High-Voltage Power Amplifier, or directly to the VXL-6s and VXL-8s electronic speed controls with optional data cables. Install the Telemetry Expander, choose your sensors, and prepare for an all-new RC driving experience!
Upgrade Your Traxxas Model with the TQi Telemetry GPS Speed Module 2.0!
Standard telemetry sensors use your vehicle’s gear ratio and tire size to calculate speed based on RPM. This system works well for hard surfaces, but wheelspin on loose surfaces causes inaccurate speed readings. The Telemetry Expander 2.0 with the installed GPS Module 2.0 provides the most accurate speed data possible. The Traxxas GPS Module 2.0 uses both GPS and GLONASS global positioning to deliver precise, real-time speed information via the Traxxas Link App on your TQi Radio System with Traxxas Link Wireless Module.
The GPS Module 2.0 installs easily inside the waterproof Telemetry Expander Module 2.0. The Traxxas Link App automatically recognizes the sensor with no other programming or setup required! Once the GPS module is installed, the speedometer reverts to GPS speed instead of estimating the MPH based on gearing and motor RPM. Nothing needs to be reset; just select your preferred gauge and start receiving accurate speed data through the Traxxas Link App.
Features:
- Telemetry Expander

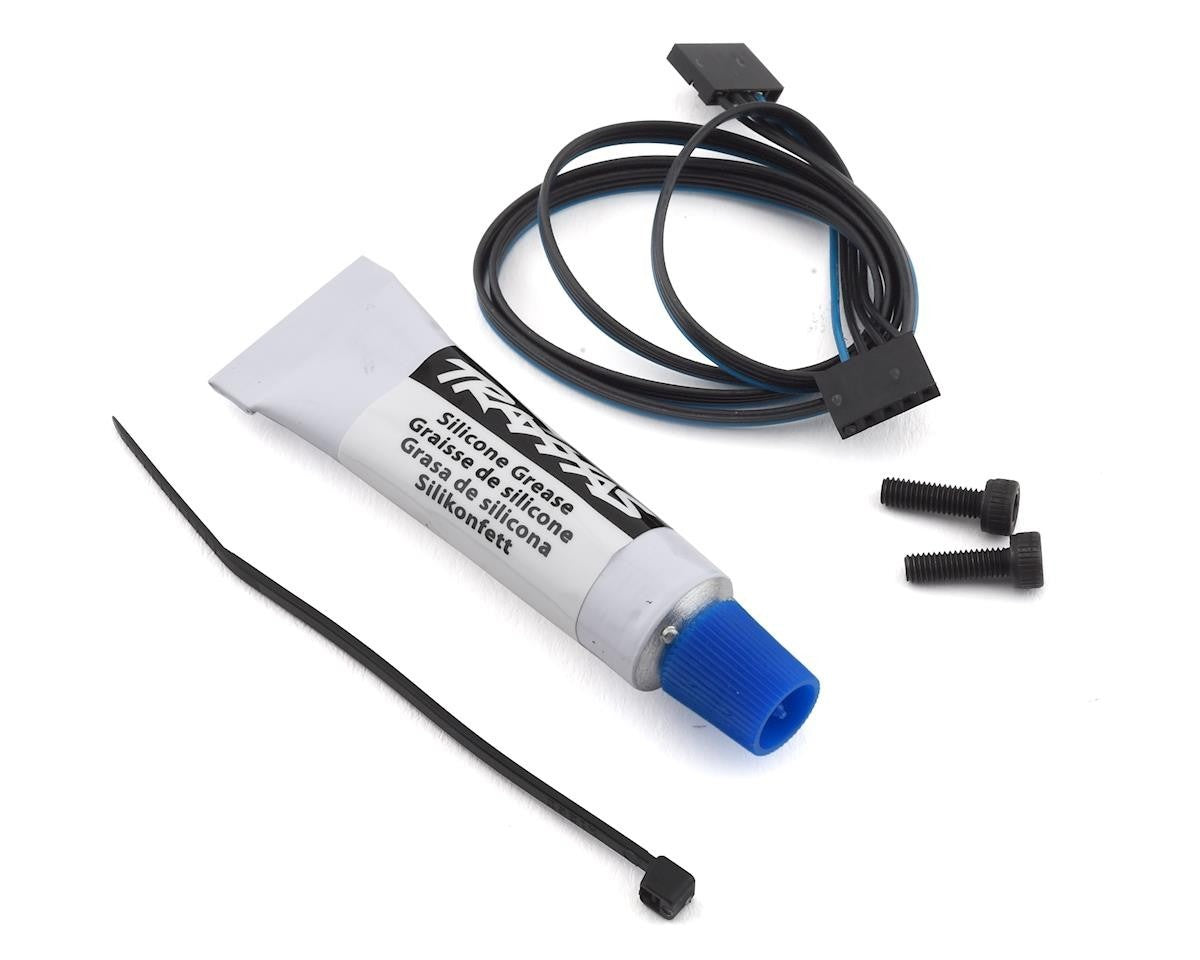

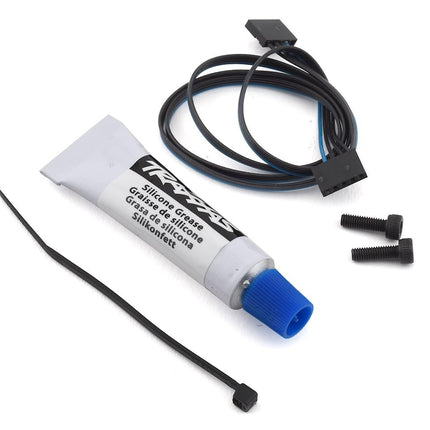

- Includes receiver data cable (optional data cables available)
- Installs quickly and easily; no parts to replace or swap
- Waterproof case keeps the expander safe from the elements
- Six available ports for connecting auto-detectable plug and play sensors
- GPS
- Uses GPS and GLONASS global positioning for accurate, real-time speed
- Speed readout not affected by gear ratio or tire-size
- Easy plug-and-play installation; no programming required
- Waterproof when installed
- Automatically detected and configured by the Traxxas Link App
Important Note: The GPS Module 2.0 (TRA6551X) and Telemetry Expander 2.0 (TRA6550X) replace the original Telemetry Expander (TRA6550) and GPS Module (TRA6551). The originals are not compatible with the 2.0 versions.
