Description
ESC Overview:

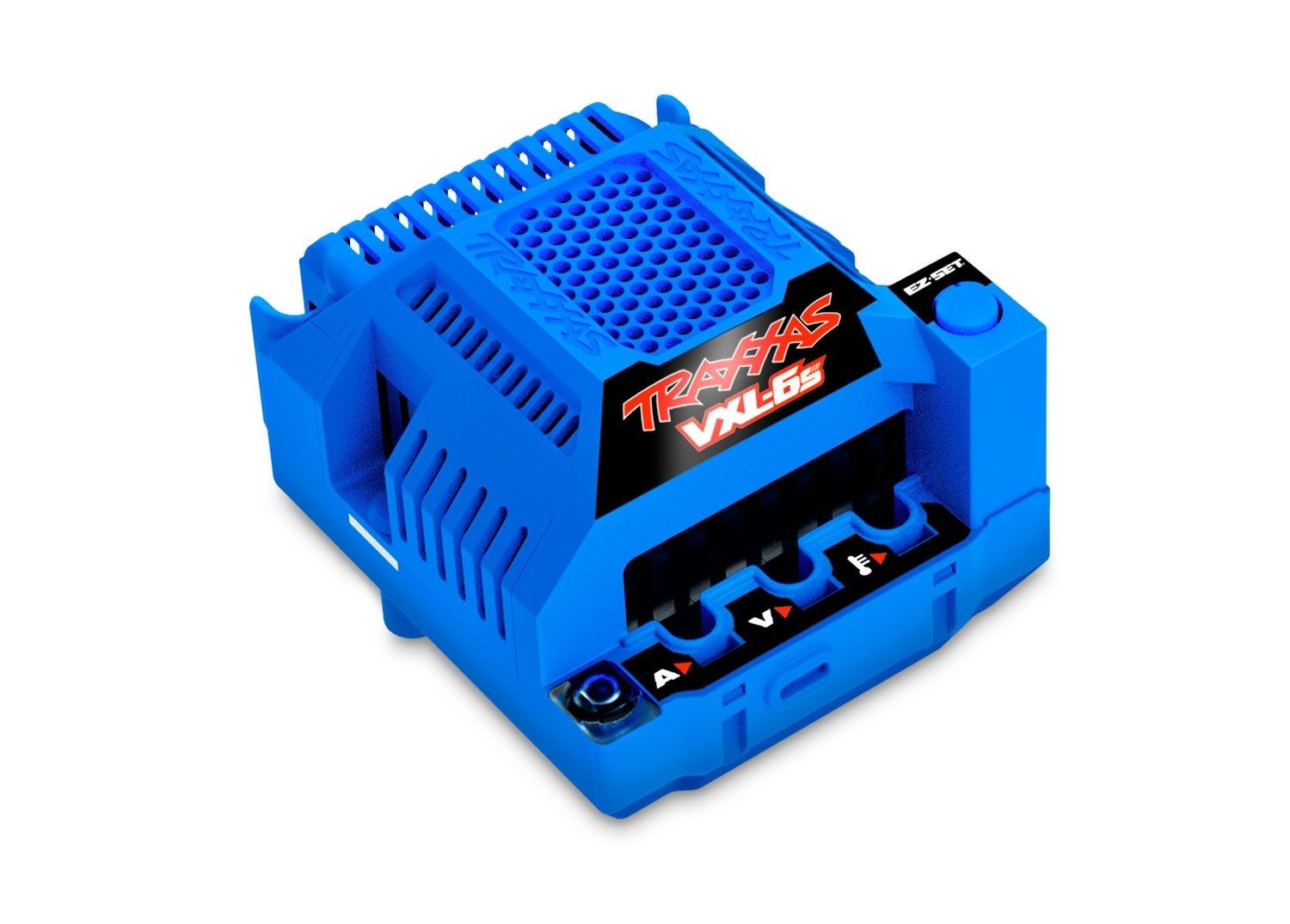

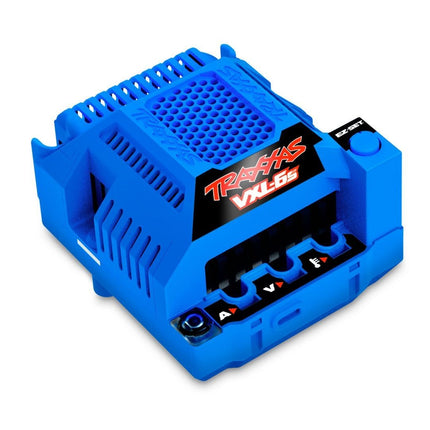

Traxxas Velineon VXL-6S Waterproof Brushless Sensorless ESC. This replacement VXL-6S ESC is intended for the Traxxas Sledge and Maxx Slash platforms.
Features:
- Water resistant case design
- Integrated telemetry for speed, RPM, voltage, and ESC temperature
- Bright LED status lights keep you informed with temperature and voltage warnings
- Two-stage thermal shutdown protection with integrated cooling fan protects the VXL-6S from overheating
- Capable of running up to 6S (22.2V)!
- Locked Rotor Protection™ prevents system damage by cutting power
- Battery Over-Voltage Protection
Specifications:
-
Type: Sensorless Brushless
-
BEC Voltage: 6.0V
-
BEC Continuous Current: 10A
-
BEC Peak Current: 20A
-
Motor Connectors: 6.5mm Bullet Connectors
-
Battery Connector: Traxxas High-Current Connector
-
Input Voltage: 3-6S (11.1-22.2V)
Includes:
- (1) Velineon VXL-6S Waterproof Brushless Sensorless ESC
The advanced Velineon® VXL-6s™ ESC is custom-tuned for Velineon 6s motors to pour on the power you demand for over-the-top fun. An integrated fan cools the oversized heatsink to keep ESC temperatures down and extend run times. Bright LED status lights keep you informed with temperature and voltage warnings. Internal safety programming constantly monitors ESC performance to protect it from damage. The VXL-6s comes pre-programmed with real-time telemetry capability using the optional 6511 Wireless Module (sold separately) installed in a Traxxas TQi™ transmitter. Use the free Traxxas Link™ App to see speed, RPM, voltage and ESC temperature directly on your mobile device.
