NEW Battery Tray Design
- Battery is protected deep in the chassis
- Rugged battery strap latches shut to secure batteries
- No battery clips to lose
- Accepts many 2s and 3s battery configurations
-
Steering
-
NEW 2057 waterproof, metal-gear servo
- Full metal gear train for improved durability
-
NEW dual-bellcrank design with integrated servo saver
-
Transmission and Driveline
- Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
-
NEW 32-pitch spur and pinion gear
-
NEW heavy-duty top shaft
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
-
NEW XX-long Composite GTR Shocks
- Threaded shock collars for precise ride height adjustment
- Large oil capacity for consistent damping
- White powder-coated springs
- Spring retainers captured with a screw
- 3.5 mm shaft
-
Wheels and Tires
- Large 2.8″ black monster truck wheels
- Removable center caps
- Same wheel offset front and rear
-
NEW Talon MXT Tires
- Tall monster truck profile
- Angled tread pattern for massive forward bite
- Precision Hex Hardware
- Rubber-Sealed Ball Bearings

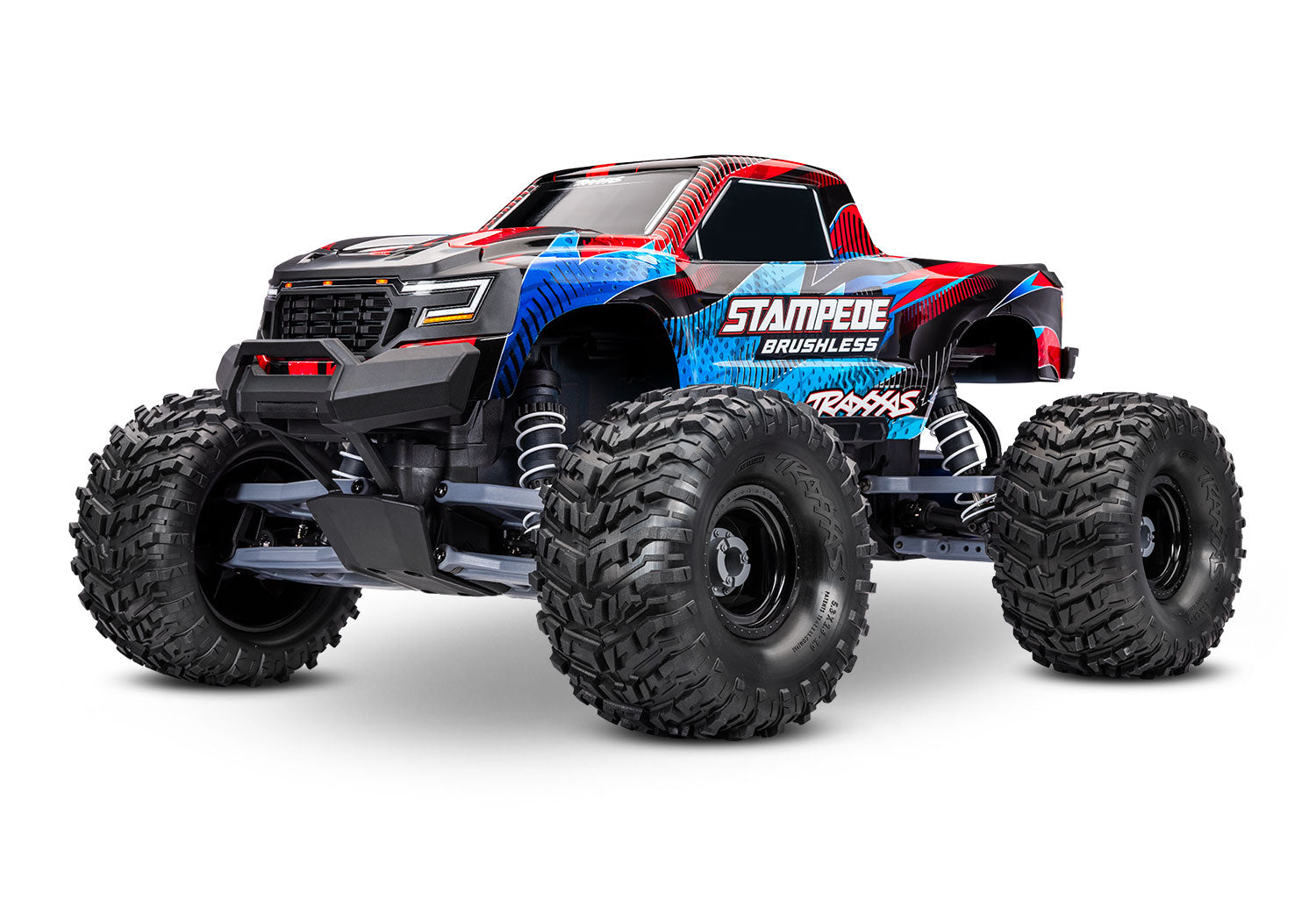

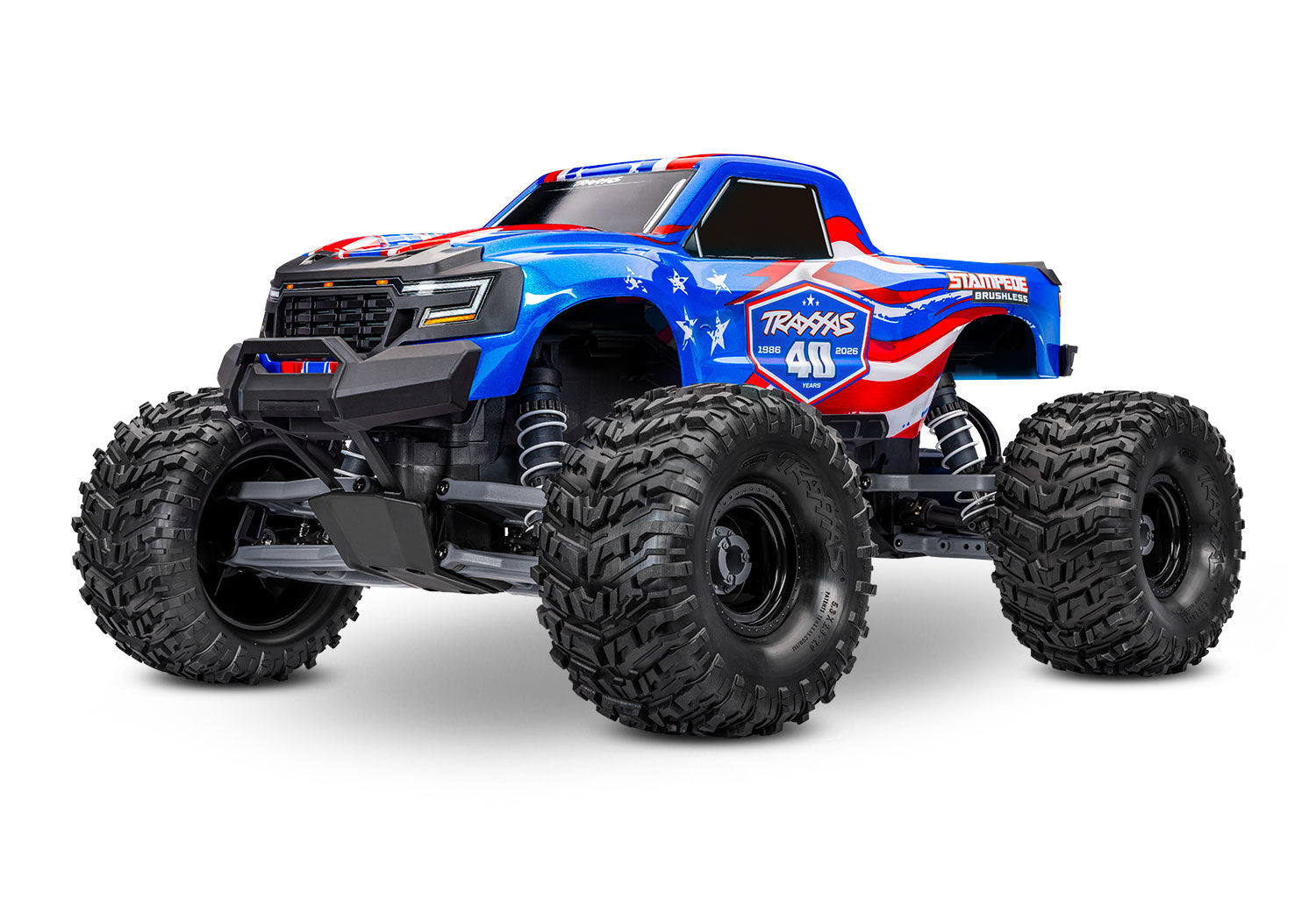

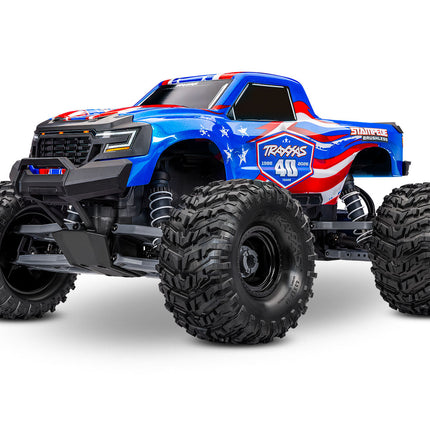

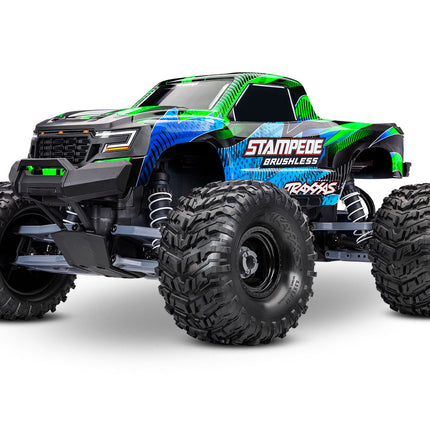

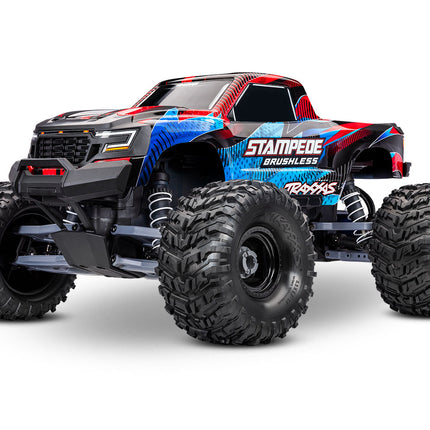

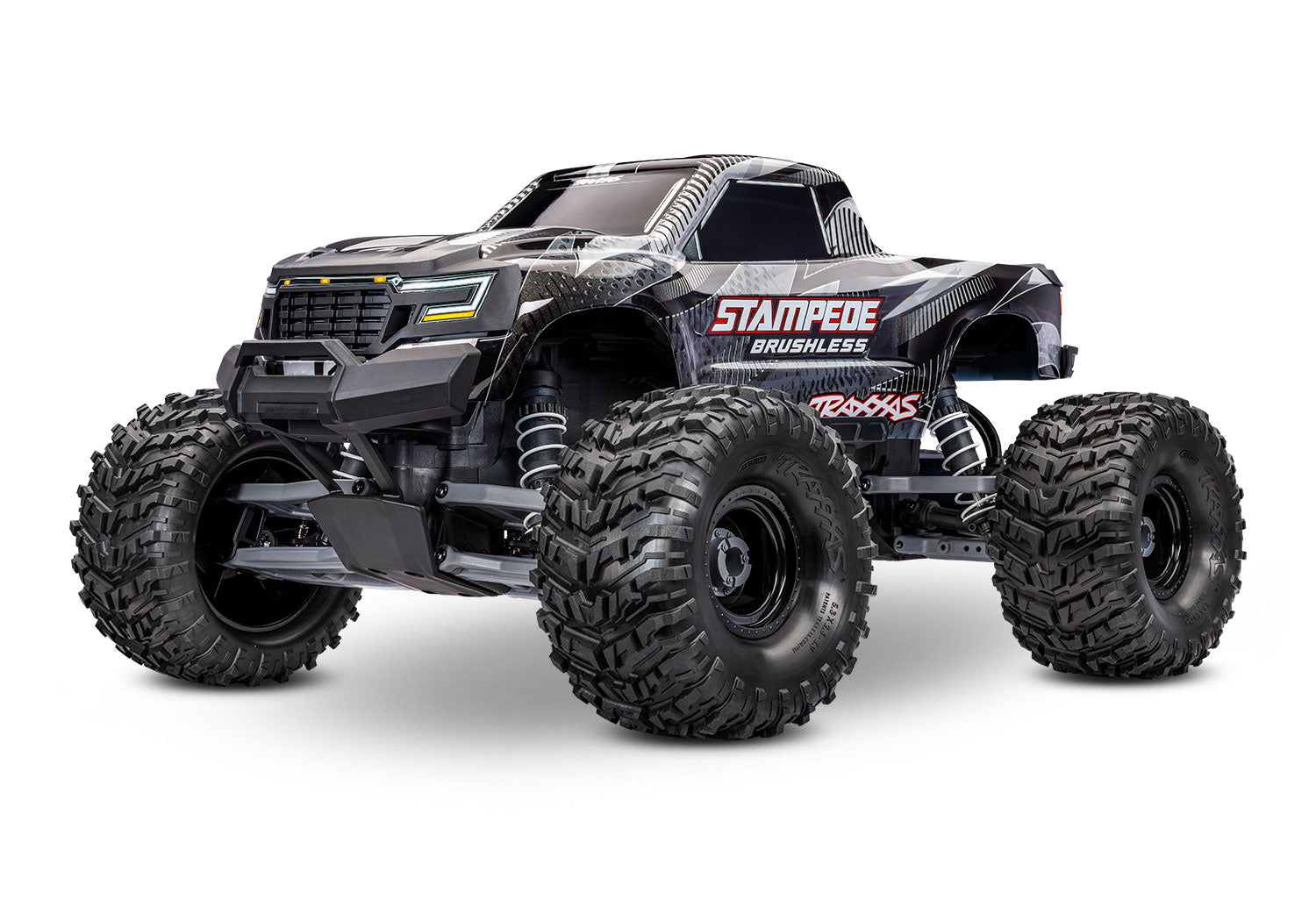

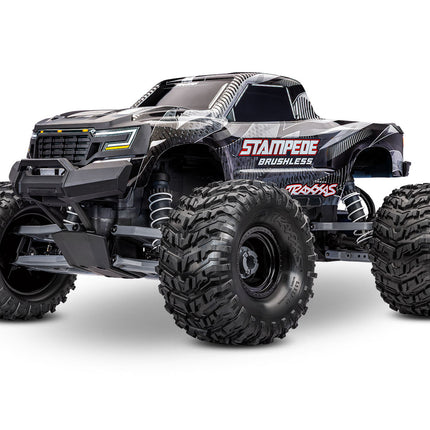

MODEL 136454-4: Stampede® 2WD Brushless: 1/10 scale monster truck, fully-assembled, waterproof, Ready-To-Race®, with TQi™ 2.4 GHz 2-channel radio system with Punch Control, Velineon® 3s brushless power system, and clipless painted body. Requires: battery and charger.
What’s In The Box:
- Stampede 2WD monster truck with VX3 ESC and V3200 motor
- TQi 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Stampede 2WD Brushless requires a single 2-cell or 3-cell LiPo battery (NiMH not supported)
- Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
MODEL SPECS
| Name: |
Stampede 2WD Brushless |
| Type: |
Monster Truck |
| Speed: |
35+ mph with 2s LiPo battery, 50+ mph with 3s |
| Skill Level: |
1 |
| Scale: |
1/10 |
| Weight: |
6.09 pounds (2.76 kg) |
| Length: |
20.28 inches (515 mm) |
| Width: |
13.86 inches (352 mm) |
| Track: |
13.86 inches (352 mm) |
| Height: |
8.34 inches (212 mm) |
| Wheelbase: |
11.65 inches (296 mm) |
| Ground Clearance: |
3.54 inches (90 mm) |
| Driveline: |
Rear Wheel Drive |
| Transmission: |
Magnum 272™ |
| Differential Type: |
Planetary steel gear |
| Gear Ratio (Internal): |
9.52:1 |
| Gear Pitch: |
32 pitch |
| Steering Servo: |
2057 metal gear waterproof |
| Radio System: |
TQi 2.4 GHz 2-channel radio |
| Battery Compartment Specs: |
166 mm X 47.5 mm X 28 mm |
MOTOR SPECS
| Name: |
Velineon V3200 (patent pending) |
| Motor Type: |
Sensorless brushless |
| Weight: |
7.48 ounces (212 g) |
| Length: |
3.15 inches (80 mm) |
| Diameter: |
1.53 inches (39 mm) |
| Shaft Size: |
5 mm |
| Connector Type: |
3.5 mm Bullet |
ESC SPECS
| Name: |
VX3 Electronic Speed Control |
| ESC Type: |
Brushless |
| Voltage Range: |
2-cell or 3-cell LiPo (NiMH not supported) |
| Case Size: |
2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm) |
| Weight: |
4.20 ounces (119 g) |
| BEC Voltage: |
6.0 volts |
| Motor Connectors: |
3.5 mm Bullet |
| Battery Connectors: |
Traxxas High-Current Connector |
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
