Description

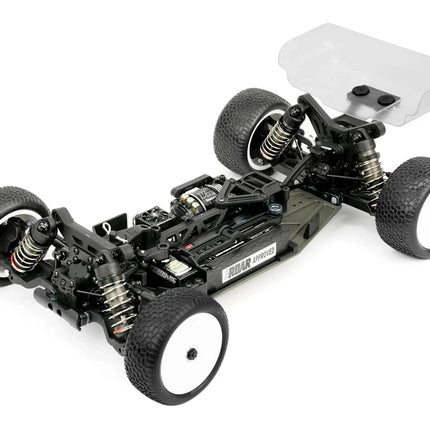

The Tekno RC EB410.2 1/10 4WD Off-Road Electric Buggy Kit, the next evolution in 1/10th scale 4wd buggy that features many of the updated components of the ET410, but with several redesigned elements included to further improve handling and durability.
Now included is a front end sway bar system along with updated 15-degree low roll center spindle carriers. The suspension has been upgraded with redesigned pistons and revised shock towers. In the rear, Tekno has included improved arms that allow front-mounted shocks, updated adjustable roll center rear hubs, and a upgraded, taller one-piece wing mount to help improve aerodynamics and roll characteristics. Durability has also been improved with a updated spur gear, a front bulkhead brace, heavy-duty ABCD hinge pin braces, and larger 3.5mm inner hinge pins.
Features:
- Revised CNC 7075 Long Wear Chassis
- Updated Larger 3.5mm HD Hinge Pins and Revised Hinge Pin Inserts
- Updated ABCD Hinge Pin Braces w/ Revised Suspension Geometry
- Updated Taller, Stronger One Piece Wing Mount w/ Height Adjustments
- 13mm Big Bore Shocks w/ Revised Cartridge and Cap Bushing
- Ultra Secure Locking Spring Perch Design
- Updated Rear Arms w/ Front Mounted Shocks
- Updated Adjustable Roll Center Rear Hubs
- Updated 15 Degree LRC Spindle Carriers
- Updated Aluminum Front Camber Plate w/ Bulkhead Brace
- Revised Material 81T Spur Gear
- Front and Rear Sway Bars Now Included
- Large Wheel Bearings and 6mm HD Stub Axles
- Optimized Reverse Bellcrank Steering System
Specifications:
Length: 393mm (without wing) up to 424mm (with wing)
Wheelbase: 283-294mm
Width: 246-250*mm (*optional hubs required)
Weight: 1630 (or less) to 1780g depending upon equipment used
Diff Ratio: F/R – 16/40T, Center – 81T
Battery tray dimensions: 96x47x26mm
Kit/RTR: Kit
Needed to Complete:
- 2/3 channel radio/transmitter
- 1/10 scale ESC and motor system
- High torque steering servo (at least 200oz/in)
- 48 pitch 17 to 34 tooth pinion
- 2s shorty LiPo battery (at least 4000mAh)
- 1/10th scale 4wd buggy tires, wheels & CA glue
- Paint for body

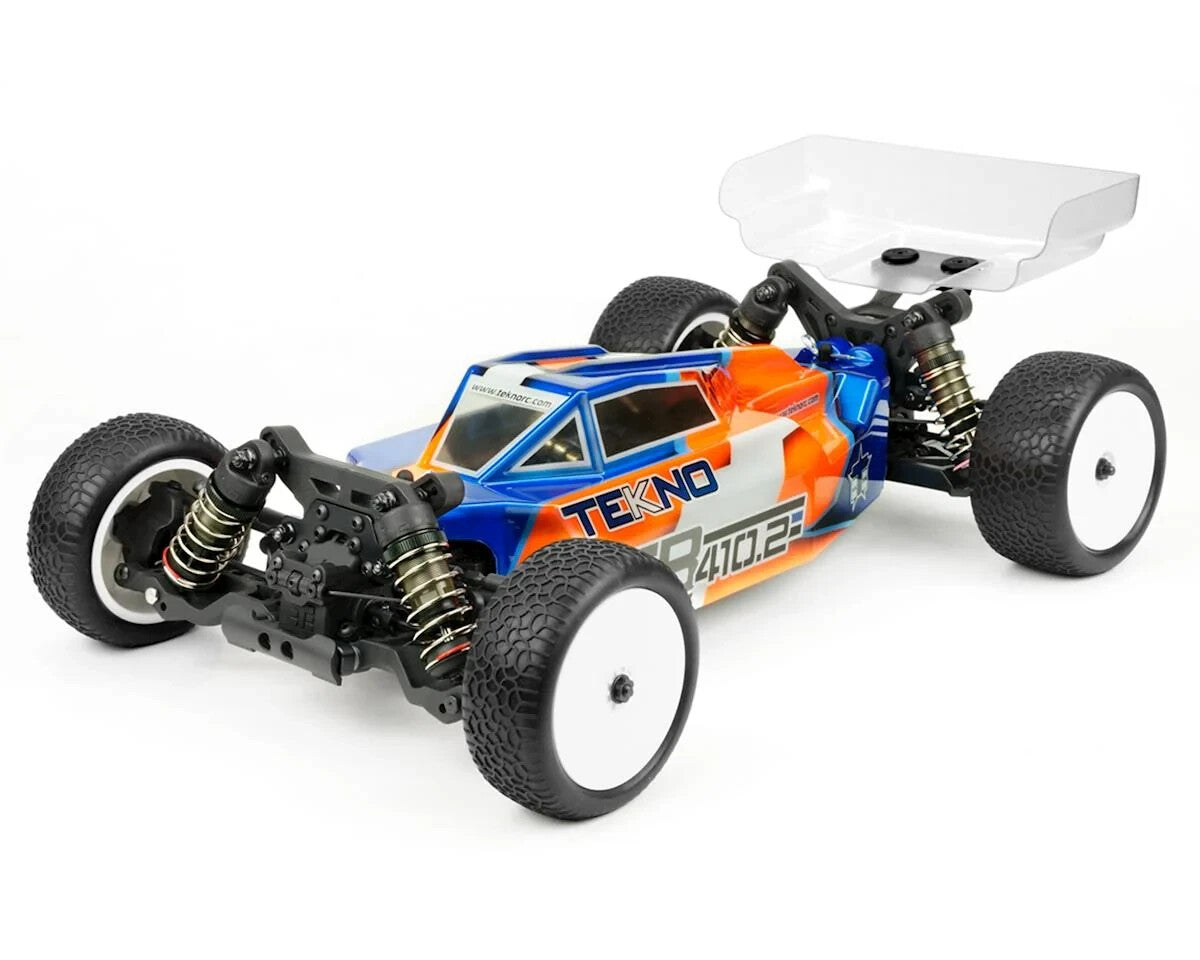

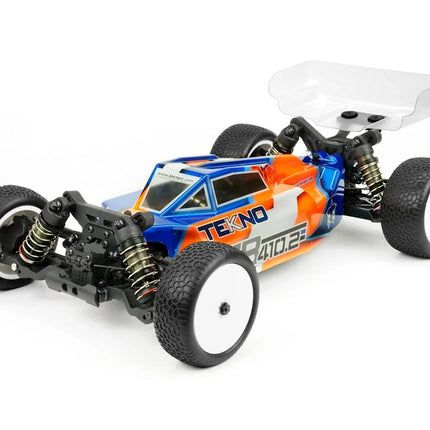

NOTE: Completed, assembled and painted model shown for illustrative purposes only and is not included.
