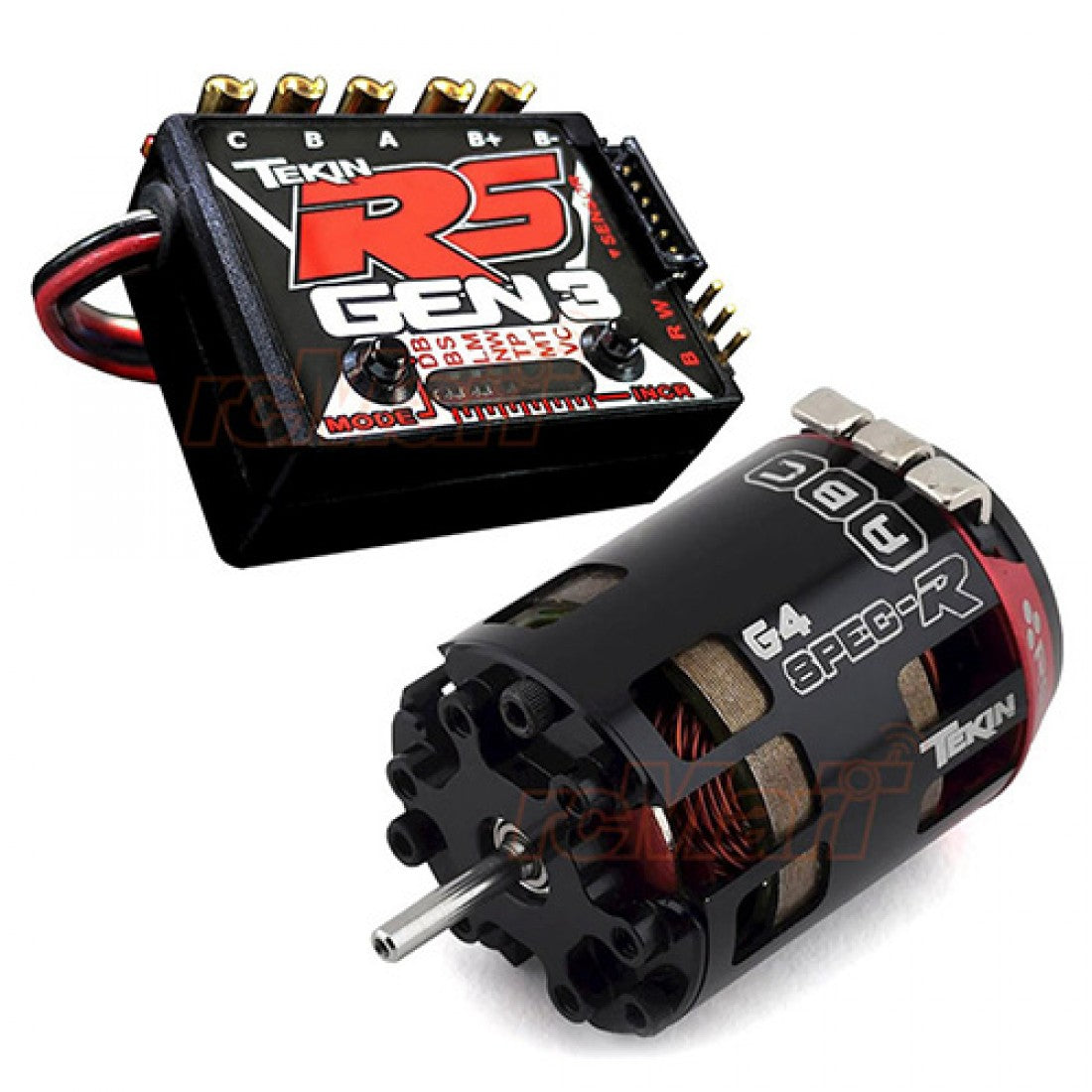

Tekin RS Gen3 Sensored Brushless ESC/Gen4 Motor Combo 8.5T TT2799

    Description

    The Tekin RS Gen3 Sensored Brushless ESC/Gen4 Modified Motor Combo is a competition ready racing package. Utilizing the best materials available the GEN4 has been redesigned to cut weight and reduce resistance, resulting in a purebred racing machine. A perfect choice for any discipline, the GEN4 delivers smooth power and control across the full RPM range. The SPEC-R is competition performance with the speed you need to win.

    The GEN4 motor line features a redesigned, precision stamped and pressed stator to increase efficiency and reduce resistance. The stators are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. The motors can be tuned with optional rotors and are re-buildable, making the GEN4 motor a premium performance power plant designed for the serious racer.

    The Tekin RS Gen3 Sensored Brushless ESC brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!

    Features:

    • Motor:
      • 60 Degrees Adjustable Timing Advance
      • Modified Racing Specific Design
      • CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
      • Neodymium Sintered Magnet
      • Precision Engineered for Maximum Energy Conversion
      • High Purity Copper Windings Maximize Conductivity
      • Low Resistance, High Power Solder Tabs
      • Sensored System Ready
      • Anodized End-bell Plates Maximize Corrosion and Wear Resistance
      • High RPM Precision Bearings
      • Oversized Front Bearing
      • Rebuild-able Design
      • Solder-less Sensor PCB Replacement
      • Legal in Major Race Governing Bodies
      • ROAR Approved
    • ESC:
      • QuickTune™ One Touch Programming
      • HD Solder Post Design
      • 3rd Channel Input for On-The-Fly Drag Brake Adjustments
      • Adjustable Torque Control *
      • Adjustable Throttle and Brake Frequencies *
      • High Voltage Programmable BEC *
      • HotWire™ Programming Port *
      • Data Logging Capability *
      • Sensor Checker
      • On-Board Temperature Indicator
      • ESC Self Diagnostics with Error Codes
      • Fully Proportional Forward/Brake/Reverse
      • Brushless and Brushed Motor Drive
      • Sensored or Sensorless Operation
      • LiPo Safe with Custom Voltage Cutoffs
      • Sensor Plug for Precise Commutation
      • Lightweight Chassis Design
      • HDAC: High Density Copper PCB's
      • Ultra-smooth and Precise Throttle and Braking Control

    *NOTE: requires HotWire™ sold separately.


    Specifications:
    • Motor:
      • Input Voltage: 1-2S LiPO - 9.5T / 8.5T / 7.5T / 6.5T / 5.5T
      • Weight: 5.1oz / 145g
      • Shaft Dimensions: 3.18mm (1/8") x 15.3mm
      • Motor Diameter: 35.85mm / 1.40"
      • Motor Length: 50.25mm / 1.978"
      • Max Operating Temperature: 180°F / 82°C
      • Bearing Dimensions: Front: 4x13x5mm; Rear: 1/8x3/8x5/32"
      • Rotor Size: 12.5mm GREEN
      • Rebuildable: Yes
    • ESC:
      • Controls: Forward/Brake/Reverse
      • Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
      • Motor Limit Brushless Mode: 2S - 8.5T 2-pole 36mm Can, 3S - 10.5T 2-pole 36mm Can
      • Motor Limit Brushed Mode: 2S - 10T 36mm Can, 3S - 20T 36mm Can
      • Max Current: 140amps per phase*
      • BEC: 6.0v / 7.4v @ 5.5amps
      • Dimensions: 1.0 x 1.3 x .51" / 24.5 x 34 x 12.9mm
      • Weight: .83oz / 23.5g
