Description
ESC Overview:

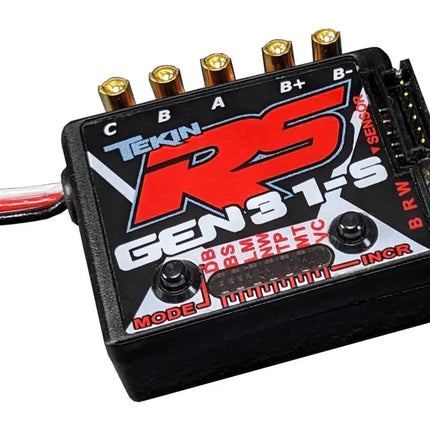

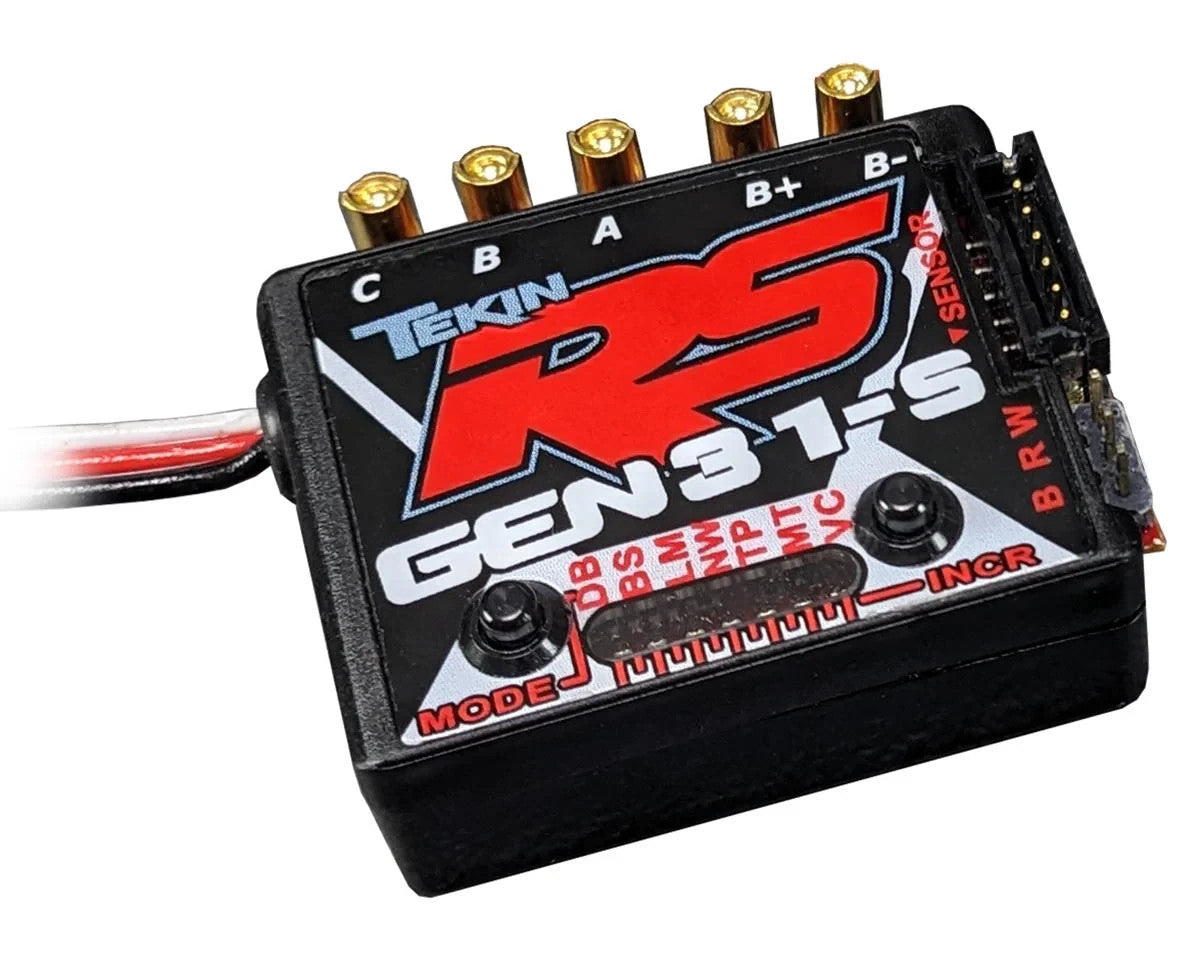

This is the RS Gen3 BL 1S 1/12 Sensored Brushless/Brushed ESC from Tekin. Designed with cutting-edge technology, this ESC offers unmatched power handling, precise control, and advanced tuning options, making it ideal for competitive 1/12 scale racing. Its compact design and state-of-the-art features ensure optimal performance and reliability in demanding conditions.
The RS Gen3 BL 1S includes innovations like QuickTune™ programming, adjustable torque control, and a built-in booster to handle 1S LiPo voltage effortlessly. Paired with data logging and diagnostics capabilities, this ESC delivers a smooth and responsive driving experience, making it a must-have for racers seeking an edge on the track.
Features:
- QuickTune™ one-touch programming
- HD solder post design for easy connections
- Adjustable torque control
- Third channel input for drag brake adjustments
- HotWire™ compatibility for custom tuning
- Data logging and diagnostics capabilities
- Sensor plug for precise operation
- High voltage programmable BEC
- LiPo safe with customizable voltage cutoffs
- Brushless and brushed motor support
Specifications:
-
Suggested Application: 1/12
-
Motor Type: Brushless Sensored/Brushed
-
Input Voltage: 1S LiPo/4-Cell NiMH
-
Continuous Current: -
-
Burst Current: 140A per phase
-
Dimensions (LxWxH): 1.0x1.3x0.51in (26x34x12.9mm)
-
Weight: 0.83oz (23.5g)
-
Motor Limits:Brushless 10.5T 2-pole 36mm can/Brushed 12T 36mm can
-
BEC Voltage: 6.0-7.4V
-
BEC Continuous Current: 5.5A
-
BEC Peak Current: -
-
Motor Connector: Solder Post
-
Battery Connector: Solder Post
-
Motor Wire: -
-
Battery Wire: -
-
Throttle Wire: Servo Wire
-
Programming: QuickTune™ One Touch Programming/USB/Bluetooth
Includes:
- (1) RS Gen3 BL 1S 1/12 Sensored Brushless/Brushed ESC (Black Edition)
