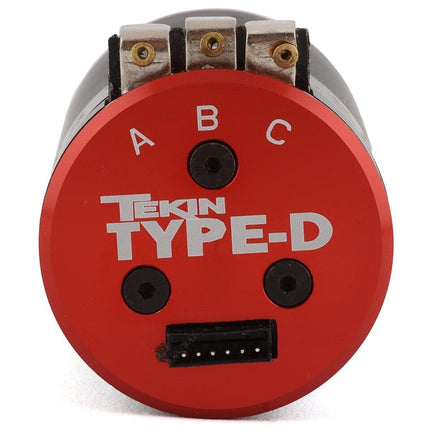

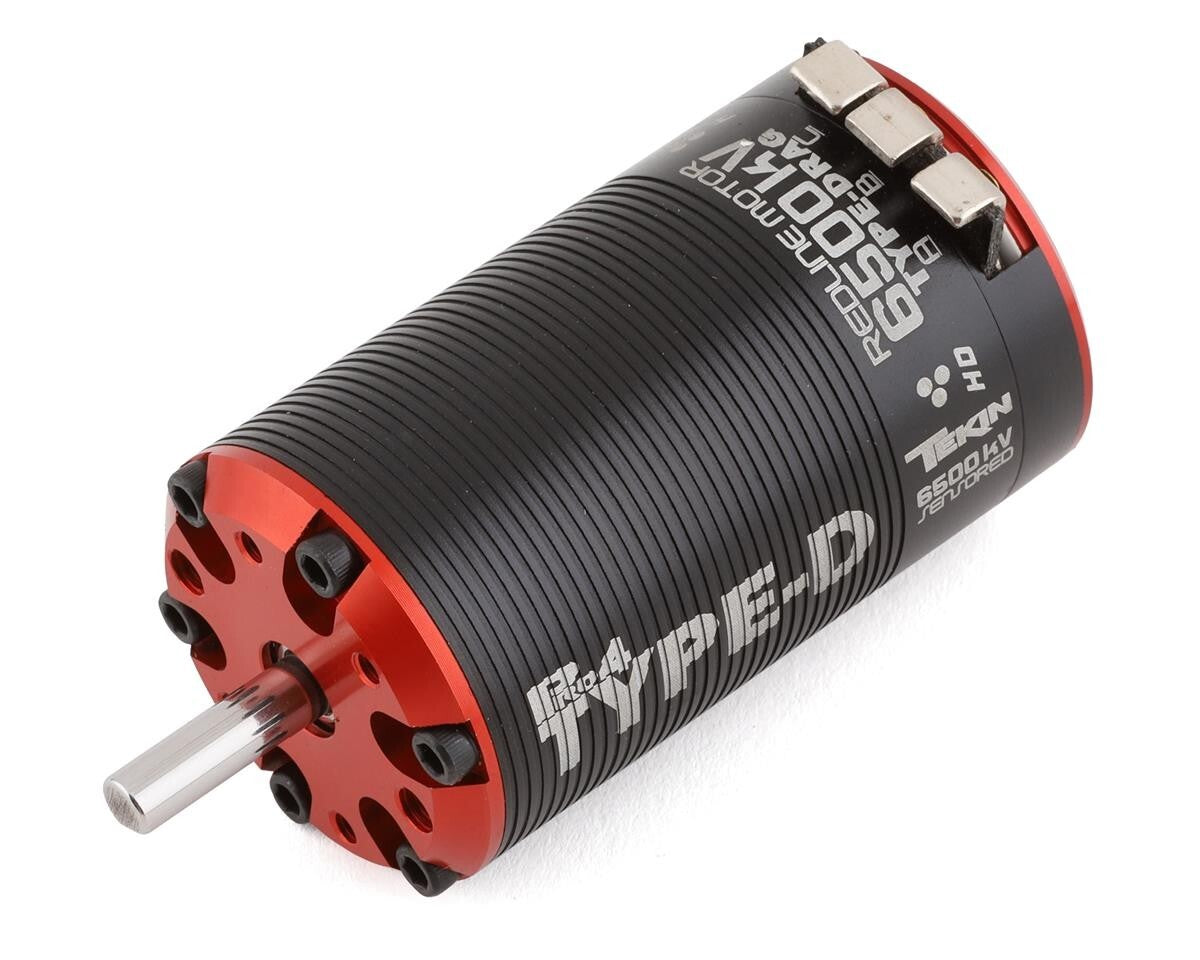

Tekin Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor (6500kV) TT2535

    Description

    This is the Tekin Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor. Designed as a purpose built drag race motor this latest offering from Tekin brings massive power and torque to the market! This motor utilizes a 4-pole 12-slot design with an oversized Ultra Torque HD rotor. This creates a huge amount of power that doesn't let up throughout the RPM range. From Pro Mod to Street Eliminator classes, these PRO series motors create power whenever you need it, giving you the advantage on the strip.

    Features:
    • 4 Pole 12 Slot High Torque Motor Design
    • 1:10 Drag Racing Specific
    • HD 550 Size Design Increases Power and Torque
    • CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
    • Neodymium Sintered Magnets
    • Precision Engineered for Maximum Energy Conversion
    • High Purity Copper Windings Maximize Conductivity and Efficiency
    • Low Resistance, High Power Solder Tabs
    • Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
    • Anodized End-bell plates maximize corrosion and wear resistance
    • High RPM ABEC-5 Precision Bearings
    • Oversized Front Bearing adds Durability
    • Rebuild-able Design
    Specifications:
    Voltage Limit: 2S LiPo
    KV: 6500
    Weight: 7.8oz (221g)
    Shaft Dimensions: 5mm (.196") x 15.3mm
    Motor Diameter: 1.40" (35.85mm)
    Motor Length: 2.50" (62.5mm)
    Max Operating Temperature: 180°F (82°C)
    Max RPM: 65,000
    Bearing Dimensions: Front: 5 x 14 x 5mm, Rear: 5 x 11 x 5mm
    Rotor Size: 18.5mm
    Rebuildable: Yes
    Mounting Pattern: 3mm @ 1" (25.4mm) and 4mm @ 1" (25.4mm)
    Product form

    SKU: EB-155207468358
    Barcode: 706893025358

    Free pickup in our shop(s)

    3 in stock Ships within 24hr of Purchase

    $159.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on orders over $150
      Pay whenever you want

      Easily pay within 30 days after you have received your package.
      Read more

      Description

      This is the Tekin Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor. Designed as a purpose built drag race motor this latest offering from Tekin brings massive power and torque to the market! This motor utilizes a 4-pole 12-slot design with an oversized Ultra Torque HD rotor. This creates a huge amount of power that doesn't let up throughout the RPM range. From Pro Mod to Street Eliminator classes, these PRO series motors create power whenever you need it, giving you the advantage on the strip.

      Features:
      • 4 Pole 12 Slot High Torque Motor Design
      • 1:10 Drag Racing Specific
      • HD 550 Size Design Increases Power and Torque
      • CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
      • Neodymium Sintered Magnets
      • Precision Engineered for Maximum Energy Conversion
      • High Purity Copper Windings Maximize Conductivity and Efficiency
      • Low Resistance, High Power Solder Tabs
      • Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
      • Anodized End-bell plates maximize corrosion and wear resistance
      • High RPM ABEC-5 Precision Bearings
      • Oversized Front Bearing adds Durability
      • Rebuild-able Design
      Specifications:
      Voltage Limit: 2S LiPo
      KV: 6500
      Weight: 7.8oz (221g)
      Shaft Dimensions: 5mm (.196") x 15.3mm
      Motor Diameter: 1.40" (35.85mm)
      Motor Length: 2.50" (62.5mm)
      Max Operating Temperature: 180°F (82°C)
      Max RPM: 65,000
      Bearing Dimensions: Front: 5 x 14 x 5mm, Rear: 5 x 11 x 5mm
      Rotor Size: 18.5mm
      Rebuildable: Yes
      Mounting Pattern: 3mm @ 1" (25.4mm) and 4mm @ 1" (25.4mm)
