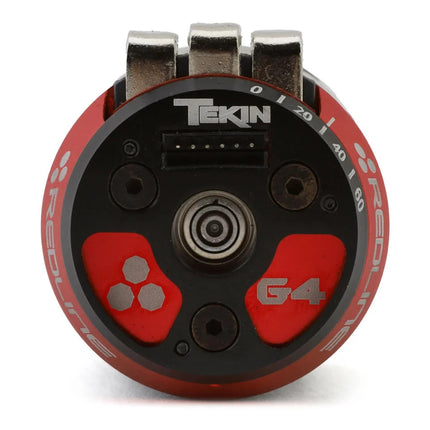

Description
Motor Overview:
Tekin’s SPEC-R2 brings next-level performance to SPEC racing classes. Improving on the original SPEC-R design, Tekin has revamped and refined the stator, rotor, and materials to increase both speed and torque while providing minimal fade during the late stages of the race. The SPEC-R2 is a hand-crafted, high-performance racing motor that is ready to hit the track right out of the box. Features a CNC machined billet aluminum heat sink can and neodymium sintered magnets for maximum energy conversion, precision-engineered with high purity copper windings to maximize conductivity and is legal in major governing race bodies, including ROAR!
Features:
- 60 Degrees adjustable timing
- Spec racing specific design
- CNC machined billet aluminum heat sink can
- Neodymium Sintered magnet
- High purity copper windings maximize conductivity
- Super smooth sensored system
- Anodized endbell plate
- High RPM Precision Bearings
- ROAR Approved
Specifications:
-
Type: Brushless Sensored
-
Turns: 21.5T
-
Input Voltage: 1S-3S LiPo/LiHV (4.2V-13.05V)
-
Pole/Slot: 2-pole 3-slot
-
Max RPM: 100,000
-
Motor Length: 50.25mm (1.987in)
-
Motor Diameter: 35.85mm (1.40in)
-
Shaft Size: 3.18mm (1/8in)
-
Weight: 5.27oz (149.5g)
-
Max Operating Temperature: 180F (82C)
-
Mounting Pattern: M3 @ 25.4mm (M3 @ 1.0in)
-
Rebuildable: Yes
Includes:
- (1) Tekin Gen4 Spec-R2 Pro Sensored Brushless Motor (21.5T)
