Description
The TLR 1/8 8IGHT-XT/XTE 1/8 Nitro/Electric 4WD Off-Road Truggy Kit builds on the championship-winning heritage of its predecessors with updates to the suspension geometry, drivetrain and chassis layout. This was done to make it easier to drive and tougher to beat! Plus, this kit includes the parts needed to build the truck in a Nitro or Electric configuration in the box!
The 8IGHT-XT/XTE has a combination of features second-to-none including large footprint engine mount, 3mm chassis, cab forward body, machined aluminum shock caps, and so much more. Designed to win straight out of the box, the 8IGHT-XT/XTE expands performance and is ready for the winner's circle.

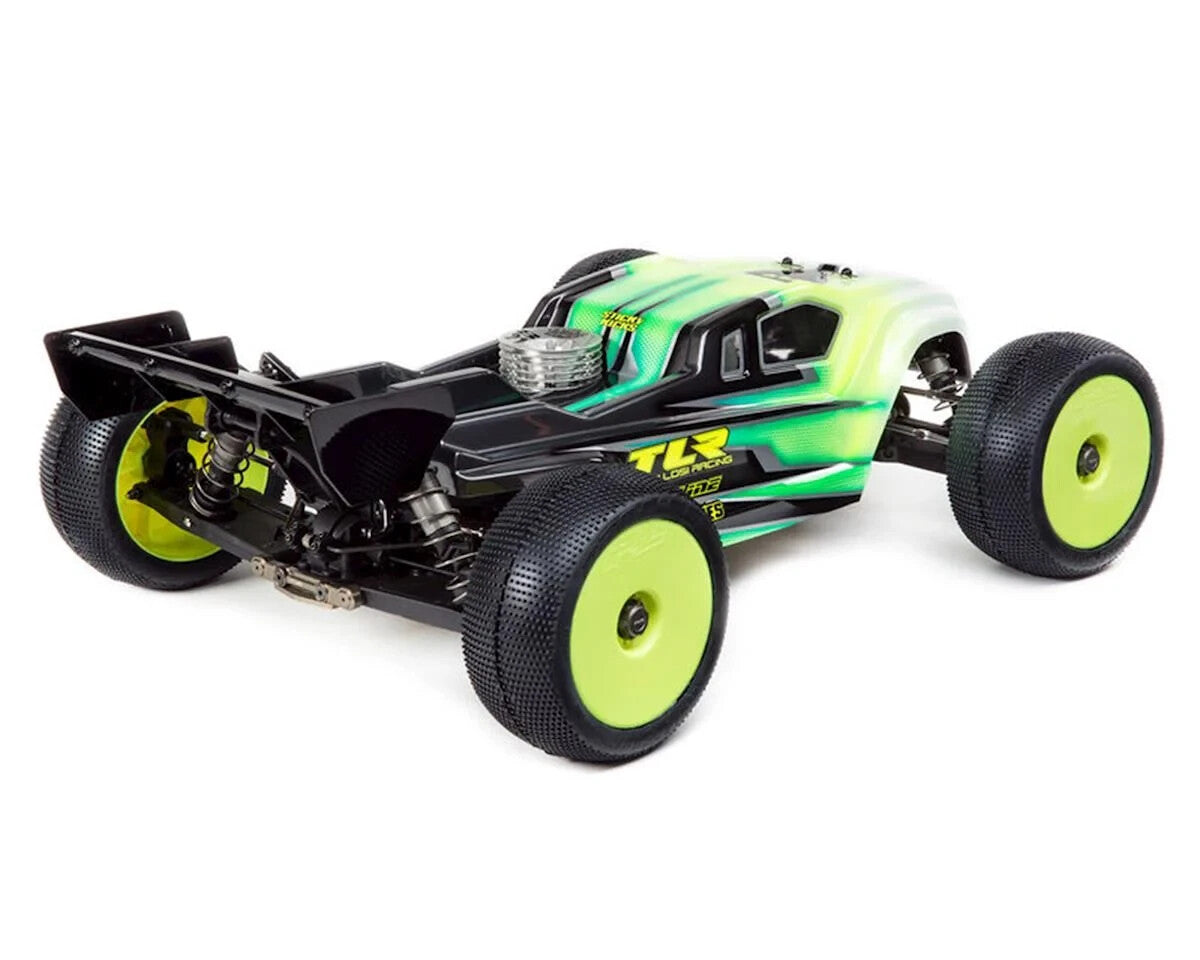

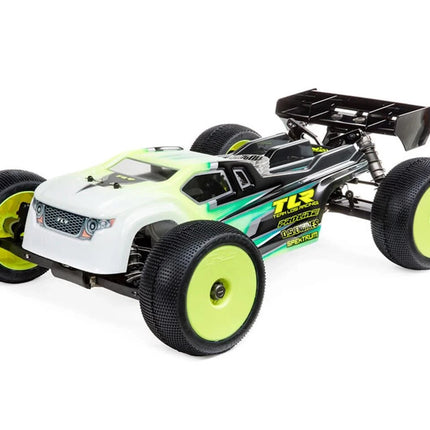

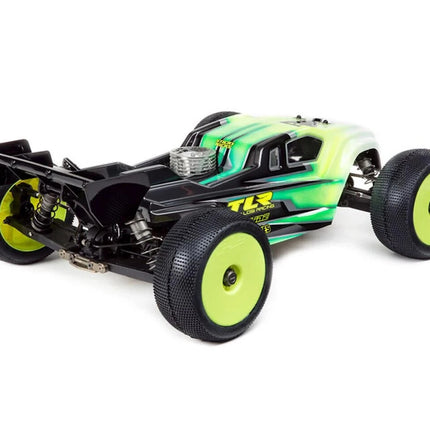

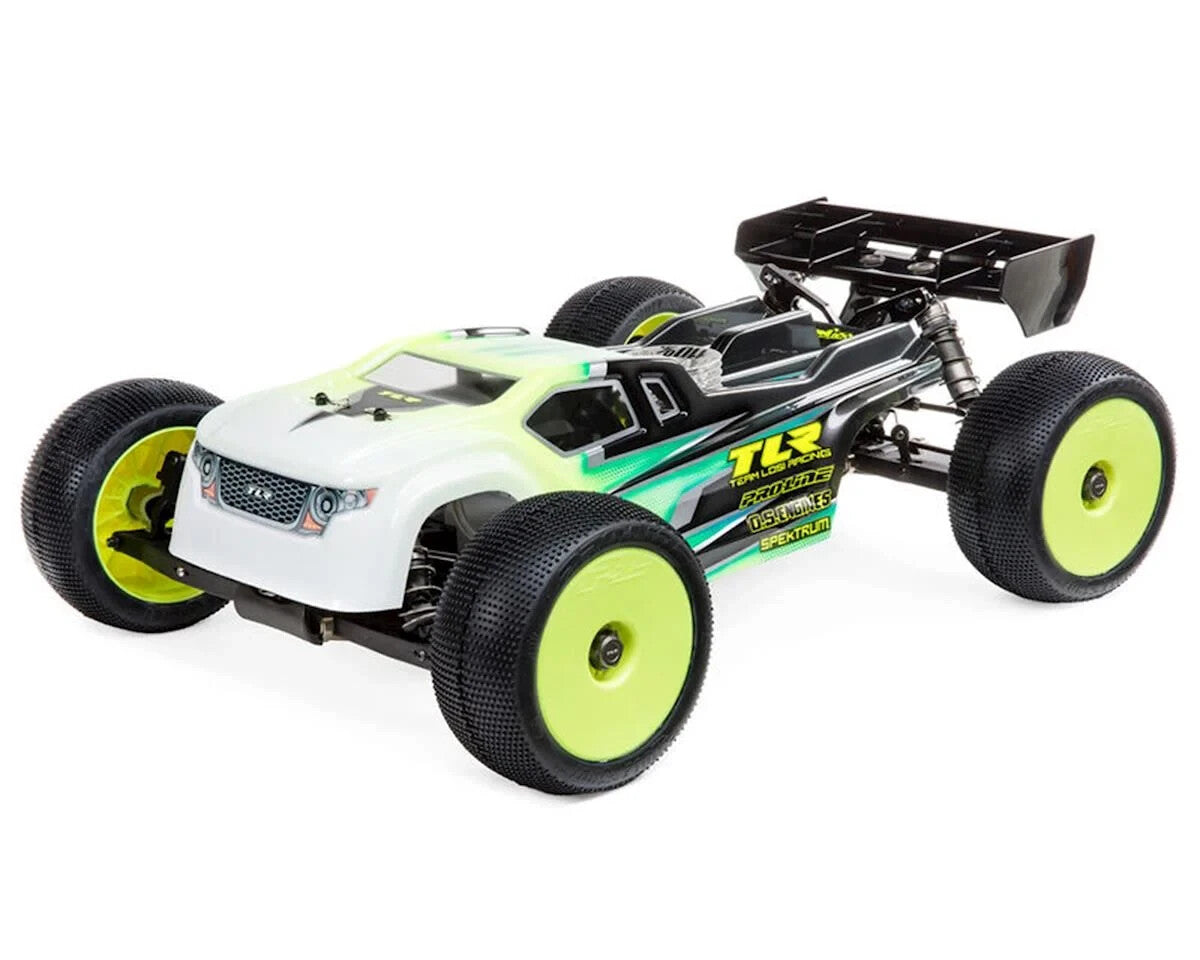

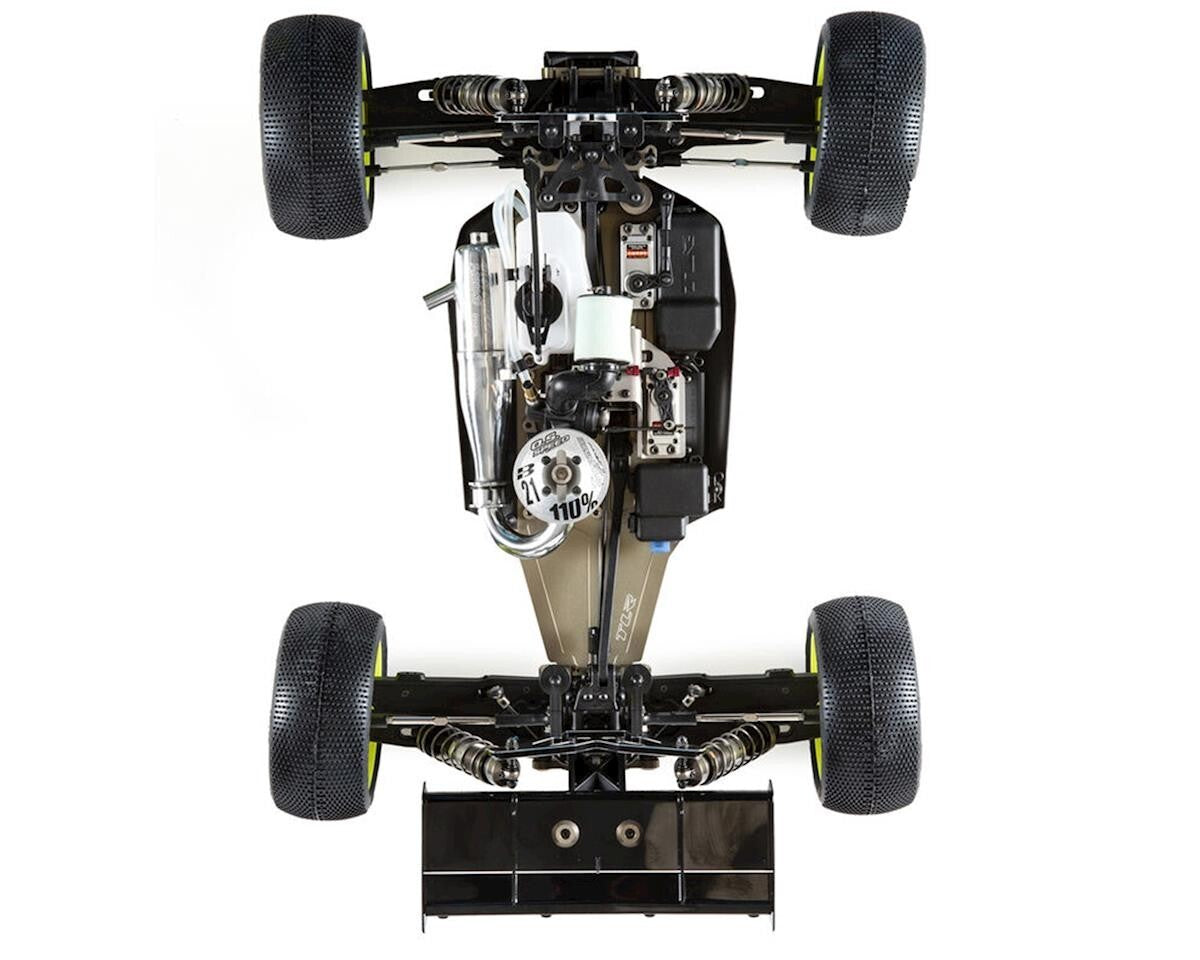

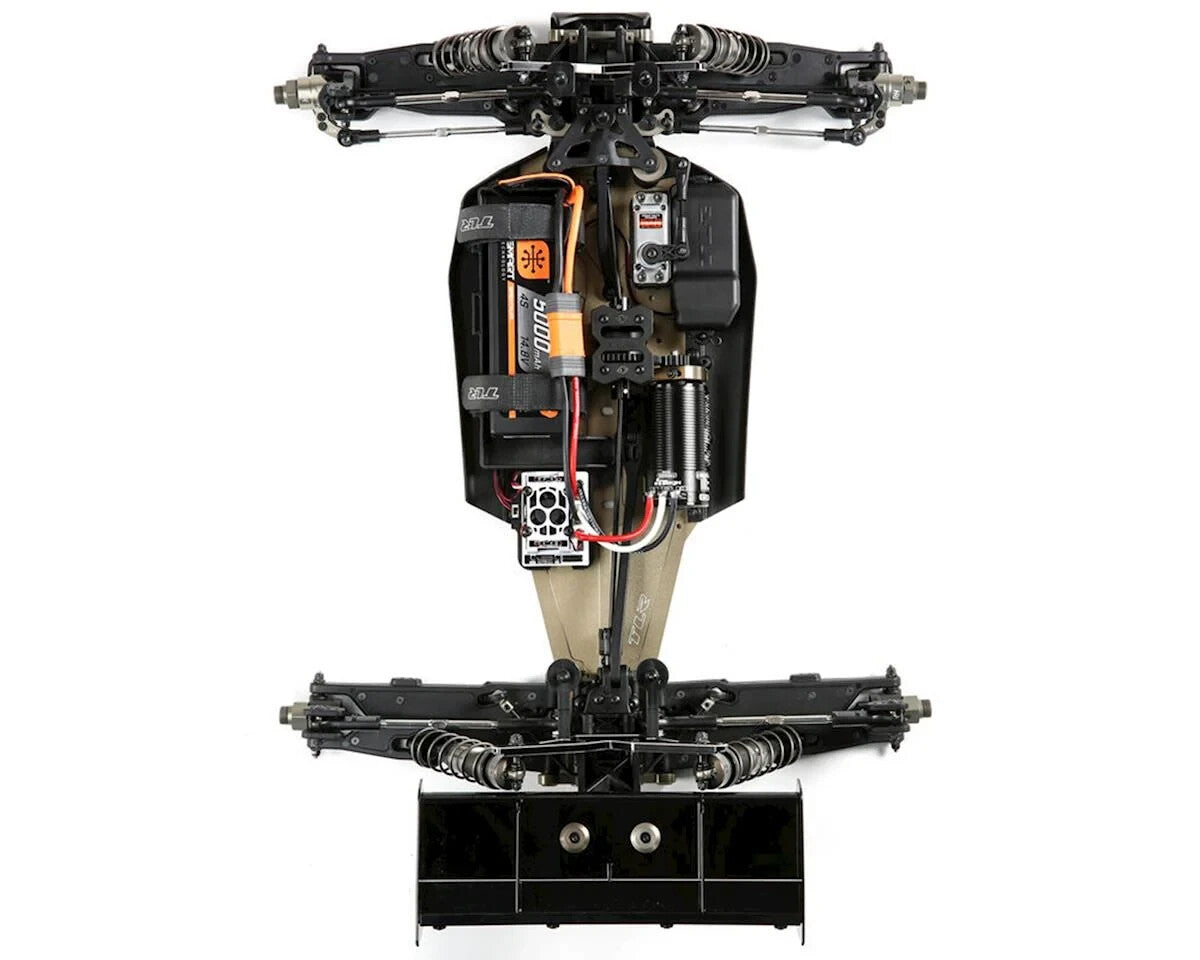

NOTE: Completed model shown for illustrative purposes only. See needed to complete list below for a listing of items required to complete the kit.
Features:
- Nitro and Electric Parts Included
- Improved Suspension Geometry
- Flex Tune Suspension Arms
- Wider 3mm Chassis
- Larger Pinion Bearing
- Cab Forward Style Body
- Chassis Side Guards
- Large Footprint Nitro Engine Mount
- One Piece Electric Motor Mount
- Adjustable Caster Blocks
- Bleeder Shock Caps
- Balanced Chassis
- Ackerman Adjustable Draglink Steering Rack
- Machined Aluminum Shock Towers
- Better Diff Access
- Sway Bar System
- Equalized Driveline
- Updated Radio Tray
- Optimized Shocks
- Ball Bearing Throttle and Brake Actuator
- Large Bearing Spindles and Carriers
- Shorter Wheelbase
- LiPo/LiIon Compatible Battery Box
Specifications:
Approximate Assembly Time: Approximately 3-5 hours
Ball Bearings: Full set
Battery: Sold Separately
Body: Unpainted
Brakes: Ball bearing equipped brake actuator
Charger: Sold Separately
Chassis: 0.12" (3mm ) 7075-T6 hard anodized aluminum
Completion Level: Kit
Differential: 3 sealed viscous filled gear diffs
Drivetrain: 4WD
Drive Type: Forward/Reverse
Engine Size: .21 cu in (3.4cc) sold separately
Final Drive Ratio: 16.6:1
Front Track: 15.8" (402mm)
Fuel Tank Capacity: 5.1oz (150cc)
Power Type: Electric
Gear Pitch: 1.0 Mod
Gear Ratio: 4.5:1
Ground Clearance: 1.6" (40mm)
Internal Gear Ratio: 4.5:1
Max Battery Dimensions: 5.4 x 1.8 x 1.5" (138 x 47 x 40mm)
Motor Type: Brushless
Pinion: 13T
Product Height: 7.3" (185 mm)
Product Length: 21.1" (536 mm)
Product Weight: 9lbs (4082g)
Product Width: 16.6" (422 mm)
Radio: Sold Separately
Rear Track: 15.8" (402mm)
Receiver: Sold Separately
Scale: 1/8
Servos: Sold Separately
Shock Type: Aluminum body, oil-filled
Speed Control: Sold Separately
Spur Gear: 48T
Suspension: Independent
Track: 15.8" (402mm) front and rear
Vehicle Type: Truggy
Water-Resistant: Yes
Wheelbase: 14.7" (373mm)
Includes:
- (1) TLR 8IGHT XT/XTE Nitro/Electric Truggy Race Kit
- (1) Product Manual
- Flex Tune Suspension Arms
Needed to Complete:
- Nitro:
- .21-.28 Size Nitro Engine
- Tuned Exhaust System
- Steering & Throttle Servo
- Starter Box
- Glow Igniter
- Nitro Fuel
- Fuel Bottle/Fuel Gun
- Electric:
- Motor
- Electronic Speed Control
- Steering Servo
-
4S Battery & Charger
- Polycarbonate Paint
- 2-Channel Radio System
- Receiver Battery Pack and Charger
- 1/8 Scale Off-Road Truggy Tires, Wheels, Inserts and CA Glue
- Tools for Assembly
