Description
Motor Overview:

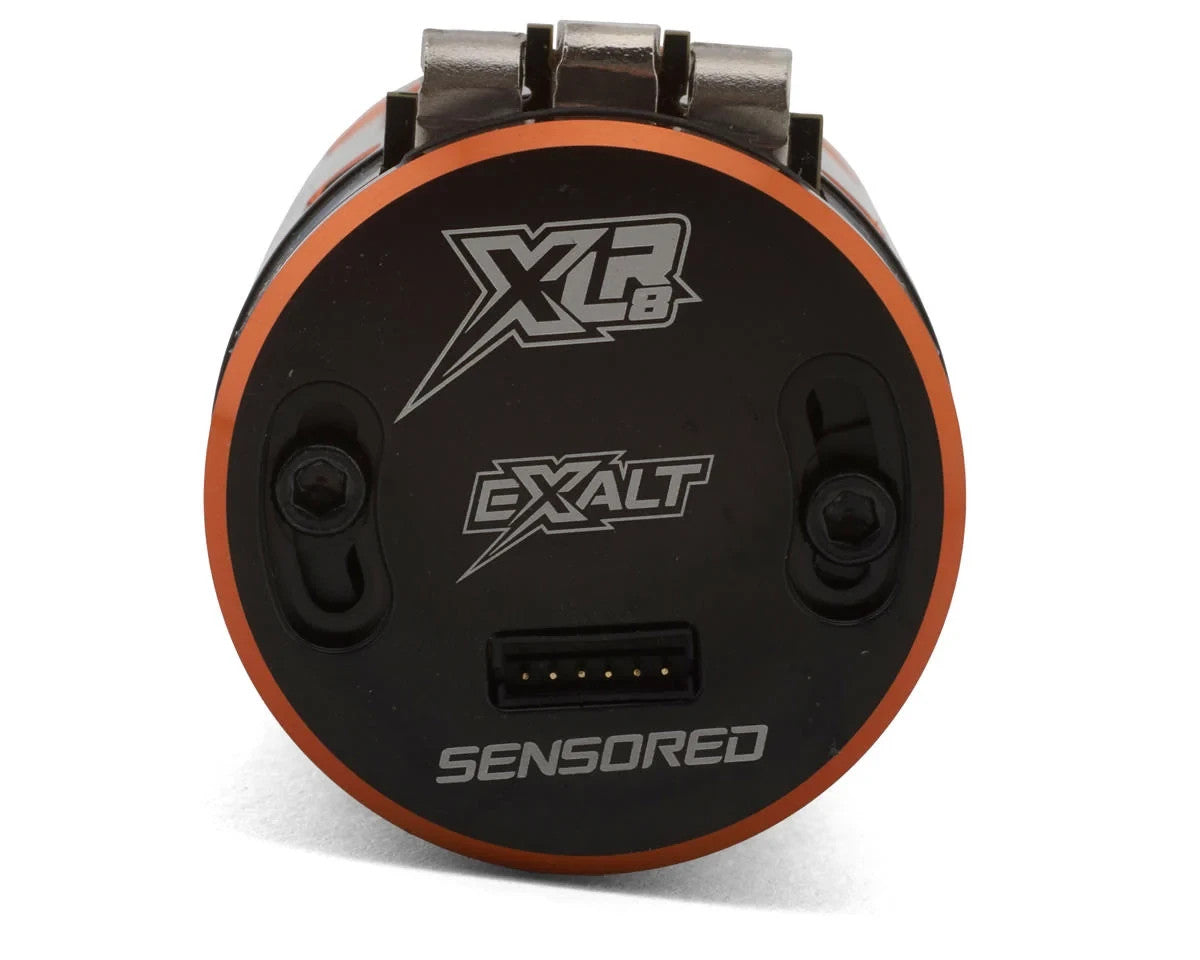

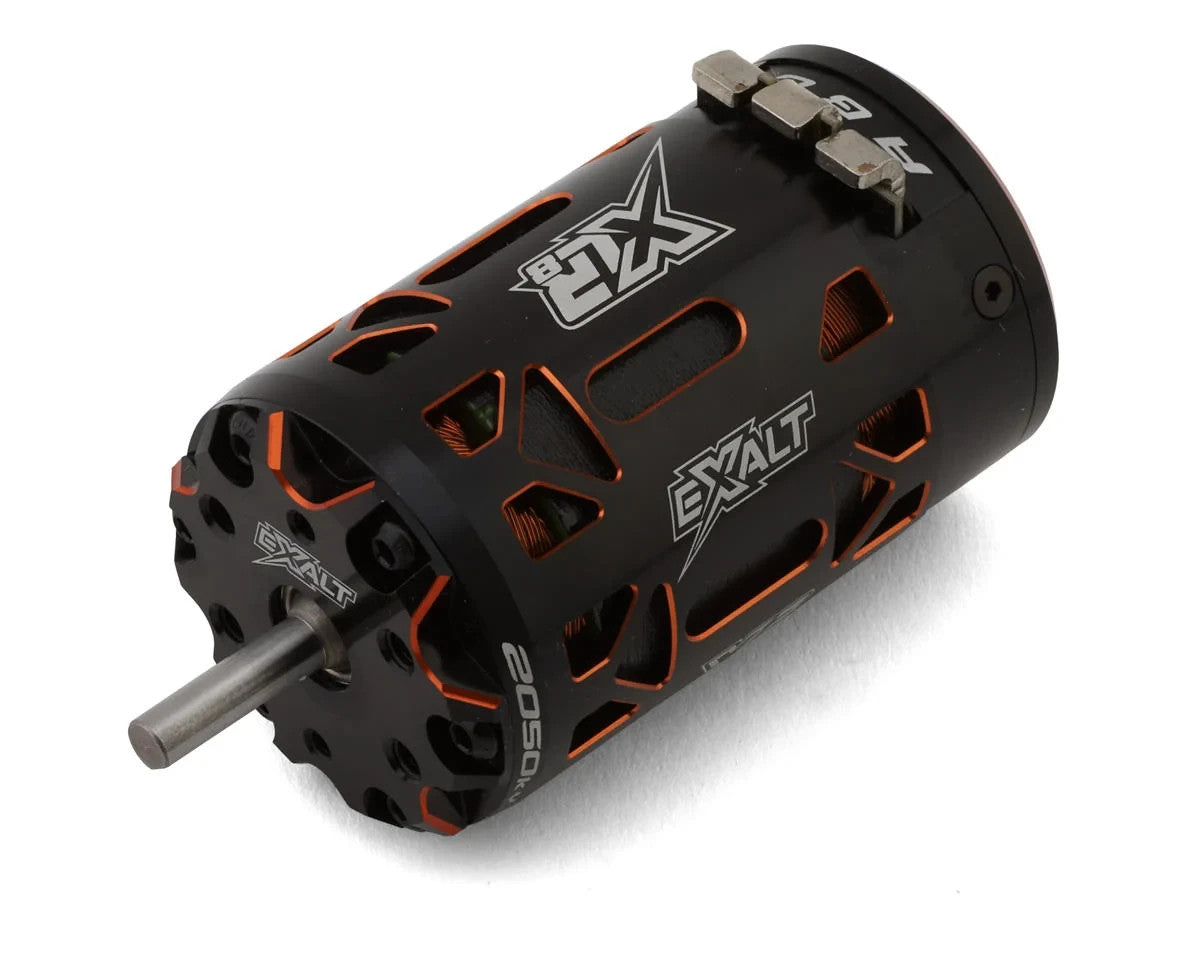

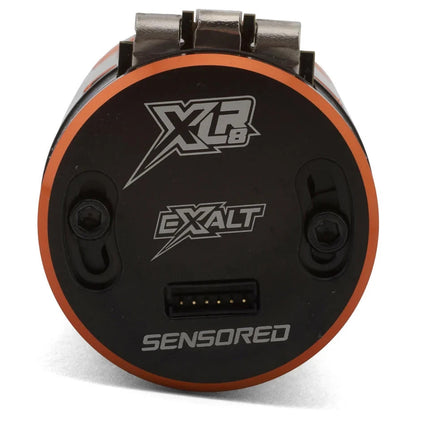

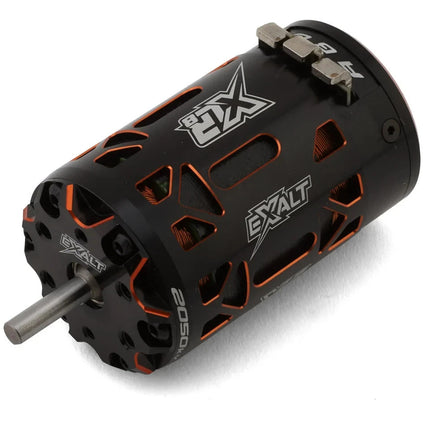

Team Exalt XLR8 1/8 Sensored Brushless Short Can Buggy Motor. Designed from the ground up to feed the demand for short 69mm can-size motors that don't lack power, speed, torque, or durability in 1/8 buggy racing! This XLR8 motor features high-strength and heat-resistant staggered magnet placed rotor offering a low drag effect with incredible torque and power, high purity copper windings with advanced hall sensing system design separating the rotor magnet from the magnet pickup and a rebuildable design with a replaceable sensor board!
To ensure peak performance even in the most demanding conditions and that cooling would not be an issue, Team Exalt designed the case with a 2mm thick aluminum wall and implemented ventilation holes that let the air in and keep the debris out for the ultimate heat dissipation and motor protection!
Features:
- Staggered magnet placed rotor offering a low drag effect with incredible torque and power
- Adjustable timing from 0-40 degrees (CCW/CW)
- Sensored and Sensorless compatible
- Rebuildable design with replaceable sensor board
- High purity copper windings
- Top-quality alloy steel output shaft
- High-strength and heat resistant magnet formula
- Advanced hall sensing system design separating the rotor magnet from the magnet pickup
- Roar Approved!
Specifications:
-
Type: Sensored Brushless
-
kV Rating: 2050kV
-
Input Voltage: 2-4S (7.4-14.8V) LiPo
-
Poles: 4
-
Timing: Adjustable 0-40 degrees (CCW/CW)
-
Diameter: 41.8mm (1.645in)
-
Length: 69mm 2.71in
-
Shaft Diameter: 5mm (0.19in)
-
Shaft Length: 17.7mm (0.696in)
-
Weight: 335g (11.8oz)
-
Application: 1/8 Buggy
Includes:
- (1) XLR8 1/8 Sensored Brushless Short Can Buggy Motor (2050kV)

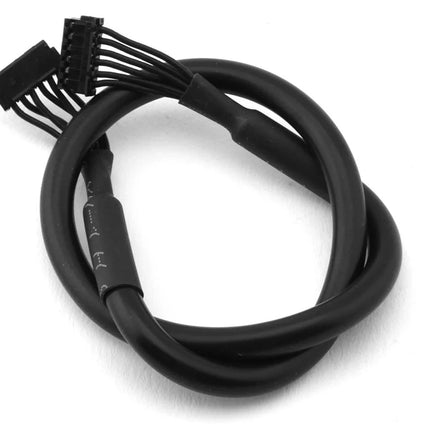

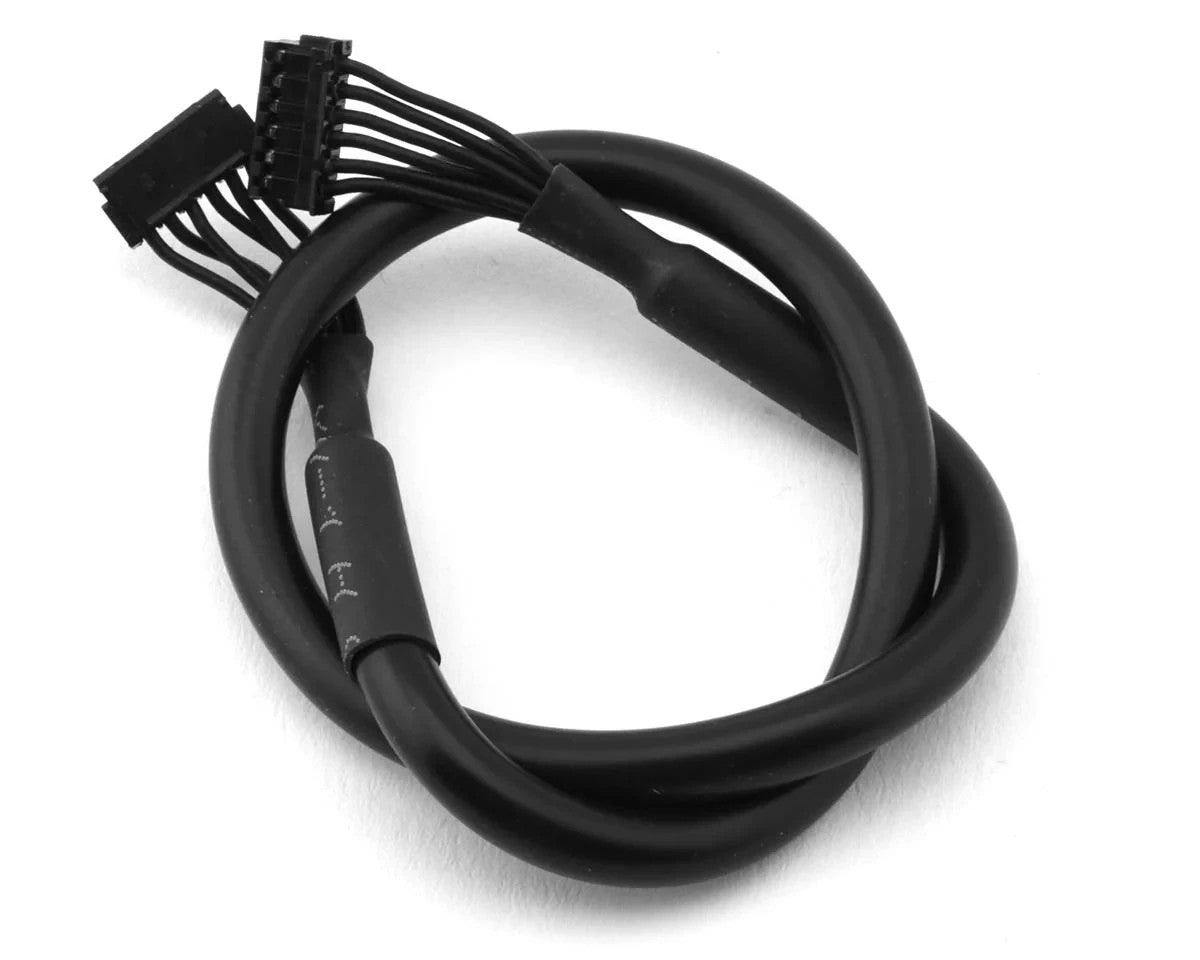

- (1) Sensor Wire
