Description
Servo Overview:

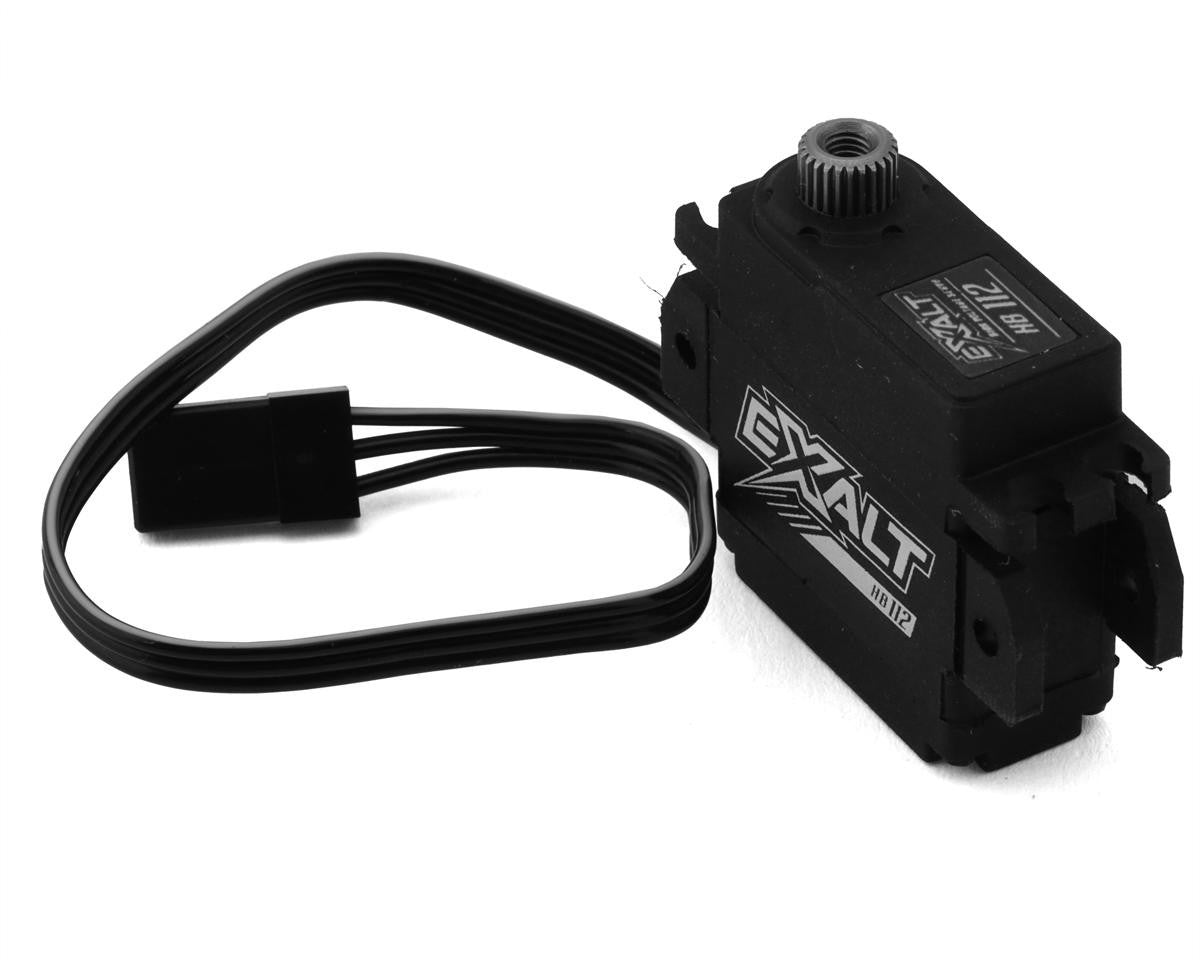

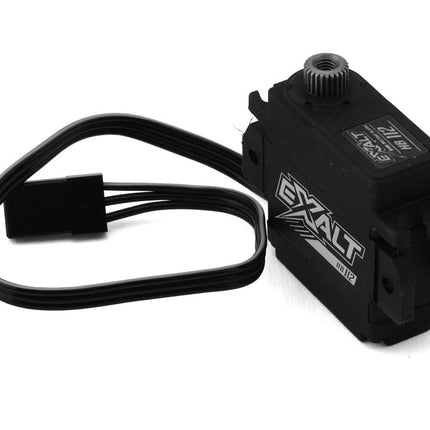

Team Exalt HB112 1/12 Metal Gear Brushless High Voltage Mini Servo. Capable of running on up to 8.4V with all machined Titanium and metal gears, and a super lightweight composite case, this mini servo is intended for 1/12 scale cars in need of a lightweight servo without compromising speed and torque to provide a smooth and responsive steering feel!
Features:
- Hi voltage capable of up to 8.4V
- High torque and speed powerful coreless motor
- All Metal and Titanium machined gears
- Smooth and responsive feel
- Lightweight composite case
Specifications:
- Speed:
-
@6.0V: 0.085sec/60°
-
@7.4V: 0.073sec/60°
-
@8.4V: 0.065sec/60°
- Torque:
-
@6.0V: 87.49oz-in (6.3kg-cm)
-
@7.4V: 104.15oz-in (7.5kg-cm)
-
@8.4V: 118.04oz-in (8.5kg-cm)
-
Motor: Coreless
-
Operating Voltage: 4.8V-8.4V
-
Operating Trmp.: -
-
Dimensions (LxWxH): 27x12x28mm
-
Weight: 16.5g (0.582oz)
-
Operating Spline: 25T
Includes:
- (1) Exalt HB112 High Torque 1/12 Coreless Servo

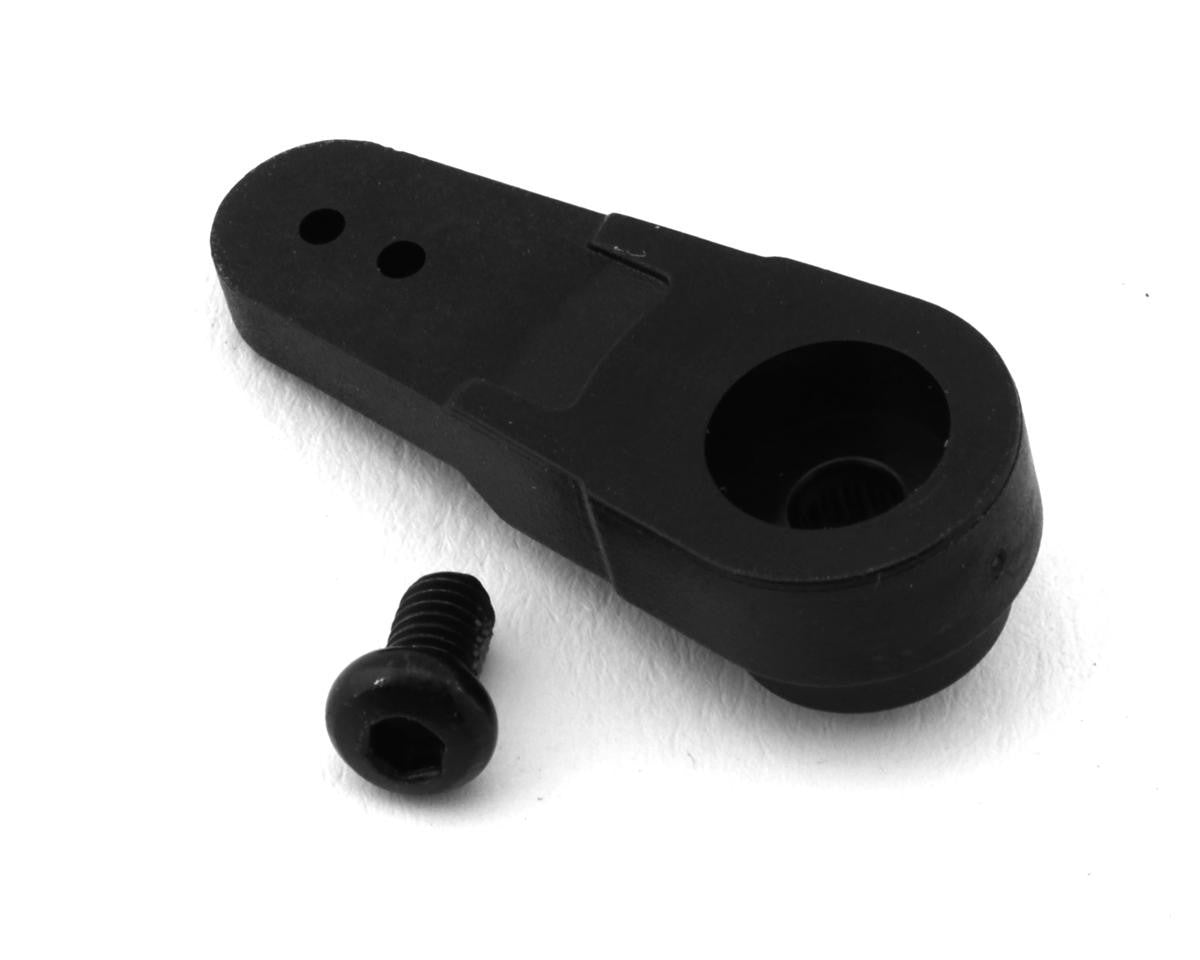

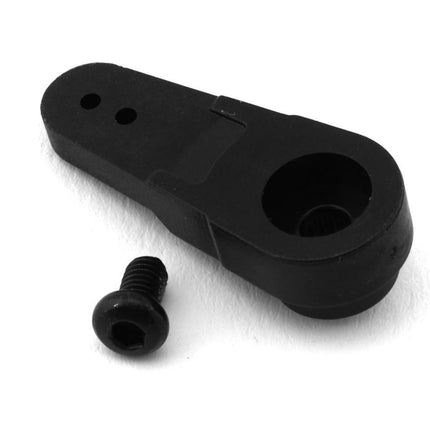

- Composite Servo Horns and Mounting Hardware
