Description
Servo Overview:

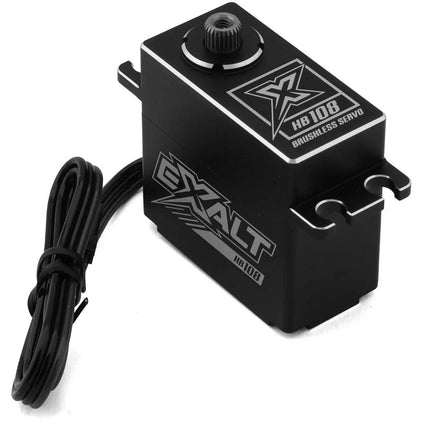

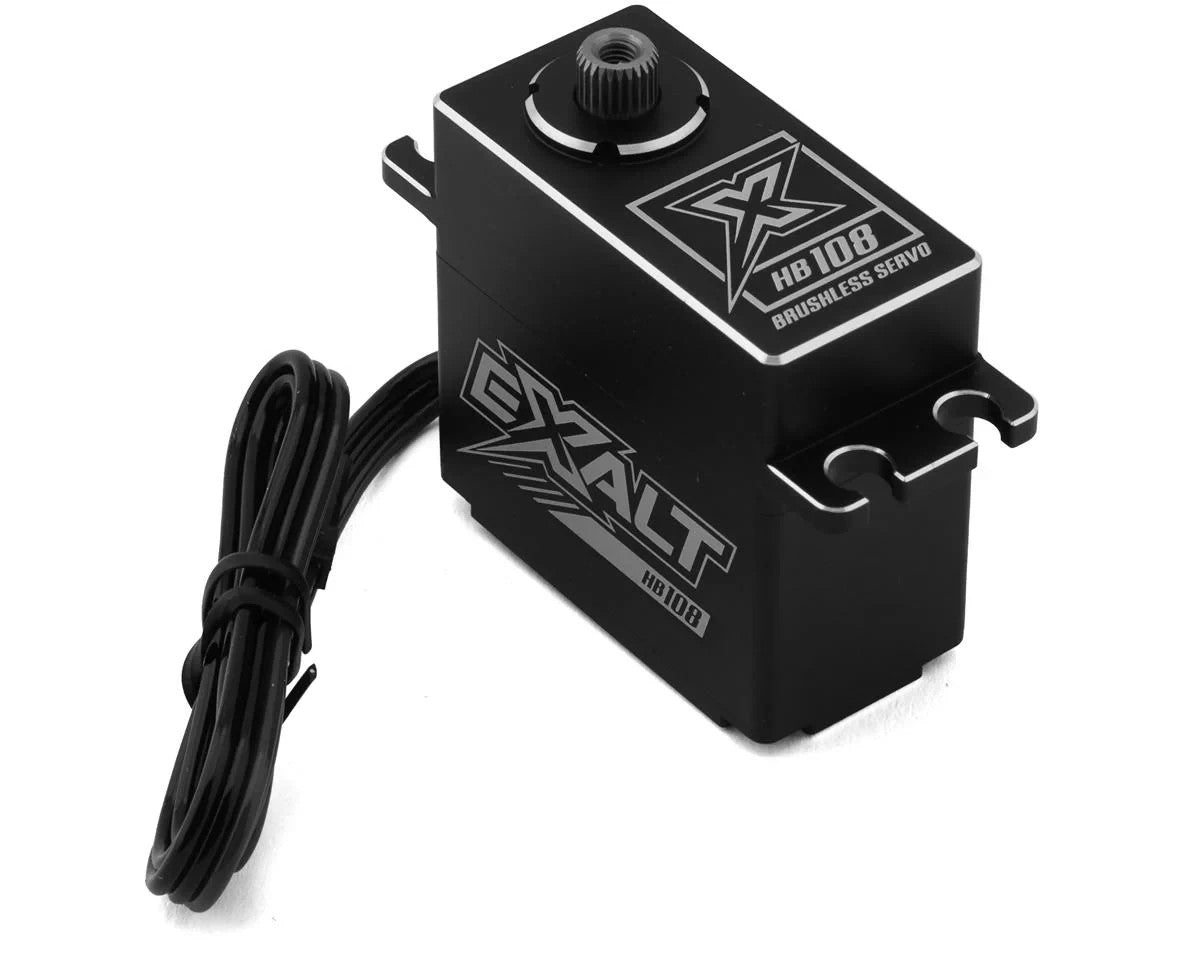

Team Exalt HB108 1/8 High Torque Metal Gear High Voltage Brushless Servo. Features an all aluminum case to maximize heat dissipation, all steel CNC-machined gears, waterproof design and smooth and responsive feel, this high voltage capable brushless servo can put out up to 486oz-in (34.9kg-cm) of torque and 0.075sec/60° of speed at 8.4V making it an excellent option for most 1/8 and 1/10 off-road racing applications and more!
Features:
- Hi voltage capable of up to 8.4V
- High torque and speed powerful brushless motor
- Waterproof design
- All steel machined gears
- Smooth and responsive feel
- All aluminum case to maximize heat dissipation
Specifications:
- Speed:
-
@6.0V: 0.097sec/60°
-
@7.4V: 0.086sec/60°
-
@8.4V: 0.075sec/60°
- Torque:
-
@6.0V: 389oz-in (28kg-cm)
-
@7.4V: 431oz-in (31kg-cm)
-
@8.4V: 486oz-in (34.9kg-cm)
-
Motor: Brushless
-
Operating Voltage: 4.8V-8.4V
-
Operating Temp.: -15°C to +70°C (+5° to +160°F)
-
Dimensions (LxWxH): 40x20x37.5mm (1.57x0.78x1.47in)
-
Weight: 83g (2.92oz)
-
Operating Spline: 25T
Includes:
- (1) Exalt HB108 High Torque Brushless Servo

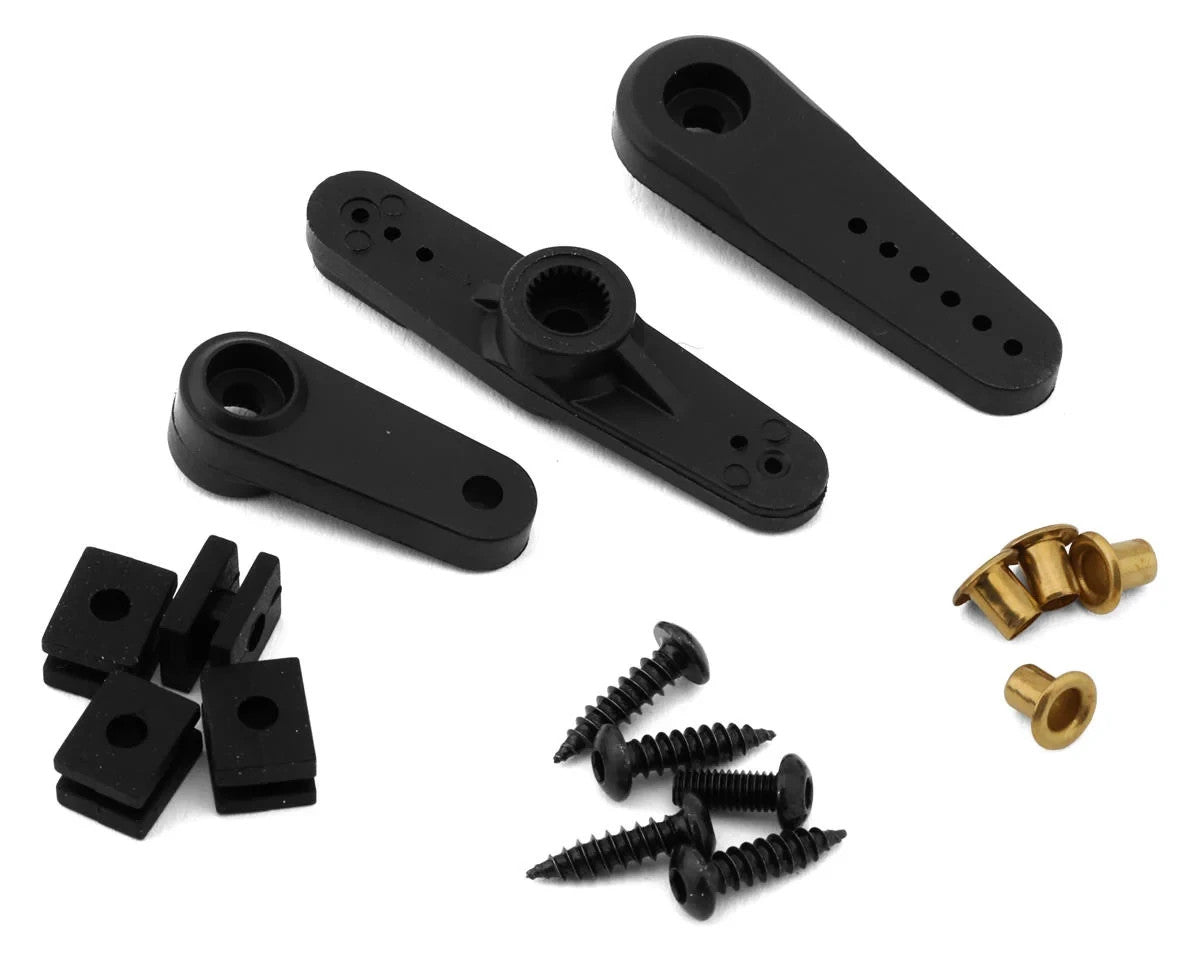

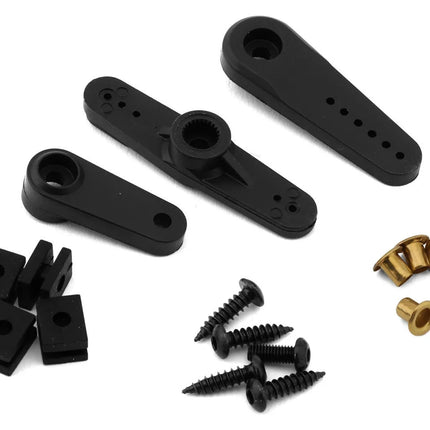

- Composite Servo Horns and Mounting Hardware
