Description
Brushless Combo Overview:

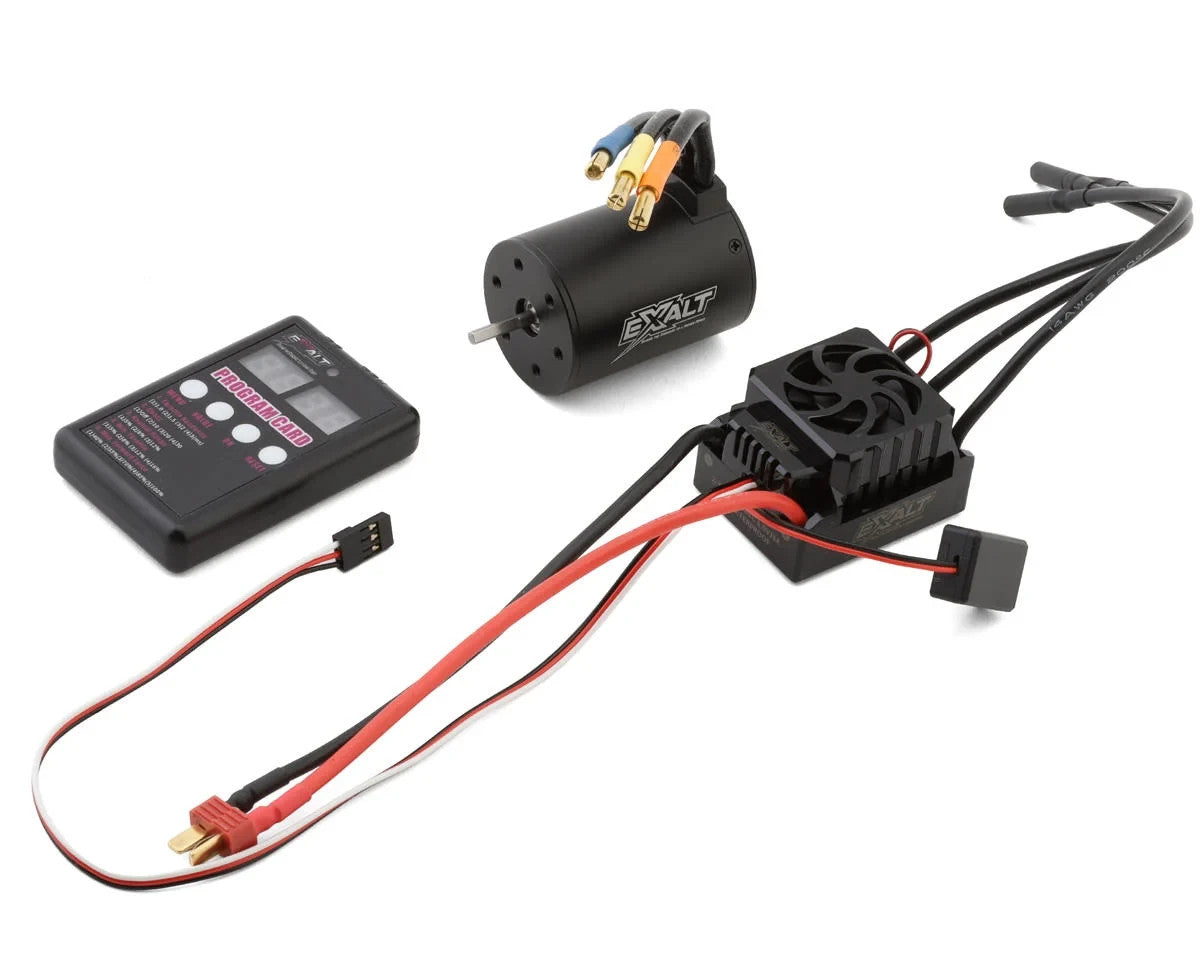

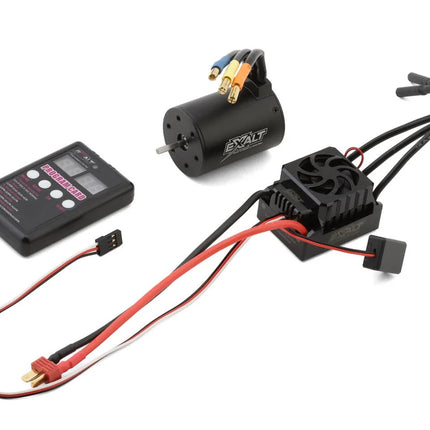

Team Exalt 1/10 Brushless Sensorless ESC and Motor Combo with Program Card. A direct drop in for market leading 2-3S 1/10 applications, this combo features a high performance 32-bit MCU with accurate throttle output and powerful computing capabilities, built-in reliable 6V/3A BEC, multiple protection functions, balanced rotor with smooth powerband and maximum RPM output, smooth Sensorless startups and high purity copper winding with optimal efficiency! Give your 1/10 Ready-to-Run the power and reliability it deserves with this Team Exalt brushless combo and experience the smooth power delivery of Sensorless electronics like never before!
NOTE:
- This combo will work on 4WD Buggy but Team Exalt do not recommend it for 4WD Short Course Trucks.
- 2S (7.4V) is recommended for beginners and as you become more comfortable you can upgrade to 3S (11.1V) for more speed and torque.
Features:
- ESC:
- High performance 32-bit MCU with accurate throttle output and powerful computing capabilities
- Direct drop in for market leading 2-3S 1/10 applications
- Equipped with multiple protection functions
- 2-3S LiPo compatible
- Waterproof design allows for use in nearly any environment
- Smooth Sensorless startups
- Built-in reliable 6V/3A BEC
- Programmable with the included program card
- Motor:
- High purity copper winding with optimal efficiency
- Direct drop in for market leading 2-3S 1/10 applications
- Waterproof design allows for use in nearly any environment
- 2-3S LiPo compatible
- Balanced rotor with smooth powerband and maximum RPM output
- Extreme durability and performance
Specifications:
- ESC:
-
Type: Sensorless Brushless
-
Applications: Vehicles up to 6.5lbs with battery, ready-to-run
-
Input Voltage: 2-3S LiPo / 6-8 cell NiMH
-
Continuous Current: 60Amp
-
Burst Current: 390Amp
-
BEC: Built-in 6V/3A
-
Dimensions: 48x38x32.5mm (1.9x1.5x1.27in)
-
Weight: 95g (3.35oz)
-
Battery Connector: Dean
-
Waterproof: Yes
- Motor:
-
Type: Sensorless Brushless
-
kV Rating: 4350Kv
-
Applications: Vehicles up to 6.5lbs with battery, ready-to-run
-
Input Voltage Range: 2-3S LiPo / 6-8 cell NiMH
-
Pole Count: 4
-
Diameter: 35.9mm (1.41in)
-
Length: 50.06mm (1.97in)
-
Shaft Diameter: 3.17mm (0.125in)
-
Shaft Length: -
-
Weight: 186g (6.5oz)
-
Motor/ESE Connectors: 4mm Bullets
-
Waterproof: Yes
Includes:
- (1) SL 60A ESC Brushless ESC
- (1) 4350kv Brushless motor
- (1) Programming Card
- (1) Manual
