Japanese Engineered On-Road GT Racing Kit
This RC model assembly kit faithfully reproduces the Toyota Celica GT-Four RC and is built on the popular TT-02 chassis. Boasts a sleek and aerodynamic body designed for high-performance GT racing. Built on the TT-02 chassis, it's beginner-friendly with enhanced cornering and speed. The kit includes a torque-tuned motor and Hobbywing 1060 ESC for a performance-focused on-road racing experience, featuring exceptional endurance, user-friendly setup, and waterproof reliability. This kit combines style, functionality, and optimal electronics, creating a formidable racing machine for the track.

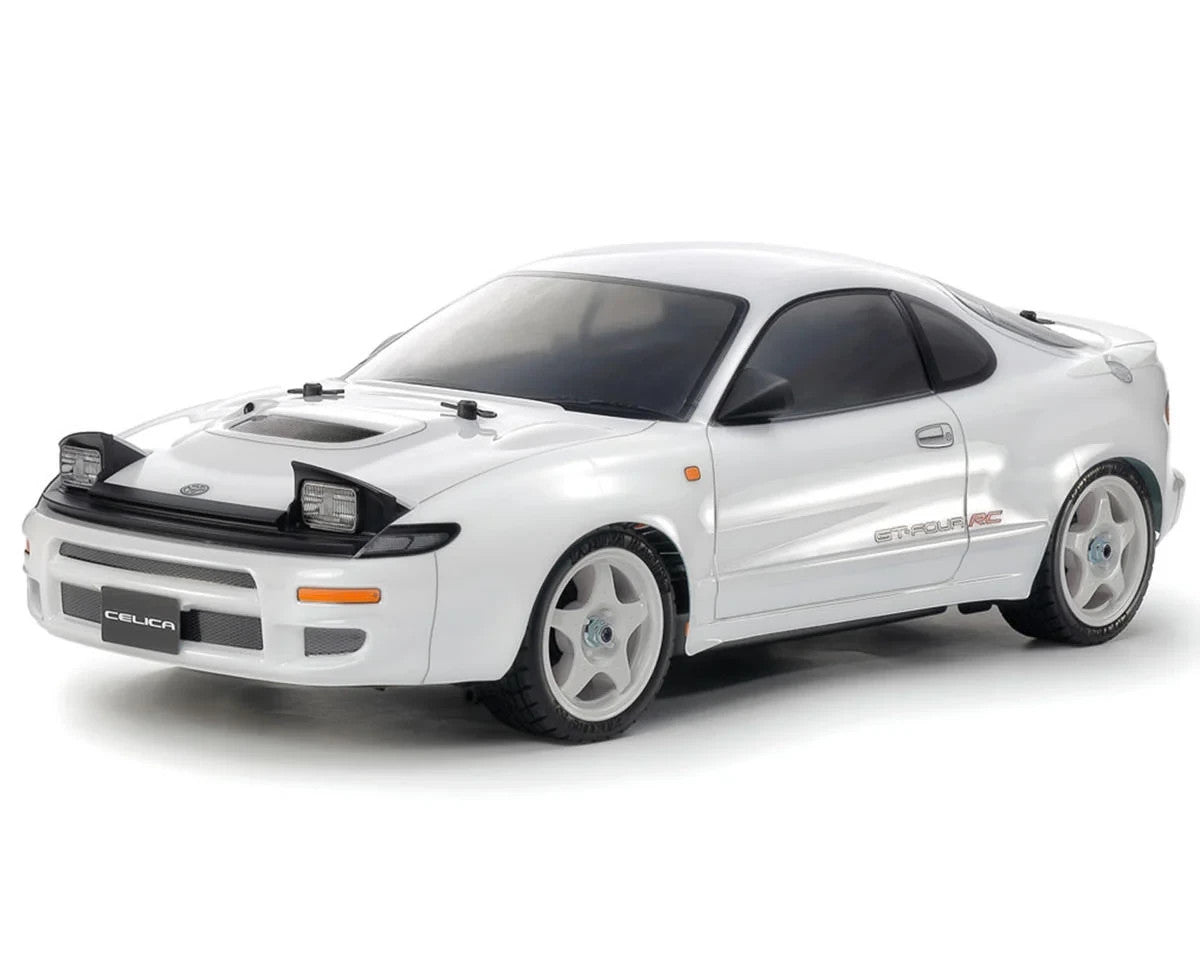

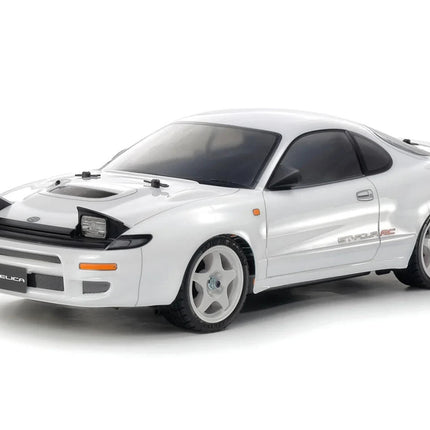

About the Toyota Celica GT-Four RC
Painted Body
The model’s pre-painted polycarbonate body in Tamiya White makes the assembly process simpler, especially for beginner builders. The cut-out wheel arches and pre-made body mount holes provide a precise and easy fit. With no sponsorship livery, this kit gives you the freedom to design your own, offering a blank canvas for customization and personal expression.
Performance Chassis
The TT-02 chassis, with its adaptable and balanced shaft-driven 4WD system, ensures excellent stability through a longitudinal layout featuring the battery on the left and the motor on the right. Its design incorporates identical left and right suspension arms and uprights for straightforward assembly, along with easily maintainable gearboxes. The chassis offers versatility with two wheelbases, two ground clearance settings, two tread setups, and a selection of ten gear ratios. Not only functional, it boasts aesthetic appeal with brake disc-shaped wheel hubs, stylish front bumper supports, gun metal color 10-spoke wheels, and sleek slick tires, delivering a sporty appearance.
Included Electronics
This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 Torque-Tuned motor offers higher top speeds and increased acceleration.
Features:
- Super smooth shaft-driven 4WD TT-02 chassis
- Decals and window masking for use in the body painting process
- Sleek racing wheels to match the body
- The body is made of lightweight and rigid polycarbonate
- Fully independent double wishbone suspension
- Low maintenance Friction style shocks
- Reliable Hobbywing THW 1060 Brushed ESC
- Strong Torque tuned Mabuchi RS-540 brushed motor
- High strength chassis constructed from ABS (Acrylonitrile Butadiene Styrene)
- Buttery smooth grease filled differentials
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
Includes:
- (1) Toyota Celica GT-Four RC (ST185) Kit
- (1) Hobbywing 1060 ESC with Tamiya Connector
- (1) Torque tuned 540 brushed motor
- Manual
Needed To Complete:
- (1) 2-Channel radio system
- (1) Standard or Low-profile Steering servo
- Polycarbonate paint for body
- (1) 7.2V NiMH battery with Tamiya Connector
- (1) Compatible Charger
Specifications:
| Scale |
1/10 |
| Length |
17.13in (435mm) |
| Width |
7.64in (194mm) |
| Height |
4.76in (121mm) |
| Wheelbase |
10.11in (257mm) |
| Drive |
4WD |
| Input Voltage |
7.2V |
| Assembly Level |
Kit* |
*Note: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
