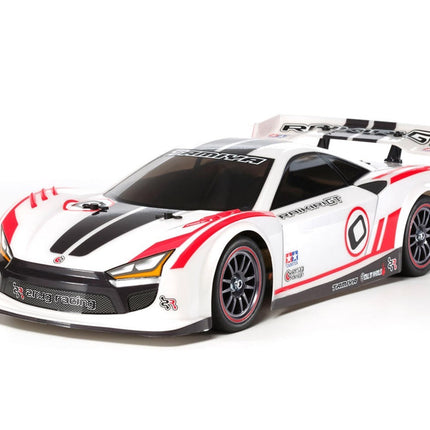

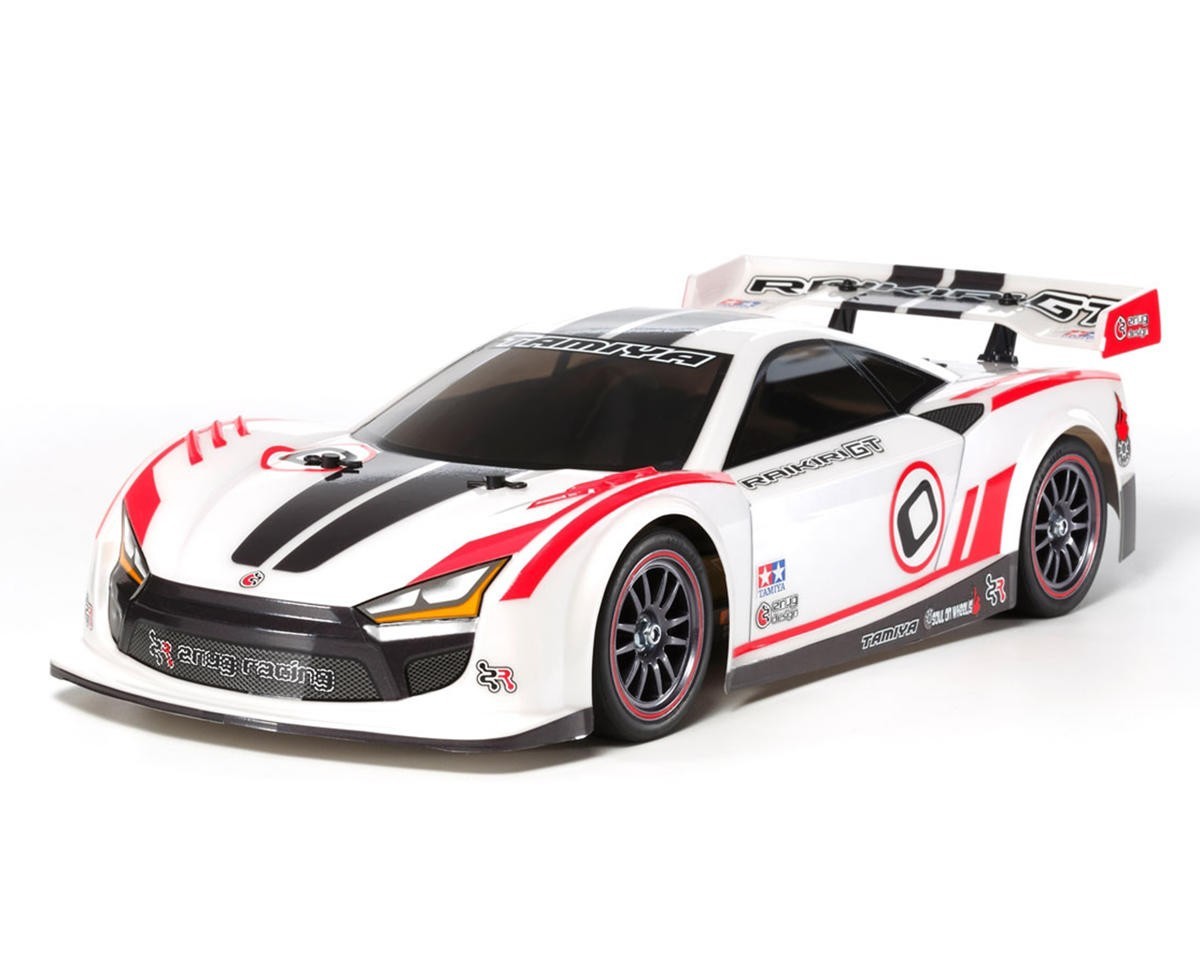

Performance Engineered On-Road GT Racing Kit
Designed by Japanese designer Kota Nezu of Znug design, the Raikiri shell showcases a blend of style and functionality. Originally conceived for electric RC cars, the wide and lowdown form of the Raikiri GT, complete with a stylish rear wing, promises to make a bold statement on the local racetrack. The body comes adorned with included markings, adding to its overall visual appeal. With its eye-catching design, the Raikiri is set to capture attention and deliver performance in equal measure.
About the Raikiri GT
Clear Body
The Raikiri GT touring car boasts a sleek and aerodynamic design crafted by Japanese designer Kota Nezu of Znug design. Its wide and low profile, optimized for electric RC cars, enhances stability and speed on the track. The inclusion of a stylish rear wing not only adds to its aesthetic appeal but also contributes to improved downforce. The body comes with markings, further accentuating its visual flair, making the Raikiri GT a standout choice for both performance and style in the world of on-road RC racing.
Performance Chassis
The TT-02 chassis, with its adaptable and balanced shaft-driven 4WD system, ensures excellent stability through a longitudinal layout featuring the battery on the left and the motor on the right. Its design incorporates identical left and right suspension arms and uprights for straightforward assembly, along with easily maintainable gearboxes. The chassis offers versatility with two wheelbases, two ground clearance settings, two tread setups, and a selection of ten gear ratios. Not only functional, it boasts aesthetic appeal with brake disc-shaped wheel hubs, stylish front bumper supports, gun metal color 10-spoke wheels, and sleek slick tires, delivering a sporty appearance.
Included Electronics
This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance-enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for a user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 torque tuned motor offers higher top speeds and increased acceleration.
Features:
- Super smooth shaft-driven 4WD TT-02 chassis
- Stickers and window masking for use in the body painting process
- Sleek racing wheels to match the iconic body
- The body is made of lightweight and rigid polycarbonate
- Fully independent double wishbone suspension
- Low maintenance Friction style shocks
- Reliable HobbyWing THW 1060 Brushed ESC
- Strong Torque tuned Mabuchi RS-540 brushed motor
- High strength chassis constructed from ABS (Acrylonitrile Butadiene Styrene)
- Buttery smooth grease filled differentials
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
Includes:
- (1) Tamiya Raikiri GT Kit
- (1) Hobbywing 1060 ESC with Tamiya Connector
- (1) Torque tuned 540 brushed motor
- Manual
Needed To Complete:
- 2 channel radio system
- (1) Standard or Low-profile Steering servo
- Polycarbonate paint for body
- (1) 7.2V NiMh battery with Tamiya Connector
- Compatible Charger
Specifications:
| Scale |
1/10 |
| Length |
17.00in (432mm) |
| Width |
7.40in (188mm) |
| Height |
4.48in (114mm) |
| Wheelbase |
10.1in (257mm) |
| Drive |
4WD |
| Input Voltage |
7.2V |
| Assembly Level |
Kit* |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
