Description

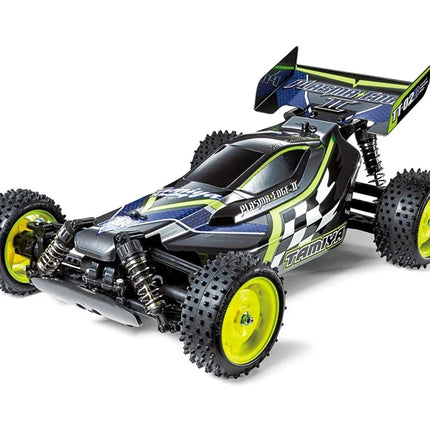

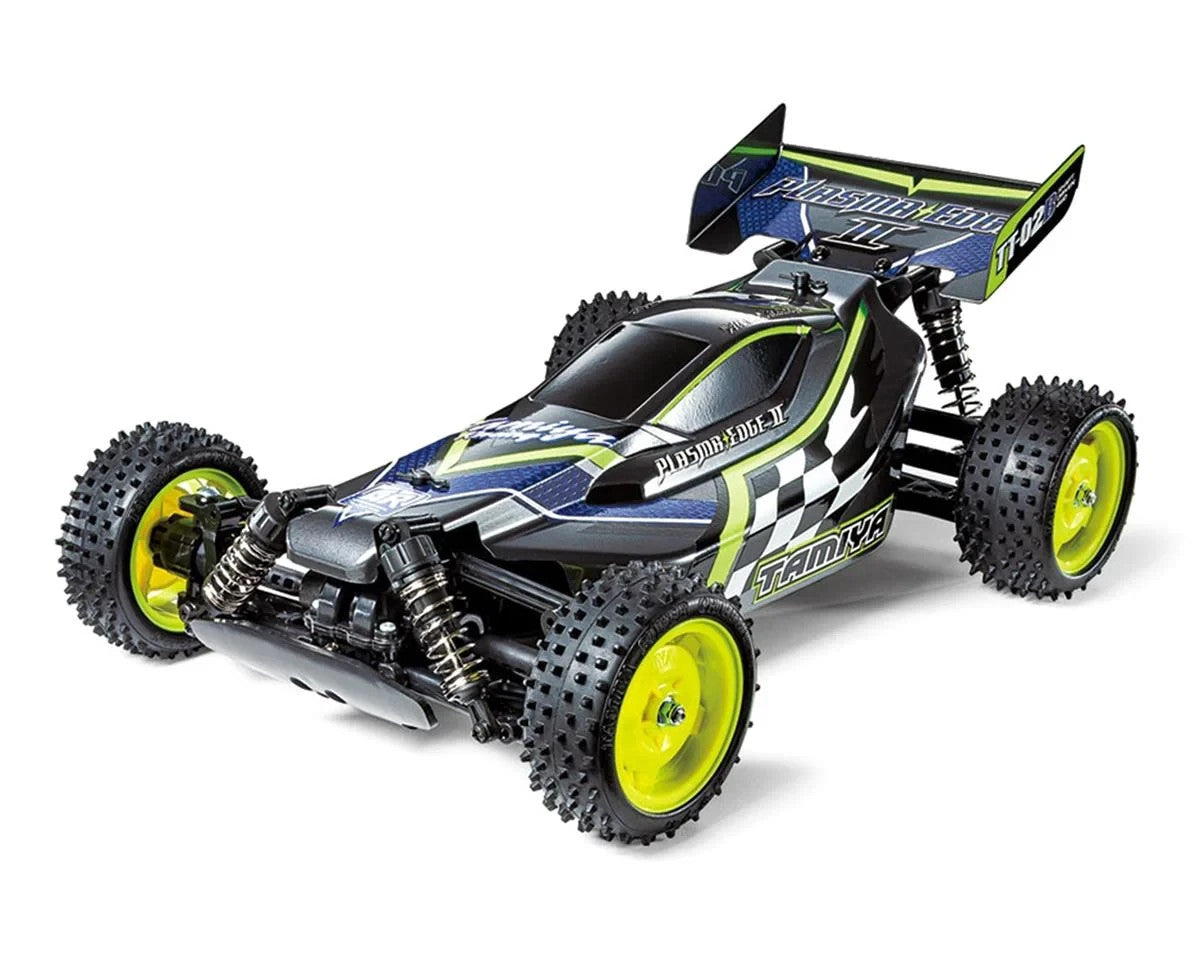

The Tamiya Plasma Edge II TT-02B 1/10 4WD Electric Buggy Kit features a limited edition body with a pre-painted gun metal color. The body sit on top of the TT-02B, which is a dedicated off-road buggy chassis that offers hassle-free assembly and maintenance, as well as superb controllability.
TT-02 B
The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA oil shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening a few screws, making maintenance a breeze. 4 different gear ratios can be applied with the use of 3 separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.
NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- 1/10 scale R/C model assembly kit
- The stylish polycarbonate single-seater buggy body and wing are pre-painted in PS-23 Gun metal
- The TT-02B chassis is the buggy evolution of Tamiya's popular 4WD entry level unit, the TT-02 chassis
- Bathtub-type frame has longitudinal battery and R/C mechanism placed flat for low center of gravity
- 4-wheel double wishbone suspension features long arms and CVA shock units, and is combined with high- grip square spike tires to give excellent traction
- Front and rear gearboxes have differentials to ensure smooth cornering
- A wide range of Hop-Up Option parts are available to tune the TT-02B chassis
- Includes Tamiya 540-Torque Tuned motor
- Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL, 23 Turn brushed motor limit)
Specifications:
Length: 370mm
Width: 250mm
Height: 160mm
Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: TT-02B
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Motor: 540-brushed type
Scale: 1/10
Shock Damper: Friction type
Suspension: 4-wheel fully independent double wishbone
Terrain Use: Off-Road
Needed to Complete:
- 2-channel radio
- Steering servo
- 7.2volt battery & battery charger
