Description
The Tamiya Neo Scorcher TT-02B 1/10 4WD Electric Buggy Kit is a re-release of the popular Scorcher, a quick 4WD racing buggy from the late-1980s Tamiya line. The updated body draws from the original Scorcher for inspiration, and is made from durable polycarbonate with a stylish large rear wing. This body can be decorated with the minimum of fuss thanks to the large stickers included. It runs on the easy-assembly shaft-driven 4WD TT-02B, and marries the chassis' controllability with square spike tires for superior grip on rough surfaces. This specific kit includes a Hobbywing THW-1060 Brushed ESC for incredible performance.
Shaft-Driven 4WD and Superior Handling from the TT-02B
The shaft-driven 4WD TT-02B buggy chassis uses a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus CVA shock units, giving the car sure footed handling, while left and right suspension arms and uprights are identical to facilitate hassle-free assembly. Front and rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening four screws, making maintenance a breeze. Four different gear ratios can be applied with the use of three separately-sold types of pinion gears, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

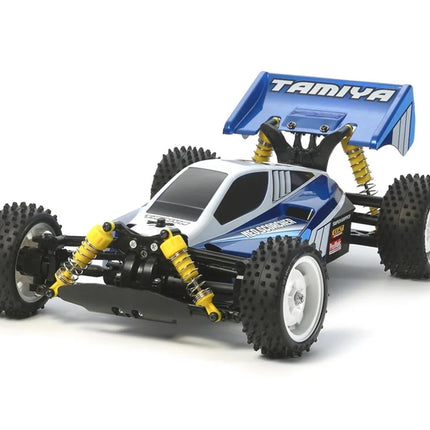

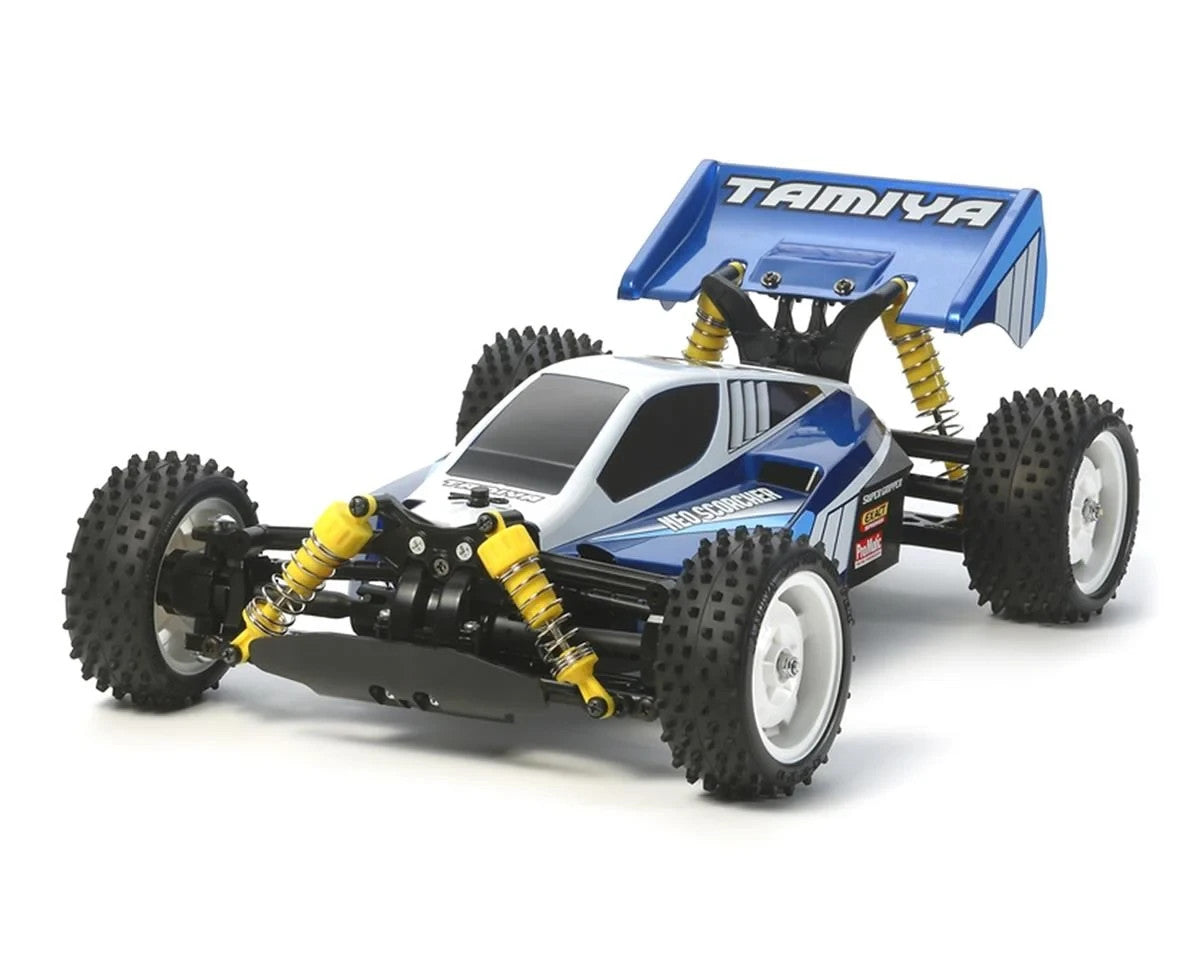

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- Includes 540 RS Torque Tuned Motor & Hobbywing THW-1060 Brushed ESC
- Uses the TT-02 base bathtub main chassis and drive-train for easy maintenance
- Longitudinally-placed battery and R/C gear placed flat for a low center of gravity
- Robust plastic dogbones for high durability and easy maintenance
- Includes sealed compartment to keep dirt and debris from receiver
- Shaft-Driven 4WD
- Front/Rear 4-Bevel Resin Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Front/Rear CVA Oil Dampers
Specifications:
Length: 380mm
Width: 250mm
Height: 145mm
Wheelbase: 266mm
Tread: 217mm (Front), 208mm (Rear)
Tire Width/Diameter: 32/82mm (Front), 41/82mm (Rear)
Gear Ratio: 10.71:1 (using kit-included pinion gear)
Needed to Complete:
- 2 channel radio system
- Steering servo
- Polycarbonate paint for body
- 7.2 - 7.4 volt battery
- Compatible Charger
