Description

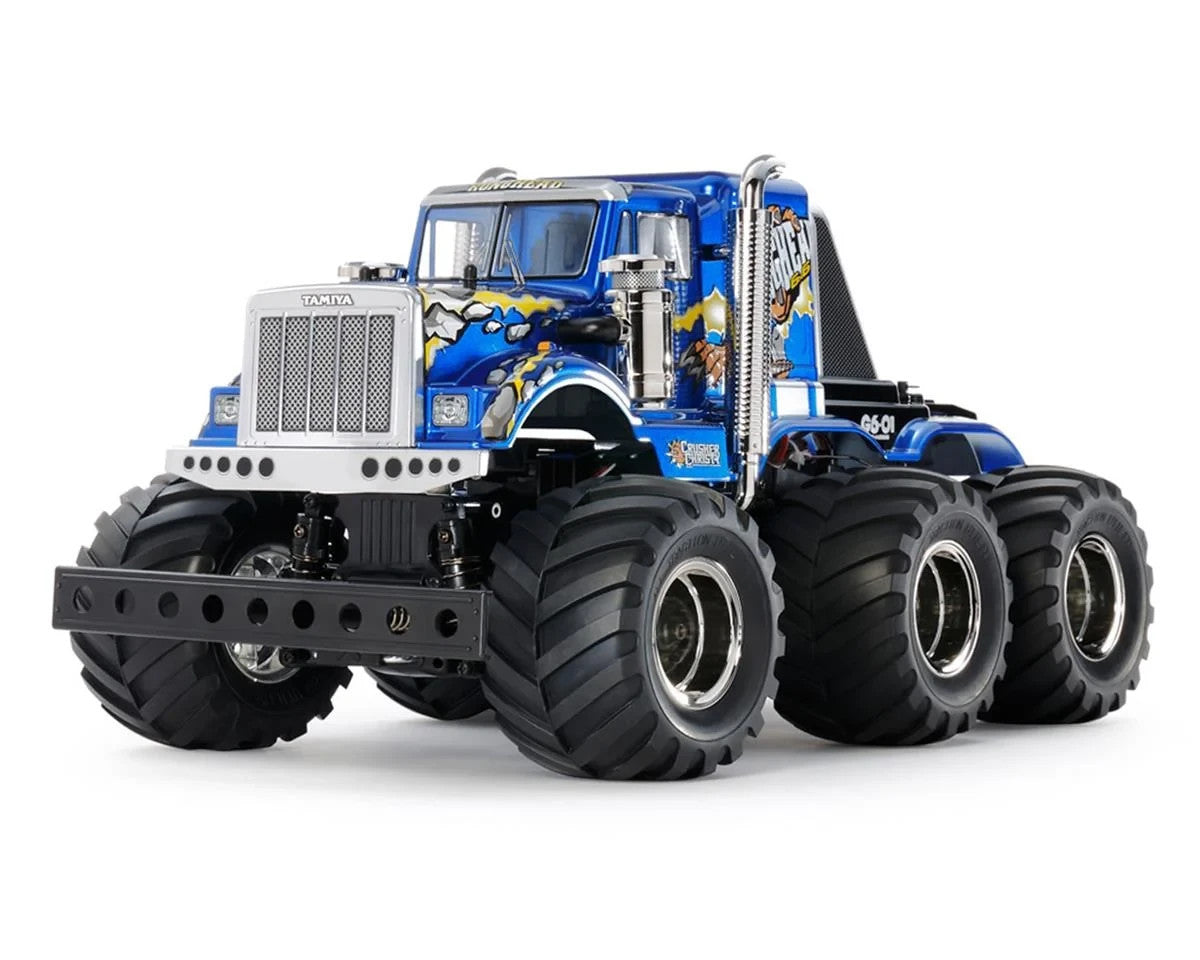

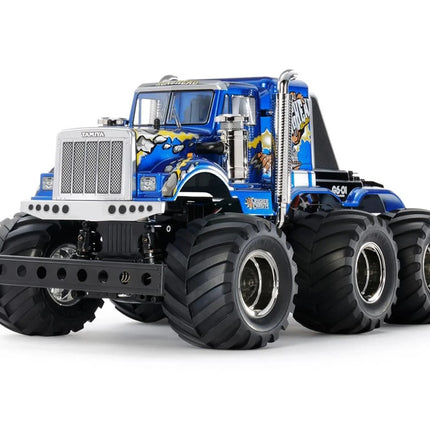

The Tamiya Konghead 6x6 G6-01 1/18 Monster Truck Kit was Tamiya’s first six-wheeled R/C vehicle. This model utilizes a gear-driven 6WD chassis which is partially derived from the capable Tamiya GF-01 wheelie machine. The exceptional drive it provides will make for extreme fun while off-road driving. Furthermore, its powerful gear-driven setup allows the Konghead to take on slope inclines of up to 40 degrees!
The polycarbonate body, inspired by Tamiya’s classic Bullhead monster truck, features a sticker sheet with cool graphics. A host of metal-plated parts includes air cleaners and exhaust (both from the Bullhead monster truck), plus chrome-plated deep dish wheel rims.
G6-01

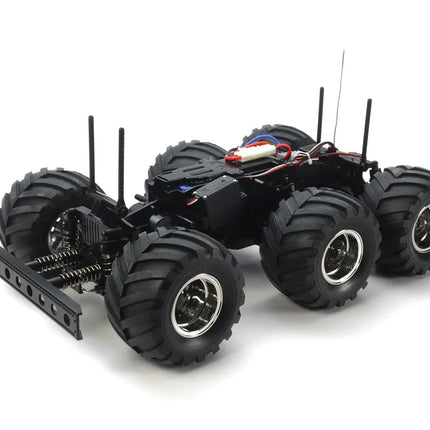

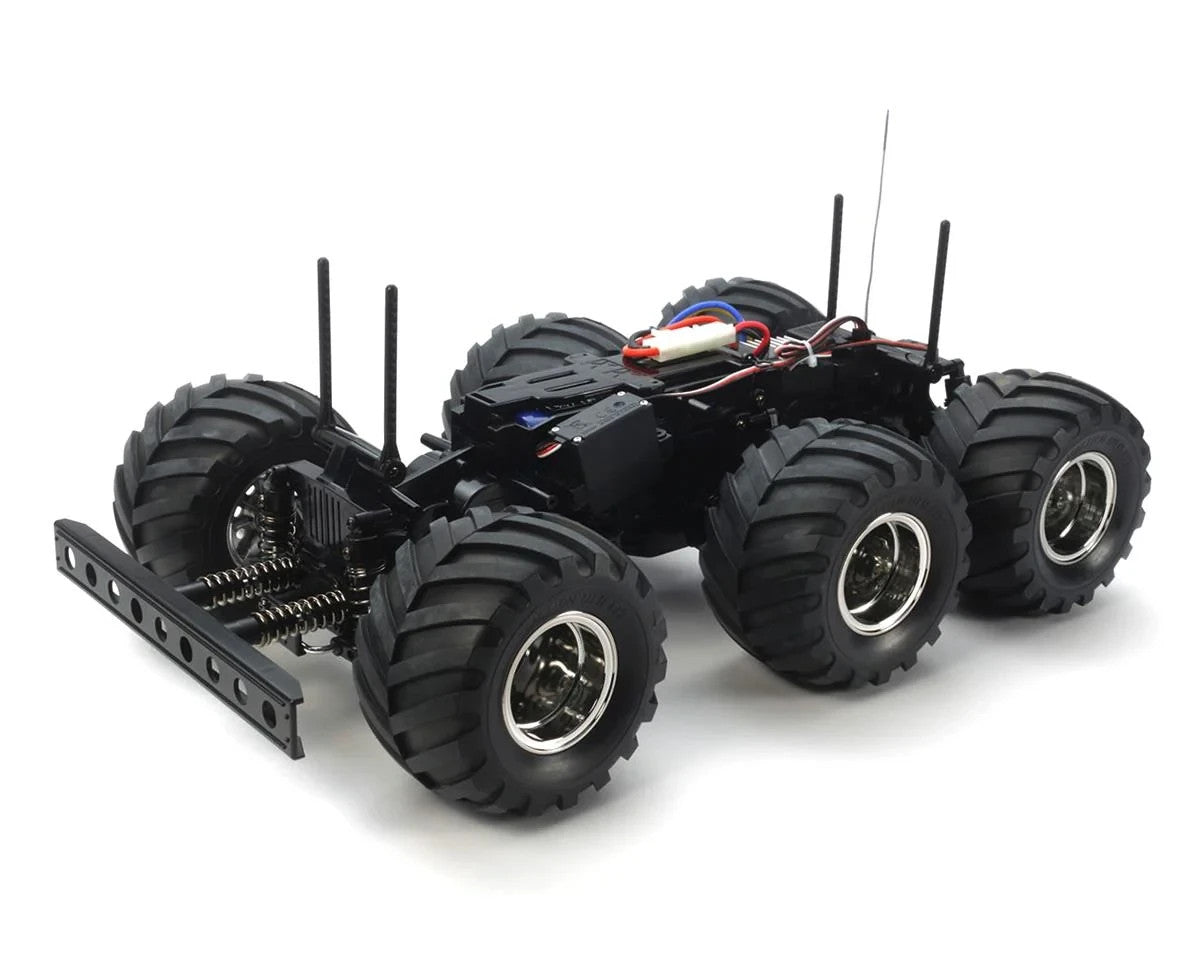

The fun G6-01 chassis is based around a tough, slimline monocoque frame and offers excellent off-road performance thanks to a 6-wheel drive system. Power is provided by a motor behind the front wheels, and transmitted to front, center and rear wheels via gears. The gearbox is sealed to protect from dust and debris, and integrated into the frame; it has built-in front, center and rear differential gears to provide smooth cornering. 6-wheel double wishbone suspension is fitted with friction dampers. A 2-piece steering tie-rod setup utilizes the servo on the left for excellent response. With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable.
NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.
Features:
- R/C model assembly kit.
- The 6WD chassis employs 3 differential gears to transmit power from the front-center-mounted motor to all of the model's wheels
- 6-wheel independent double-wishbone suspension is paired with friction dampers
- Polycarbonate body inspired by the classic Bullhead monster truck
- The kit manual build creates a front wheel-steering model
- It also includes instructions to re-assemble it into a 4WS model with steerable rear wheels - Separately-sold 4WS function transmitter and R/C equipment are required.
- Compatible with many GF-01 chassis Hop Up Option and spare parts
Specifications:
Length: 420mm
Width: 270mm
Height: 280mm
Adjustable Gear Ratio: Fixed
Bearings: Plastic Bushings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: G6-01
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 6WD
Electronic Speed Control: Not Included
Motor: 540-brushed type
Scale: 1/10
Shock Damper: Friction Type
Suspension: Fully independent double wishbone
Terrain Use: Multi-Terrain
Needed to Complete:
- 2-channel radio
- Servo
- ESC
- 7.2V battery pack
- Charger
- Polycarbonate paint
