High-Performance GR Yaris On-Road Rally Kit
This RC assembly kit replicates the Toyota Gazoo Racing WRT Yaris, a contender in the 2018 WRC. The meticulously crafted multi-part body mirrors the aerodynamic design of the car, housing a potent 380PS 1.6-liter 4-cylinder turbo engine. With a 4-wheel drive featuring an active center differential, this model encapsulates the dynamic prowess of the WRT Yaris on the rally stage.
About the 2018 Toyota GR WRT Yaris
Clear Body

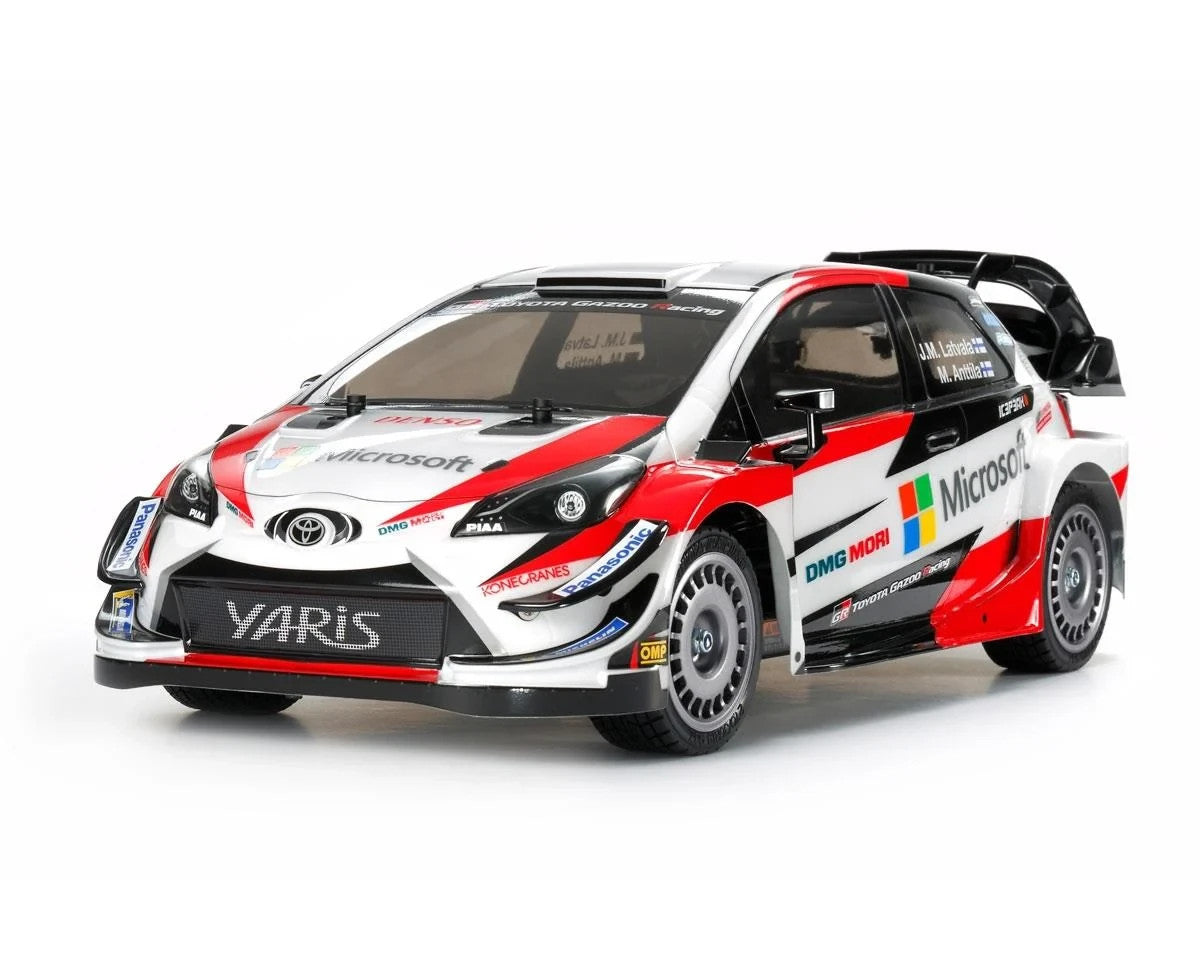

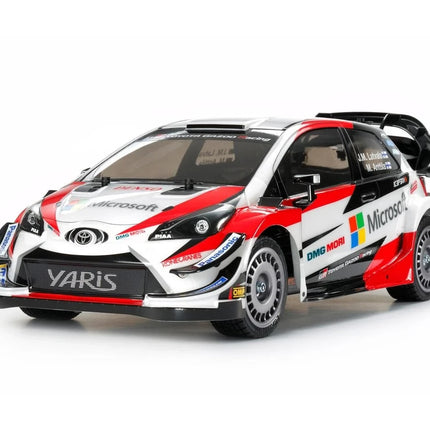

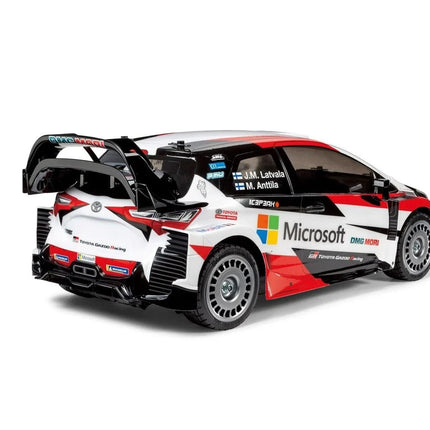

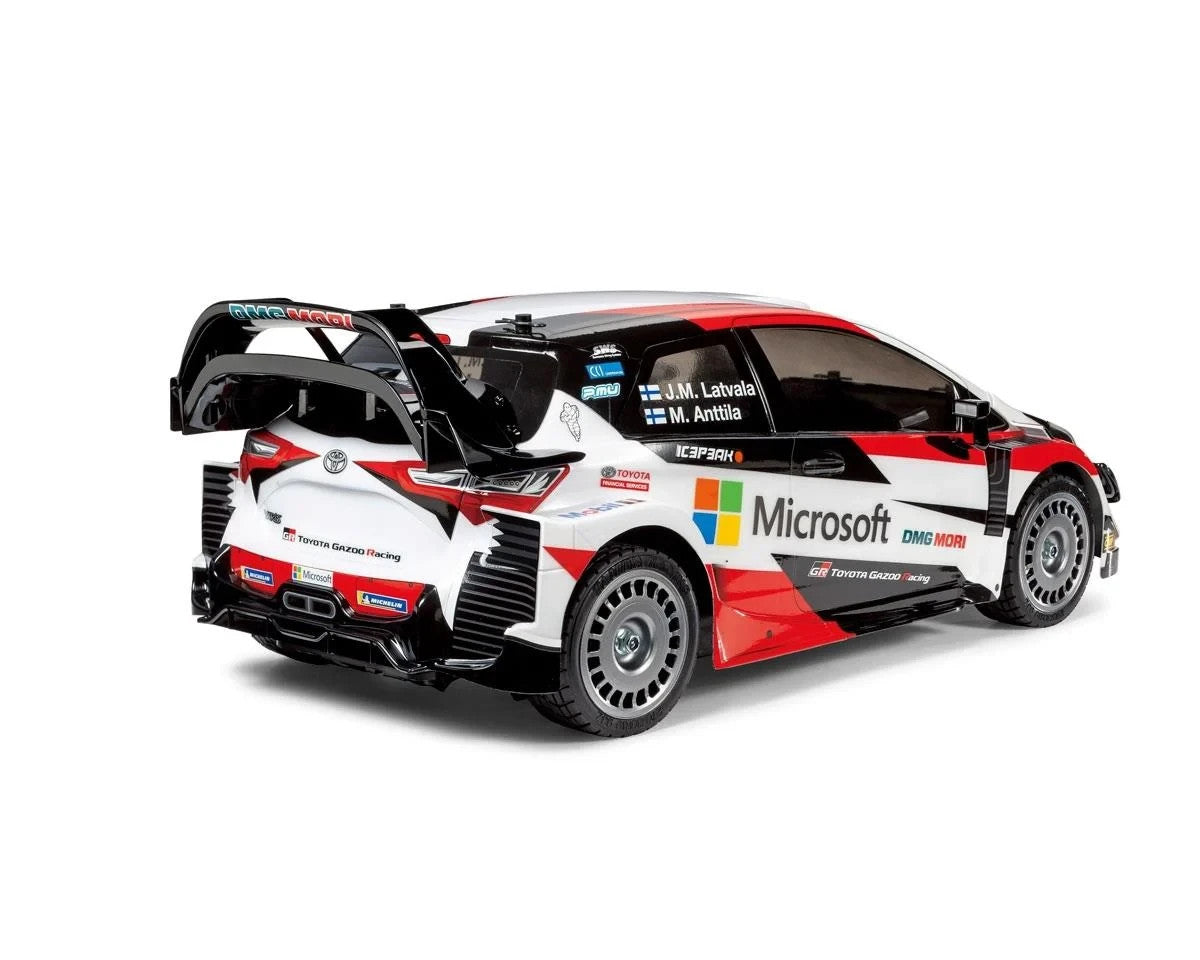

The Clear and untrimmed body design of the 2018 Toyota Gazoo Racing WRT Yaris is aerodynamically honed for high-performance rallying. Crafted with precision, the multi-part body captures the dynamic and sleek form of the car. Its design incorporates elements that optimize aerodynamics, reflecting the car's competitive edge in the 2018 WRC. With its aggressive lines, distinctive features, and attention to aerodynamic efficiency, the body embodies the racing spirit of the Toyota GR WRT Yaris on the rally stage.
Performance Chassis
The TT-02 chassis, with its adaptable and balanced shaft-driven 4WD system, ensures excellent stability through a longitudinal layout featuring the battery on the left and the motor on the right. Its design incorporates identical left and right suspension arms and uprights for straightforward assembly, along with easily maintainable gearboxes. The chassis offers versatility with two wheelbases, two ground clearance settings, two tread setups, and a selection of ten gear ratios. Not only functional, it boasts aesthetic appeal with brake disc-shaped wheel hubs, stylish front bumper supports, gun metal color 10-spoke wheels, and sleek slick tires, delivering a sporty appearance.
Included Electronics
This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 Torque-Tuned motor offers higher top speeds and increased acceleration.
Features:
- Super smooth shaft-driven 4WD TT-02 chassis
- Stickers and window masking for use in the body painting process
- Sleek racing wheels to match the iconic body
- The body is made of lightweight and rigid polycarbonate
- Fully independent double wishbone suspension
- Low maintenance Friction style shocks
- Reliable HobbyWing THW 1060 Brushed ESC
- Strong Torque tuned Mabuchi RS-540 brushed motor
- High strength chassis constructed from ABS (Acrylonitrile Butadiene Styrene)
- Buttery smooth grease filled diffrentials
Connector Information
When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.
Includes:
- (1) Tamiya Toyota GR WRT Yaris
- (1) Hobbywing 1060 ESC with Tamiya Connector
- (1) Torque tuned 540 brushed motor
- Manual
Needed To Complete:
- 2 channel radio system
- (1) Standard or Low-profile Steering servo
- Polycarbonate paint for body
- (1) 7.2V NiMh battery with Tamiya Connector
- Compatible Charger
Specifications:
| Scale |
1/10 |
| Length |
16.77in (416mm) |
| Width |
7.40in (188mm) |
| Height |
5.74in (146mm) |
| Wheelbase |
10.11in (257mm) |
| Drive |
4WD |
| Input Voltage |
7.2V |
| Assembly Level |
Kit* |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
