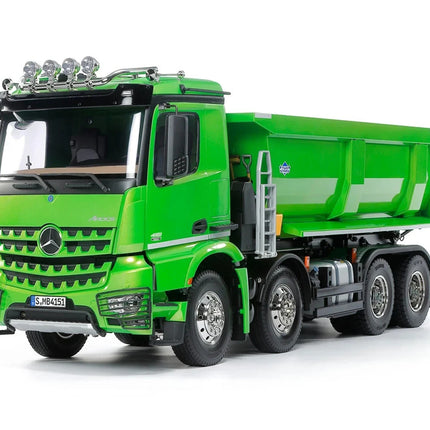

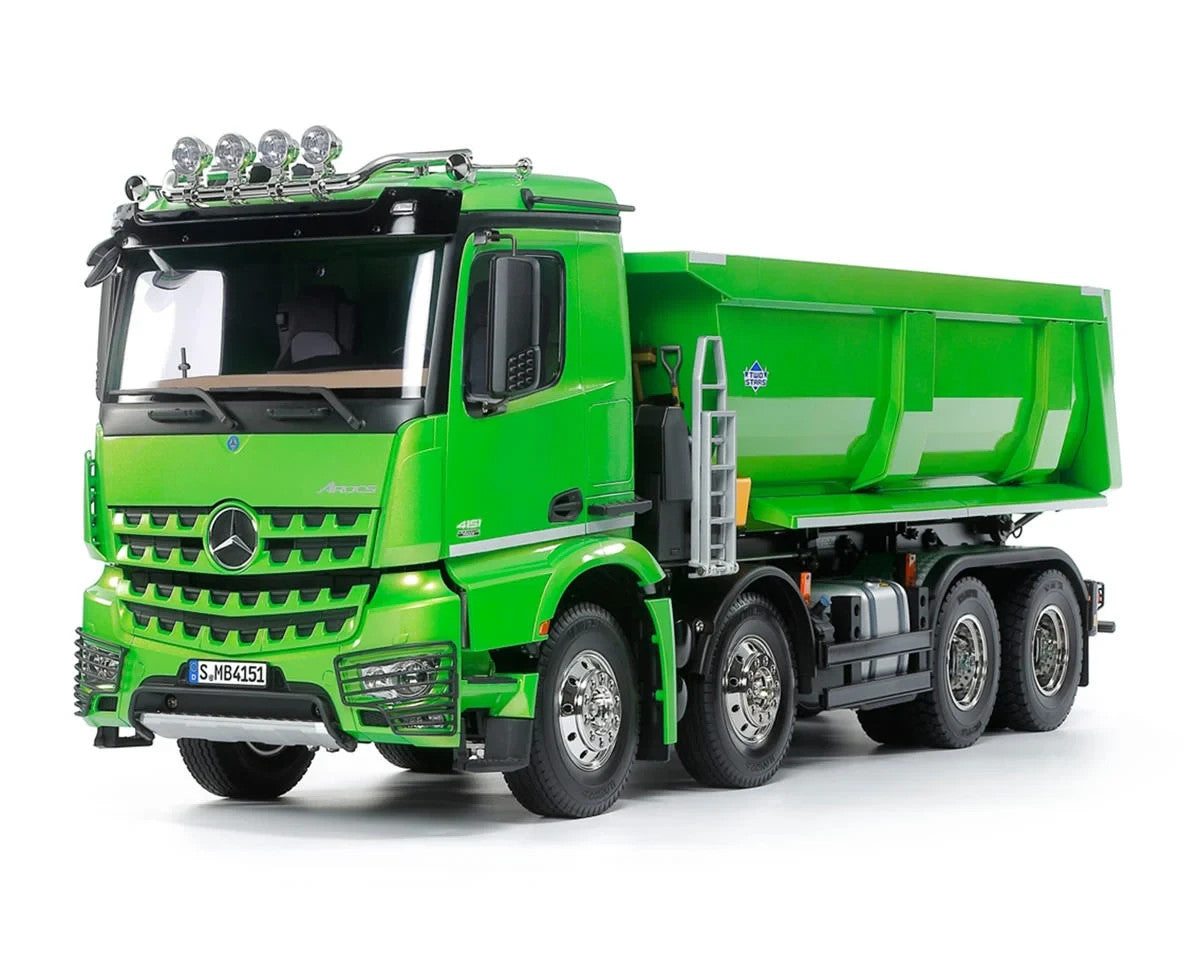

Scale Mercedes-Benz Arocs Dump Truck
The Tamiya 1/14 Mercedes-Benz Arocs 4151 8x4 Tipper Truck Kit delivers exceptional realism and functionality. With its pre-painted body, detailed truck bed, and advanced drivetrain, this model captures the rugged performance and heavy-duty presence of the real Arocs dump truck.
About the Arocs 4151
Authentic Body Design
This kit recreates the powerful Mercedes-Benz Arocs 4151 with an injection-molded cab, realistic details such as cab rails, intake ducts, and visor, plus separate mirror and accessory parts. The body is pre-painted in Candy Lime Green and Semi-Gloss Black with a urethane top coat for a professional finish right out of the box.
Chassis & Suspension
The Arocs is built on Tamiya's durable ladder frame chassis, featuring aluminum side channels and resin cross members. Its 8x4 layout includes dual front steering axles and twin driven rear axles, delivering realistic maneuverability. Metal leaf springs with friction dampers provide reliable suspension, ensuring stability under load.
Drivetrain & Features
A front-mounted 540 motor powers the twin rear axles through an assembly-type 3-speed transmission, controllable via a 4-channel transmitter. For added realism, you can equip the truck with Tamiya's Actuator Set (#TAM56545) to operate the tipper bed, and the Multi-Function Control Unit (MFC-03) for lights, sounds, and vibrations. This combination transforms the model into an immersive, fully functional RC experience.
Features:
- 1/14 scale R/C model assembly kit
- Pre-painted cab in Candy Lime Green and Semi-Gloss Black with urethane finish
- Realistic 8x4 layout with dual front steering and twin driven rear axles
- Front-positioned motor and transmission for authentic layout
- Optional Actuator Set (Item 56545) enables functional dump bed
- Compatible with Tamiya's Multi-Function Control Unit (MFC-03)
- 3-speed transmission for gear changes with a 4-channel transmitter
- Compatible with MFC-03 unit for lights, sounds, and vibration effects
Includes:
- 1/14 R/C Mercedes-Benz Arocs 4151 8x4 Tipper Truck Kit
Needed To Complete:
- (1) 4-Channel Tamiya Attack radio
- (2) Servos
- (1) ESC
- (1) 7.2-volt battery with compatible charger
- Tamiya paints for detail bodywork
Specifications:
| Scale |
1/14 |
| Drive |
8x4 |
| Power Source |
Electric |
| Length |
26.2in (667mm) |
| Wheelbase |
10.7in (272mm) |
| Width |
7.7in (196mm) |
| Height |
10.5in (268mm) |
| Weight |
- |
| Assembly Level |
Kit |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
