Description

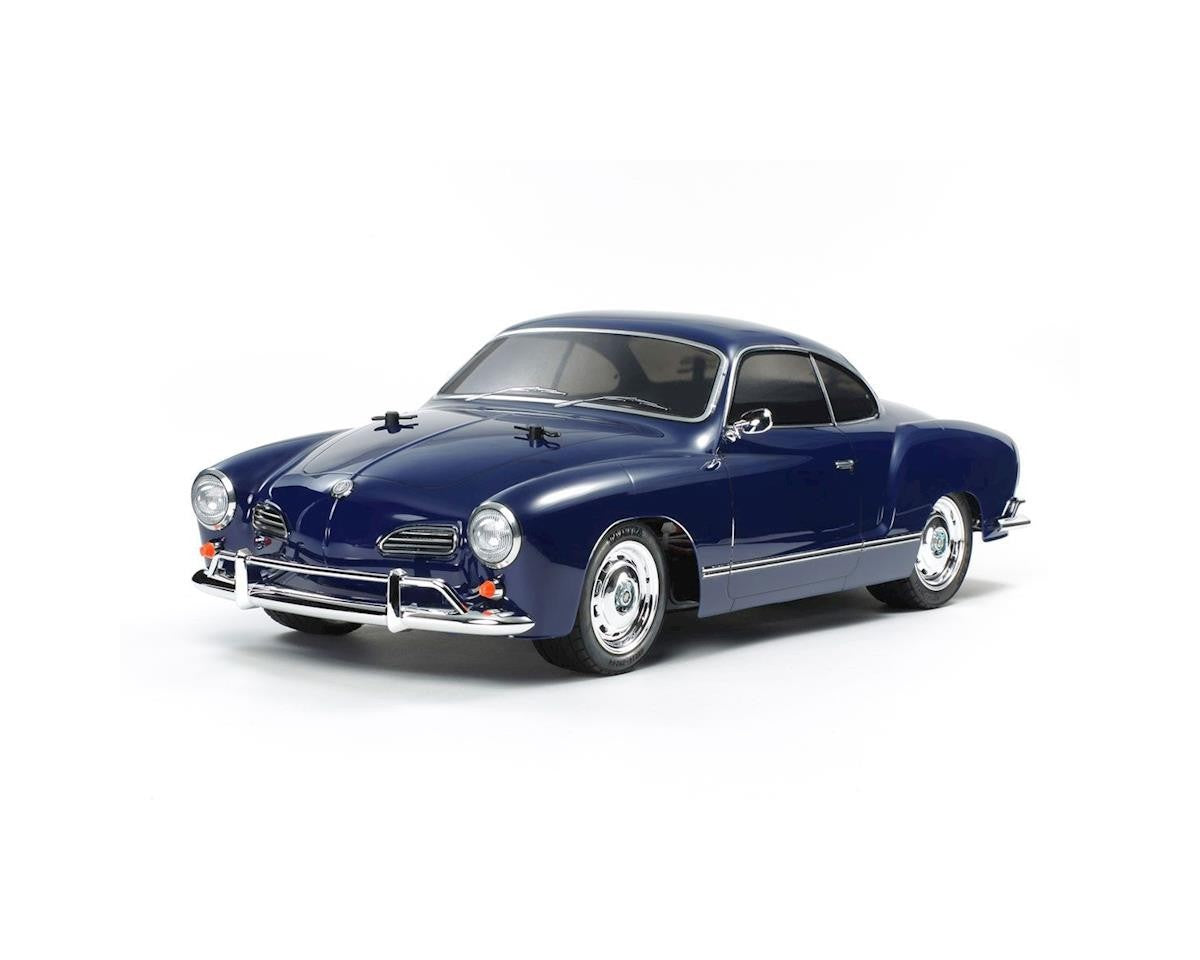

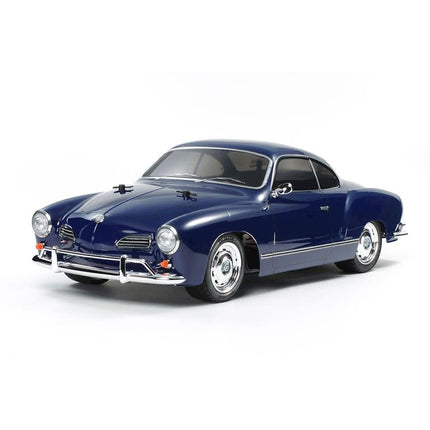

The Tamiya 1/10 Volkswagen Karmann Ghia 2WD On-Road Kit recreates a true classic in the form of the Volkswagen Karmann Ghia. The Karmann Ghia was a stylish coupé based upon the same platform as the legendary Beetle. Its body was designed by Italian firm Ghia and manufactured by the German company Karmann. The polycarbonate body in this replica sits on top of the Tamiya RWD M-06 chassis.
Great RR Performance from the M-06
The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.
Features:
- 1/10 scale R/C model assembly kit
- Lightweight and durable polycarbonate body with separate plated side mirror, bumpers and light cases
- Includes marking stickers, and window masking stickers for use during the painting process
- The M-06 chassis features a rear-motor, RWD setup with a longitudinally-mounted battery pack and R/C units positioned on either side for optimum balance and a low center of gravity
- Utilizes the 239mm wheelbase M-06L chassis
- Metal-plated wheels paired with front radial and rear super grip radials for superior stability and sharp handling
- A host of Hop-Up Option parts are available to customize the chassis to your driving needs
- Includes Tamiya 540-motor
- Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
Specifications:
Servos: High-speed steering servo required
Vehicle Type: On-Road
Body: Clear polycarbonate
Drivetrain: 2WD
Length: 410mm
Width: 182mm
Height: 125mm
Wheelbase: 239mm
Suspension: Four wheel double wishbone
Motor Size: 540
Shock Type: Plastic body friction (not oil-filled)
Wheel Type: Chrome finish plastic
Brakes: Integral with ESC
Max Battery Dimensions: 132 x 45 x 23mm
Speed Control: Tamiya TBLE-02S
Water-Resistant: No
Chassis: M-06L long wheelbase, molded plastic bathtub style
Scale: 1/10
Completion Level: Kit
Pinion: 20T
Differential: Planetary gear
Motor Type: Brushed
Tire Tread: Front radial, rear super grip
Needed to Complete:
- 2-Channel radio
- Steering servo
- 7.2V - 7.4V stick pack with Standard connector
- Compatible charger
- Polycarbonate Paint
- Tools for assembly
