Description
Mini HV Coreless Digital Servo, .062sec / 125.0oz @ 8.4VThe latest generation of SRT servos provides you with the performance you need for any application. This is a mini sized servo for High-Voltage applications up to 8.4V and features an all metal case construction for the ultimate performance.
Features:
- Special 1/12 pancar servo
- Servo supports various ultra-high-speed modes like SSR, SFR, SXR, SR.
- Incredible efficiency and low power consumption
- 2 usec Dead Band
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Coreless
- Gear Type: Metal
- Gear Material: 7075 Aluminum
- Control System: Pulse Width Control
- Working Frequency: 1520us / 333hz
- Operating Voltage: dc4.8-8.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (4.8v): 0.100 sec/60 degrees at no load
- Operating Speed (6.0v): 0.080 sec/60 degrees at no load
- Operating Speed (7.4v): 0.070 sec/60 degrees at no load
- Operating Speed (8.4v): 0.062 sec/60 degrees at no load
- Stall Torque (4.8v): 5.0kg.cm (69.4 oz/in)
- Stall Torque (6.0v): 6.8kg.cm (94.4 oz/in)
- Stall Torque (7.4v): 8.0kg.cm (111.1 oz/in)
- Stall Torque (8.4v): 9.0kg.cm (125.0 oz/in)
- Potentiometer Drive: Direct Drive

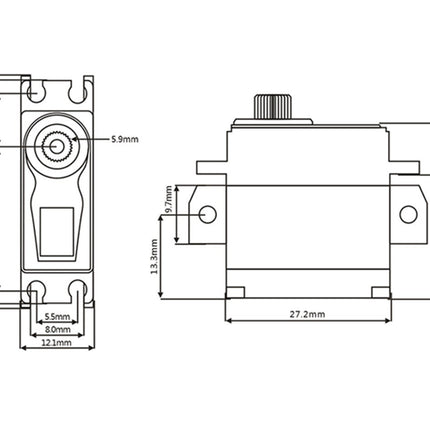

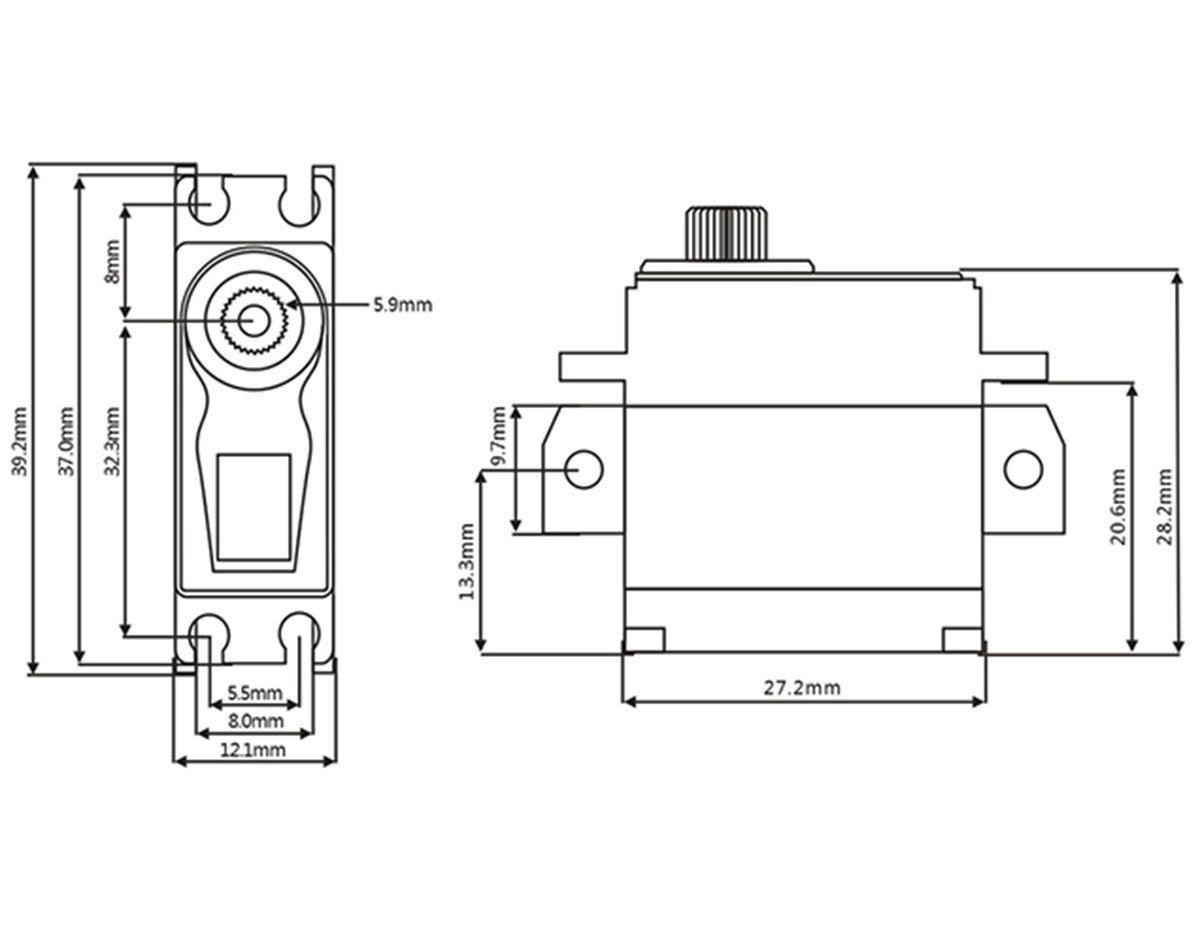

- Dimensions: 27.2x12.1x28.2 mm /1.07x0.48x1.11 in
- Weight: 18.0g (0.63 oz)
- Connector Wire Length: jr 170 mm
