Description

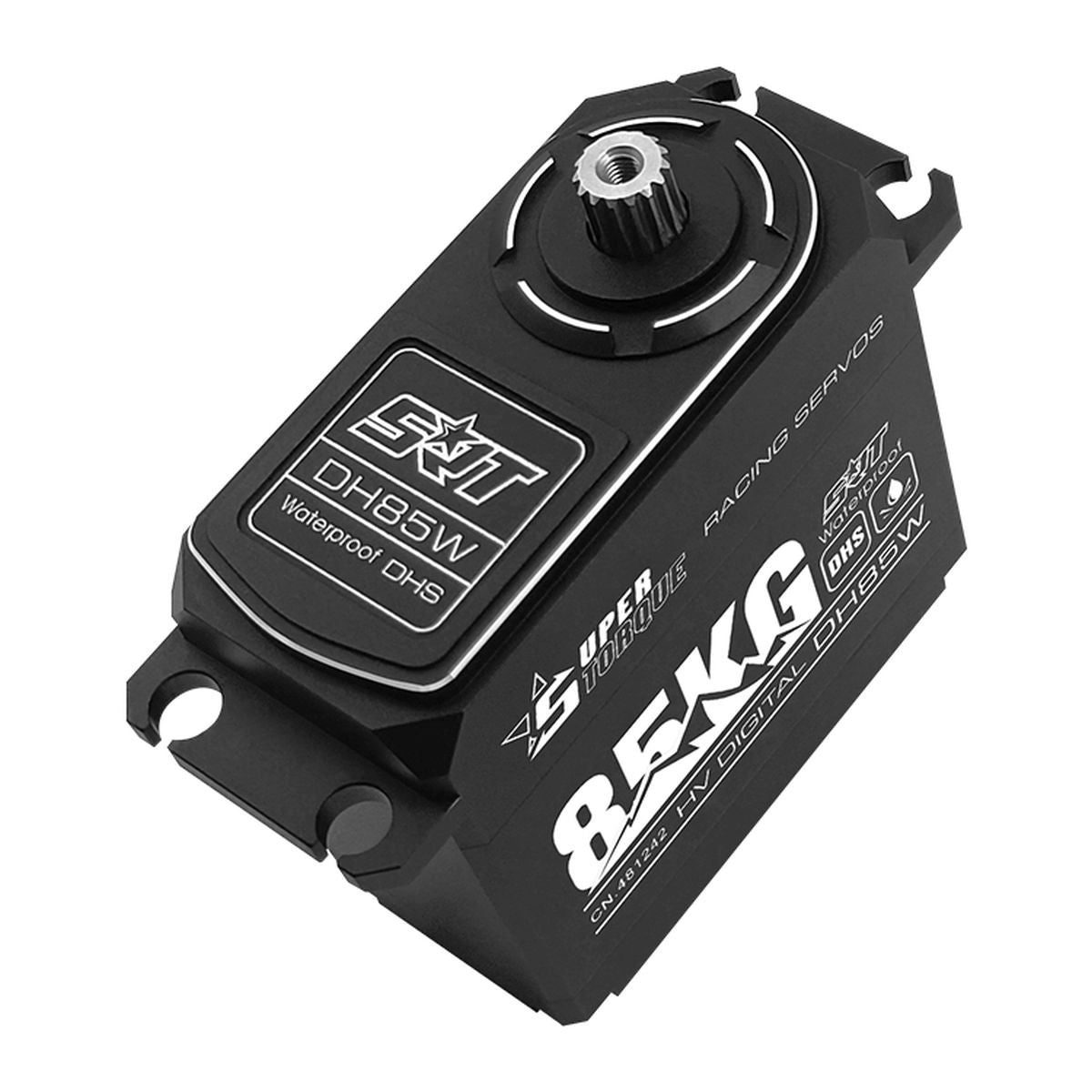

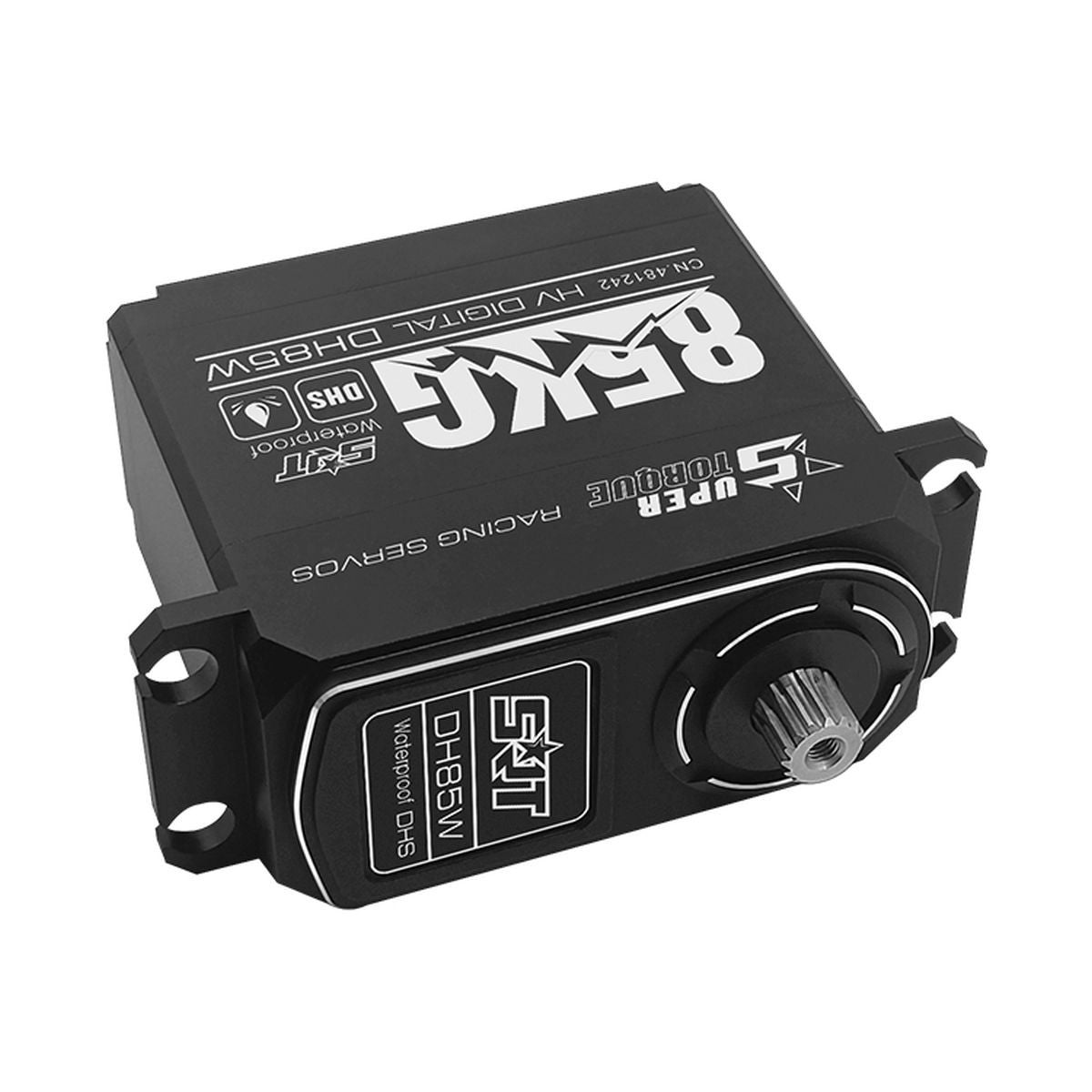

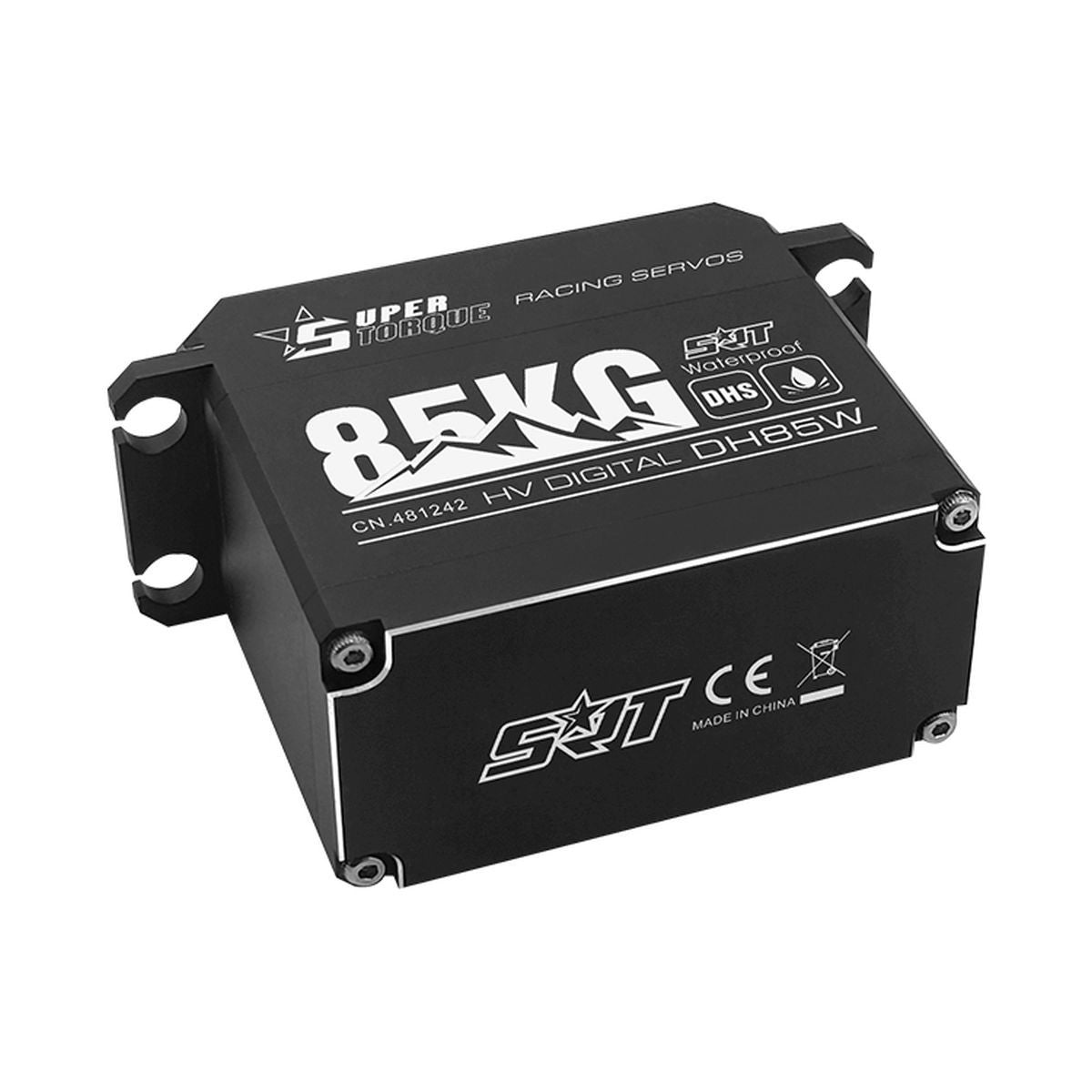

Large Scale HV Waterproof DC Digital Servo, .15sec / 1180.4oz @ 8.4VThe latest generation of SRT servos provides you with the performance you need for any 1/5th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V and feature all metal case construction for the ultimate 1/8th scale performance.Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.
Features:
- Ideal for 1/5 on road and 1/5 off road scale applications
- Superior Holding Torque
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- 15T output shaft
- 2 usec Dead Band
- Waterproof
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: DC

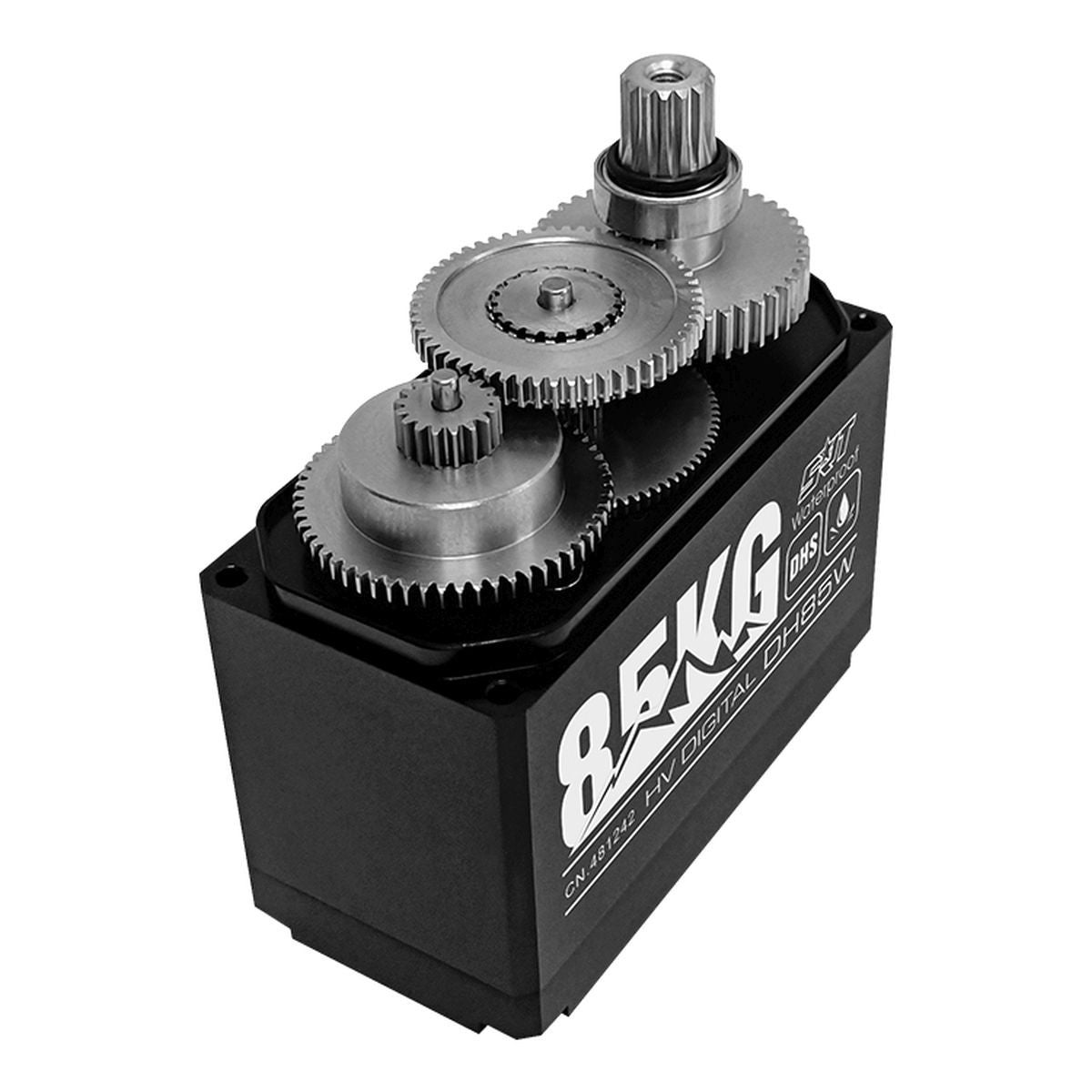

- Gear Type: Metal
- Gear Material: Steel
- Control System: Pulse Width Control
- Working Frequency: 1520us / 330hz
- Operating Voltage: dc7.4-8.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (7.4v): 0.17 sec/60 degrees at no load
- Operating Speed (8.4v): 0.15 sec/60 degrees at no load
- Stall Torque (7.4v): 78.0kg.cm (1083.2 oz/in)
- Stall Torque (8.4v): 85.0kg.cm (1180.4 oz/in)
- Potentiometer Drive: Direct Drive

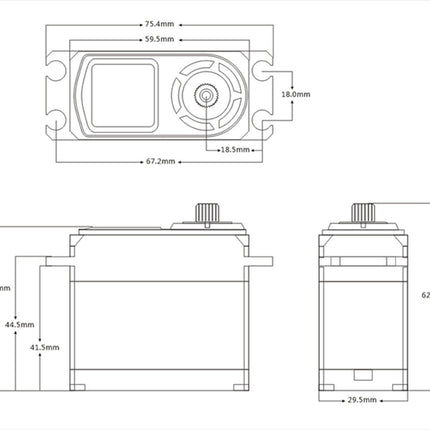

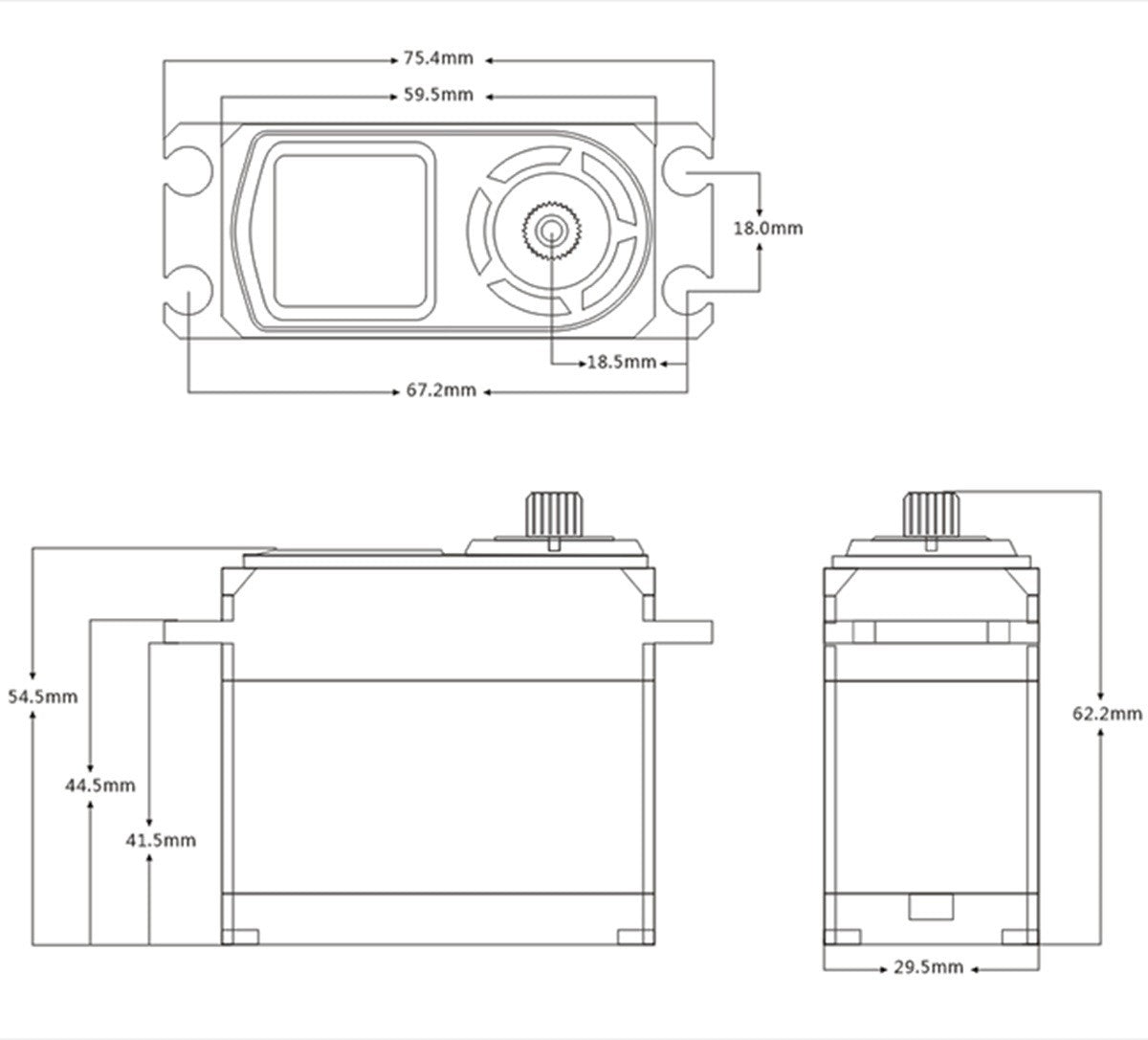

- Dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
- Weight: 200.0g (7.05 oz)
- Connector Wire Length: jr 350 mm
