Description

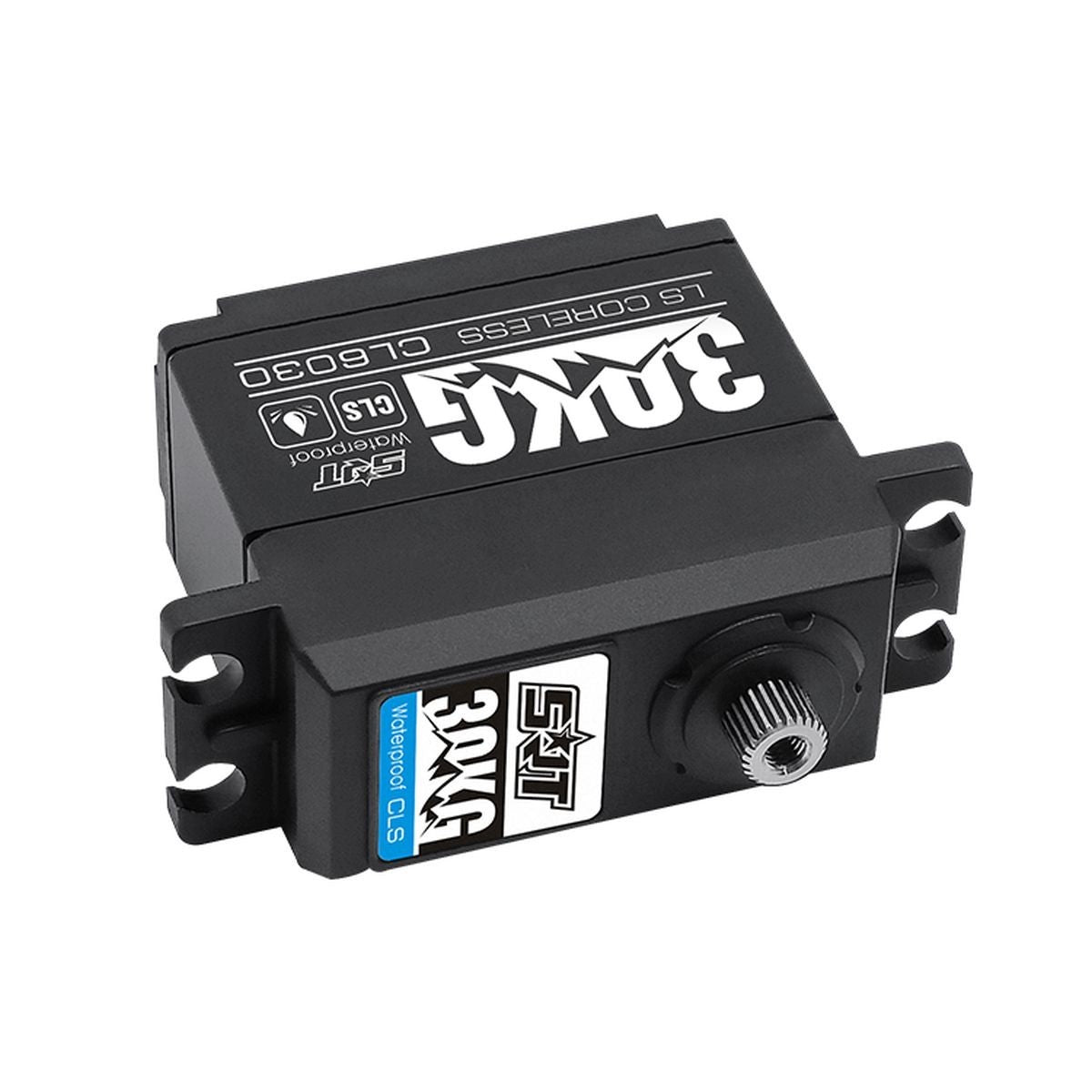

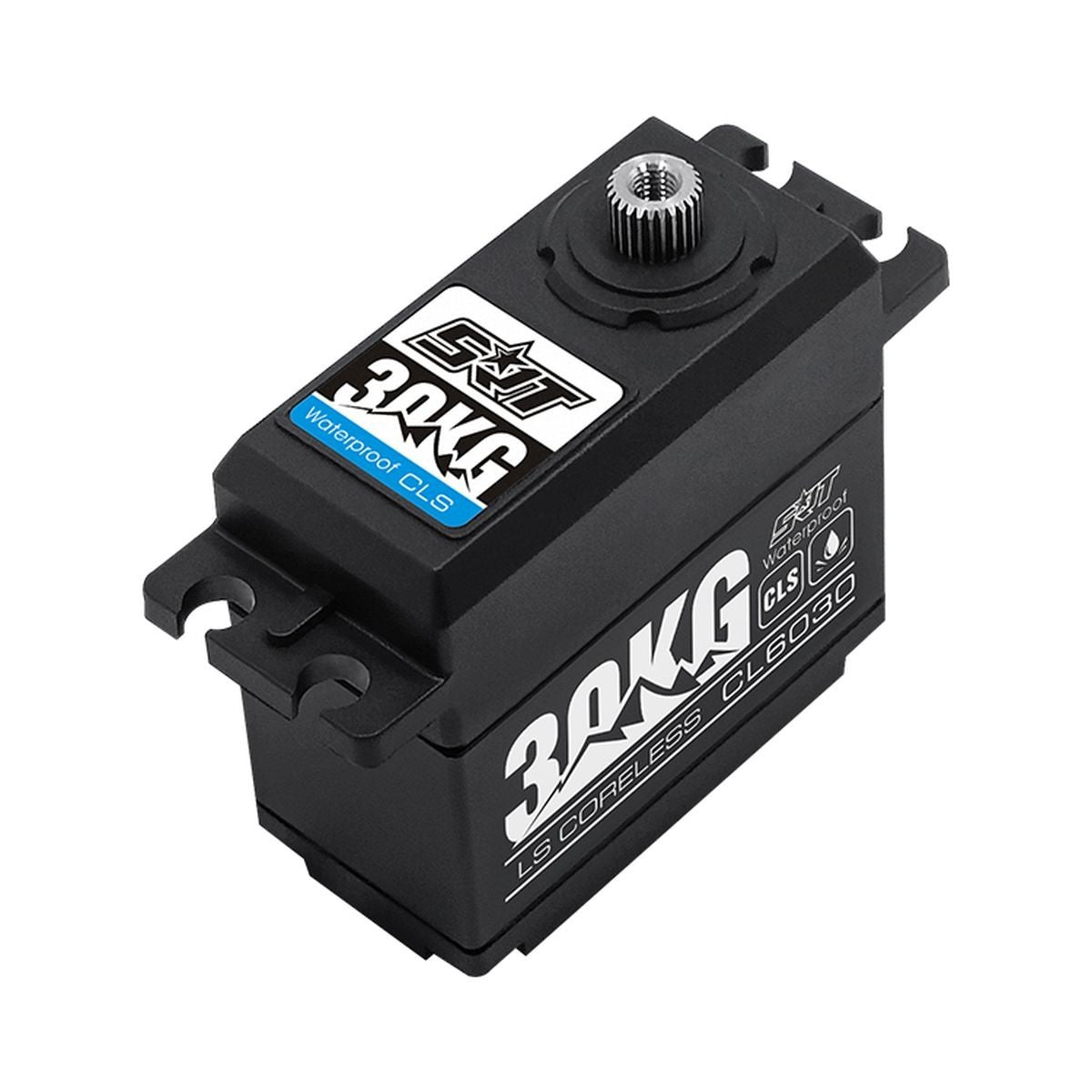

Waterproof Coreless Digital Servo, .11sec / 416.6oz @ 7.4VThe latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage waterproof applications up to 7.4V.
Features:
- Ideal for 1/10 on road applications
- Incredible efficiency and low power consumption

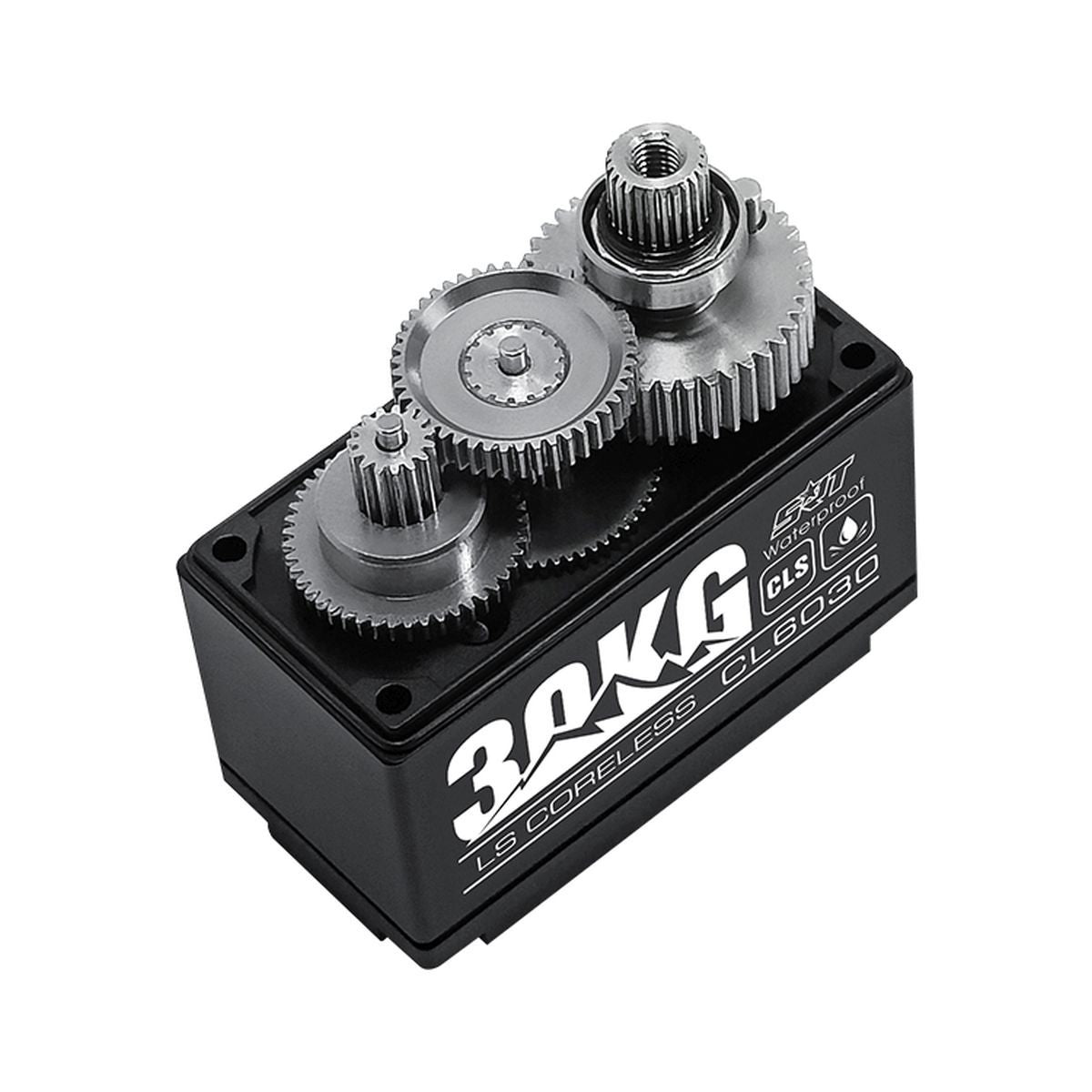

- Titanium & Steel gears for precision and durability
- Aluminum case for good heat dissipation
- NMB dual main bearings
- 25T output shaft
- Waterproof
- 2 usec Dead Band
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Coreless
- Gear Type: Metal
- Gear Material: Titanium & Steel
- Control System: Pulse Width Control
- Working Frequency: 1520Is / 330hz
- Operating Voltage: dc4.8-7.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (4.8v): 0.13 sec/60 degrees at no load
- Operating Speed (6.0v): 0.12 sec/60 degrees at no load
- Operating Speed (7.4v): 0.11 sec/60 degrees at no load
- Stall Torque (4.8v): 19.0kg.cm (263.9 oz/in)
- Stall Torque (6.0v): 25.0kg.cm (347.2 oz/in)
- Stall Torque (7.4v): 30.0kg.cm (416.6 oz/in)
- Potentiometer Drive: Direct Drive

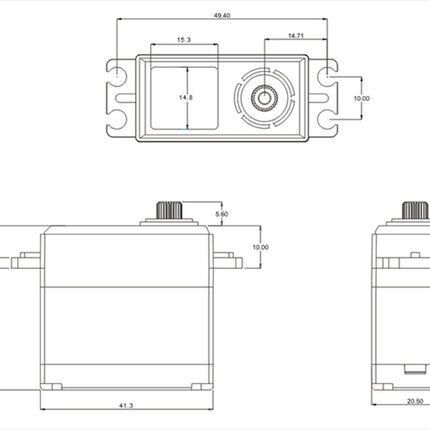

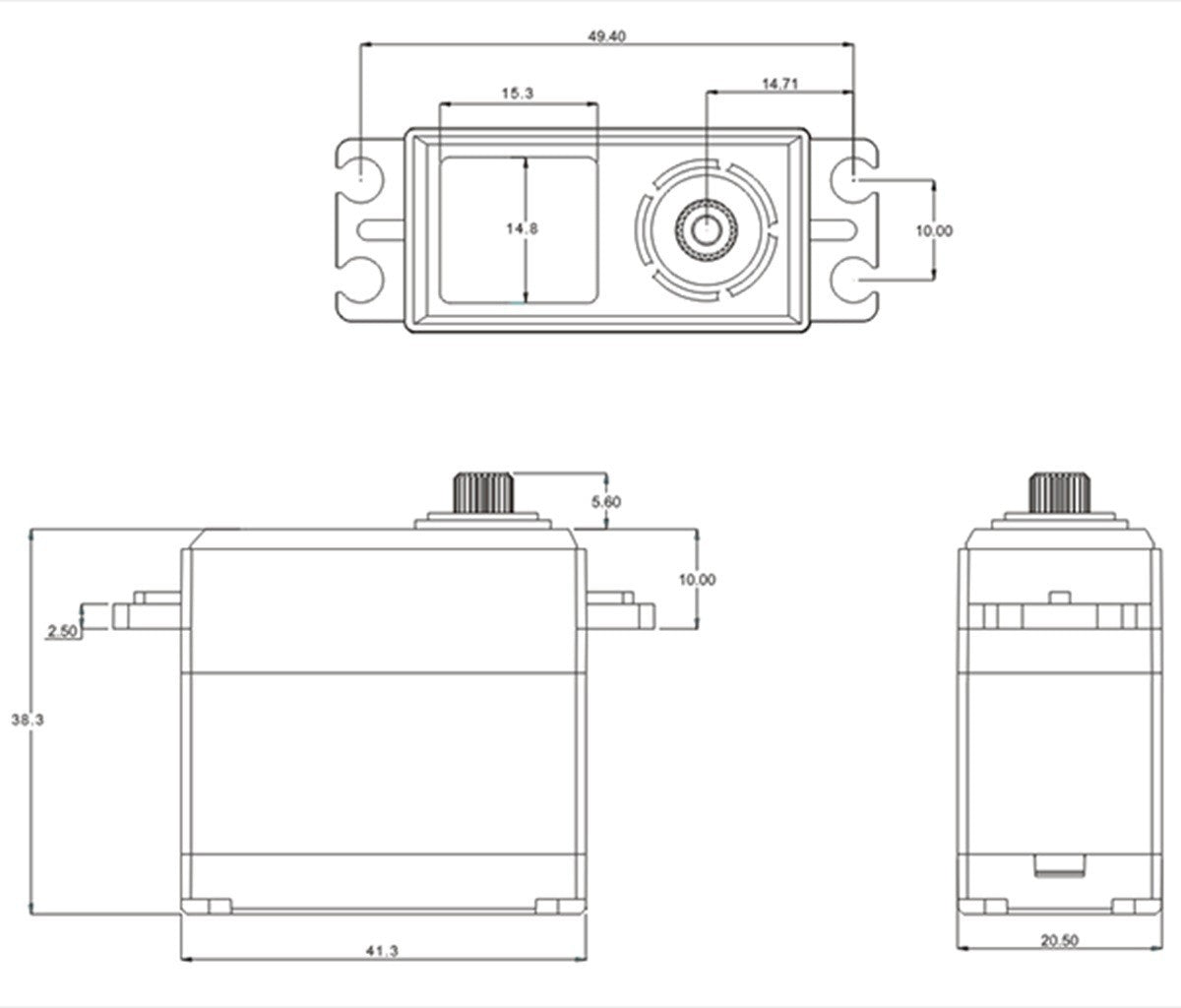

- Dimensions: 41.3x20.5x38.3 mm /1.63x0.8x1.51 in
- Weight: 69.0g (2.43 oz)
- Connector Wire Length: jr 300 mm
