Description
Standard HV Brushless Digital Servo, .10sec / 1041.6oz @ 8.4VThe latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.
Features:
- Ideal for 1/10 on road and 1/8 off road scale applications
- Superior Holding Torque
- Incredible efficiency and low power consumption
- Standard dimension makes it perfect for vehicles that can benefit from a high-quality servo
- CNC Machined aluminum case for exceptional cooling
- Programmable High torque Brushless servo
- Supporting SXR, SUR, SR, SFR multiple ultra high-speed modes
- 25T output shaft
- 2 usec Dead Band
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Brushless
- Gear Type: Metal
- Gear Material: Steel
- Control System: Pulse Width Control
- Working Frequency: 1520?s / 330hz
- Operating Voltage: dc6.0-8.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (6.0v): 0.15 sec/60 degrees at no load
- Operating Speed (7.4v): 0.11 sec/60 degrees at no load
- Operating Speed (8.4v): 0.10 sec/60 degrees at no load
- Stall Torque (6.0v): 55.0kg.cm (763.8 oz/in)
- Stall Torque (7.4v): 65.0kg.cm (902.7 oz/in)
- Stall Torque (8.4v): 75.0kg.cm (1041.6 oz/in)
- Potentiometer Drive: Direct Drive

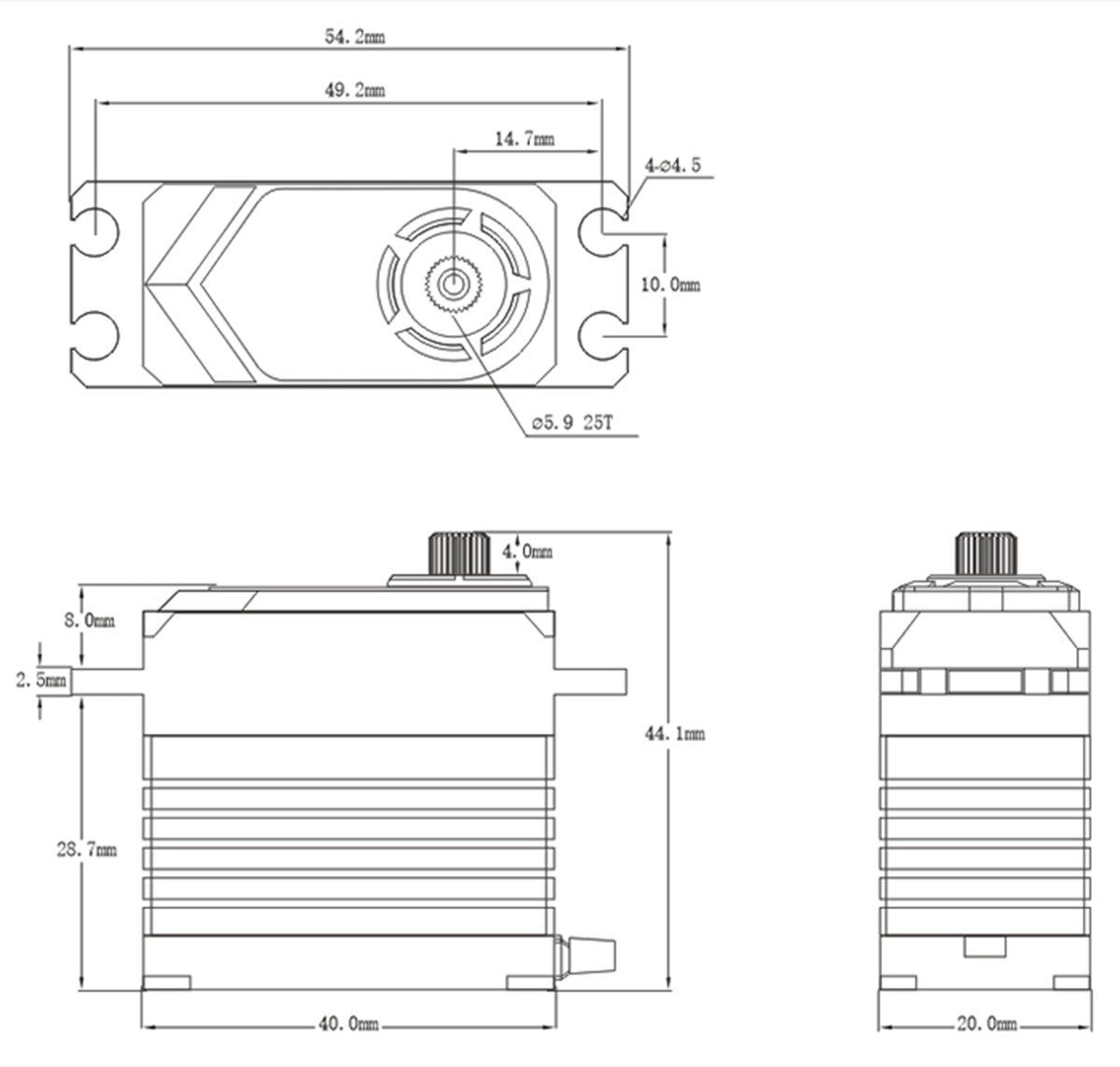

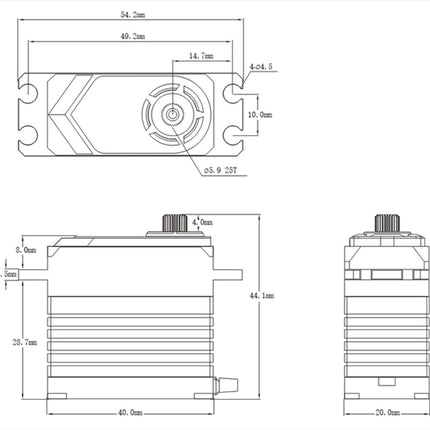

- Dimensions: 40.0 x 20.0 x 39.2 mm /1.57 x 0.79 x 1.54 in
- Weight: 82.0g (2.89 oz)
- Connector Wire Length: jr 300 mm
