Description

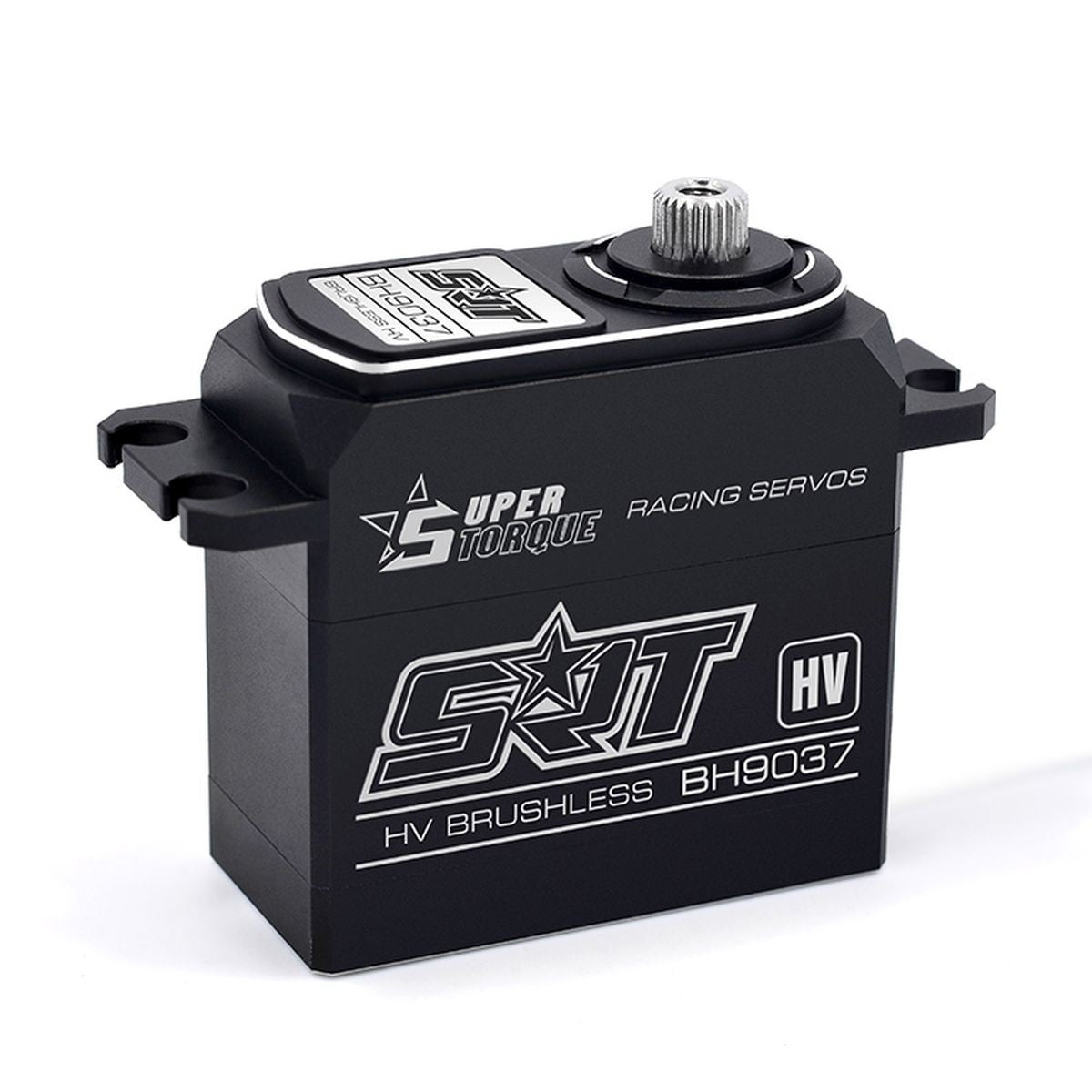

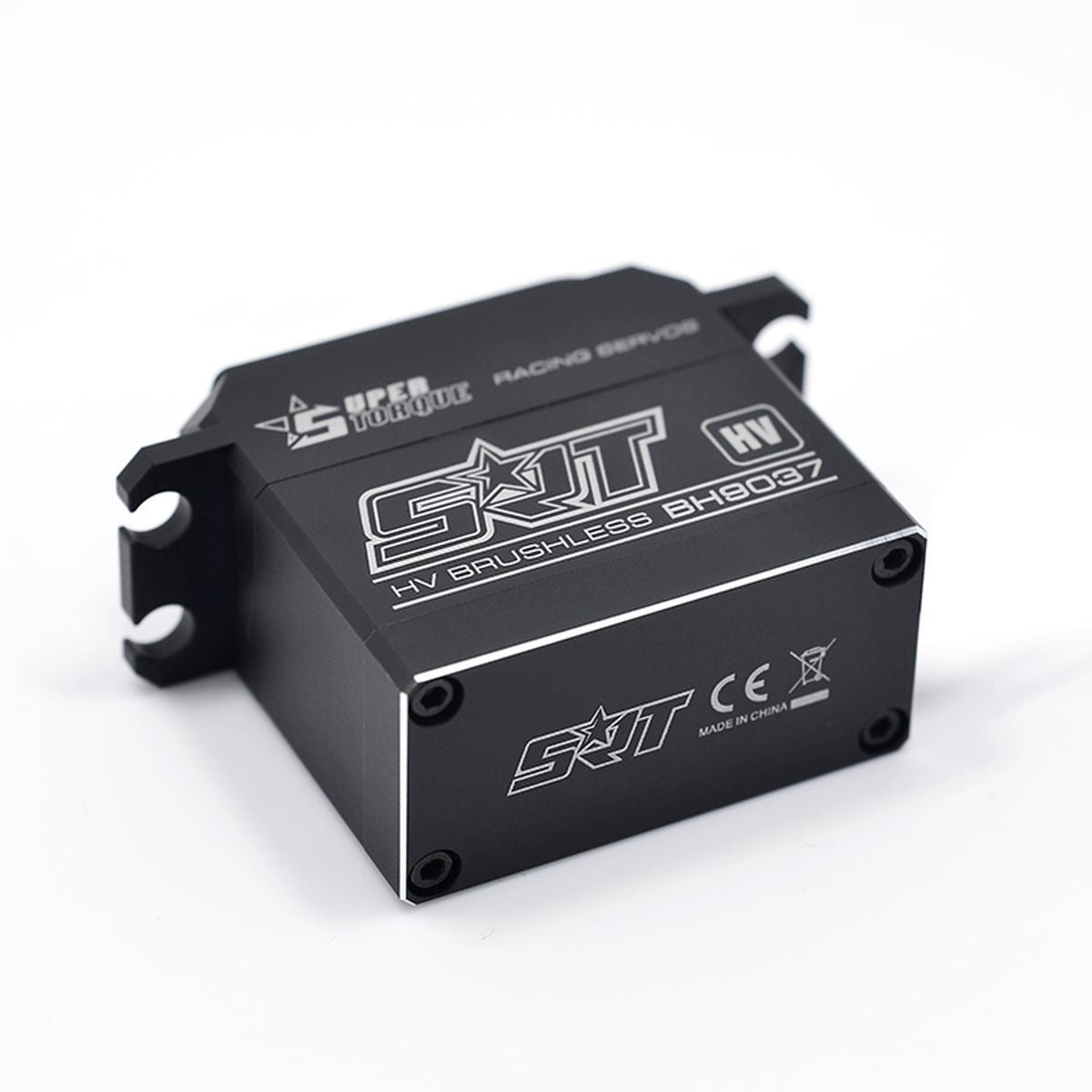

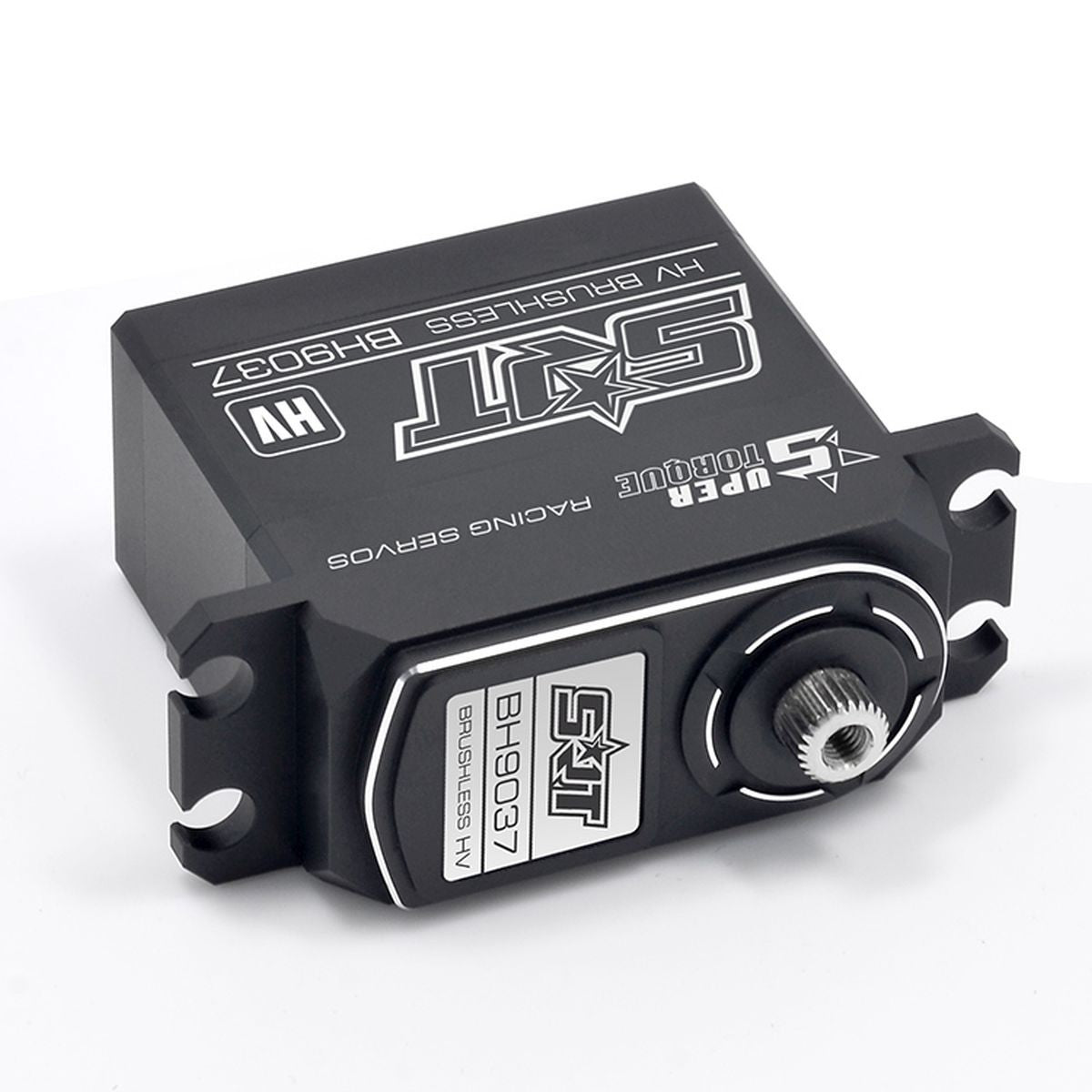

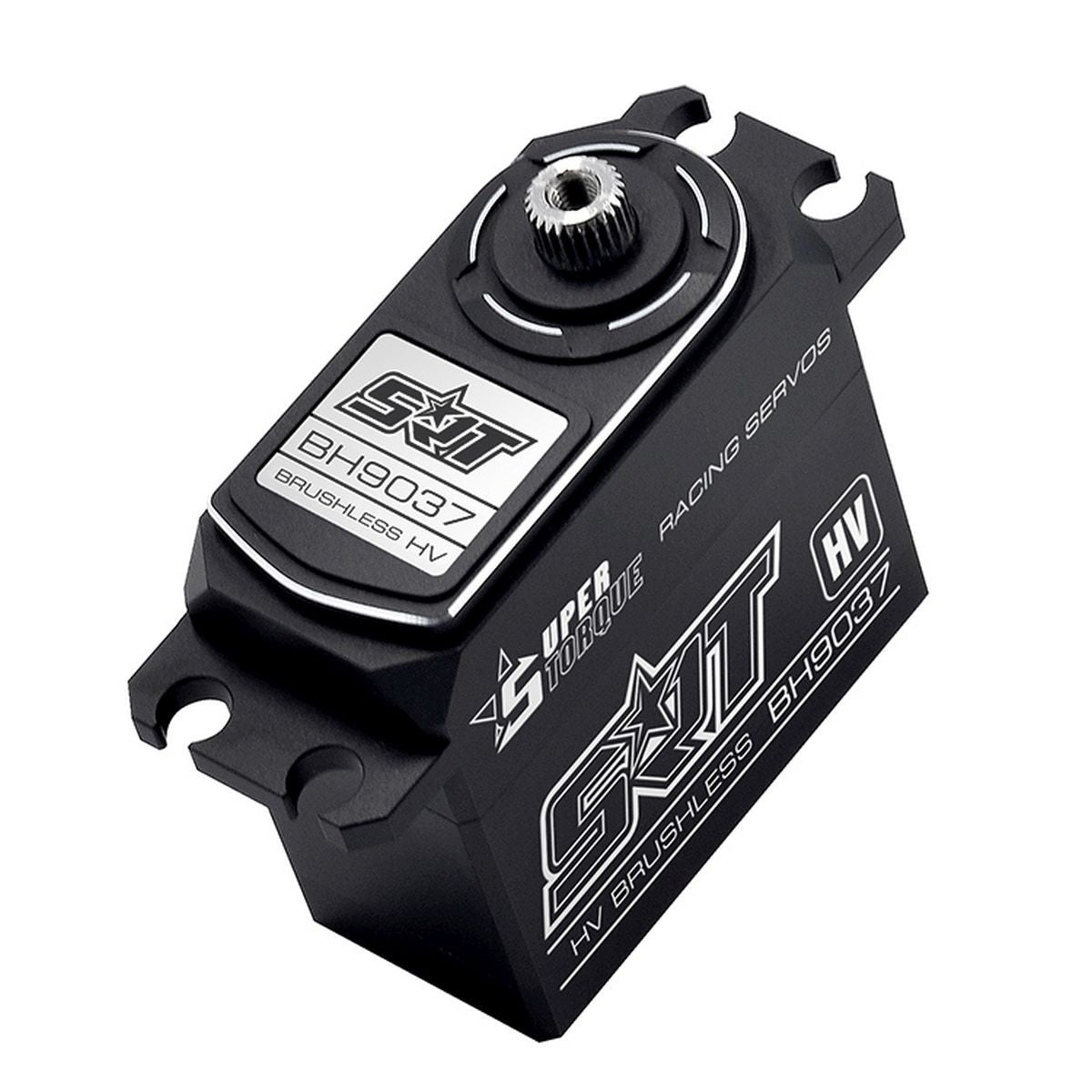

Large Scale HV Brushless Digital Servo, 0.13sec / 513.8oz @8.4VThe latest generation of SRT servos provides you with the performance you need for any large scale vehicle application. This is a large scale sized servo for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
Features:
- Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
- Incredible efficiency and low power consumption

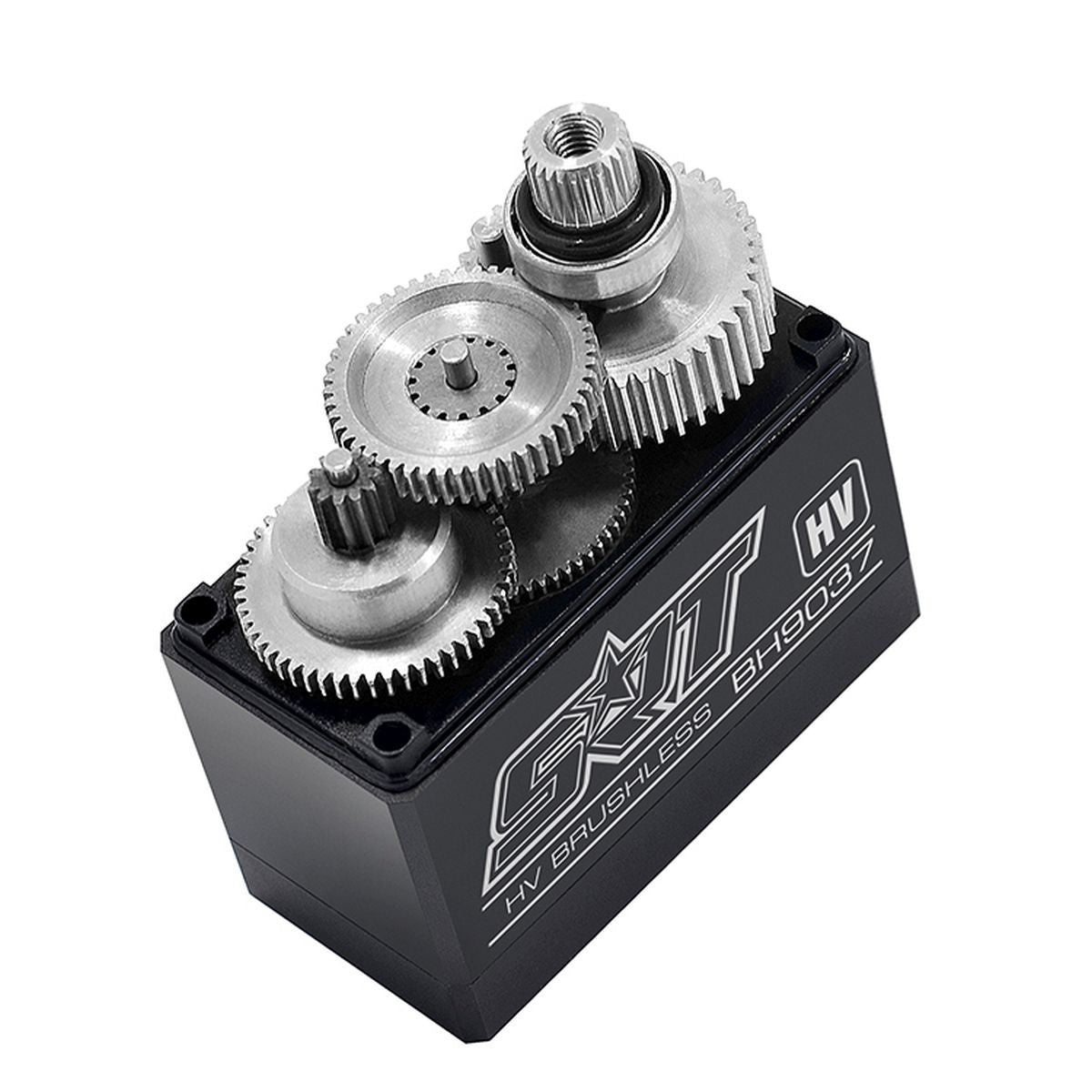

- Titanium & Steel gears for precision and durability
- 0.16 / 416.6 oz-in @6.0V and 0.13 / 513.8oz-in @ 8.4V
- Standard dimension makes it perfect for vehicles that can benefit from a high-quality servo
- CNC Machined aluminum case for exceptional cooling
- HD 4096 Resolution
- 2 usec Dead Band
- Superior Holding Torque
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Brushless
- Gear Type: Metal
- Gear Material: Steel
- Control system: pulse width control
- Working frequency: 1520 Is / 330hz
- Operating voltage: dc6.0-8.4v
- Operating temperature range: -10 to + 60 degree
- Operating speed (6.0v): 0.12 sec/60 degrees at no load
- Operating speed (7.4v): 0.11 sec/60 degrees at no load
- Operating speed (8.4v): 0.085 sec/60 degrees at no load
- Stall torque (6.0v): 90.0kg.cm (1249.9 oz/in)
- Stall torque (7.4v): 110.0kg.cm (1527.6 oz/in)
- Stall torque (8.4v): 125.0kg.cm (1735.9 oz/in)
- Potentiometer drive: direct drive

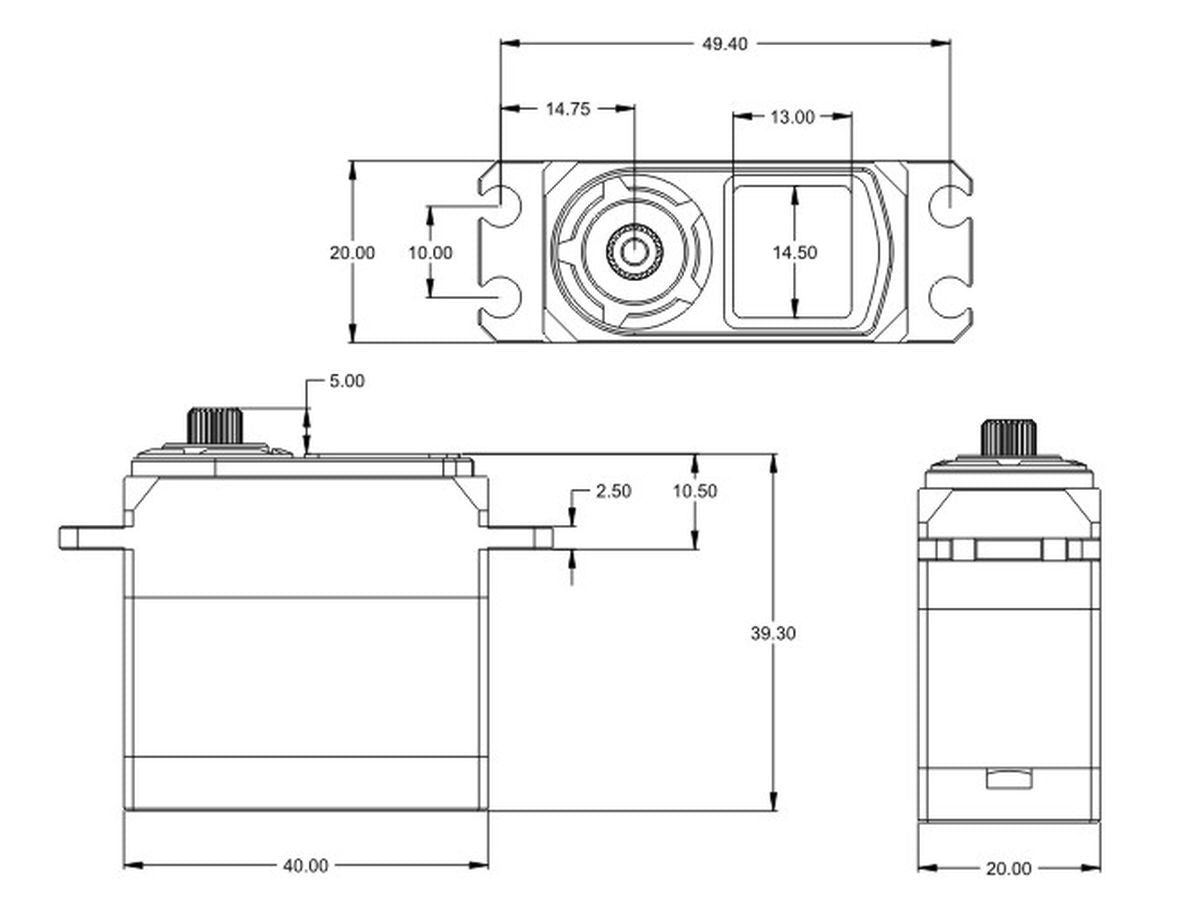

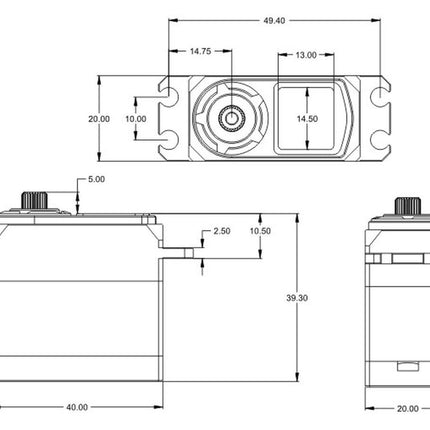

- Dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
- Weight: 209.0g (7.37 oz)
- Connector wire length: jr 350 mm
- Maximum locked-rotor current in different voltage: 6.0V -> 9.5A / 7.4V -> 11.5A / 8.4V -> 13A
