Description
Large Scale HV Waterproof DC Digital Servo .085sec / 1735.9oz @ 8.4VThe latest generation of SRT servos provides you with the performance you need for any 1/5th to 1/6th scale vehicle application. Designed for High-Voltage applications up to 8.4V and featuring an all metal case construction the are the servo for the ultimate 1/6th scale performance. The BH125W also features SRT innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
Features:
- Ideal for 1/5 on road and 1/5 off road scale applications
- Superior Holding Torque
- Incredible efficiency and low power consumption
- Standard large scale servo dimensions make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- 15T output shaft
- 2 usec Dead Band
- Waterproof
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Brushless
- Gear Type: Metal
- Gear Material: Steel
- Control System: Pulse Width Control
- Working Frequency: 1520Is / 330hz
- Operating Voltage: dc6.0-8.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (6.0v): 0.12 sec/60 degrees at no load
- Operating Speed (7.4v): 0.11 sec/60 degrees at no load
- Operating Speed (8.4v): 0.085 sec/60 degrees at no load
- Stall Torque (6.0v): 90.0kg.cm (1249.9 oz/in)
- Stall Torque (7.4v): 110.0kg.cm (1527.6 oz/in)
- Stall Torque (8.4v): 125.0kg.cm (1735.9 oz/in)
- Potentiometer Drive: Direct Drive

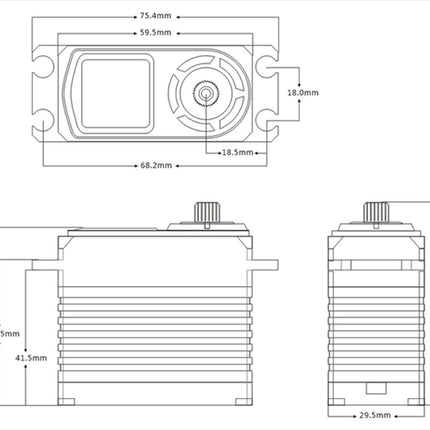

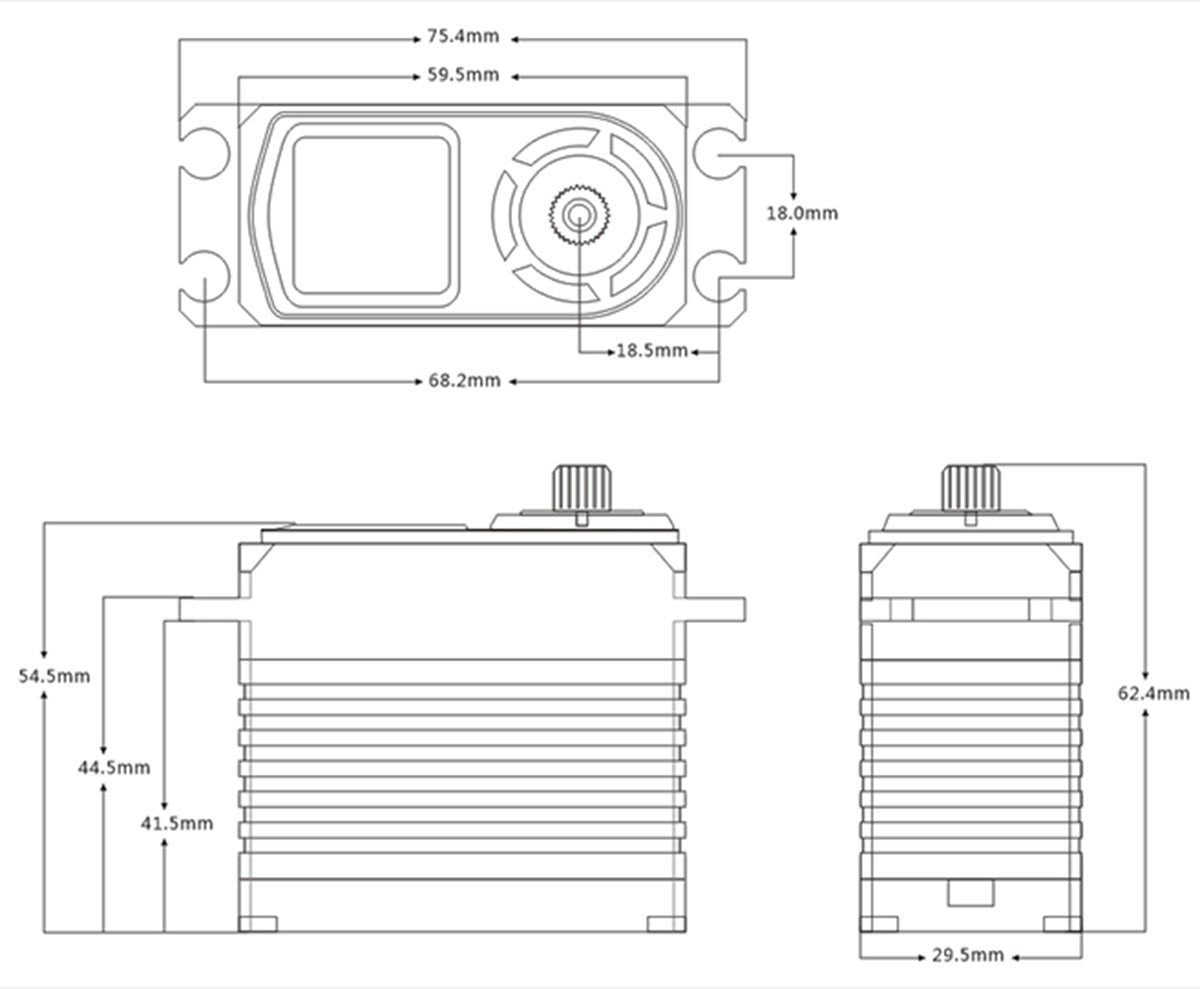

- Dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
- Weight: 209.0g (7.37 oz)
- Connector Wire Length: jr 350 mm
- Maximum locked-rotor current in different voltage: 6.0V -> 9.5A / 7.4V -> 11.5A / 8.4V -> 13A
