Overview
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
WATERPROOF
EC3™/EC5™ BACKWARDS COMPATIBLE
ONE-WIRE TELEMETRY
SMART TECHNOLOGY BATTERY DATA
MULTIPLE PROGRAMMING OPTIONS
FAST, POWERFUL M4 PROCESSOR
Specifications
Amperage
120A or larger
Application
Marine
Auto Cutoff
Yes
Battery Input Lead
IC5
BEC
Yes
BEC Continous Current
8
BEC Type
Switch Mode
Brakes
No
Connector Type
IC5
ESC Type
Brushless
Forward
Yes
Input Voltage
11.1 - 29.6V (3S -8S LiPo)
Max Input Voltage
29.6V
Motor Output Lead
6.5mm

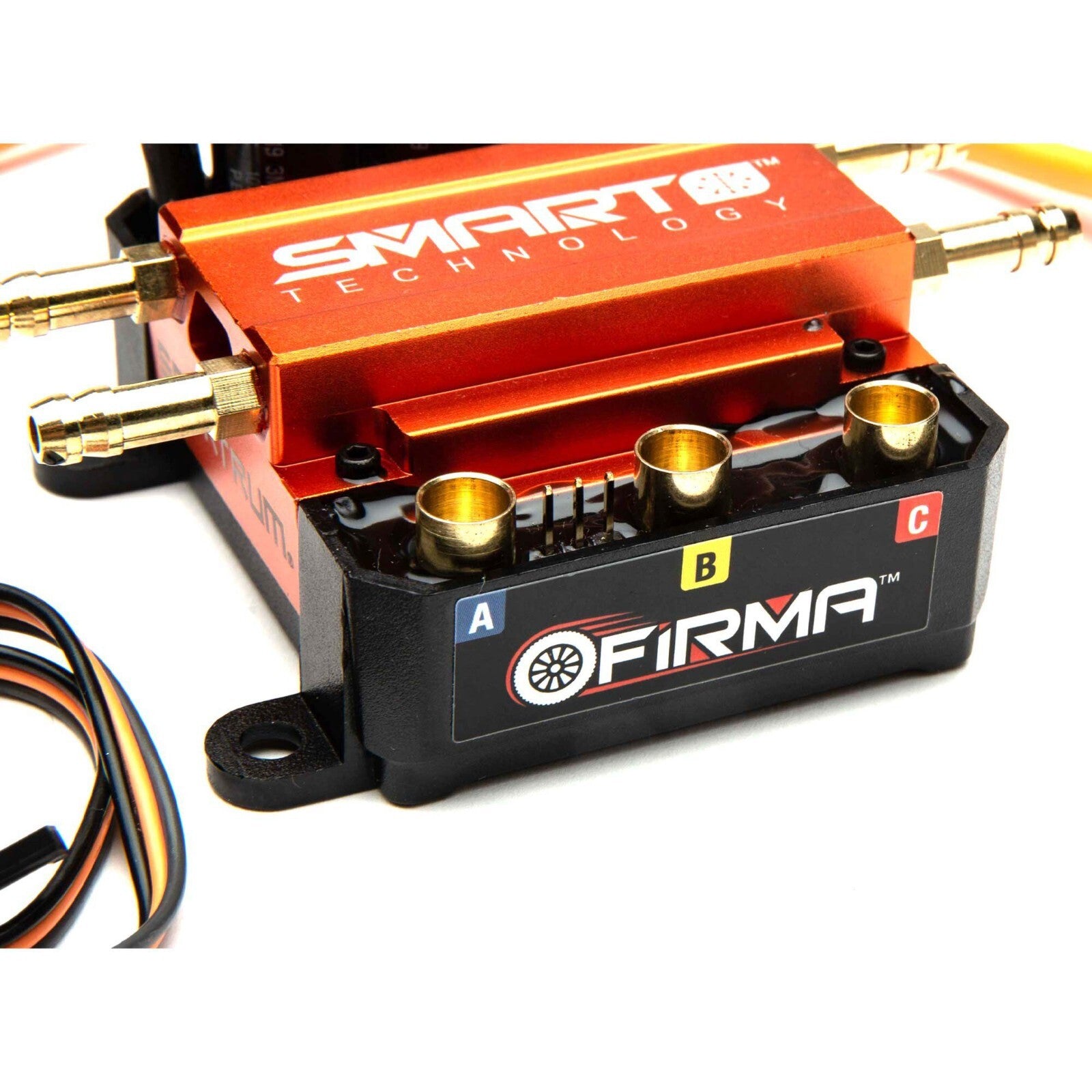

Output Connector
6.5mm Bullet
Overload Protection
Yes
Part Type
Electronics
Product Application
Marine
Product Height
1.4 in (35.5mm)
Product Length
3.7 in (95.7mm)
Product Weight
9.9 oz (280g)
Product Width
3.5 in (90.4mm)
Programmable
Yes
Programming Options
Button, Programming Box, Smartlink App, On Screen Text Gen
Reverse
Yes
Technology
Smart
Type

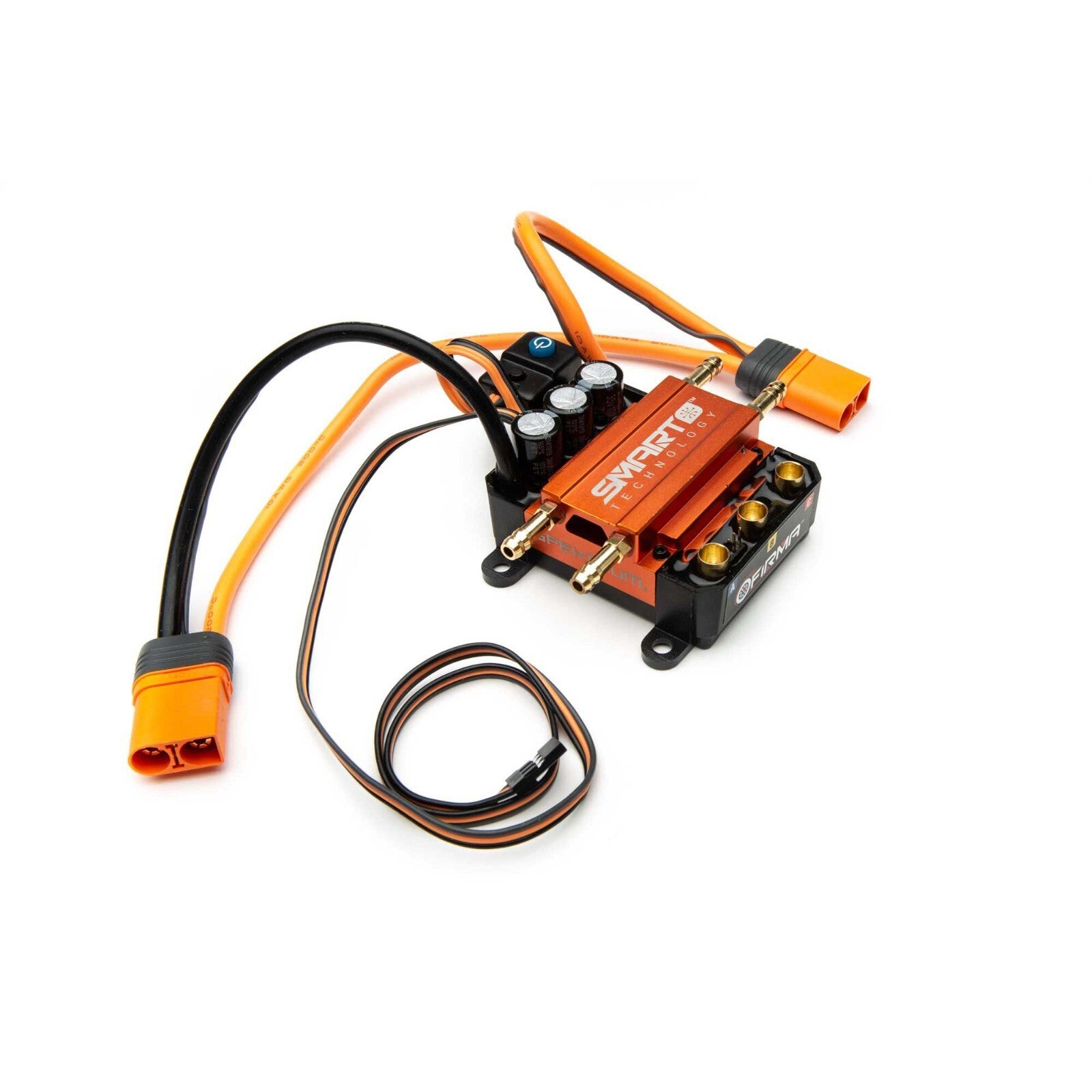

Brushless marine ESC w/dual battery connectors
Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- 160 Amp Continuous current, perfect for demanding high voltage setups
- Up to 8S (29.6V) input voltage
- Built in Series Connection with high heat resistant IC5 Connectors
- No compromise waterproof design

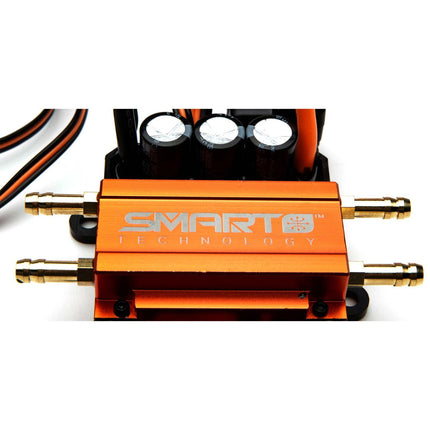

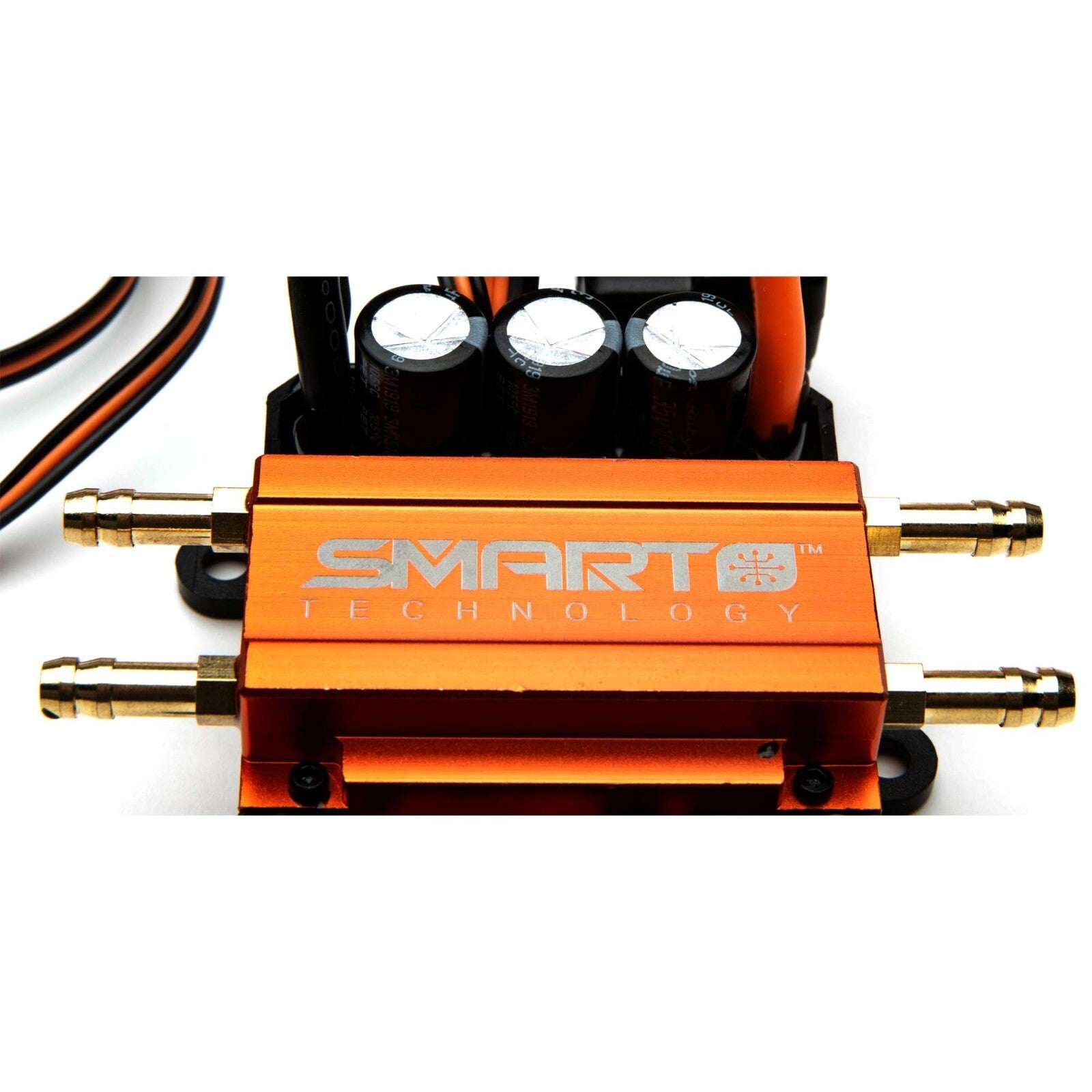

- Multiple water cooling jackets provide ample heat disbursement
- Multiple options for easy programming:

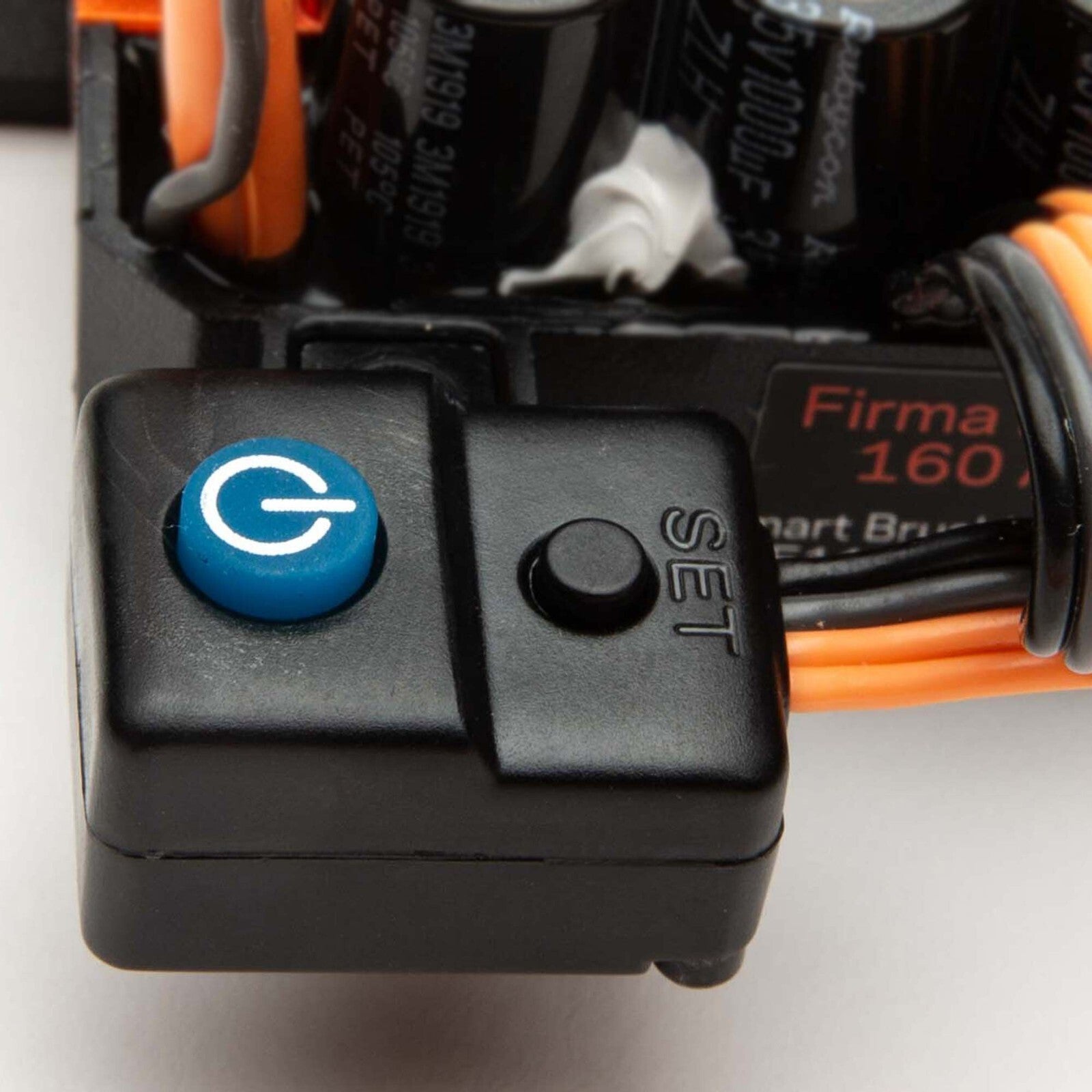

- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency

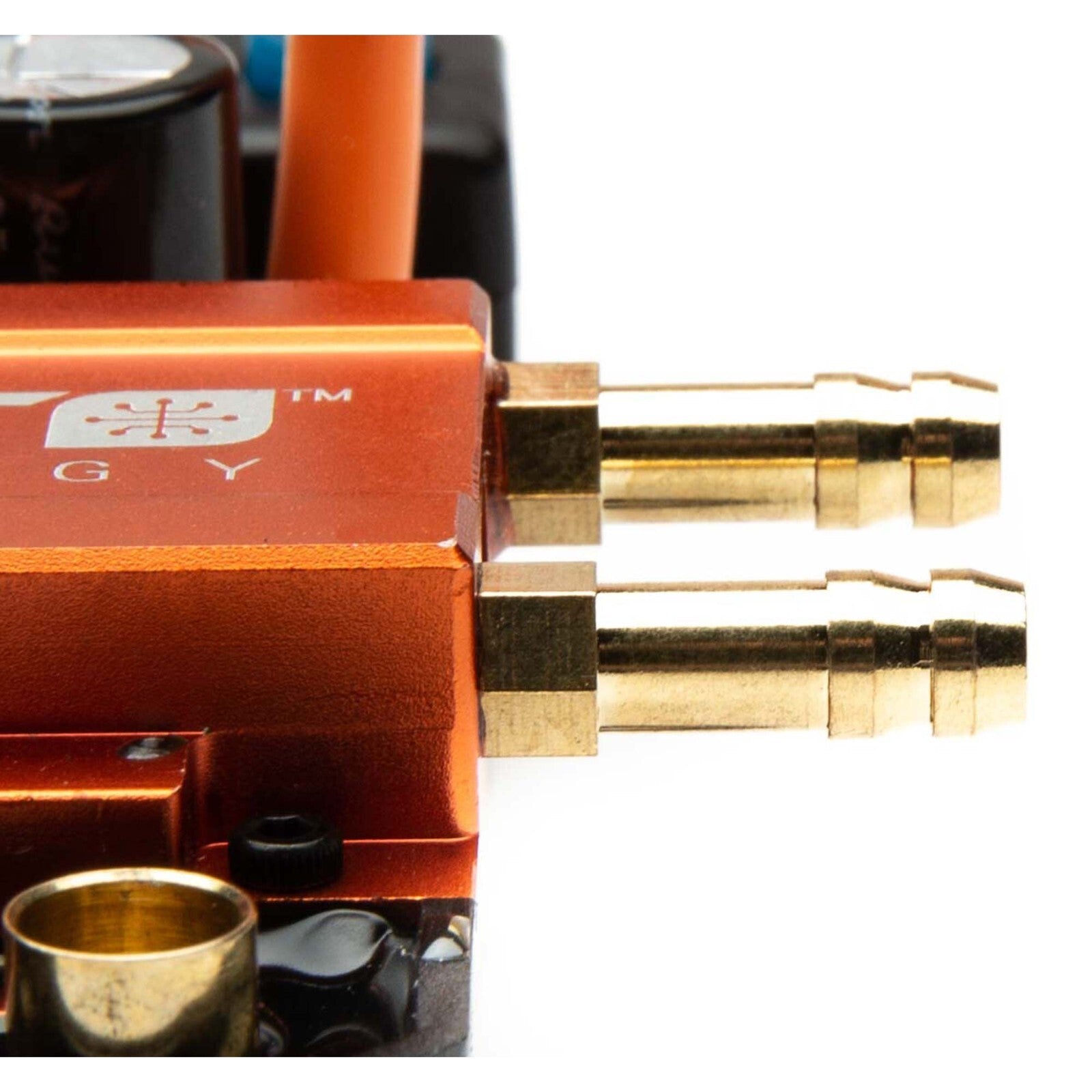

- Multiple water cooling inlets/outlets
- High current 6V BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
