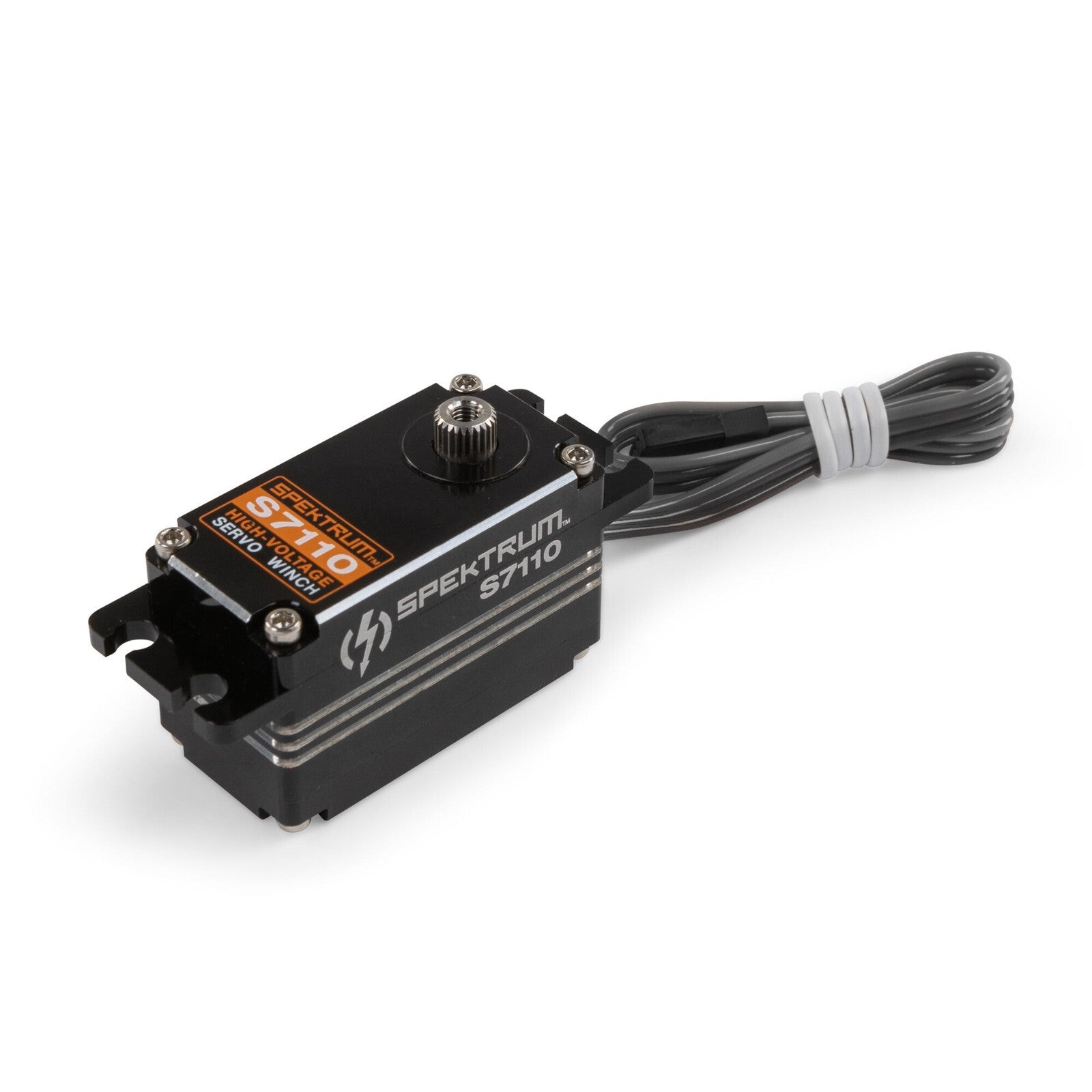

Spektrum S7110 Low Profile Servo Winch: 1/10 Rock Crawlers SPMSS7110

    Description

    Features

    • Design for 1/10th Scalers and Crawlers
    • 6V to 8.4V Operating Voltage
    • Durable and long-lasting brushless motor
    • High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
    • All Aluminum servo case for heat dissipation
    • 7' feet of line with scale recovery hook included
    • Built-in Integrated brushless controller for easy set up and installation
    • Precise metal internal gears
    • Waterproof
    • 25 teeth output shaft

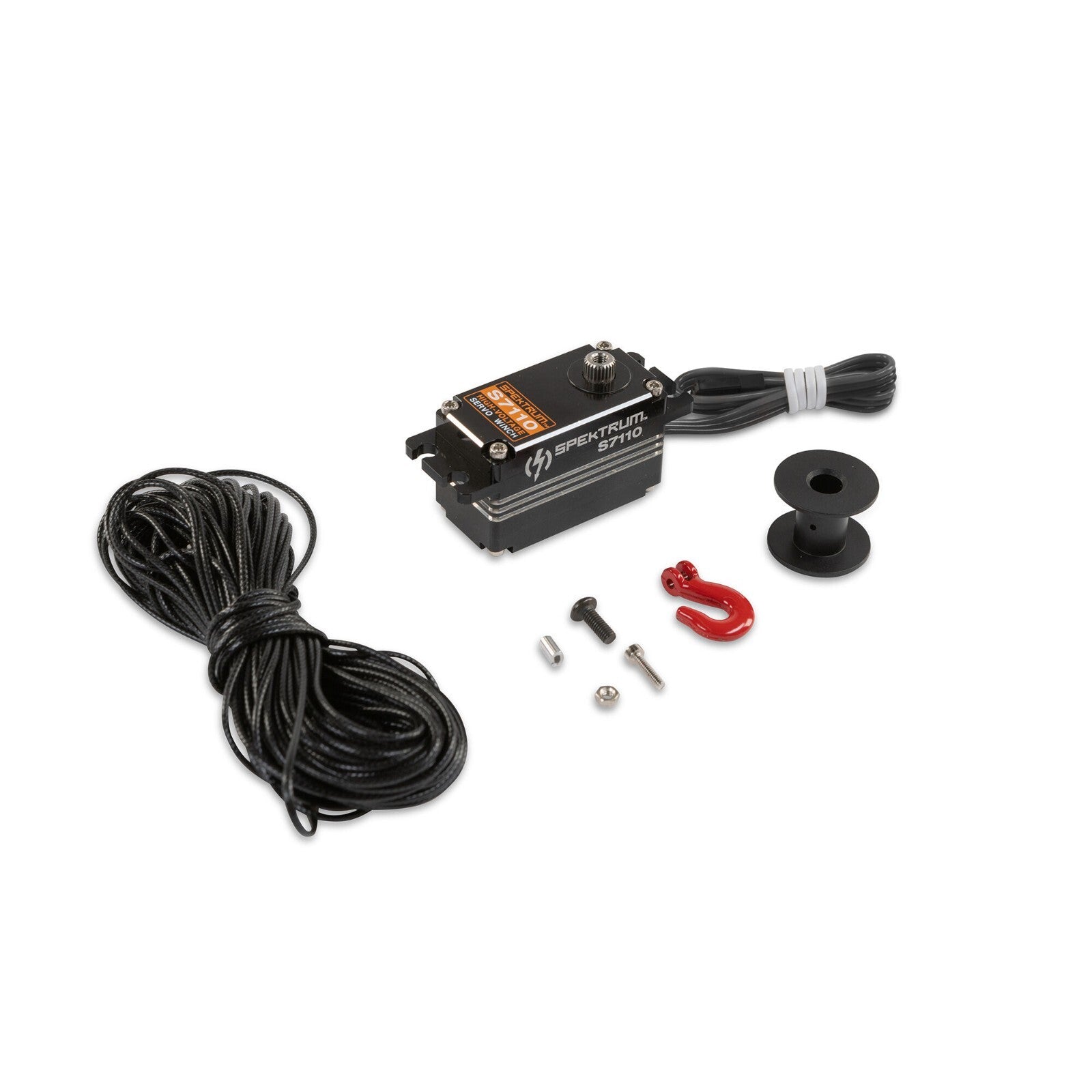

    • Includes everything needed to start winching

    Overview

    The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.

    Specifications


    Application
    1/10 Rock Crawlers- Winch
    Bearing
    Ball Bearing
    Bushing Or Bearing
    Bearing
    Connector Type
    Universal
    Connector Wire Length
    7.48" (190 mm)
    Current Draw Idle
    2mA
    Current Draw Stall
    1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
    Gear Type
    Metal
    Input Voltage
    6.0V ~ 8.4V
    Maximum Servo Speed
    123RPM @ 6.0V, 155RPM @ 7.4V
    Maximum Servo Torque
    130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V
    Product Height
    0.99" (25 mm)
    Product Length
    1.59" (40 mm)
    Product Weight
    2oz (57g)
    Product Width
    0.8" (20 mm)
    Programmable
    No
    Rotation Range
    360 Degree Continuous
    Servo Operating Voltage
    6.0 - 8.4V (HV)
    Servo Size Category
    Low Profile
    Servo Type
    Digital
    Spline Count
    25 - Tooth
    Wire Gauge
    22 AWG
    Product form

    SKU: EB-156905413839
    Barcode: 605482167250

    Free pickup in our shop(s)

    Be quick! Only 1 products left in stock!

    1 in stock Ships within 24hr of Purchase

    $199.99
