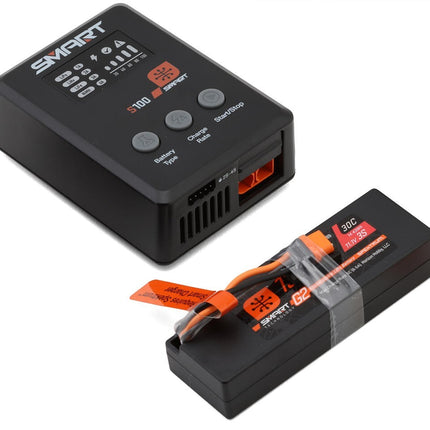

Compact Quick Charging Lipo Combo
If you are looking for a compact and cost-effective Smart® PowerStage Surface Bundle look no further. The S100 Smart charger with 3S 1300mah LiPo combo is the ticket for you. This Spektrum® Smart bundle offers all the tech as the bigger Smart bundles for a fraction of the price. This combo is designed with big power for your smaller applications in mind.
About the PowerStage Surface Bundle
Smart Charger
The S100 Smart USB-C Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and automatically begins safe, correct charging when the charge lead is connected. Balancing Smart batteries is just as simple. The S100 charger will balance your Smart G2 packs through the same single IC connection used for charging. No separate, confusing balance leads are required. Powered by an included USB-C cable, the S100 is a convenient charging solution for those just getting into RC. All you need is a common USB-C power adapter, and you're ready to go.
Smart Lipo
The Spektrum™ RC 3S 30C Smart G2 LiPo Battery Pack is designed to deliver maximum capacity, reliable power, and big performance for the Arrma Grom 223S series of vehicles. Coupled with the Smart tech from Spektrum™ you'll be able to get the most performance and reliability. With a 30C discharge rate and a 5C maximum charge rate, it offers consistent performance and quick charging to keep you having fun for longer. Featuring a hard case for better protection, this battery combines durability with innovative tech that fits more milliampere-hours (mAh).
Spektrum Smart Tech Advantage
With Spektrum Smart tech you'll be able to have the peace of mind knowing you have some of the most advanced items on the market today. From easy 1 step charging to auto discharging of batteries, Smart tech helps you monitor your battery health and get the most performance out of every charge. Couple your batteries and charger together with the Smart ESC's and remotes for the ultimate performance system, or any stock or upgraded vehicle.
Features:
- Advanced, user-friendly Smart charging technology that fits into any hobby budget
- Charges and balances Smart G2 batteries with one simple IC3 or IC5 connection — no separate balance lead needed
- Auto charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
- Charges virtually any RC LiPo battery (use Smart batteries to benefit from all charger features)
- Smart software tracks and stores numerous smart battery data
- Integrated microchip stores unique parameters for each battery
- IC3 and IC5 connectors are compatible with EC3 and EC5
- Save time and hassle, while improving battery life
- Smart discharge allows batteries to automatically discharge to a safe voltage
IMPORTANT LITHIUM POLYMER SAFETY INFORMATION
- DO NOT leave a battery in your model when charging
- DO NOT leave lithium batteries unattended when charging
- ALWAYS balance charge lithium battery
- ALWAYS use a LiPo Safe charging bag/box
- YOU MUST use a Li-Poly specific charger to charge lithium batteries (NiMH or NiCD only chargers WILL NOT WORK!)
- YOU MUST not over discharge lithium battery packs
- READ & UNDERSTAND the instructions carefully before operating this battery
Includes:
- (1) S100 1x100W USB-C Smart Charger
- (1) 3S 1300mAh Smart 30C LiPo Battery IC2

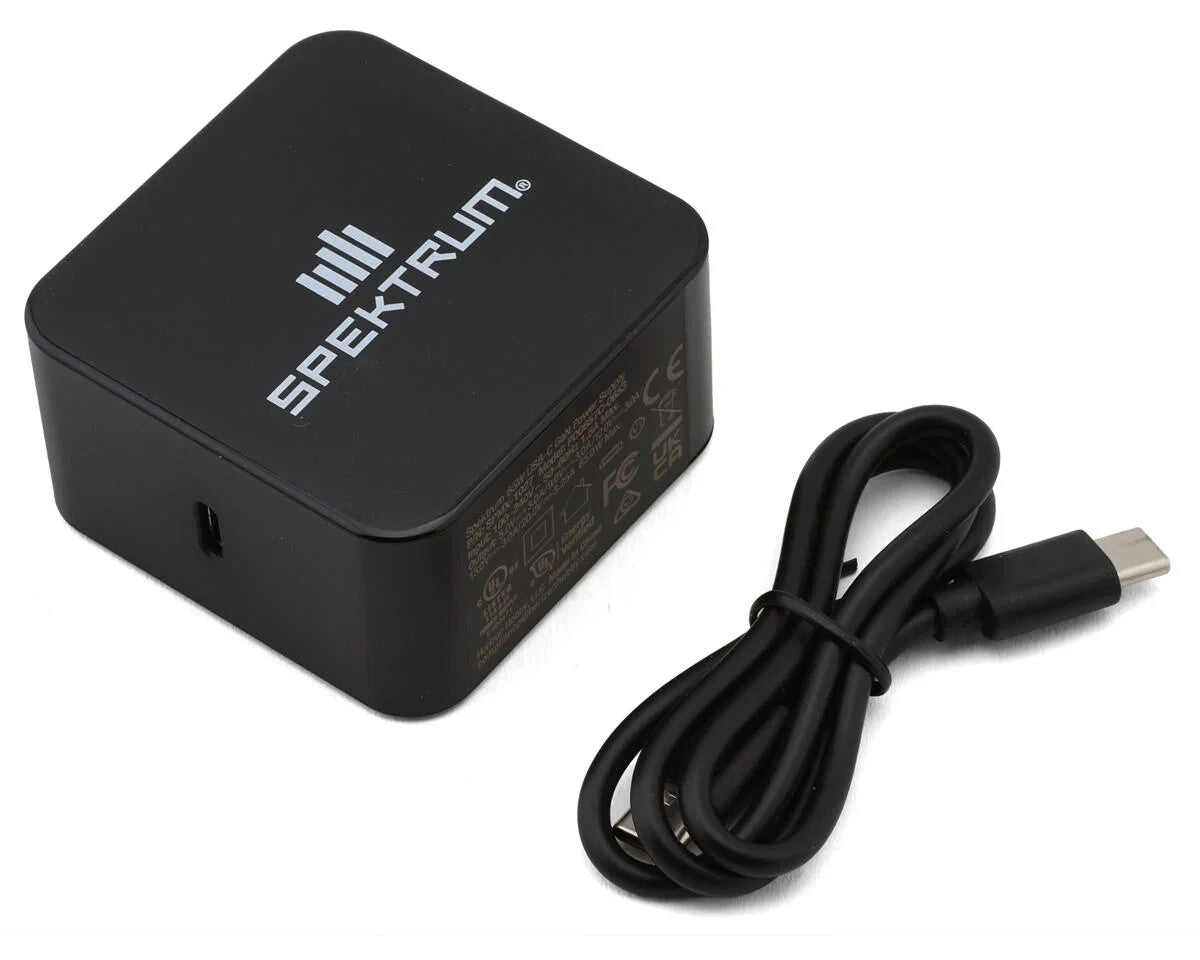

- (1) 65W Power Supply
- (1) Product Instruction Manual
- (1) Battery Adapter
Needed To Complete:
Specifications:
Electronics
| Input Power |
DC |
| AC Input Voltage |
- |
| DC Input Voltage |
5-20V |
| LiPo/LiHV/LiFe Cell Count |
1-4S |
| NiMH/NiCd Cell Count |
12S |
| Pb Battery Voltage |
- |
| Digital Power Supply |
- |
| Input Connector |
USB-C |
| Output Connector |
IC3/IC5 |
| AC Charge Power |
- |
| DC Charge Power |
5-20V |
| Discharge Power |
|
| Charge Current |
1x100W |
| Discharge Current |
- |
| Balance Current |
-mAh/Cell |
| Dimensions |
3.86x2.83x1.42in (98x72x36mm) |
| Weight |
- |
|
Battery
| Nominal Voltage: |
11.1V (3S) |
| Capacity: |
1300mAh |
| Maximum Charge Rate: |
5C (6.5A) |
| Discharge Rates |
|
| Continuous: |
30C |
| Peak: |
(Not Available) |
| Cell Configuration: |
- |
| Watt Hours: |
14.43Wh |
| ROAR Approved: |
No |
| Connectors |
|
| Battery: |
EC2 |
| Balance: |
Intelligent |
| Dimensions (LxWxH): |
3.92x1.33x0.79in (100x34x20mm) |
| Weight: |
3.92oz (111g) |
|
*Tech Note: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in overheated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for the first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use a battery that has too low a voltage. Do not expose batteries to sunshine or store/charge batteries at temperatures above 35°C or in a closed car. The high-temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging, or racing, do not charge it until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
