Description

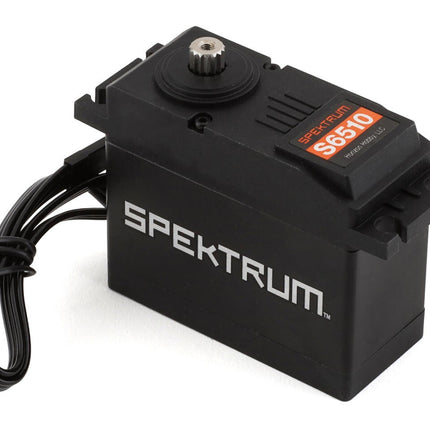

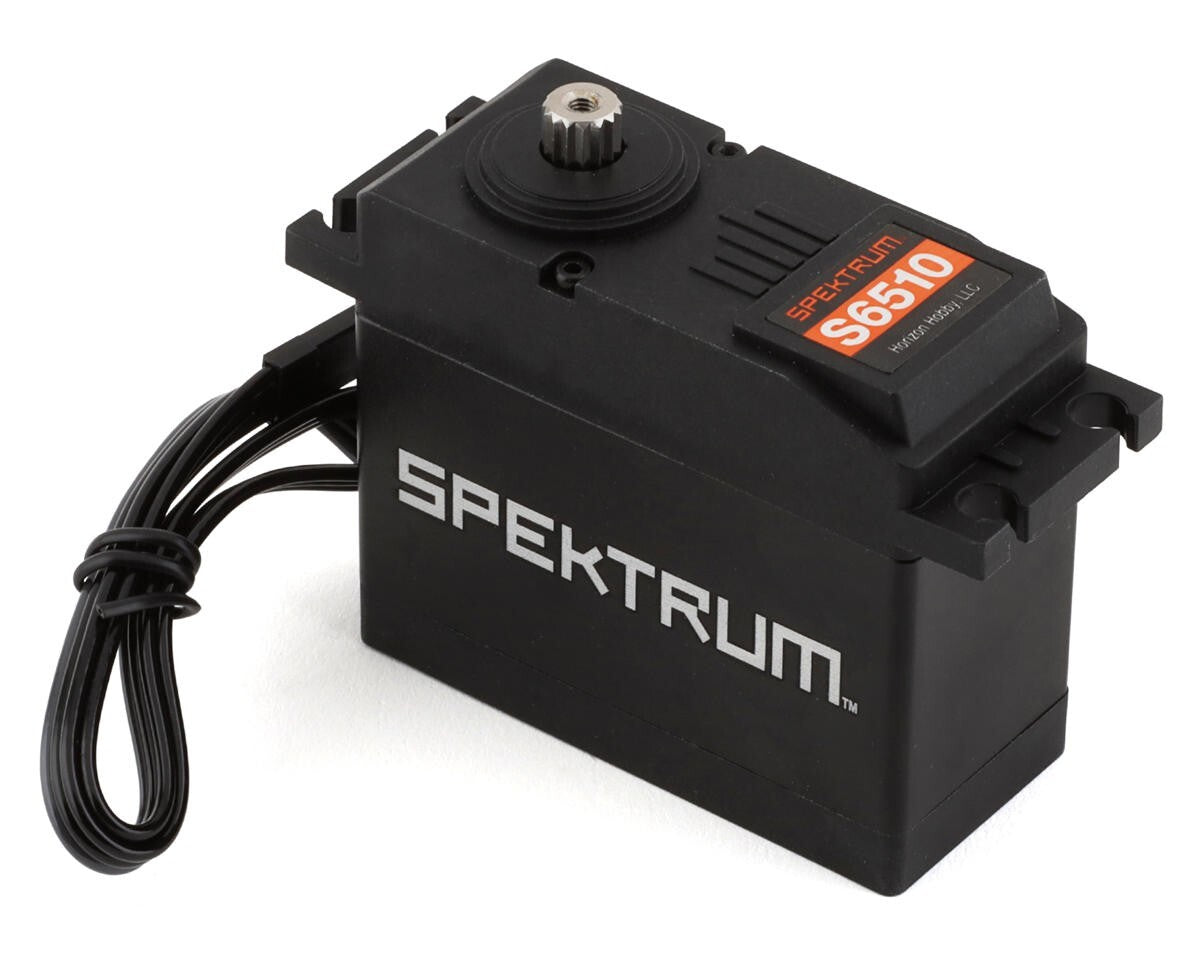

Spektrum RC S6510 1/5 Scale High Torque Metal Gear Servo. Whether you're into racing, bashing, or crawling, the S6510 is engineered to deliver unparalleled precision and power. With an impressive torque of 1869.52oz-in @8.4V, the S6510 provides unbeatable performance that can power through any obstacle. Whether you're a seasoned enthusiast or just starting out, the S6510 is an excellent choice to take your RC driving experience to the next level. It's a perfect upgrade servo from RTR vehicles that include the Spektrum S905 or S906 servos. Upgrade your large scale vehicle today with the S6510 1/5 high torque servo from Spektrum.
Features:
- High Torque (1869.52oz-in @ 8.4V)
- Ideal servo for 1/5th scale vehicles
- Perfect upgrade from the Spektrum S905 or S906 Servos
- Wide operating voltage (6.0V – 8.4V)
- Dual Ball Bearing proves smooth operation
- Strong metal gear ensures durability
- 15-Tooth Spline
Specifications:
-
Speed @6.0V: 0.18 sec/60°
-
Speed@7.4V: 0.15 sec/60°
-
Torque @6.0V: 1587.33 oz/in (45 kg/cm)
-
Torque @7.4V: 1869.52 oz/in (53 kg/cm)
-
Gear Type: Metal
-
Output Bearing: Dual Ball Bearing
-
Input Voltage: 6.0-8.4V
-
Spline Count: 15T
-
Idle Current: 152mA @ 8.4V
-
Stall Current: 8.4A/12.3A
-
Dimensions: 2.6inx1.18inx2.05in (66mmx30mmx56mm)
-
Weight: 7.2oz (204g)
Includes:

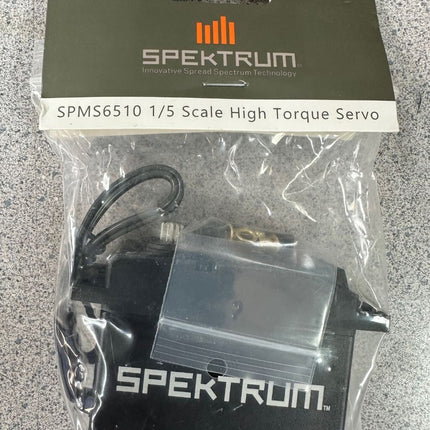

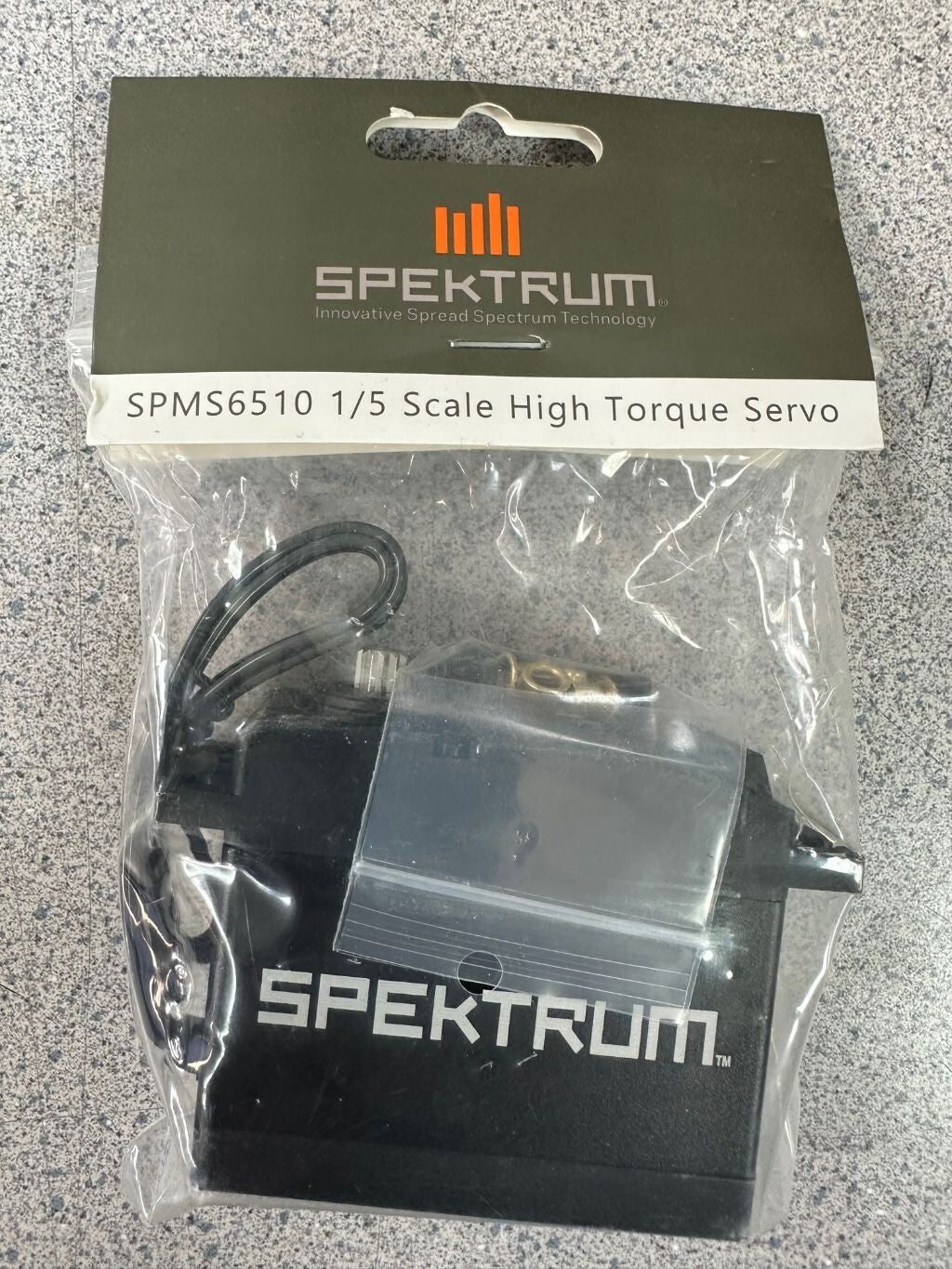

- (1) S6510 1/5 Scale High Torque Metal Gear Servo (High Voltage)
- Mounting Hardware and Accessories
