Description

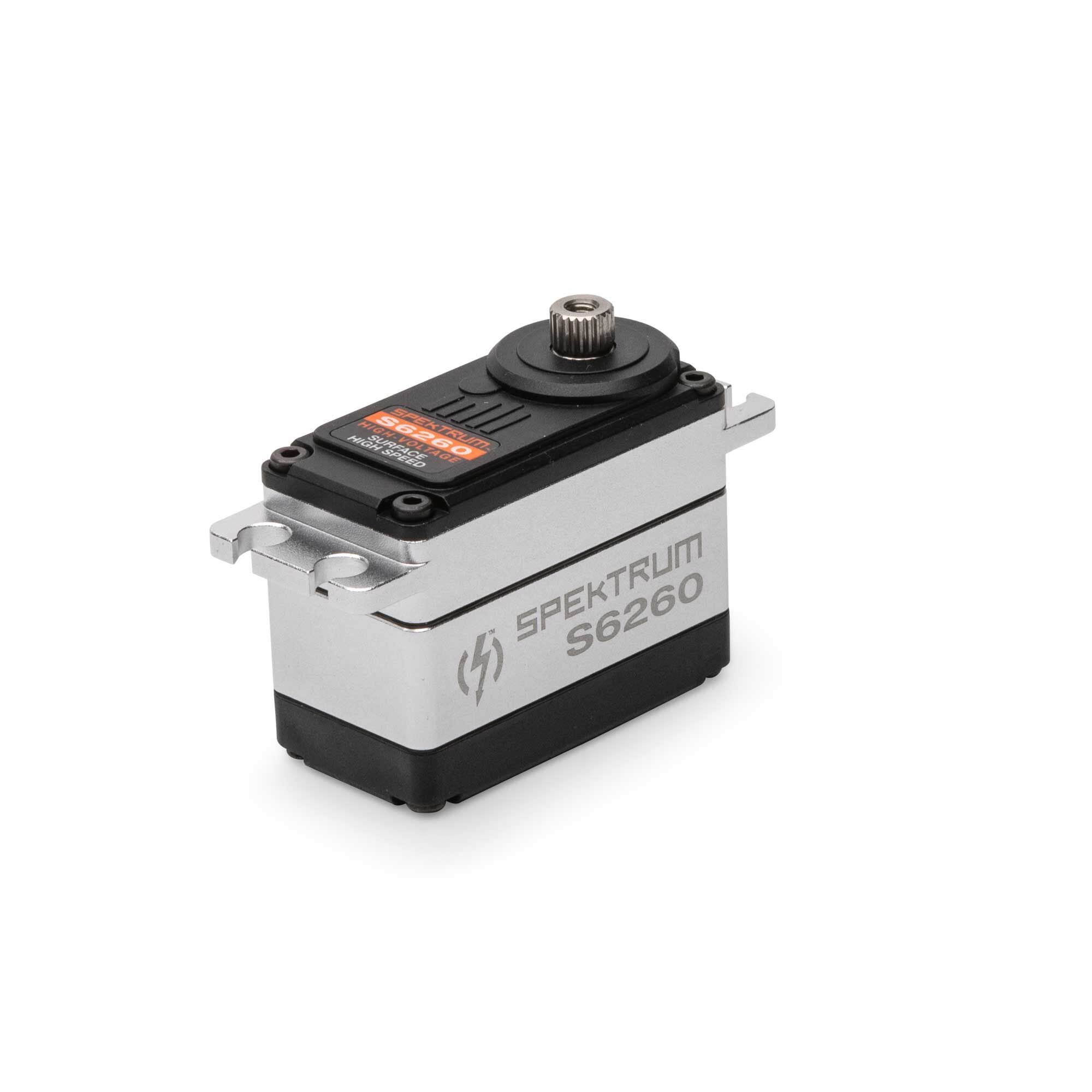

The Spektrum S6260 is a high voltage upgrade from Spektrum's budget minded S6240 series servo. Offering all the same benefits in a slim package, but packing a major upgrade in speed and torque with the addition of a high voltage capable motor. The S6260 supports a standard servo mounting form factor, which makes it a universal fit for 1/10 class vehicles.
Key Features:
- High Voltage capabilities for improved speed and torque ratings

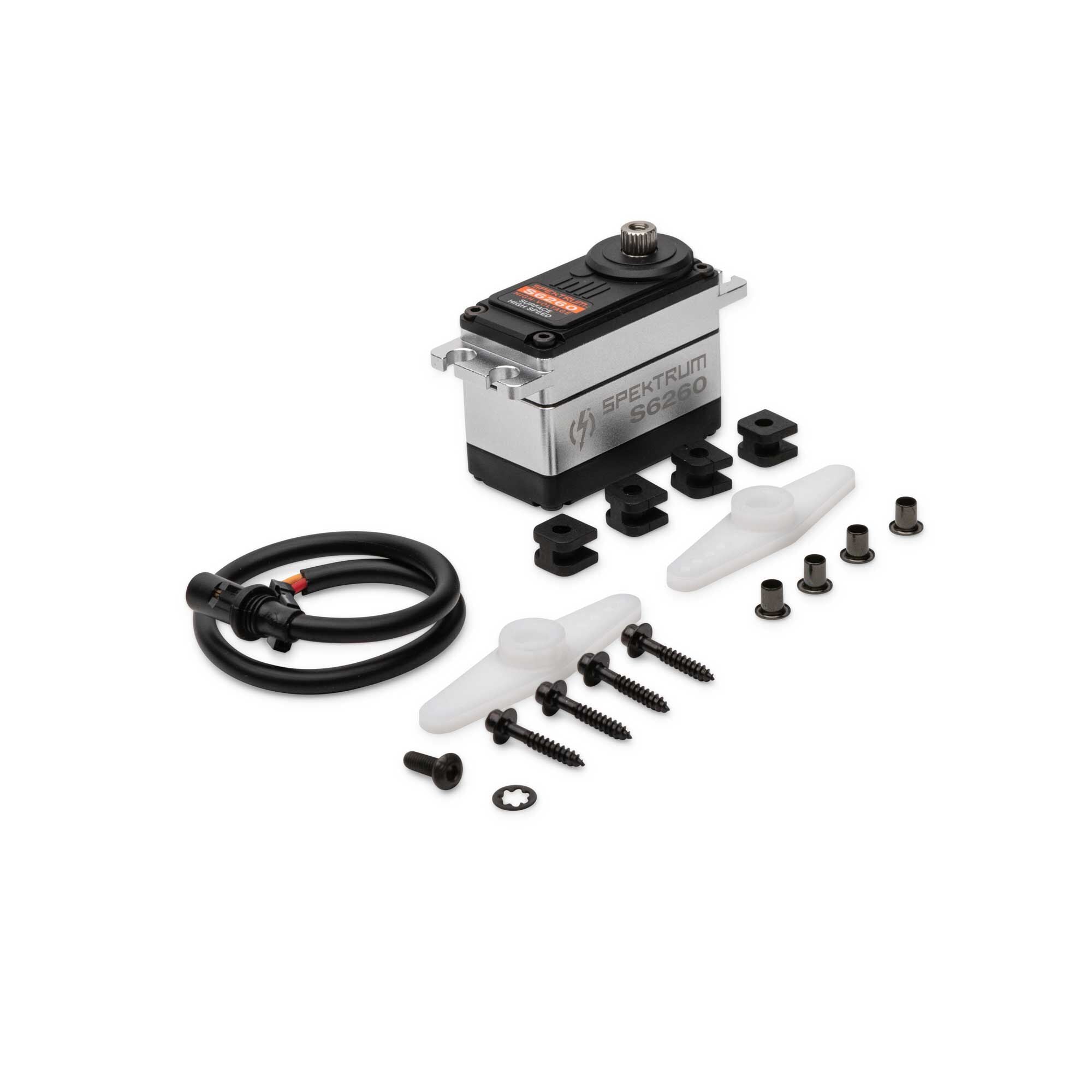

- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
Specifications:
-
Size Category: Specialty
-
Type: Digital
-
Application: 1/10 Buggy, Truck, 1/8 Buggy, Truck
-
Torque:
- 167 oz-in (12.0kg-cm) @ 6V
- 210 oz-in (15.1kg-cm) @ 7.4V
- 241 oz-in (17.4kg-cm) @ 8.4V
-
Speed:
- 0.08 sec/60 deg @ 6.0V
- 0.07 sec/60 deg @ 7.4V
- 0.06 sec/60 deg @ 8.4V
-

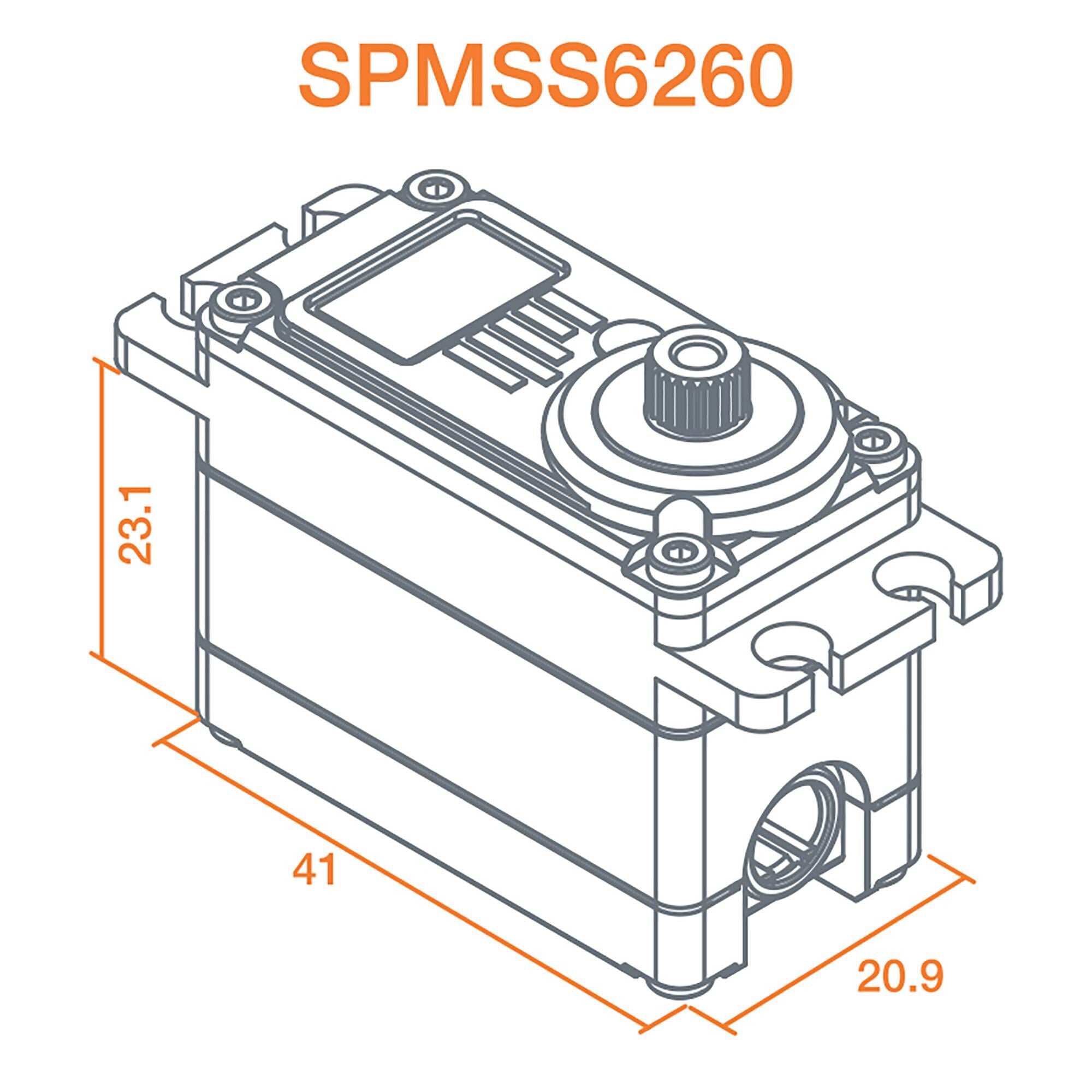

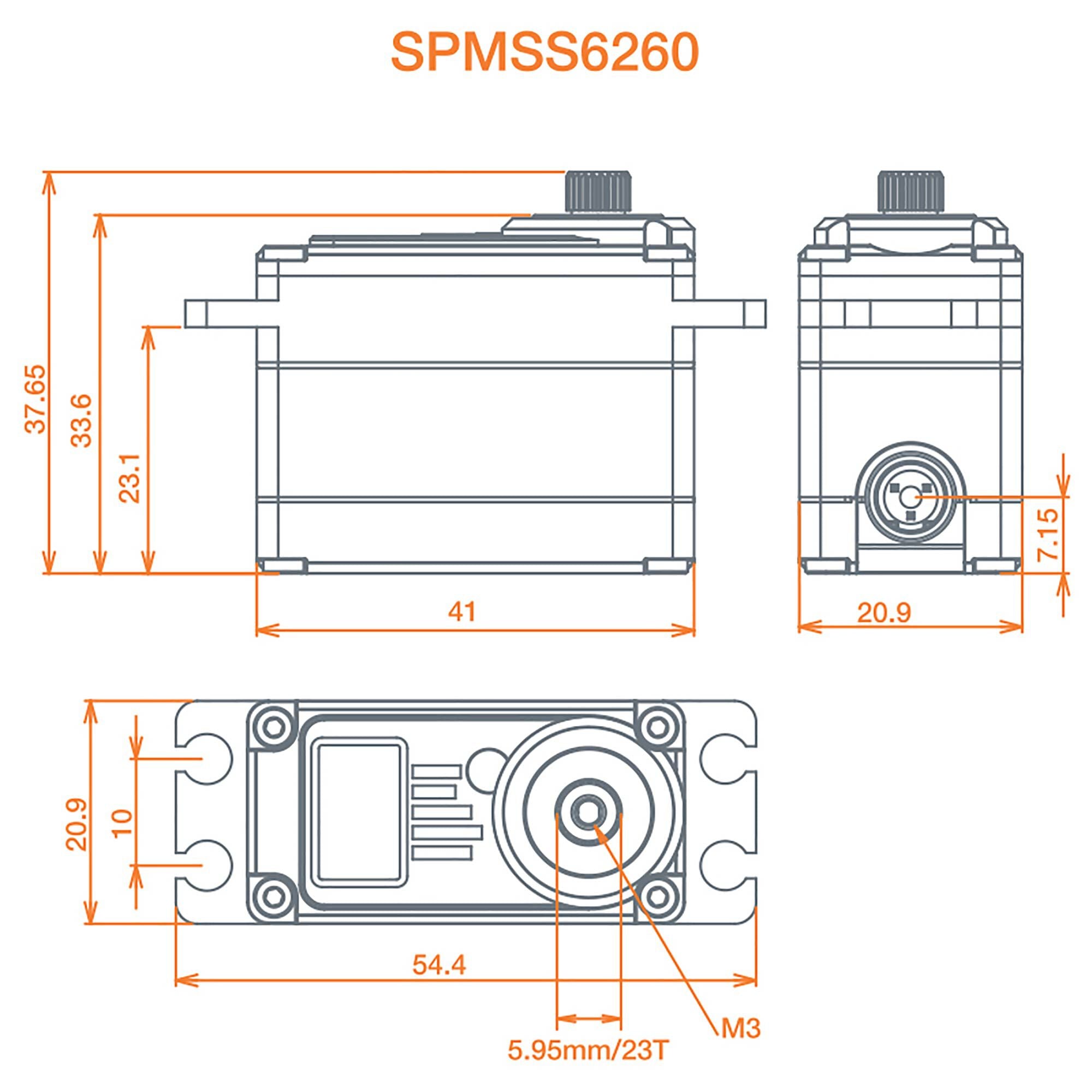

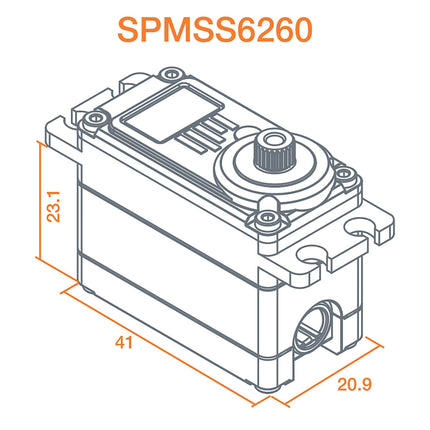

Length: 1.61 in (41mm)
-
Width: 0.82 in (20.8mm)
-
Height: 1.25 in (31.8mm)
-
Weight: 2.3 oz (65.2g)
-
Bushing Or Bearing: Bearing
-
Bearing: Dual
-
Motor Type: Coreless
-
Connector Type: Z-connector, removable
-
Gear Type: Metal
-
Gear Material: Steel, Aluminum
-
Current Draw Idle: 9.8 mA @ 6.0V
-
Current Draw Stall: 4900mA @ 6.0V
