Description

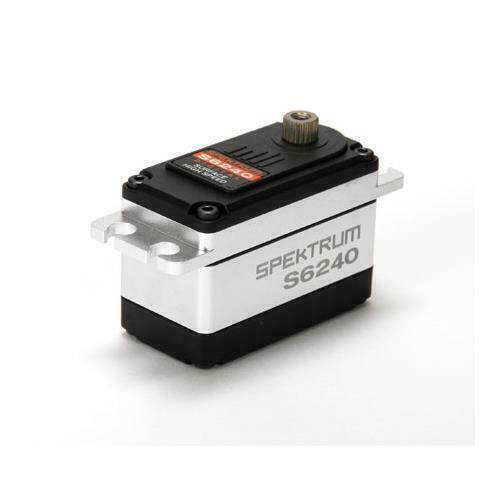

The Spektrum S6240 servo offers a high-speed solution in a compact form factor for 1/10 class vehicles. For select 2wd and 4wd buggy platforms, a shorty style servo is preferred to allow for extra real-estate to mount electronics in the chassis. Additionally rock crawlers, monster trucks, and touring cars can benefit from this servos smaller than average size.
Features:
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
Specifications:
-
Size Category: Specialty
-
Type: Digital
-
Application: 1/10 Buggy, Truck, On-Road
-
Torque: 208 oz-in (15.0kg-cm) @ 6.0V
-
Speed: 0.08 sec/60 deg @ 6v (no load)
-
Length: 1.61 in (41mm)
-
Width: 0.82 in (20.9mm)
-
Height: 1.18 in (30mm)
-
Weight: 2.1 oz (59.5g)
-
Bushing Or Bearing: Bearing
-
Bearing: Dual
-
Motor Type: Coreless
-
Connector Type: Z-Connector, removable
-
Gear Type: Metal
-
Gear Material: Steel, Aluminum
-
Current Draw Idle: 9.8 mA @ 6.0V
-
Current Draw Stall: 4.9A @ 6.0V
-
Voltage: 6.0V
