Spektrum RC S6230 Digital Steel Gear High Torque Low Profile Servo SPMSS6230

    Description

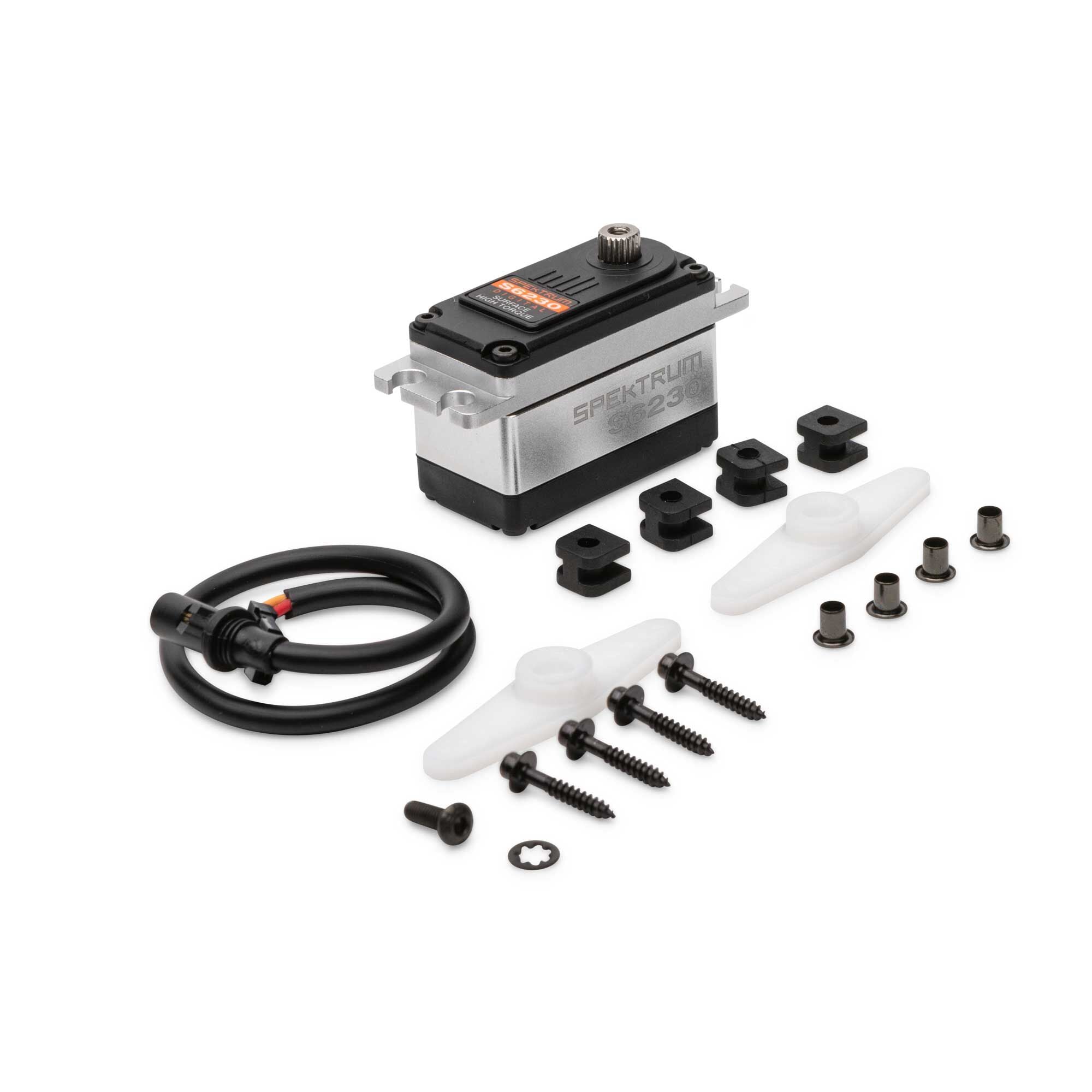

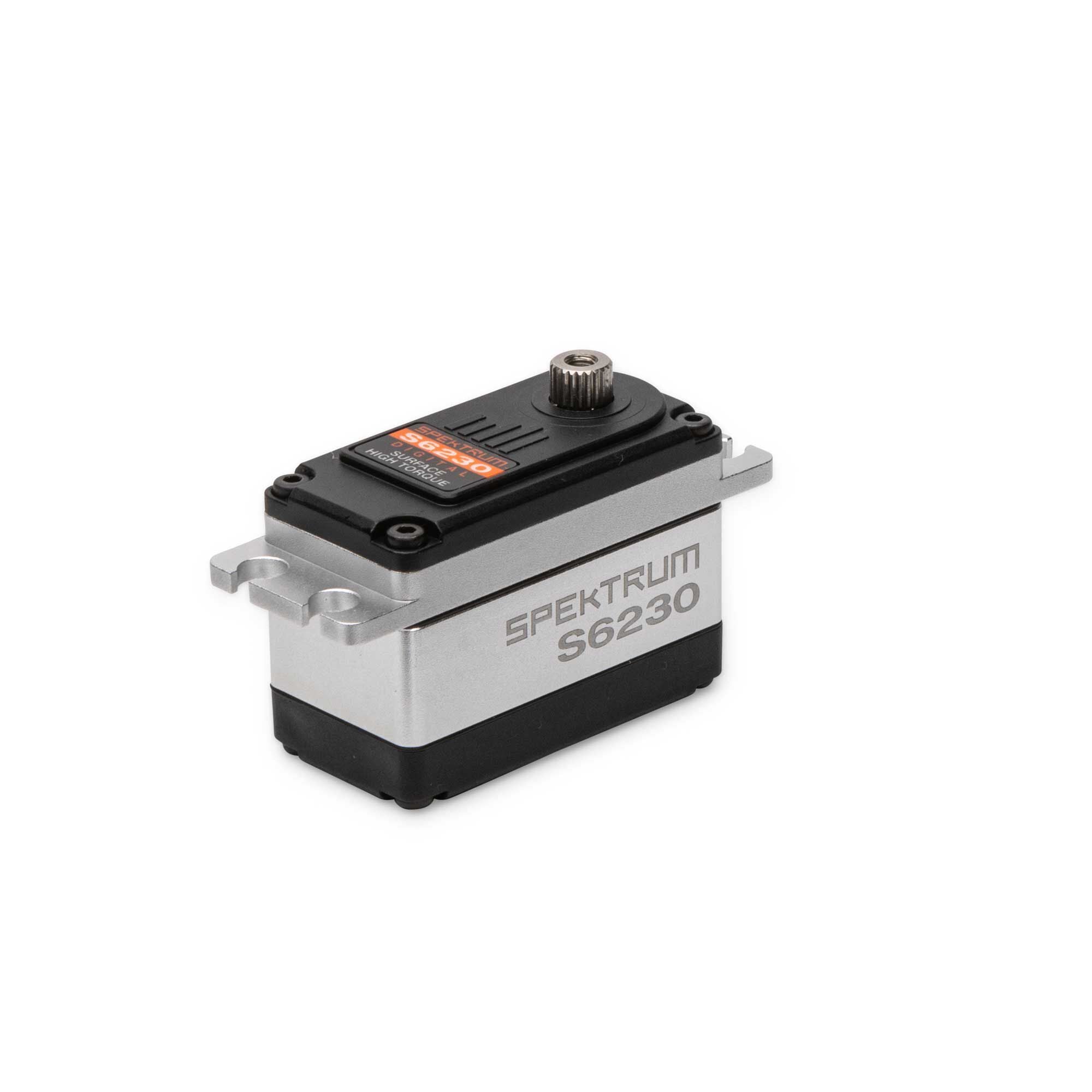

    The Spektrum S6230 servo offers a high-torque solution in a compact form factor for 1/10 class vehicles. For select 2wd and 4wd buggy platforms, a shorty style servo is preferred to allow for extra real-estate to mount electronics in the chassis. Additionally rock crawlers, monster trucks, and touring cars can benefit from this servos smaller than average size.

    Key Features:

    • Removable wire harness with different lengths available
    • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
    • Aluminum case for good heat dissipation
    • Aluminum mounting tabs
    • NMB dual main bearings
    • 23T output shaft

    Specifications:

    • Size Category: Specialty
    • Type: Digital
    • Application: 1/10 Buggy, Truck, On-Road
    • Torque: 311 oz-in (22.4kg-cm) @ 6.0V
    • Speed: 0.14 sec/60 deg @ 6.0V, at no load

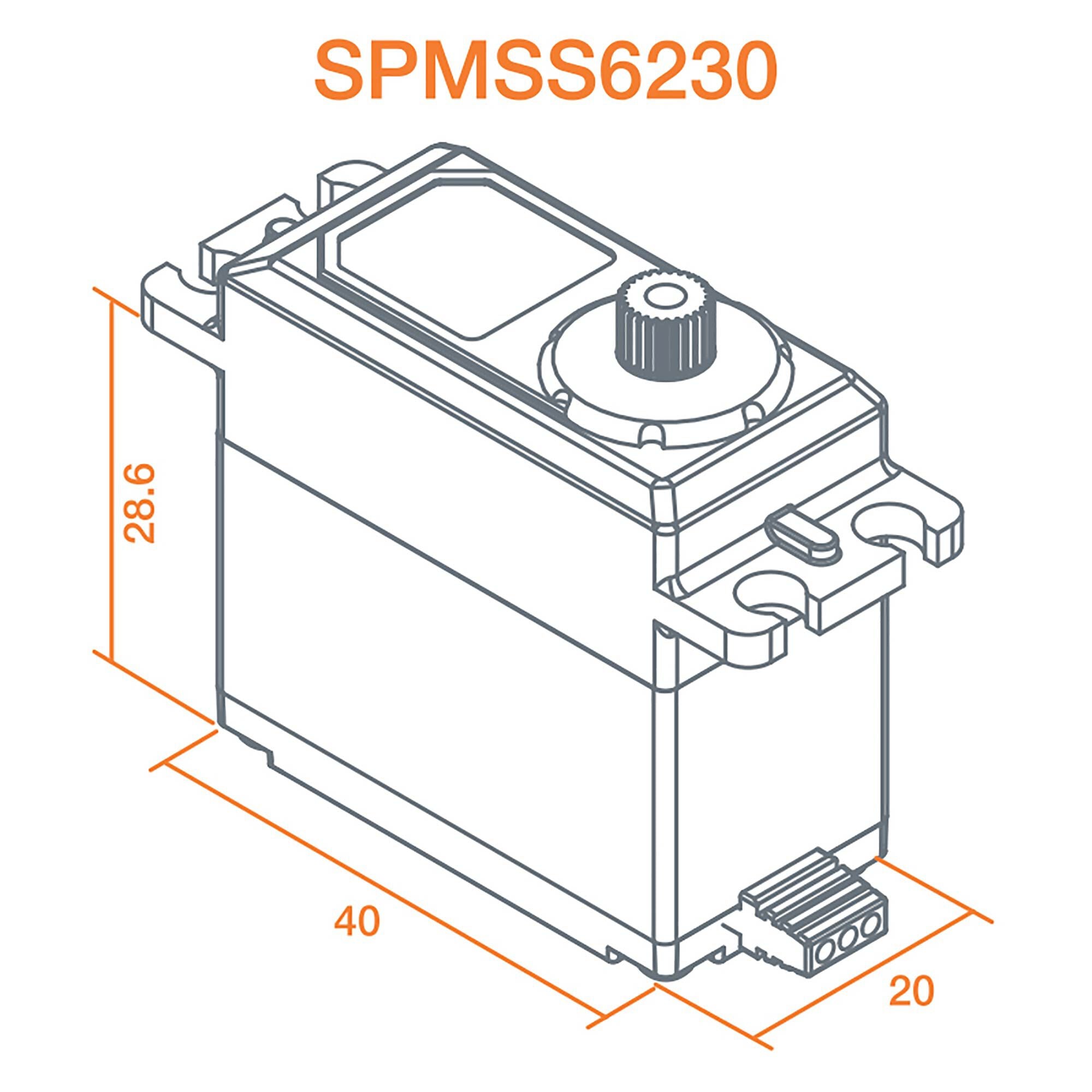

    • Length: 1.61 in (41mm)
    • Width: 0.82 in (20.8mm)
    • Height: 1.18 in (30mm)
    • Weight: 2.1 oz (59.5g)
    • Bushing Or Bearing: Bearing
    • Bearing: Dual
    • Motor Type: Coreless
    • Connector Type: Z-connector, removable
    • Gear Type: Metal
    • Gear Material: Steel, Aluminum
    • Current Draw Idle: 9.8 mA @ 6.0V
    • Current Draw Stall: 4900mA @ 6.0V
    • Voltage: 6.0V
    Product form

    SKU: EB-154023012672
    Barcode: 605482078532

    Unfortunately, this product is out of stock

    Out of stock, 1-2 Weeks, may vary due to availability

    $104.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on orders over $150
      Pay whenever you want

      Easily pay within 30 days after you have received your package.
      Read more

      Description

      The Spektrum S6230 servo offers a high-torque solution in a compact form factor for 1/10 class vehicles. For select 2wd and 4wd buggy platforms, a shorty style servo is preferred to allow for extra real-estate to mount electronics in the chassis. Additionally rock crawlers, monster trucks, and touring cars can benefit from this servos smaller than average size.

      Key Features:

      • Removable wire harness with different lengths available
      • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
      • Aluminum case for good heat dissipation
      • Aluminum mounting tabs
      • NMB dual main bearings
      • 23T output shaft

      Specifications:

      • Size Category: Specialty
      • Type: Digital
      • Application: 1/10 Buggy, Truck, On-Road
      • Torque: 311 oz-in (22.4kg-cm) @ 6.0V
      • Speed: 0.14 sec/60 deg @ 6.0V, at no load
      • Length: 1.61 in (41mm)
      • Width: 0.82 in (20.8mm)
      • Height: 1.18 in (30mm)
      • Weight: 2.1 oz (59.5g)
      • Bushing Or Bearing: Bearing
      • Bearing: Dual
      • Motor Type: Coreless
      • Connector Type: Z-connector, removable
      • Gear Type: Metal
      • Gear Material: Steel, Aluminum
      • Current Draw Idle: 9.8 mA @ 6.0V
      • Current Draw Stall: 4900mA @ 6.0V
      • Voltage: 6.0V
