- Up to 100W power per channel or 200W on one channel for fast charging
- Charges and balances Smart G2 batteries with one simple IC3 or IC5 connection — no separate balance lead needed
- Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
- Charges virtually any RC battery (use Smart batteries to benefit from all charger features)
- Smart software tracks and stores numerous Smart battery data
- Includes IC3 and IC5 charging output ports — eliminating the need for a separate IC3 or IC5 adapter

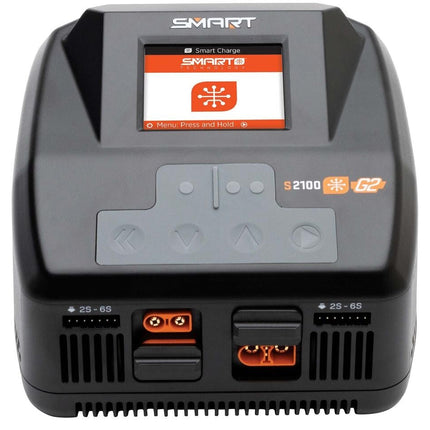

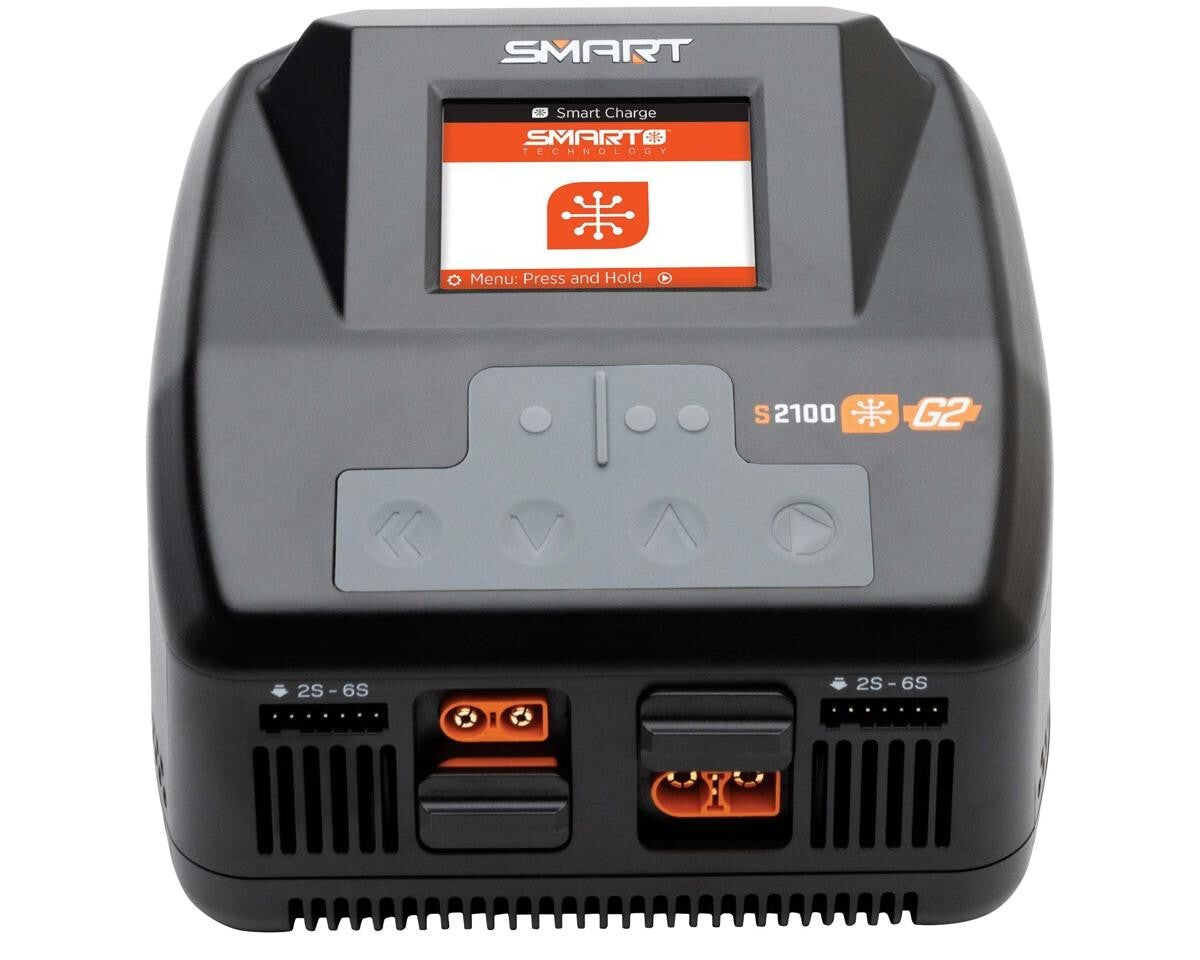

- Large, 2.4" display screen
- An on-screen clock counts down remaining charge time until your Smart battery is fully charged and ready to use
- Updated user interface features fresh, intuitive menus, icons and navigation tools, plus non-slip, easy to use buttons

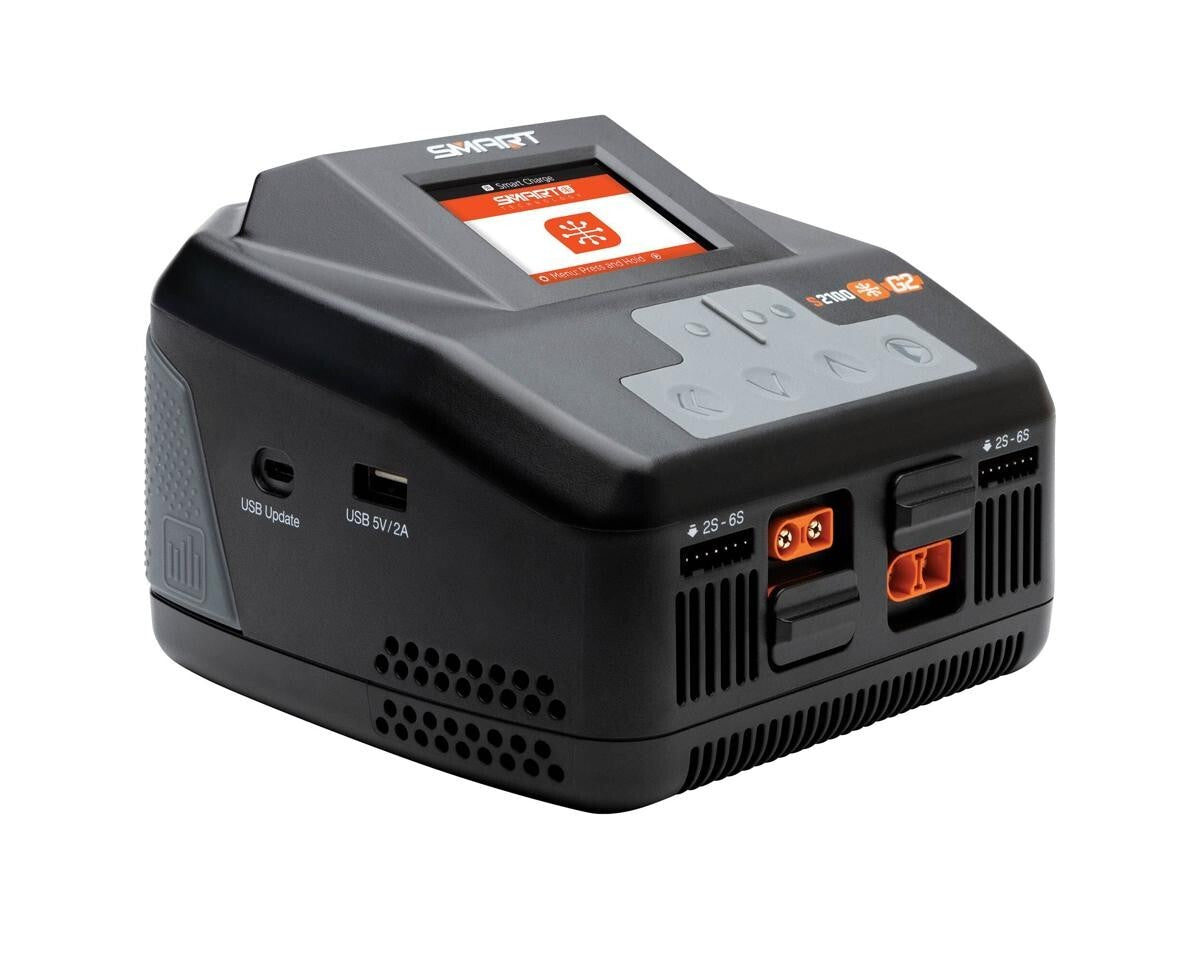

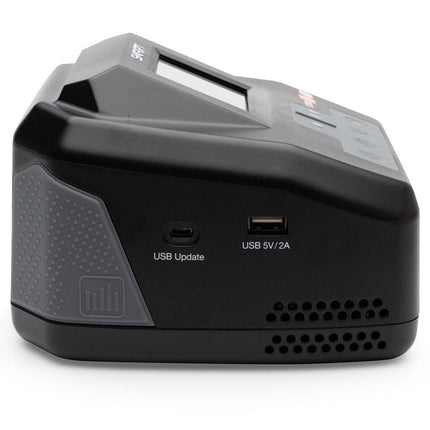

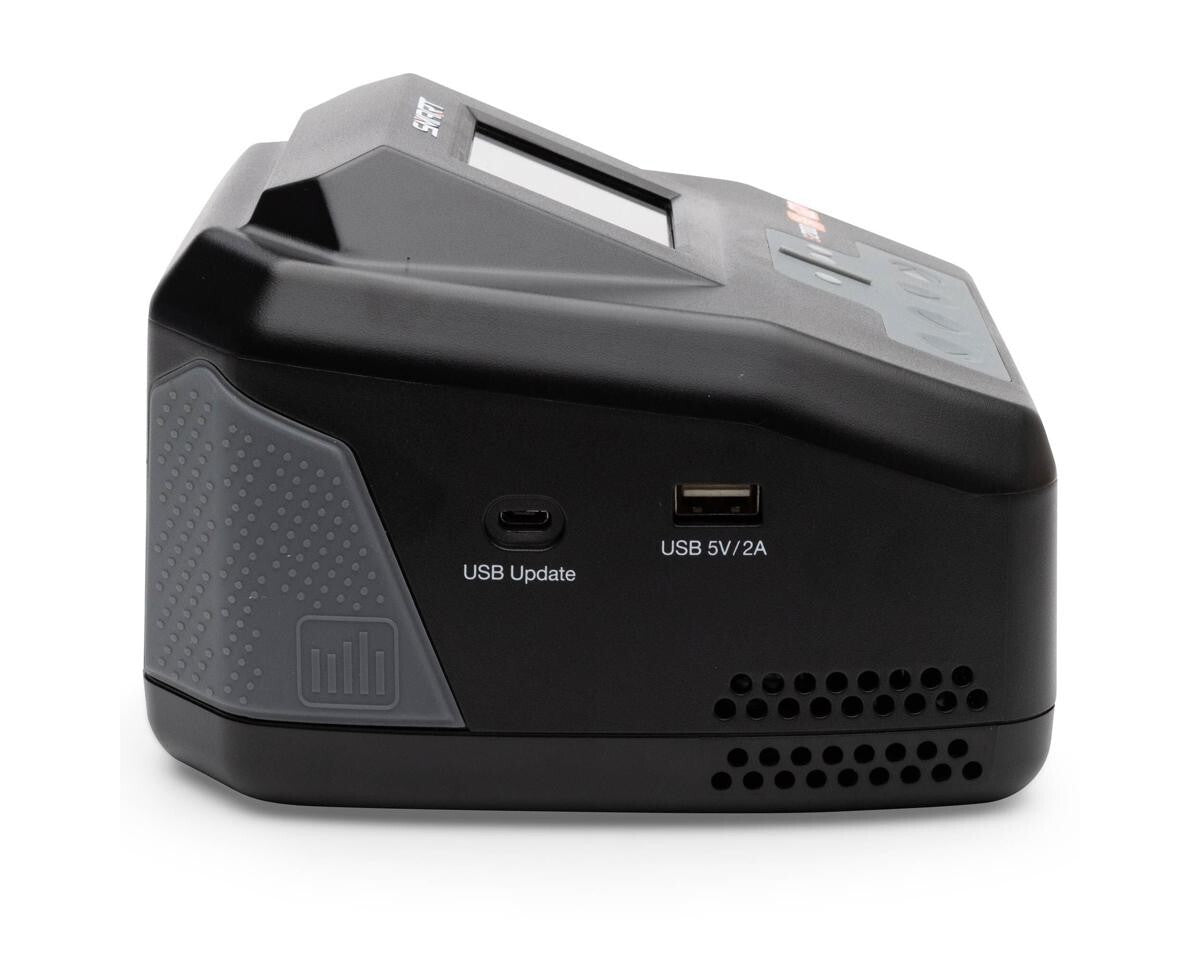

- USB input and output ports are included for updating firmware and charging secondary devices

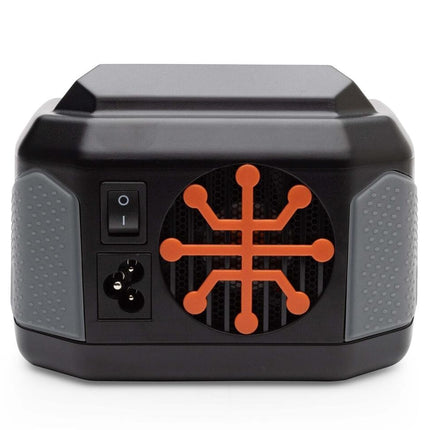

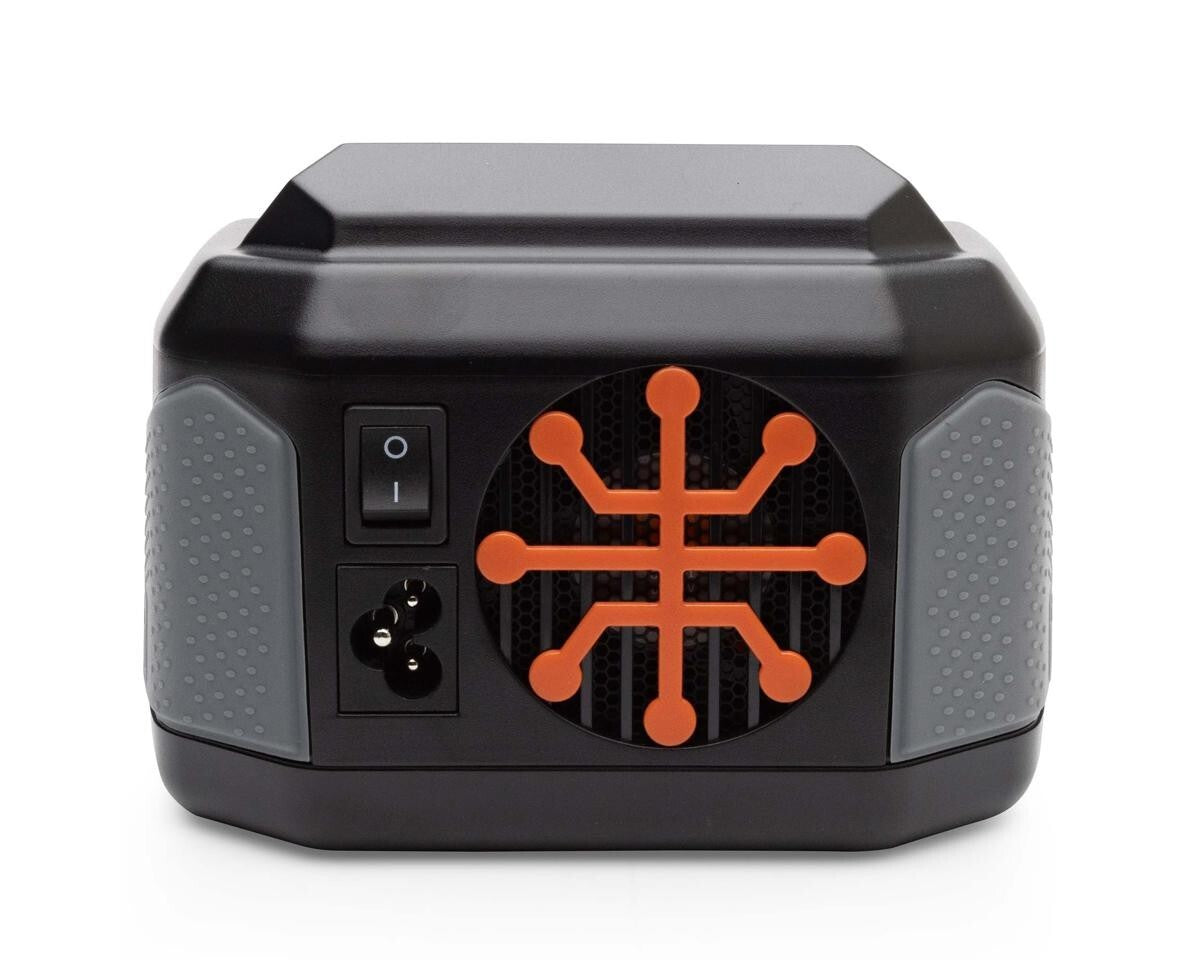

- ON/OFF switch eliminates the need to plug in and unplug the power cord for ON/OFF control
- Detachable power cord makes transporting more convenient

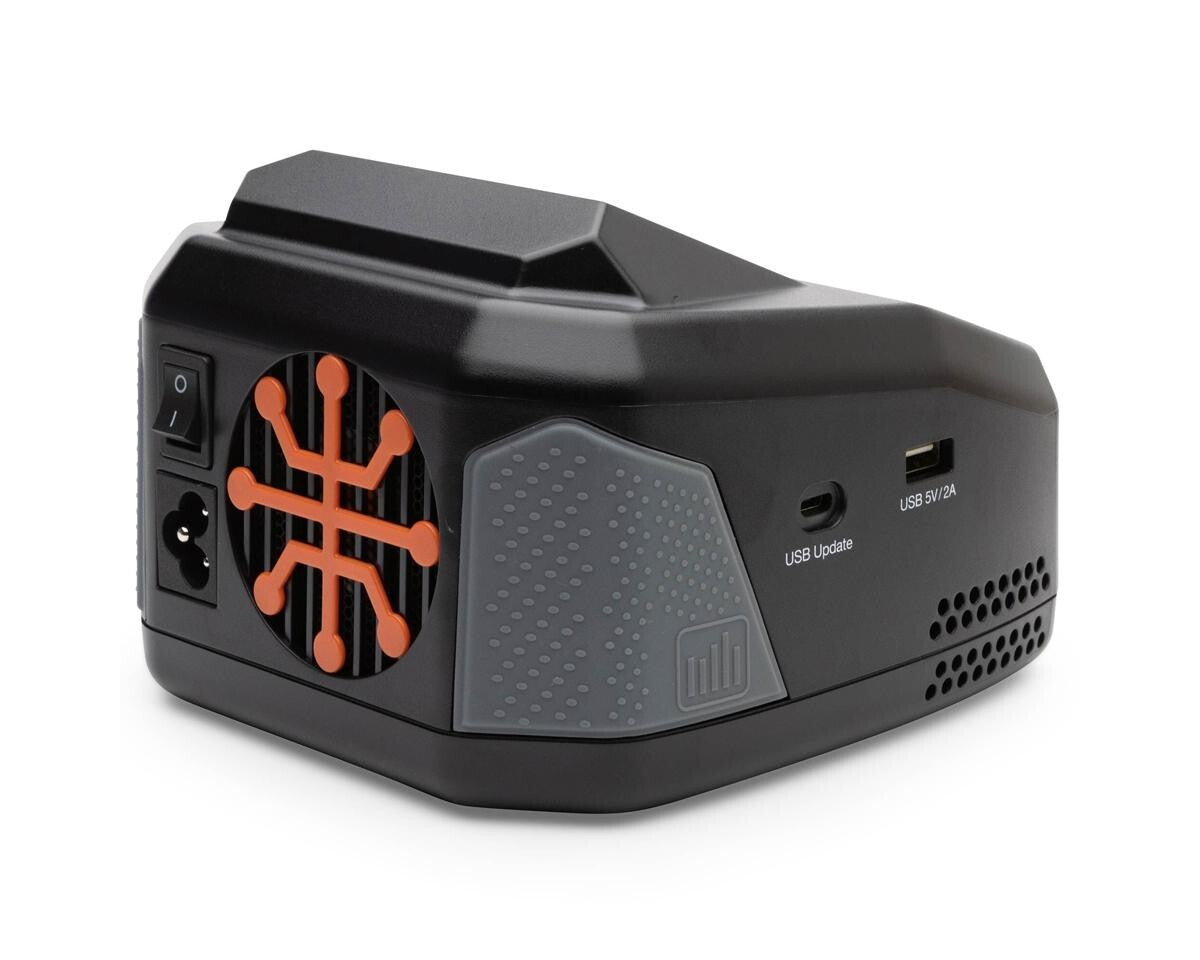

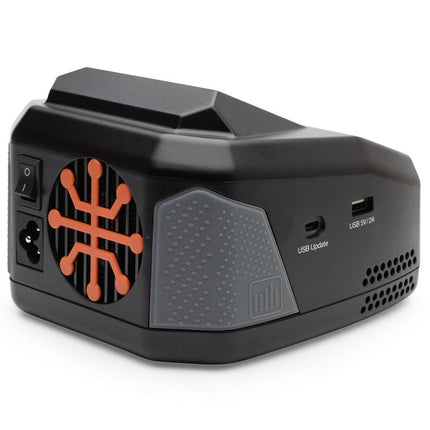

- Includes an efficient, low-noise cooling fan

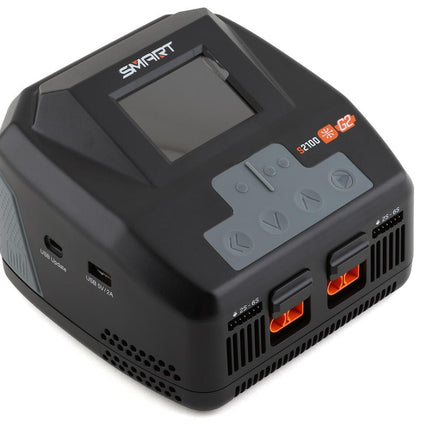

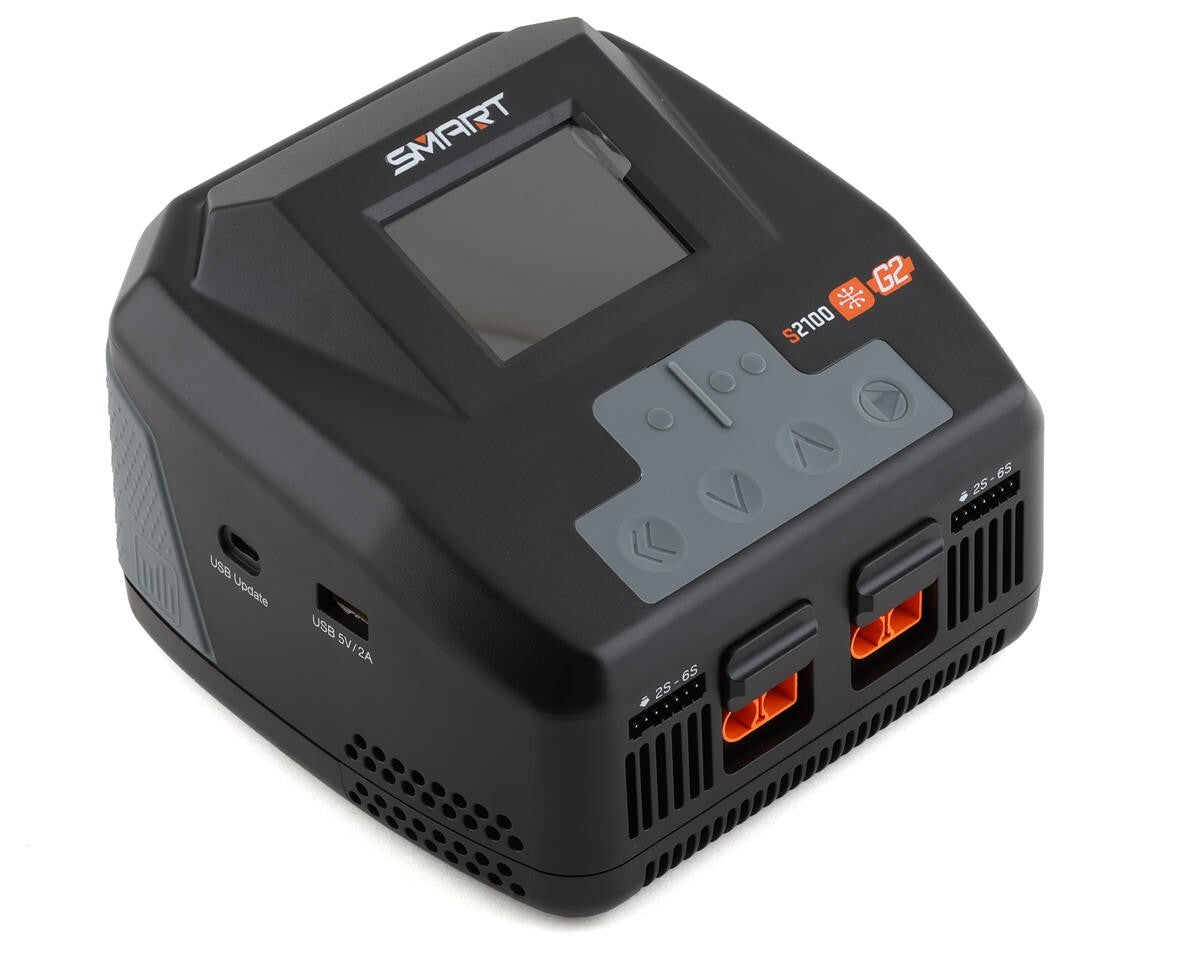

- Sleek, sturdy case fits well on a workbench and in pit or field bags
- Handy rubber grips on case make it easier to plug in and remove batteries

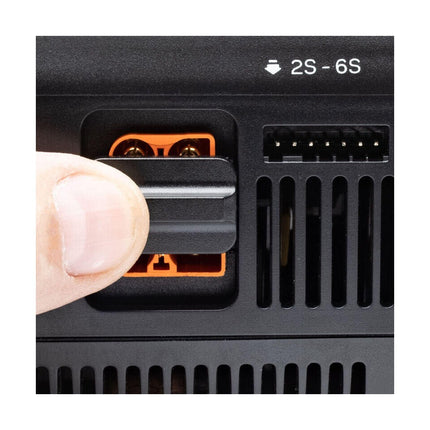

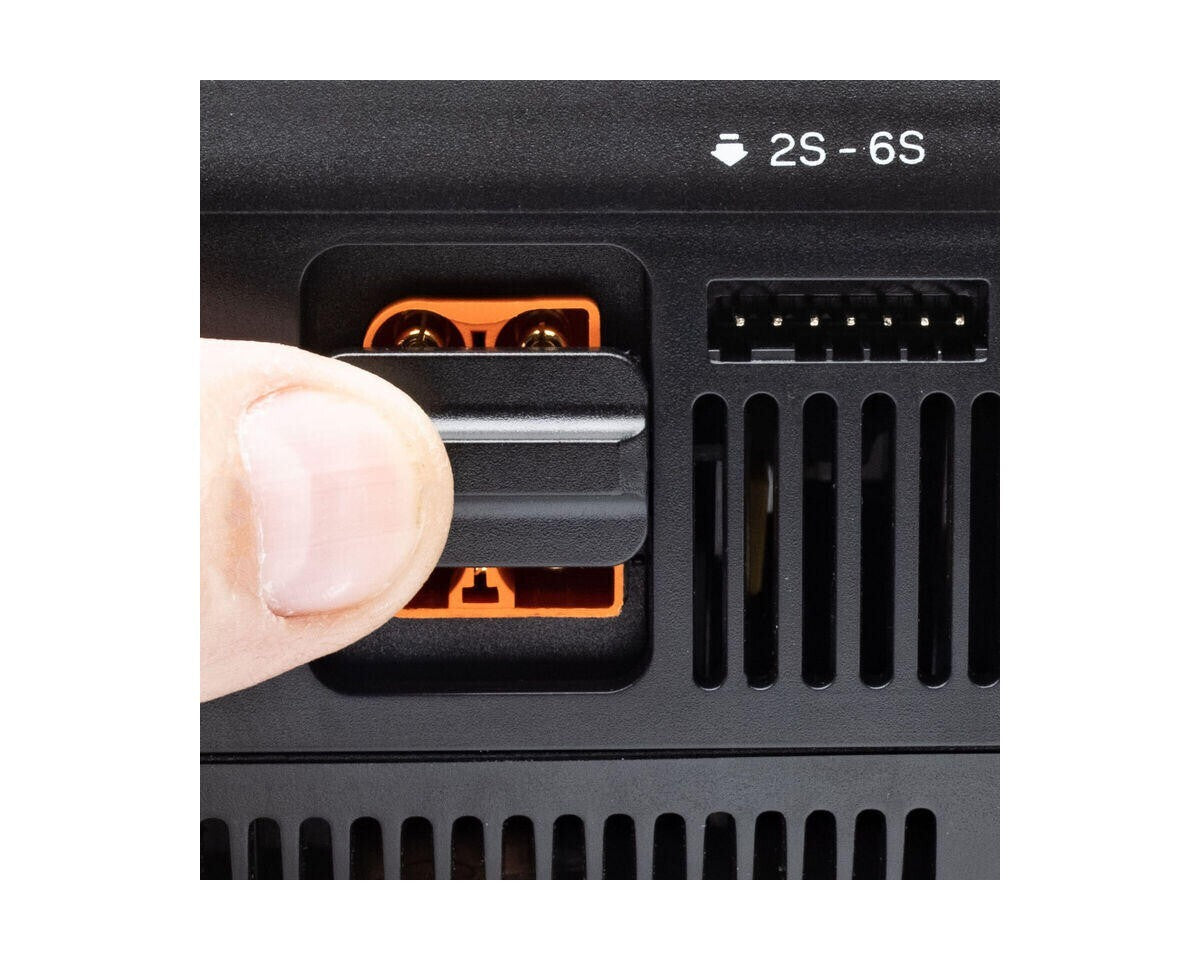

- IC3 and IC5 connectors are backwards compatible with EC3 and EC5 connectors
Specifications:
Width: 5.7" (145mm)
Length: 5.7" (145mm)
Height: 4.1" (104mm)
Weight: 2.4lb (1070g)
Balance Connector: JST-XH
Battery Temperature Monitoring: Yes
Charge Protection Circuitry: Yes
Number of Cells: 1 - 6S Li-Ion/LiPo/LiFe, 1 - 16S NiCd/NiMH, 1 - 12S Pb
Number of Output Ports: 2
Power Source: AC
Selectable Charge Rate: Yes
Over Current Protection: Yes
USB Power Out: Yes
Battery Type: Smart, Non Smart
PC Connectivity: Yes
Programmable: Yes
Safety Timer: Yes
Integrated Balancing: Yes - Internal Balancer & Internal Adapter
Charge Rate: 0.1 - 12.0A, adjustable in 0.1A increments (200W Max)
Software Updates: Yes
Technology: Smart
Amp Meter: Yes
Output Connector: IC3, IC5
Peak Detection: Yes
Short Circuit Protection: Yes
Connector Type: IC3, IC5
Discharge: 0.1 - 1.5A, adjustable in 0.1A increments (15W Max)
Maximum Charge Rate: 10 to 14 Amps
Reverse Polarity Protection: Yes
Thermal Protection: Yes
Voltage Meter: Yes
Display: 2.4" 320 x 240 IPS LCD
Input Voltage: 100 - 240V AC, 50 - 60 Hz
Power (watts): 100 - 199W
Includes:

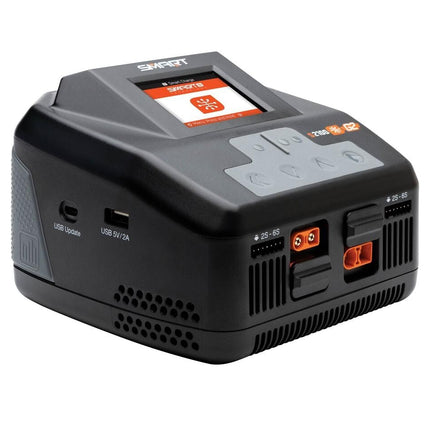

- (1) S2100 Smart AC Charger

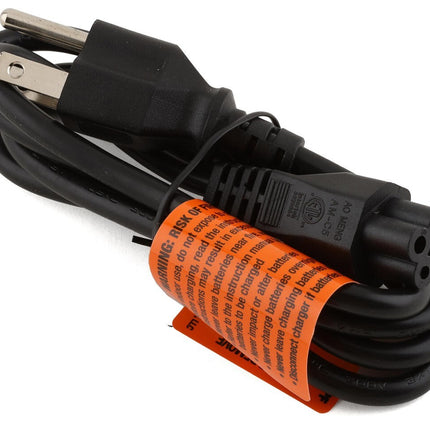

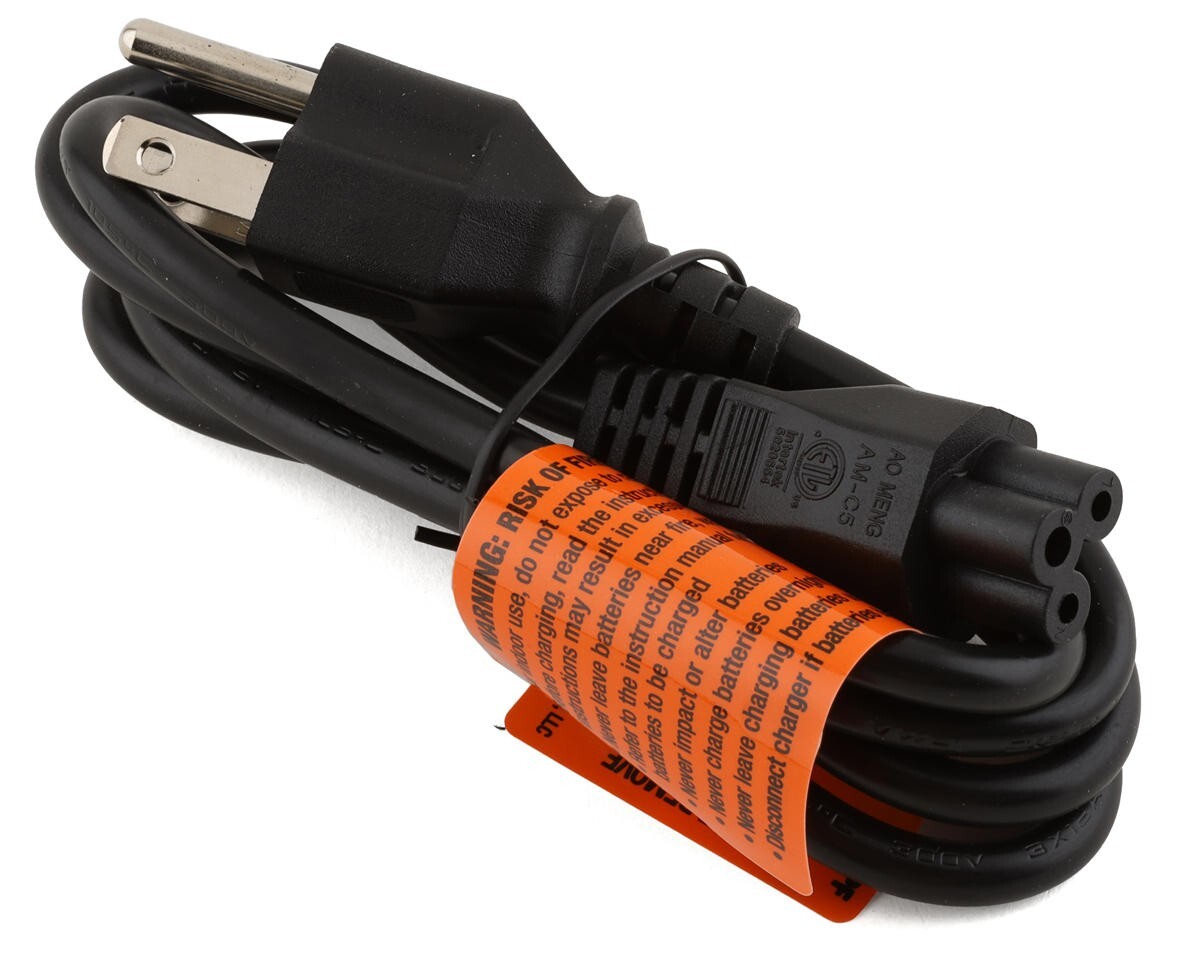

- (1) Power Cord
- (1) Manual
