- Smart all-in-one telemetry
- Smart Lite functionality:
- Provides Spektrum Smart ESC data such as input voltage, esc temperature, esc amperage, and Text Gen Telemetry data over one wire. No additional sensors required. Smart Lite ESCs do not provide Smart Battery data.
- Includes Spektrum 35T Rebuildable Brushed Motor – Excellent completion option for 1/10 scalers and rock crawler models running 2S or 3S LiPo power

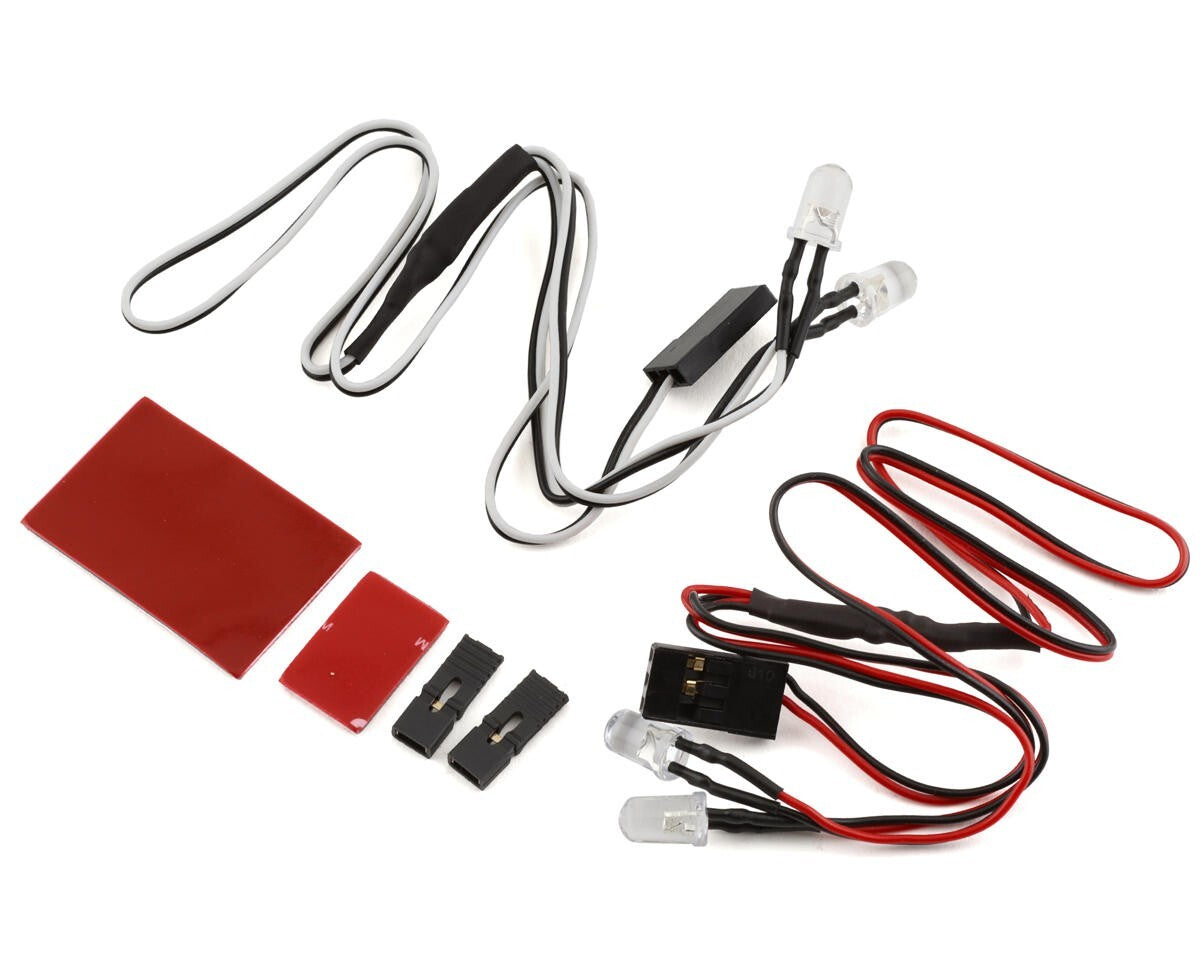

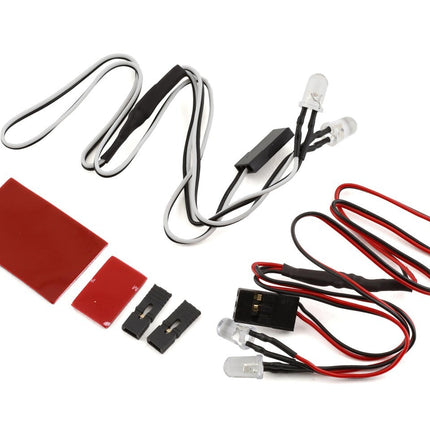

- Integrated LED light power outputs for simple installation without the need of additional receiver ports
- 70 Amp continuous power – ideal for 1/10 scale crawlers and scalers
- 2S-3S LiPo Compatible
- Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Programming from Transmitter via Text Gen Telemetry
- Waterproof ESC*
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Aluminum heat sink for high efficiency
- Adjustable high-power BEC (6V or 7.4V, 4amp)
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC connectors, backwards compatible with EC connectors
- Limited 1-year warranty
Specifications:
Motor Type: Brushed
Connector Type: 4mm Bullet, IC3
Motor Limit: 8.4V: Down to 12T / 12.6V: Down to 35T
Motor Size: 540 / 550 Size Brushed Motors
Length: 1.41" (36mm)
Height: 0.71" (18mm)
Width: 1.18" (30mm)
Weight: 1.76oz (50g)
Technology: Smart
Auto Cutoff: Yes
Low-Voltage Cutoff Programmable: Yes
Programmable: Yes
Reverse: Yes
BEC Continuous Current: 4A (Shared Between Receiver and Aux Light Outputs)
BEC Voltage: 6V / 7.4V User Selectable
Input Voltage: 2–3 Cell Li-Po/Li-Fe; 5–9 Cell Ni-MH/Ni-Cd
Maximum Continuous Current: 70A
Maximum Burst Current: 200A
Water-Resistant: Yes
Includes:

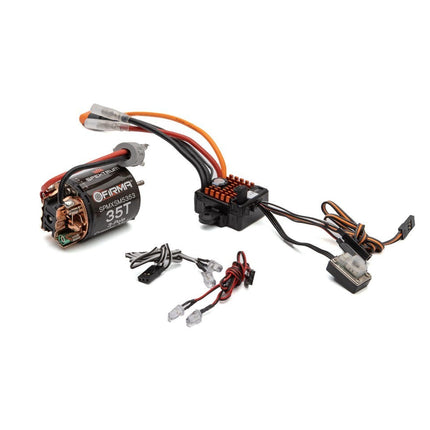

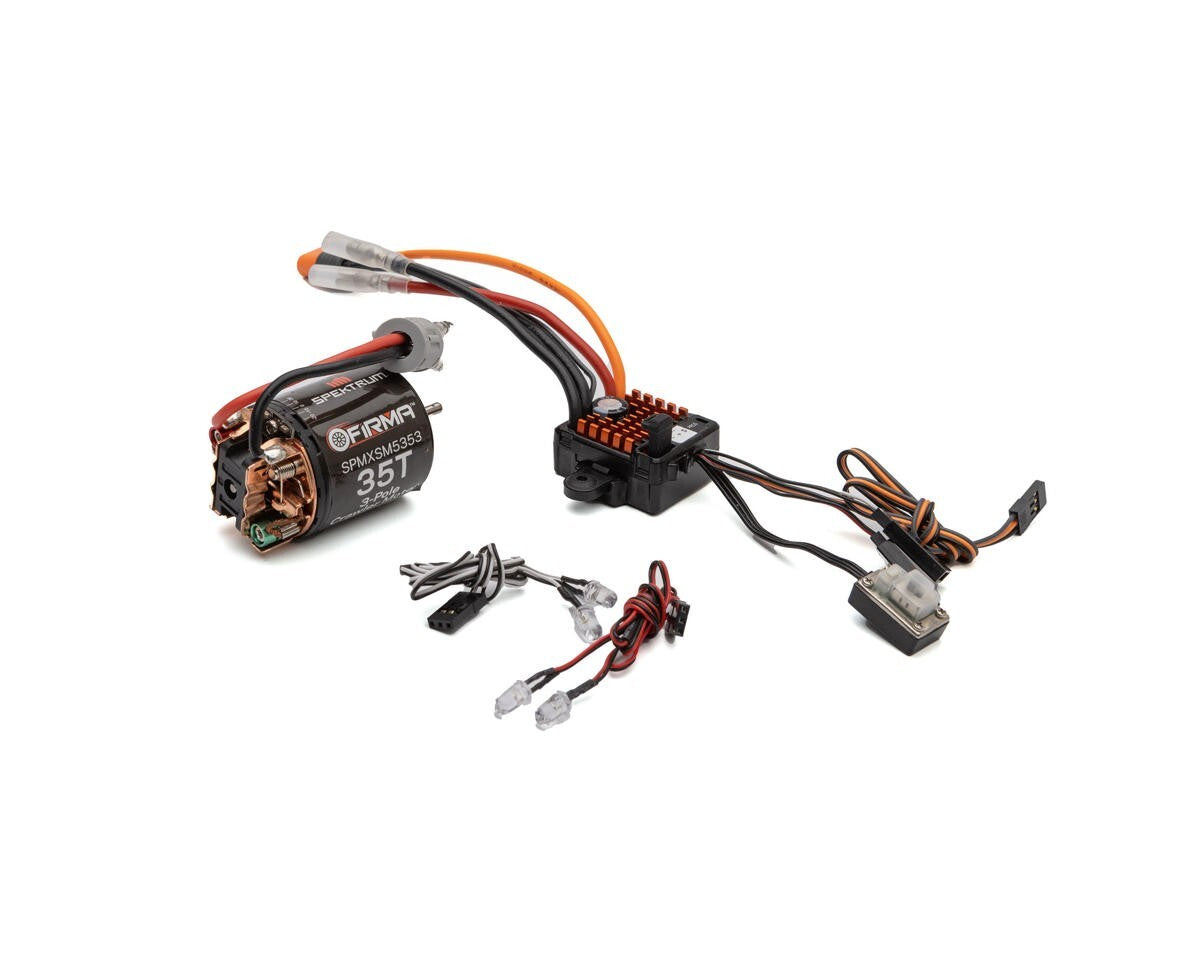

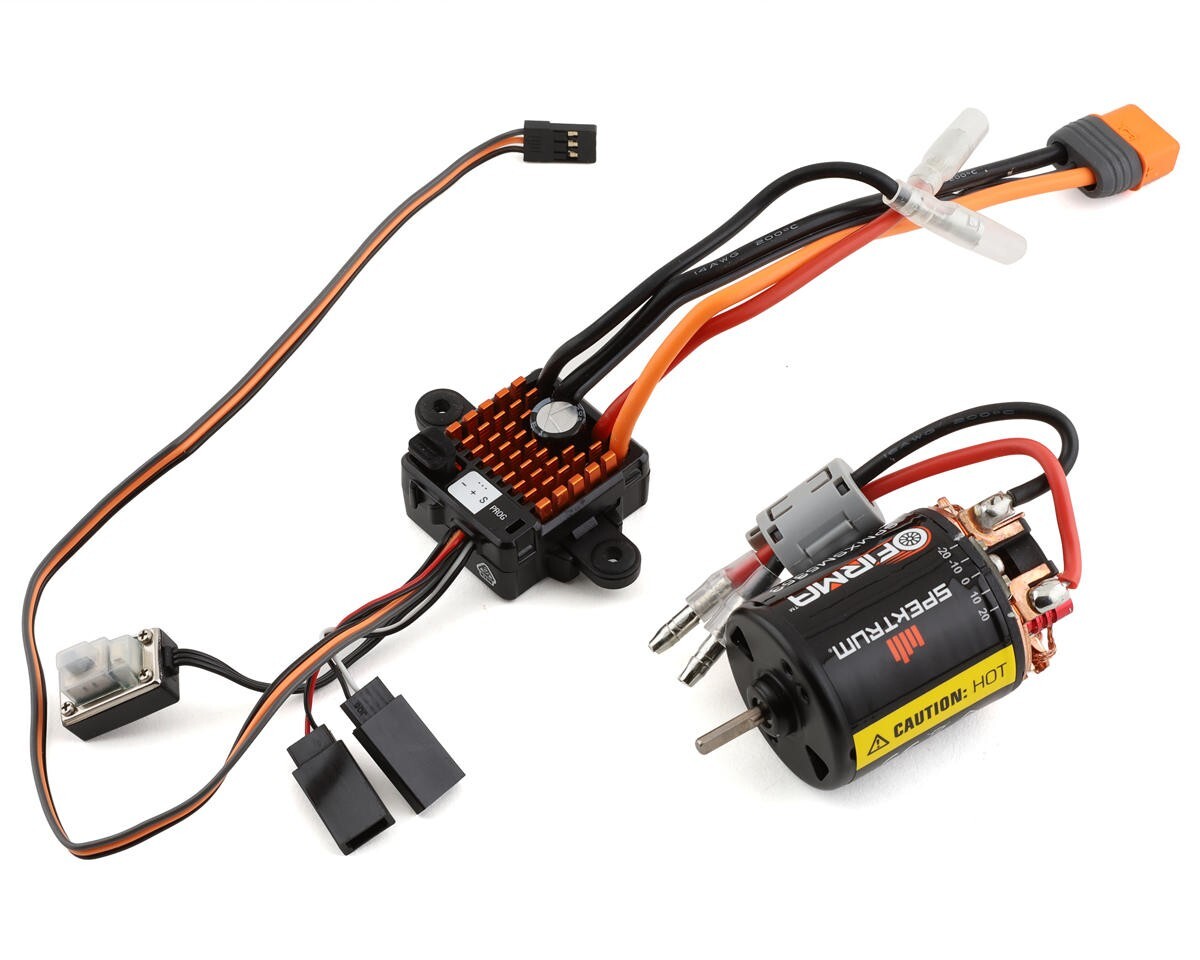

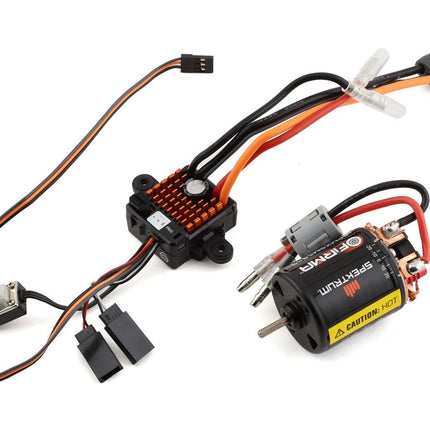

- (1) Spektrum Firma 70A Brushed Smart ESC
- (1) Spektrum Firma 35T Rebuildable 3-Pole Brushed Motor
- (1) Product Manual
