Spektrum RC Firma 130A Brushless Smart ESC / 2250Kv Sensored Motor Combo SPMXSEMC21

    Description

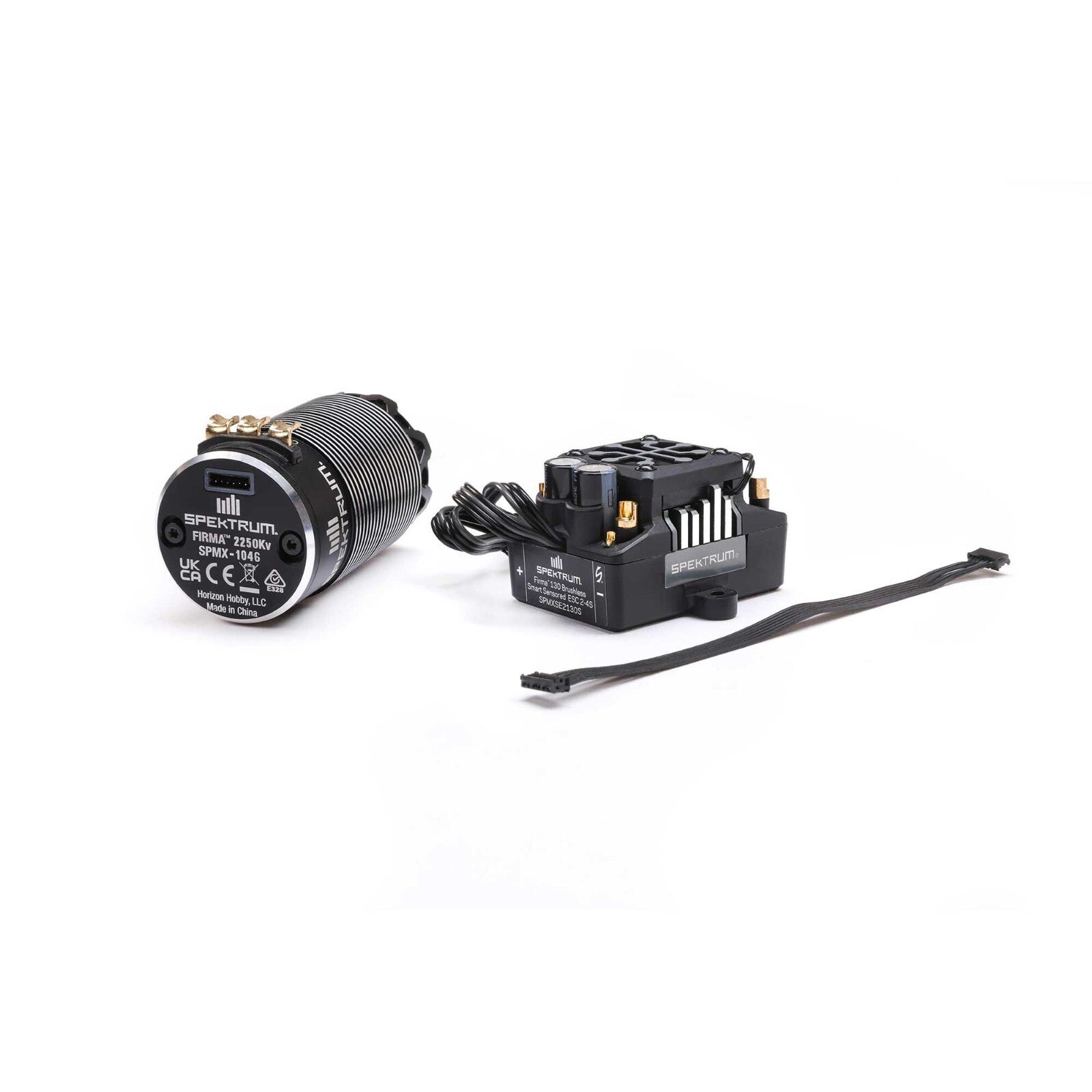

    Spektrum Firma 130A ESC / 2250Kv Motor Combo Overview

    The Spektrum Firma Sensored ESC System is a combo that includes a Sensored 2250kv Motor and the Firma 130 Amp Sensored ESC, providing a perfect upgrade for 1/8th scale truggies.

    Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

    Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

    Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

    Firma ESCs gather the data and send it to your transmitter in real time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

    This ESC comes bundled with a Spektrum Firma 2250Kv Brushless Motor, which is capable of handling everything this ESC can put out and is perfect for getting you driving with Spektrum Smart technology.

    Spektrum Firma 130A ESC / 2250Kv Motor Combo Features

    • Smart all-in-one telemetry
    • Fast, powerful 32-bit ARM M4 processor
    • Multiple options for easy programming:
      • Button programming
      • Smart ESC Programming Box
      • SmartLink USB Updating and Programmer application
    • Multi-point protection:
      • Over-current protection
      • Automatic LiPo low-voltage cutoff
      • Thermal protection
      • Failsafe protection
    • Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
    • Comes bundled with Spektrum Firma 2250Kv Brushless Motor
    • Compact for easy installation in most applications
    • Ready to install — no soldering required
    • Rugged plastic case with mounting tabs
    • Aluminum heat sink for high efficiency
    • Cooling fan
    • Adjustable high-power BEC
    • Firmware updatable through the Smart ESC Programming Box
    • High heat-resistant IC™ connectors, backward compatible with EC™ connectors
    • Limited 1-year warranty
    EC5™ BACKWARDS COMPATIBLE
    EC5™ BACKWARDS COMPATIBLE

    Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC5™ connector equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. An EC5 is also compatible with Firma ESCs for basic operation and ESC telemetry.

    ONE-WIRE TELEMETRY
    ONE-WIRE TELEMETRY

    No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real-time, including RPM, voltage, temperature, balance, capacity, and speed.*

    *See the compatibility chart for more information.

    SMART TECHNOLOGY BATTERY DATA
    SMART TECHNOLOGY BATTERY DATA

    When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides battery telemetry that's automatically transmitted to your compatible Spektrum radio in real-time. On your transmitter screen, you'll be presented with helpful information such as the number of cycles, battery percentage, individual cell voltage, and more!

    MULTIPLE PROGRAMMING OPTIONS
    MULTIPLE PROGRAMMING OPTIONS

    Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

    FAST, POWERFUL M4 PROCESSOR
    FAST, POWERFUL M4 PROCESSOR

    The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

    Specifications


    Battery Connector
    Solder tabs (user installable IC5 lead included)
    Battery Input Lead
    None, IC5
    BEC
    Yes
    BEC Continous Current
    5A
    BEC Type
    Adjustable
    BEC Voltage
    6V or 7.4V
    Brakes
    Yes
    Bushing Or Bearing
    Bearing
    Connector Type
    IC5
    ESC Type
    Sensored Brushless
    Forward
    Yes
    Input Voltage
    3-4S LiPo
    Maximum Burst Current
    760A
    Maximum Continuous Current
    130A
    Motor Output Lead
    Solder tabs
    Motor Type
    Brushless
    Number of Poles
    4
    Programmable
    Yes
    Reverse
    Yes
    RPM/Volt (Kv)
    2250Kv
    Sensored
    Yes
    Shaft Diameter
    0.19" (5 mm)
    Shaft Length
    0.73" (19 mm)
    Speed Control
    Included
    Technology
    Smart
    Product form

    SKU: EB-156772696364
    Barcode: 660132888329

    Unfortunately, this product is out of stock

    Out of stock, 1-2 Weeks, may vary due to availability

    $319.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on orders over $150
      Pay whenever you want
