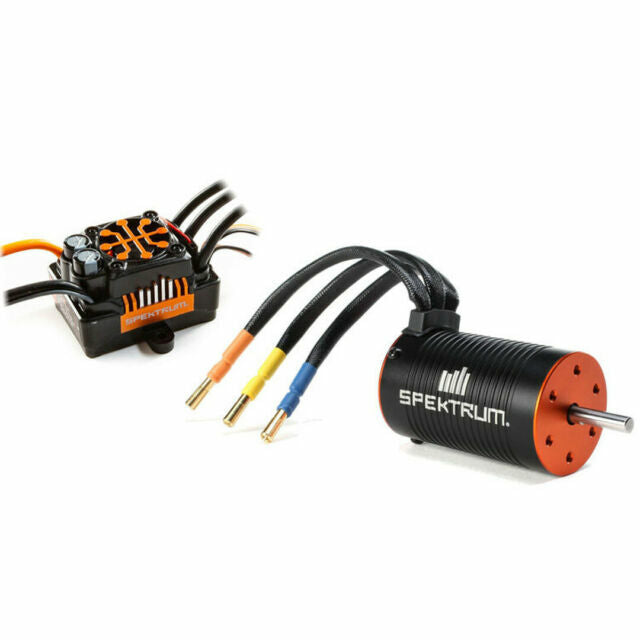

Spektrum Firma 130 Amp Sensorless Brushless Smart ESC & Motor Combo, with included 1900Kv motor. Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Spektrum Smart electronics.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity*. Firma ESCs not only gather the data, but also send it to your Smart compatible transmitter in real time, allowing the ability to adjust settings as needed to boost performance on the go.
This ESC comes bundled with a Spektrum Firma 1900Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.
*NOTE: Smart functionality requires use of Spektrum Smart compatible battery, transmitter and receiver.
- Smart all-in-one telemetry*
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Comes bundled with Spektrum Firma 1900Kv Brushless Motor
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Specifications:
Auto Cutoff: Yes
BEC: Yes
BEC Continous Current: 4A
BEC Type: Linear
BEC Voltage: 6V
Battery Connector: IC5
Battery Input Lead: 6.3" (160mm) 12AWG
Bearings or Bushings: Bearings
Brakes: Yes
Cells: 3-6S LiPo
Connector Type: D4
Efficiency: 86%
Forward: Yes
Height: 1.5" (38mm), ESC
Input Voltage: 2S - 4S LiPo,11.1 - 22.2V (25.2V max)
Length: 2.2" (57mm), ESC
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 760A
Maximum Continuous Current: 130A,60A
Motor Connector: 4mm Female Bullet
Motor Output Lead: 5.9" (150mm) 12AWG
Motor Type: Brushless sensorless
Number of Poles: 4
Output: 3000W,4940A (6S)
Overall Diameter: 1.6 in (42mm), motor
Overall Length: 2.9 in (74 mm), motor
Overload Protection: Yes (Thermal protection as well)
RPM: 29100 @ 15V
RPM/Volt (Kv): 1900,1900Kv
Reverse: Yes
Sensored: No
Shaft Diameter: 0.197 in (5 mm)
Shaft Length: 0.73 in (18.5 mm)
Weight: 4.4oz (126g), ESC,14.67 oz (416 g), motor
Width: 1.4" (37mm), ESC
Includes:
- (1) Spektrum™ Firma™ Smart ESC
- (1) Spektrum™ Firma™ 1900Kv Brushless Motor
- (1) Spektrum Smart sticker sheet
- (1) Product Manual
Needed to Complete:
-
LiPo Battery w/EC5 or Spektrum Smart Battery w/IC5 connector*
*NOTE: Smart functionality requires use of Spektrum Smart compatible battery, transmitter and receiver.
