Spektrum RC AR10100T 10-Channel DSMX Telemetry Receiver SPMAR10100T

    Description

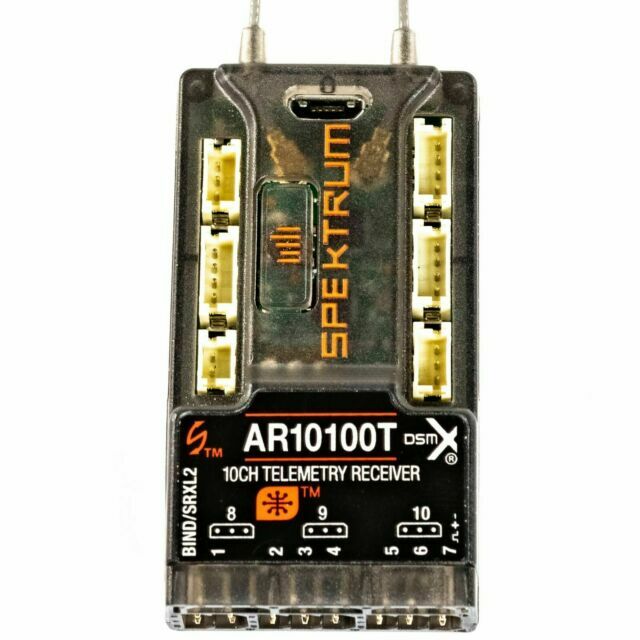

    The AR10100T DSMX/DSMN2 10 Channel Telemetry Receiver from Spektrum RC is a compact receiver that supports a host of advanced level features to suit the needs of a wide variety of pilots. It boasts full range telemetry, an included barometer, a built in bind button, and an onboard micro USB port for quick connection to the Spektrum RC PC Programmer and it's application. With the ability to connect with up to two additional SRXL2 remote receivers (such as SPM9747, or SPM4651T), receiver performance will be incredibly high thanks to not only the two on board antennas, but the option to add additional receivers for the best reception in any aircraft. Spektrum SMART users will also enjoy SMART functionality for SMART equipped ESCs that feature one wire telemetry data without the need of modules, links, or wires.

    Features:
    • DSM2 & DSMX compatibility
    • Full range telemetry
    • Integrated barometer
    • Volt, RPM, and Temp on board telemetry ports
    • XBus telemetry port expansion
    • On-board micro USB port
    • On-board bind button
    • Two external RF antennas
    • Two additional SRXL2 Remote Receiver ports
    • SMART Compatible
    • End pin design
    • Forward programming
    Specifications:
    Band: 2.4GHz
    Bind Method: Bind Button
    Telemetry: Yes
    Input Voltage: 3.5 - 9V
    Modulation: DSMX/DSM2
    Channels: 10
    Antenna Length: 7.32" (186 mm)
    Dimensions:     2.16x1.18x0.59" (55x30x15mm)
    Failsafe: Yes
    Range: Full
    Product form

    SKU: EB-154631578142
    Barcode: 0605482762585

    Unfortunately, this product is out of stock

    Out of stock, 1-2 Weeks, may vary due to availability

    $119.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on orders over $150
      Pay whenever you want

      Easily pay within 30 days after you have received your package.
      Read more

      Description

      The AR10100T DSMX/DSMN2 10 Channel Telemetry Receiver from Spektrum RC is a compact receiver that supports a host of advanced level features to suit the needs of a wide variety of pilots. It boasts full range telemetry, an included barometer, a built in bind button, and an onboard micro USB port for quick connection to the Spektrum RC PC Programmer and it's application. With the ability to connect with up to two additional SRXL2 remote receivers (such as SPM9747, or SPM4651T), receiver performance will be incredibly high thanks to not only the two on board antennas, but the option to add additional receivers for the best reception in any aircraft. Spektrum SMART users will also enjoy SMART functionality for SMART equipped ESCs that feature one wire telemetry data without the need of modules, links, or wires.

      Features:
      • DSM2 & DSMX compatibility
      • Full range telemetry
      • Integrated barometer
      • Volt, RPM, and Temp on board telemetry ports
      • XBus telemetry port expansion
      • On-board micro USB port
      • On-board bind button
      • Two external RF antennas
      • Two additional SRXL2 Remote Receiver ports
      • SMART Compatible
      • End pin design
      • Forward programming
      Specifications:
      Band: 2.4GHz
      Bind Method: Bind Button
      Telemetry: Yes
      Input Voltage: 3.5 - 9V
      Modulation: DSMX/DSM2
      Channels: 10
      Antenna Length: 7.32" (186 mm)
      Dimensions:       2.16x1.18x0.59" (55x30x15mm)
      Failsafe: Yes
      Range: Full
