Overview

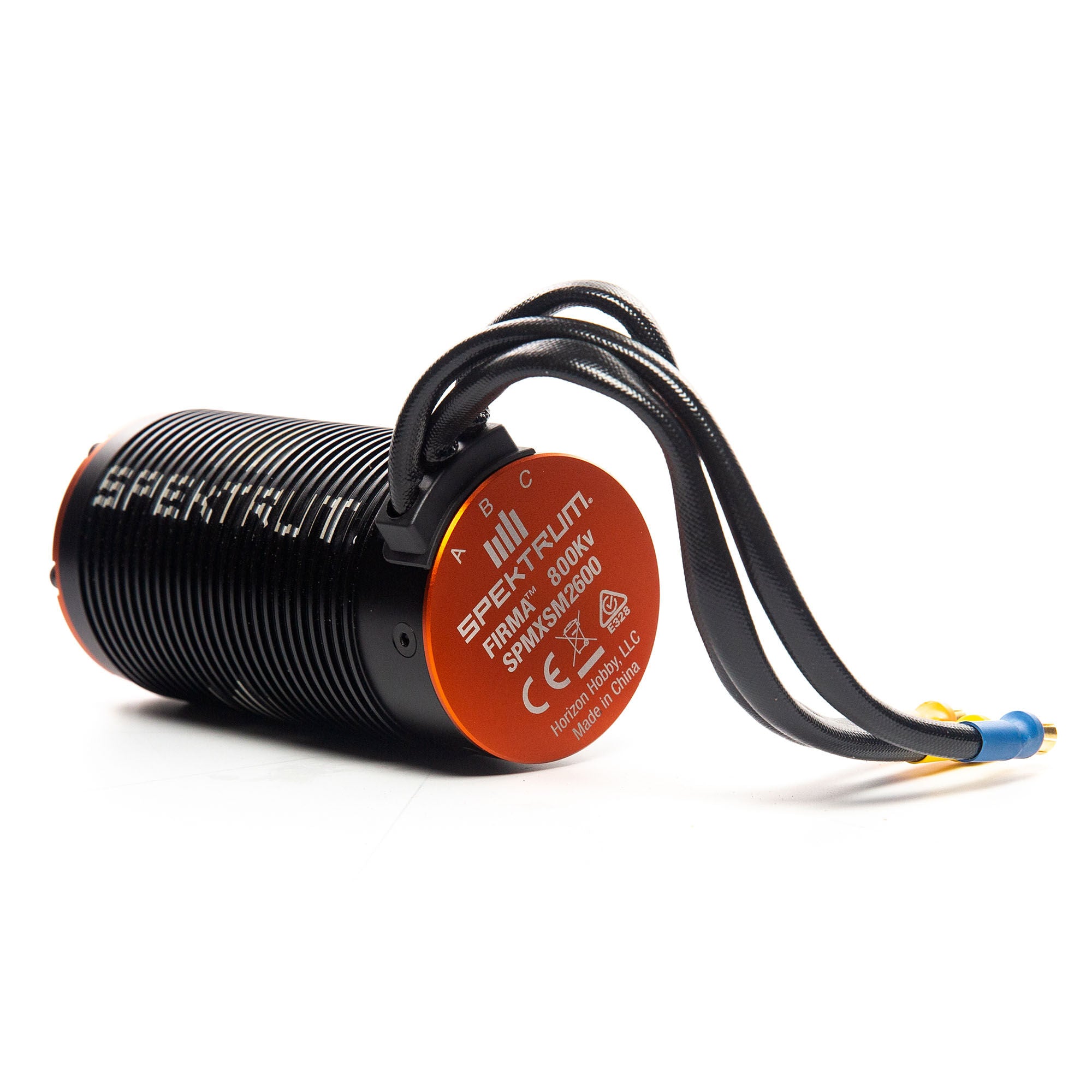

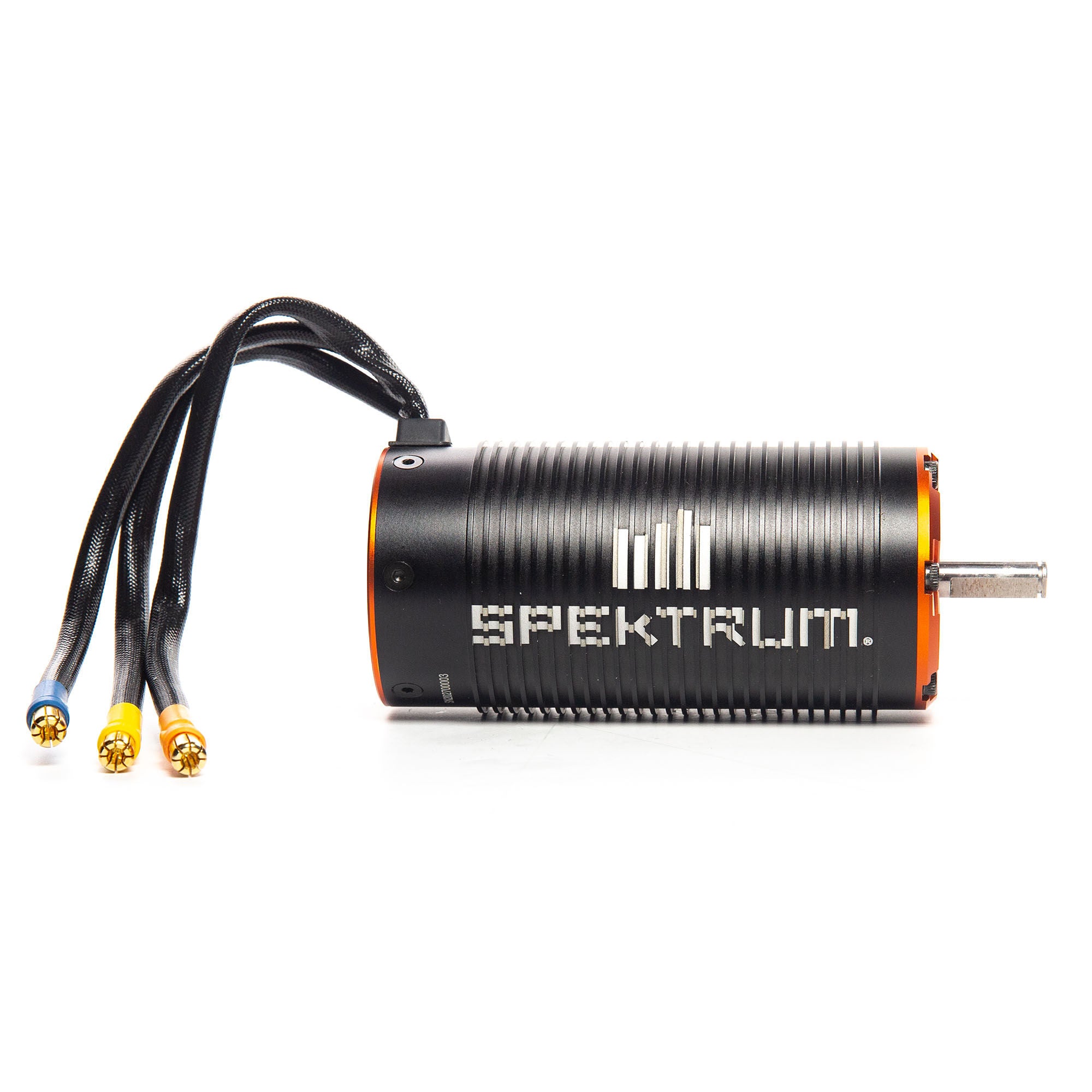

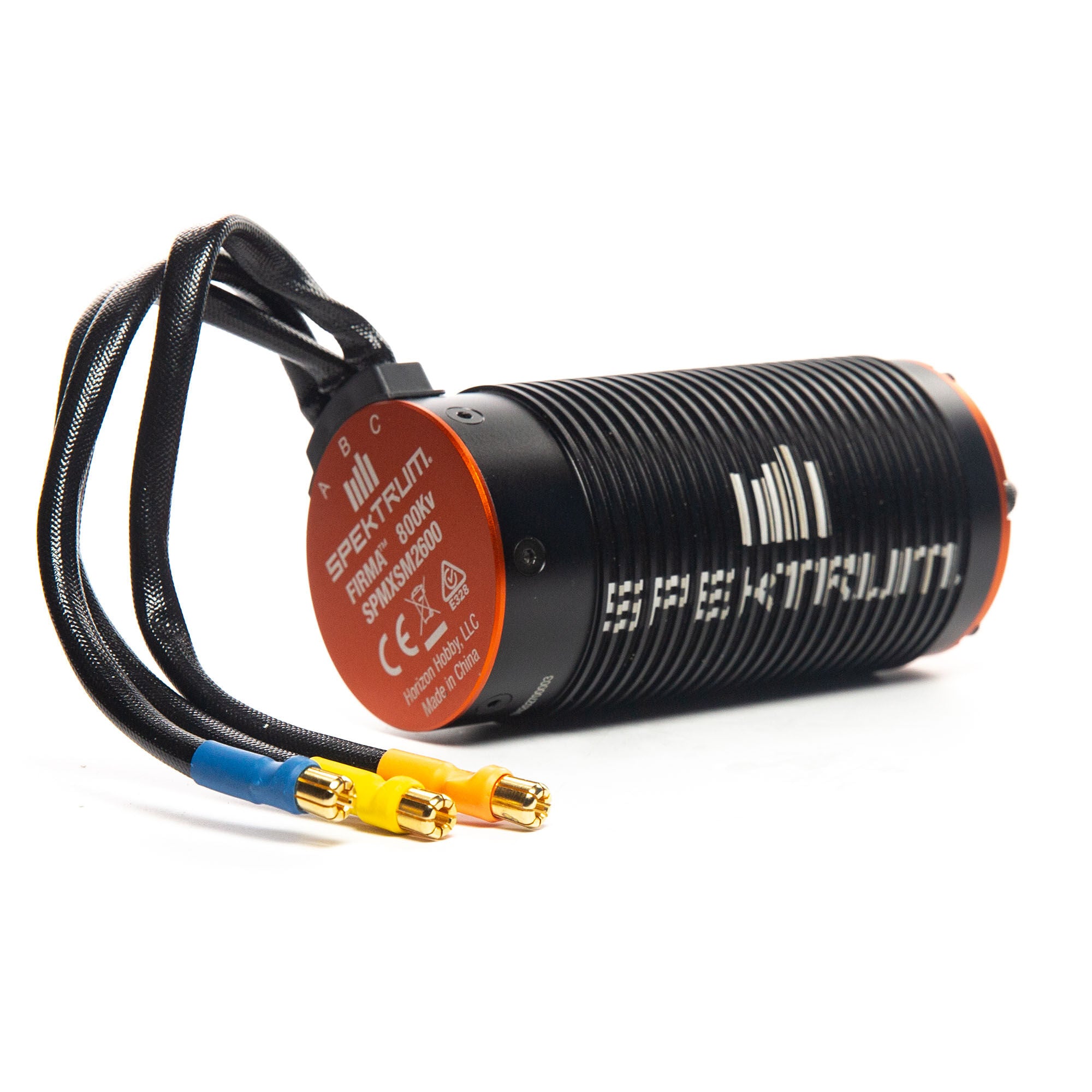

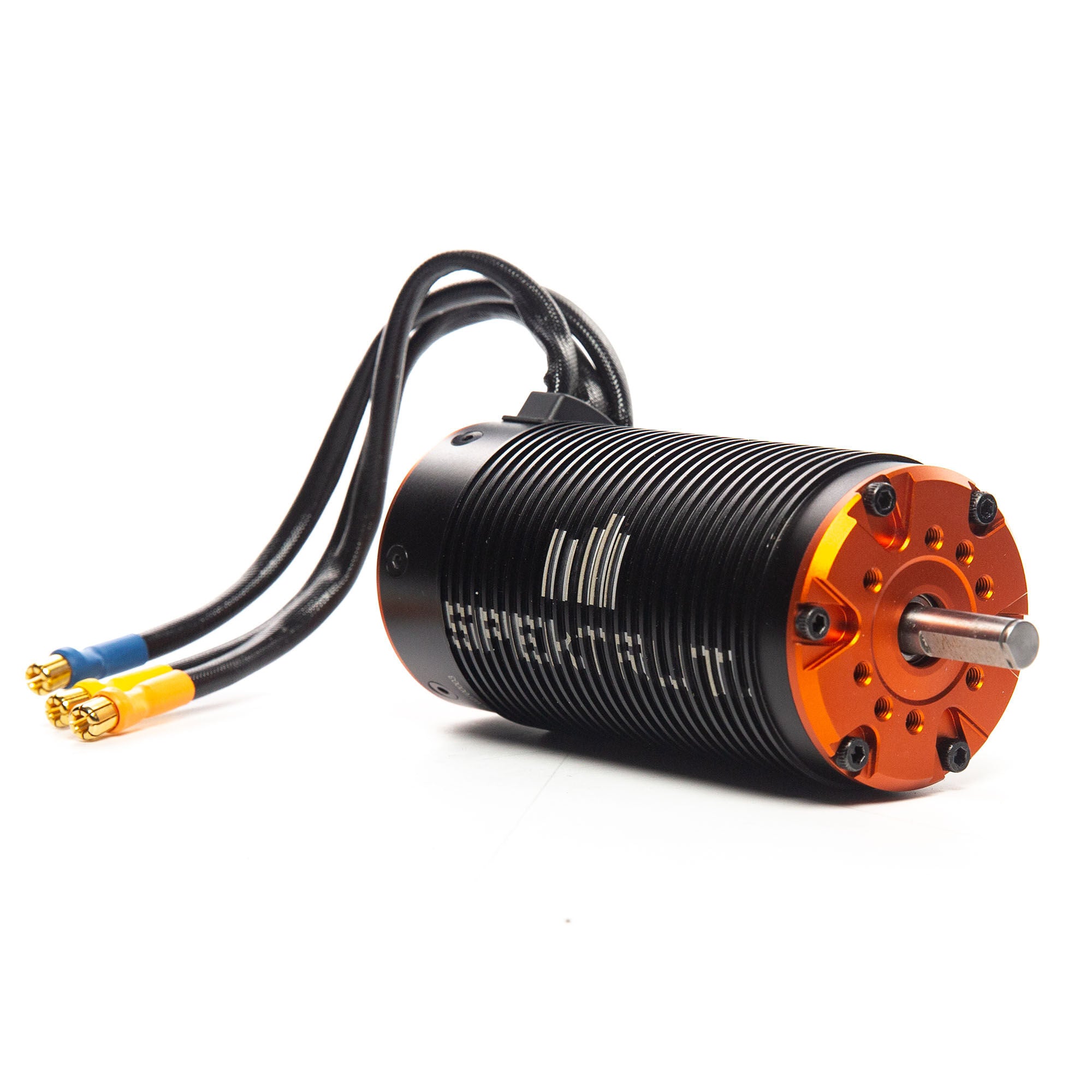

The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.
Features:
- Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
- High efficiency design
- 8S LiPo power capable
- High-quality 4-pole sintered rotor
- 6.5mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 8mm shaft
- Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip
Specifications:
-
Resistance: .0049 ohms
-
Connector Type: 6.5mm Bullet
-
Bushing Or Bearing: Bearing
-
Motor Size: 5611
-
Adjustable Timing: No
-
Maximum Continuous Current: 110A
-
Input Voltage: 11.1 - 29.6V (3 - 8S)
-
Outer Diameter: 2.2" (56 mm)
-
Product Weight: 39.86oz (1130g)
-
Motor Design: Inrunner
-
Shaft Diameter: 0.3" (8 mm)
-
Application: Arrma Roller Kits
-
Product Length: 5.23" (133 mm)
-
RPM/Volt (Kv): 12,475 / 15V
-
Shaft Length: 0.867" (22 mm)
-
Connector Wire Length: 7.48" (190 mm)
-
Number of Poles: 4
-
Efficiency: 87%
-
Recommended Speed Control: Spektrum Firma 160A Brushless Smart
