Description
Overview

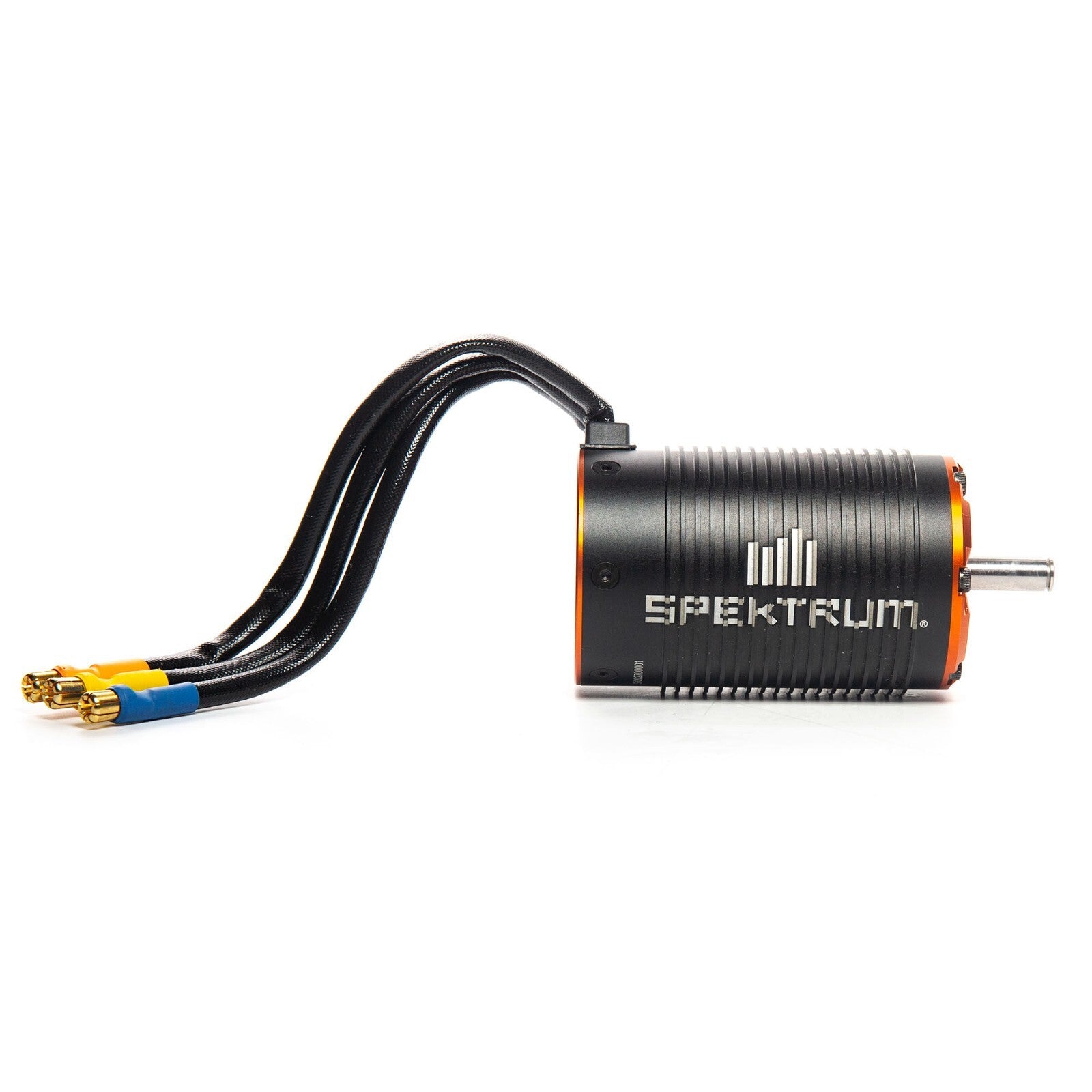

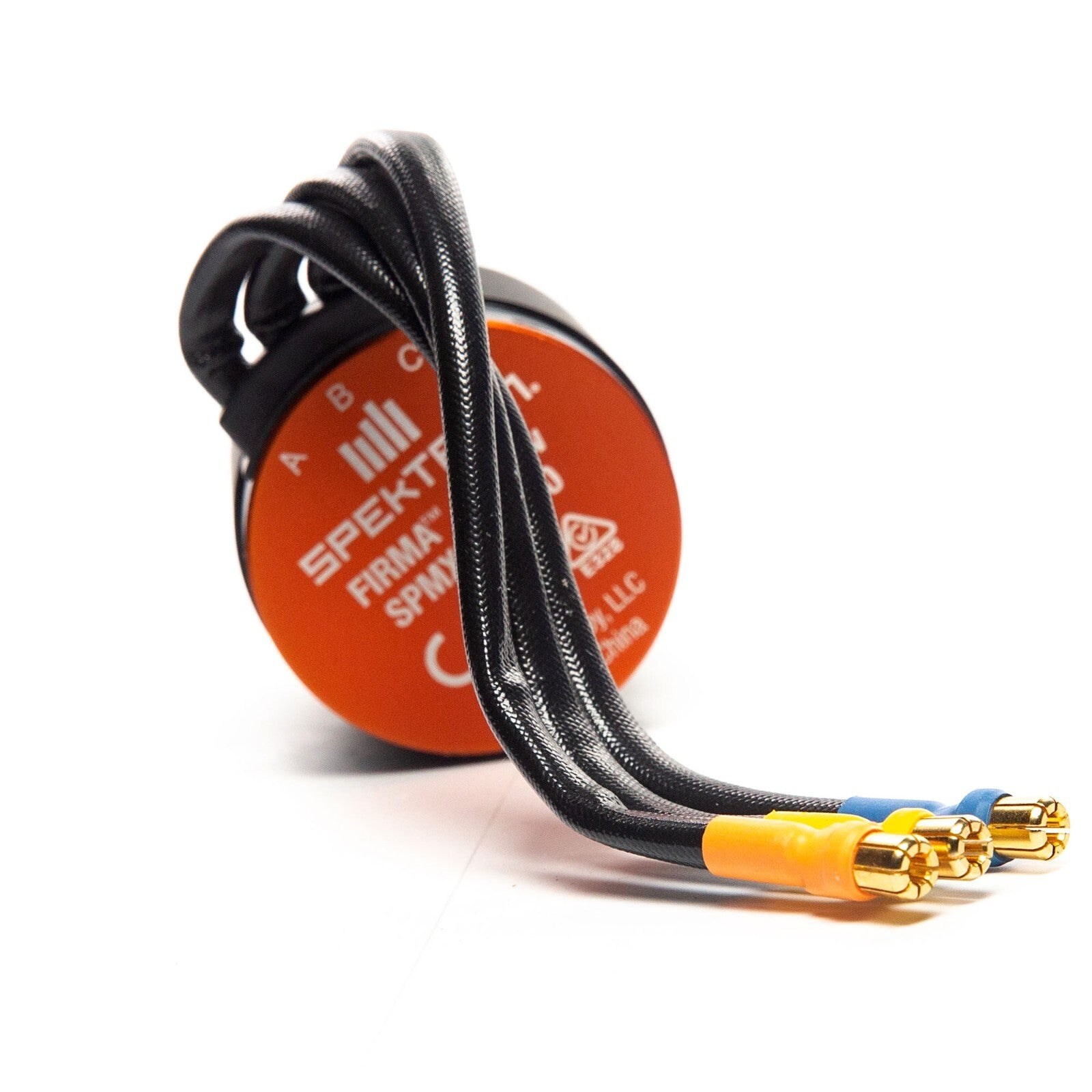

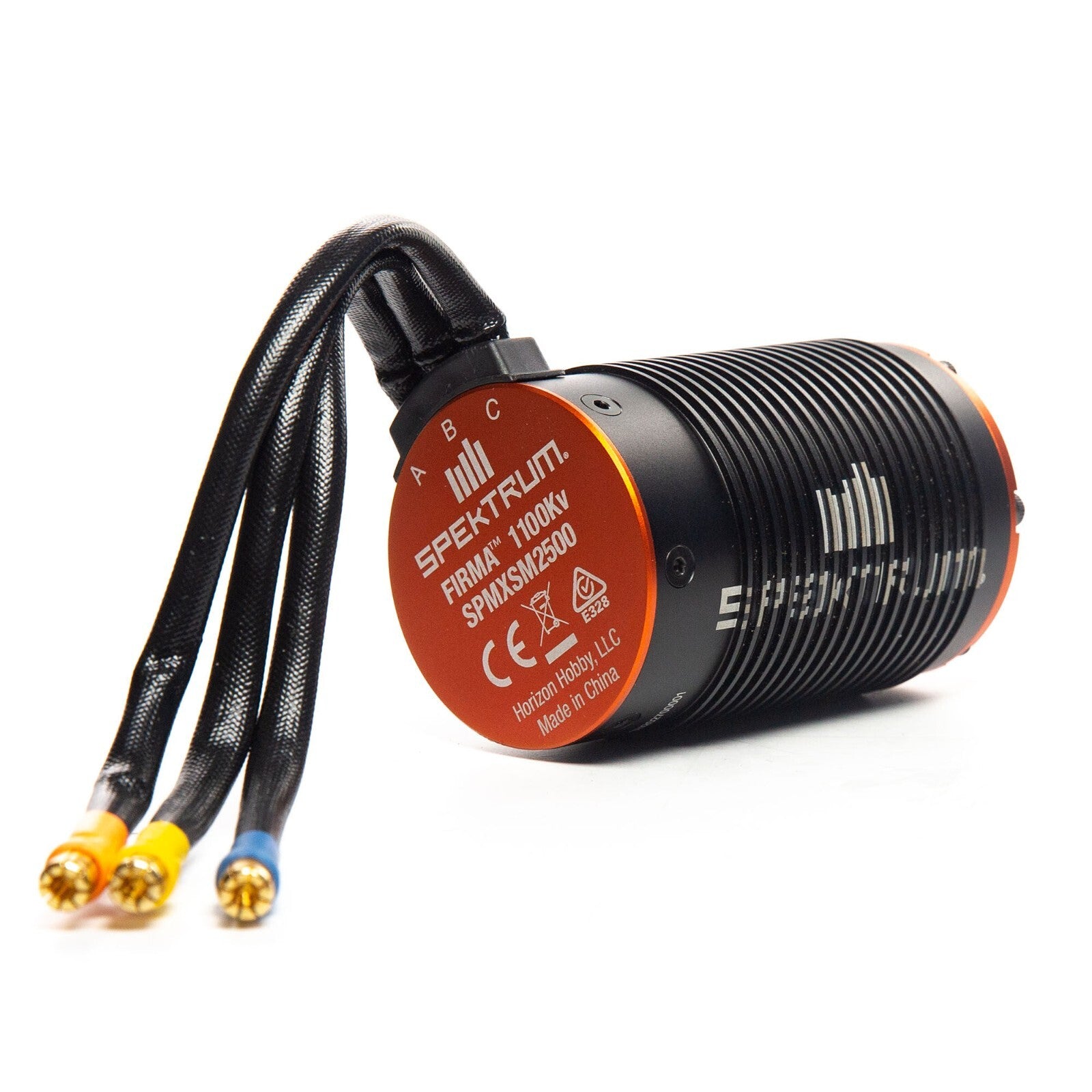

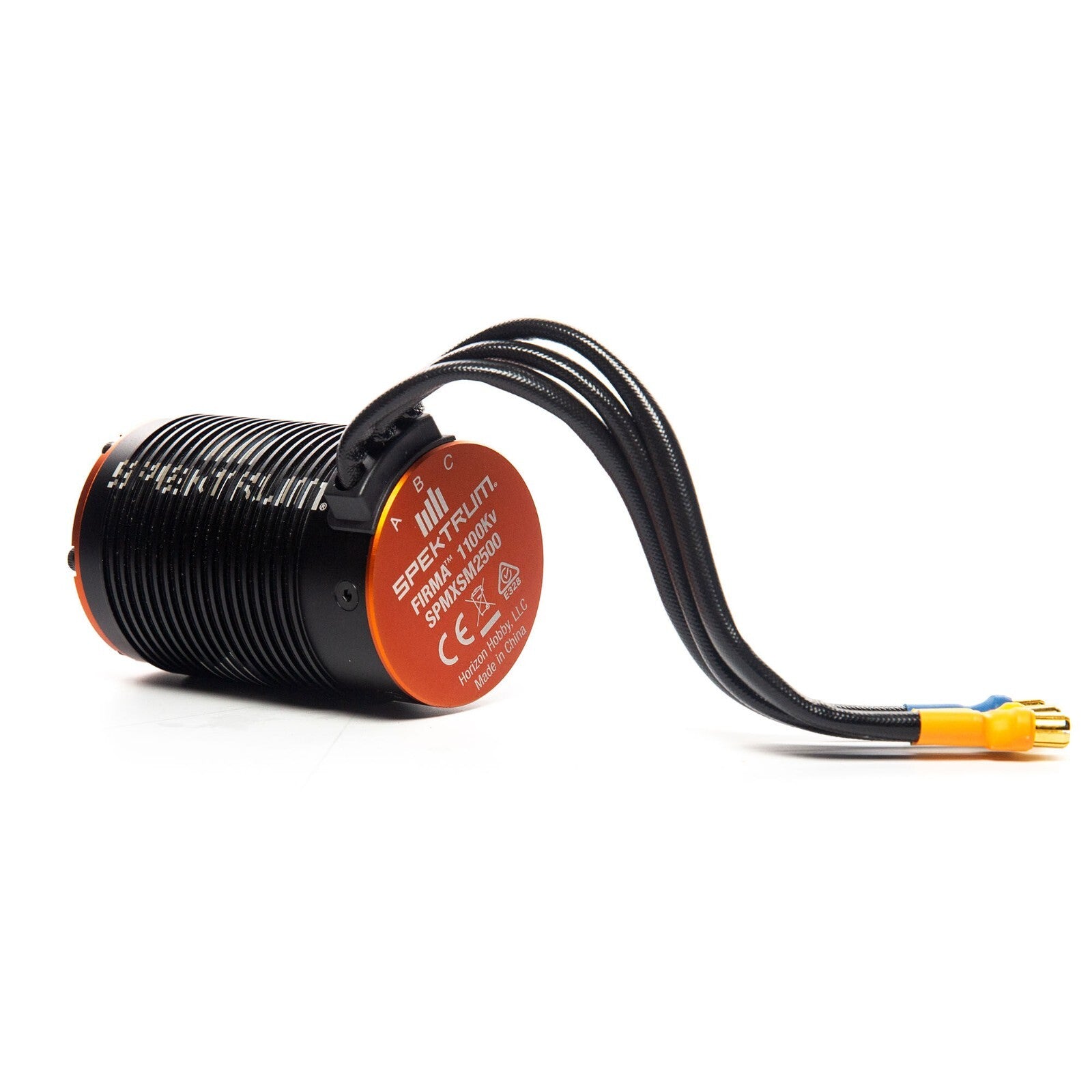

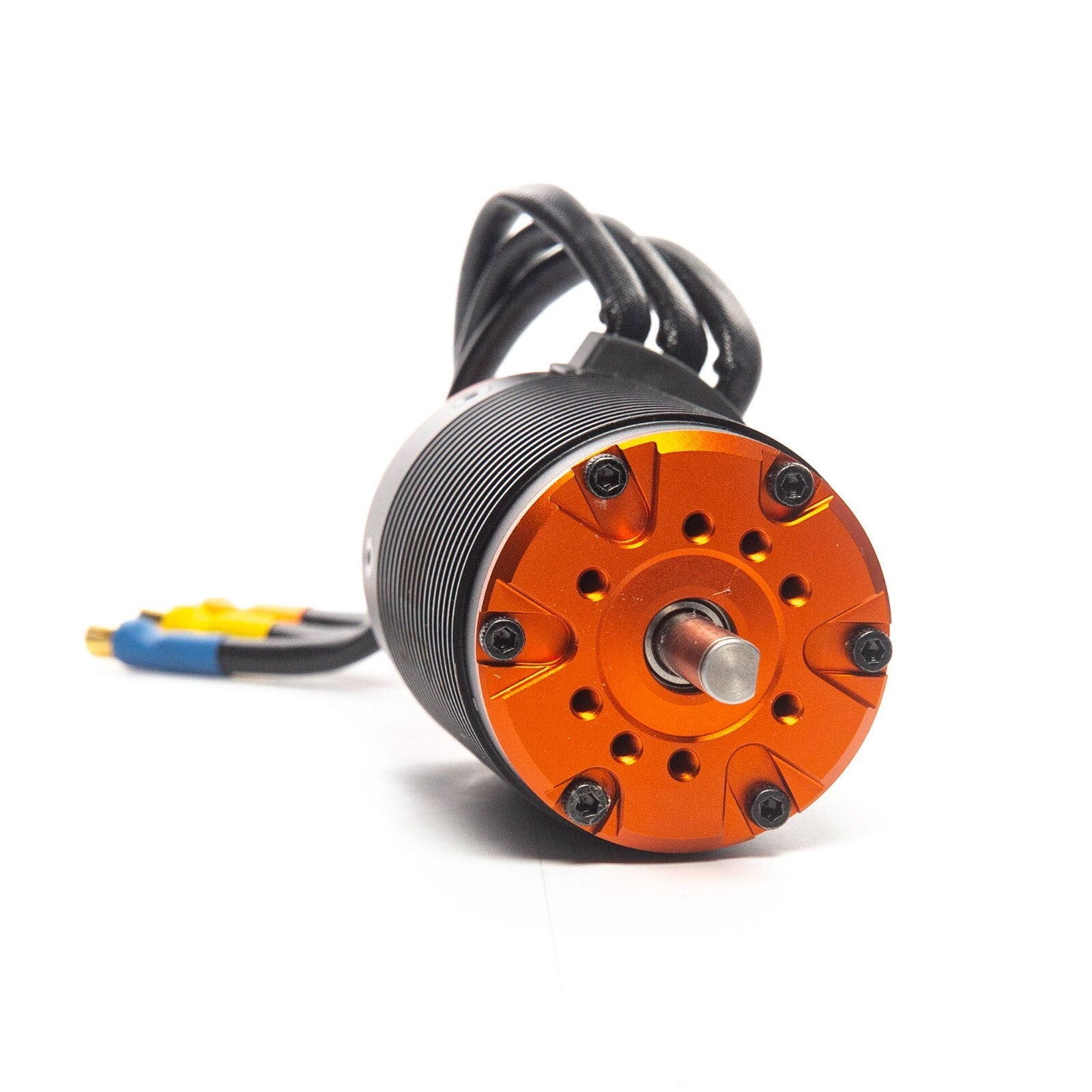

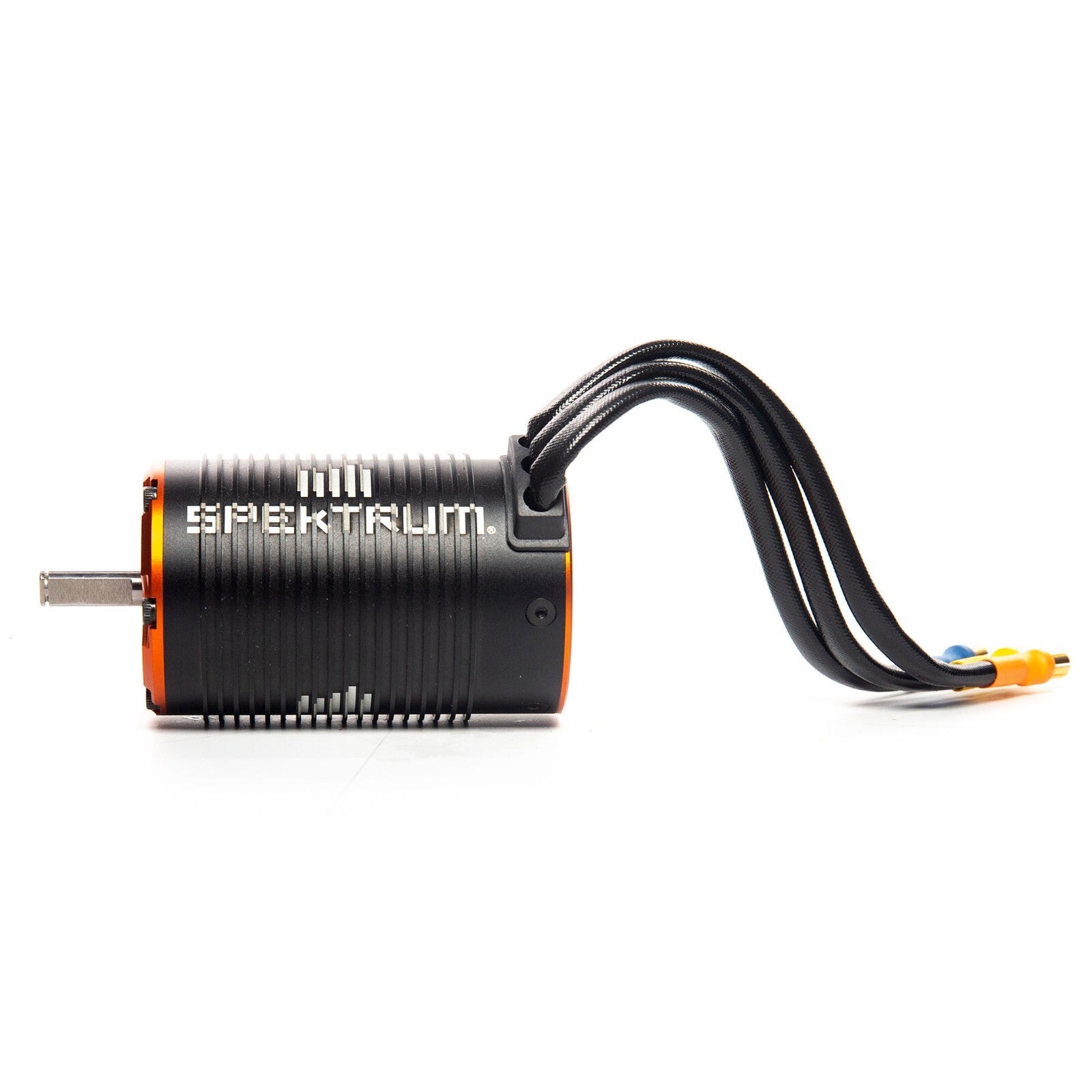

The Firma 1100Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.
Specifications
Adjustable Timing
No
Application
Arrma Roller Kits, and 1/5 scale Basher and Monster Trucks
Bushing Or Bearing
Bearing
Connector Type
6.5mm Bullet
Connector Wire Length
7.48" (190 mm)
Constant Wattage
3000W or more
Efficiency
86%
Input Voltage
11.1 - 29.6V (3 - 8S)
Integrated ESC
No
Kv Rating
10000-1249Kv
Maximum Continuous Current
95A
Motor Class
1/5 Scale
Motor Design
Inrunner
Motor Output Lead
6.5
Motor Size
5687
Motor Type
Brushless
Number of Poles
4
Outer Diameter
2.2" (56 mm)
Output
7900W
Product Length
3.4" (86 mm)
Product Weight
31.5oz (893g)
Recommended Speed Control
Spektrum Firma 160A Brushless Smart
Resistance
.0041 ohms
RPM/Volt (Kv)
16,500/15V
Sensor Type
Sensorless
Sensored
No
Shaft Diameter
0.315" (8 mm)
Shaft Length
0.87" (22 mm)
Features
- Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
- High efficiency design
- 8S LiPo power capable
- High-quality 4-pole sintered rotor
- 6.5mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 8mm shaft
- Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip
