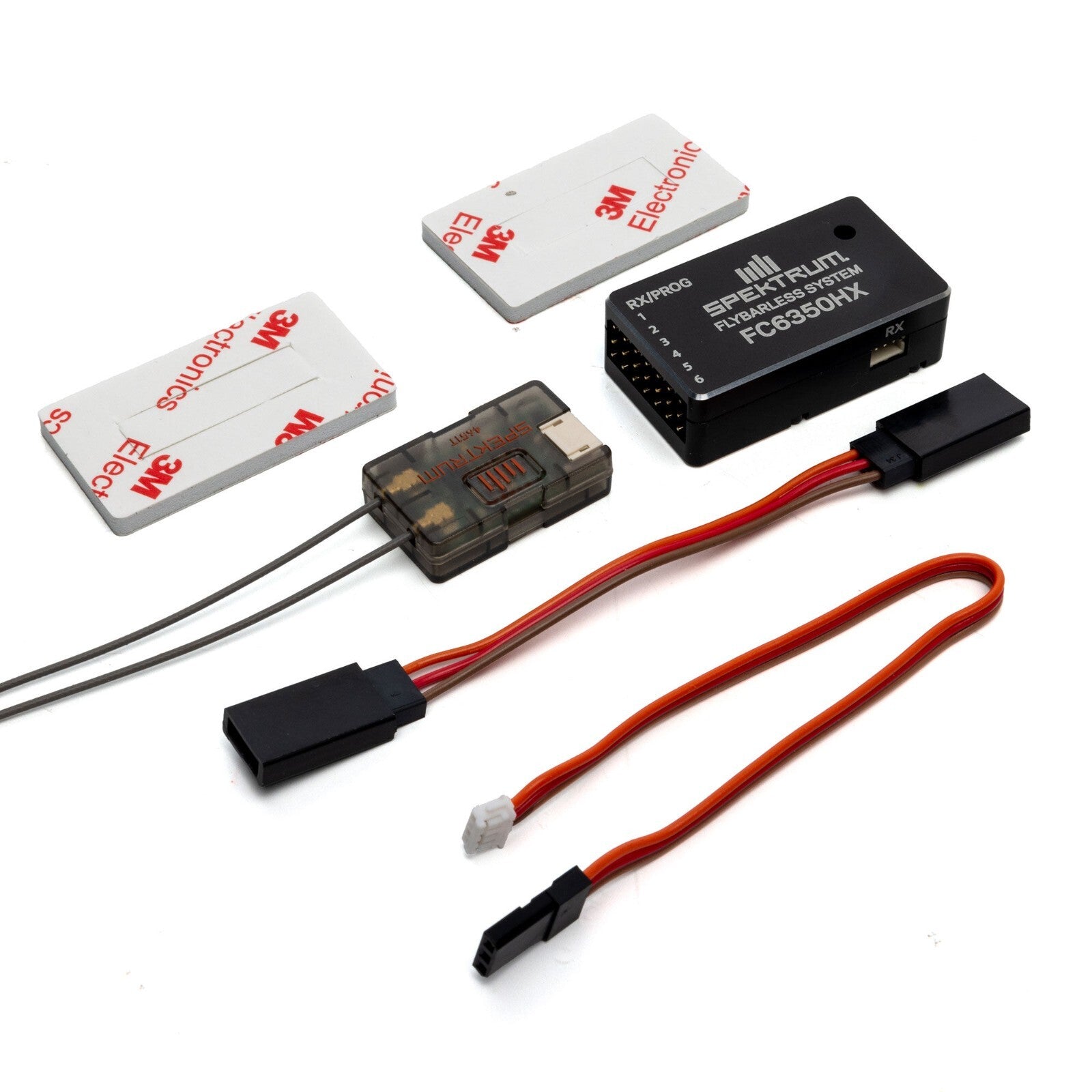

Spektrum FC6350HX Helicopter Flybarless Control System SPMFC6350HX

    Description

    Spektrum FC6350HX Flybarless Helicopter Control System Overview

    As a 3-axis stability system for your flybarless helicopter, the FC6350HX can be set up and tuned using your Spektrum transmitter as a forward programming interface. All the flight controller settings can be programmed through your transmitter. Using AS3X and SAFE technology, the FC6350HX offers self-leveling beginner modes, as well as pro-level flight performance.

    Add a Spektrum Smart ESC to your heli to expand integrated features without extra wires or sensors. When the flight controller detects a Smart ESC connection, it feeds a telemetry stream to the transmitter, putting live battery data power in your hands.

    The FC6350HX can also be programmed, updated, and backed up using the Spektrum USB Programmer and PC programmer application.

    Smart ESC Ready with the Spektrum FC6350HX flight controller
    Smart ESC Ready

    Heli Pilots can easily monitor Voltage, Current, Rotor head RPM, and more when combined with a Spektrum Smart ESC. No extra modules, wires, or connections are required. All this data will automatically be displayed on a compatible Spektrum transmitter for easy viewing, logging, and alarm warnings.

    Forward Programming with the Spektrum FC6350HX flight controller
    Forward Programming

    Forward Programming allows pilots to easily setup, program, and tune the FC6350HX with no need for extra hardware, devices, or computers. Pilots can quickly make tuning changes on the flight line to the swashplate, tail rotor, SAFE stability, flight modes and more, right from their compatible Spektrum transmitter. All this is available with all current DX, iX, and NX transmitter models (an update may be required).

    Advanced AS3X Stability and SAFE Technology with the Spektrum FC6350HX flight controller
    Advanced AS3X Stability and SAFE Technology

    The FC6350HX features the latest in AS3X and SAFE Stabilization Technology. SAFE technology allows pilots to operate within user-defined flight modes that automatically keep the model in a manageable attitude and constantly level the model when the control sticks are returned to the center. Additionally, pilots can use SAFE technology to utilize a Panic Recovery option, which will nearly instantly right the model into an upright and controllable attitude to within four degrees of level. All these features are completely setup and tuned straight from your compatible Spektrum transmitter via the Forward Programming Menu.

    Compact Design Ready for Mini to 700+ Size Heli Models with the Spektrum FC6350HX flight controller
    Compact Design Ready for Mini to 700+ Size Heli Models

    Ideal for 3D aerobatic, F3C Precision, and Scale helicopter models up to 700 size. Featuring a leading-edge 6-axis M.E.M.S. inertial gyro, powerful and fast 32-bit ARM M4 Cortex processor, and proprietary advanced adaptive flight control algorithms, pilots will enjoy predictable and precise flight characteristics, excellent tail holding, and rock-solid piro-compensation. Vibration is effortlessly rejected thanks to the CNC mounting case and included high-quality dampening mounting pads.

    PC Programmer for Easy Model Setting Management with the Spektrum FC6350HX flight controller
    PC Programmer for Easy Model Setting Management

    Take advantage of the FC6350HX PC Programmer App to set up and adjust settings from the convenience of your personal computer. The PC Programmer also makes it convenient to export and import model setups for easy sharing of model setups and settings. Please note that the Spektrum USB Programming Cable (SPMA3065) is required.

    Specifications

    Application
    Heli
    Band
    2.4GHz
    Bind Method
    Bind Button
    Channels
    6
    Data Port
    Yes
    Failsafe
    Yes
    Flight Log Compatible
    Yes
    Forward Programming
    Yes
    Input Voltage
    4.8 – 8.4V
    Modulation
    DSMX/DSM2
    Product Height
    0.94" (24 mm)
    Product Length
    1.67" (42 mm)
    Product Weight
    .46 oz (13g)
    Product Width
    0.54" (14 mm)
    Programmable
    Yes
    Range
    Full
    Remote Receiver Ports
    2
    Resolution
    2048
    Serial Out
    SRXL2
    Technology
    AS3X and SAFE
    Telemetry
    Yes
    Telemetry Range
    Full
    Water-Resistant
    No
    Product form

    SKU: EB-156453587949
    Barcode: 660132979454

    Unfortunately, this product is out of stock

    Out of stock, 1-2 Weeks, may vary due to availability

    $249.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on orders over $150
      Pay whenever you want

      Easily pay within 30 days after you have received your package.
      Read more

      Description

      Spektrum FC6350HX Flybarless Helicopter Control System Overview

      As a 3-axis stability system for your flybarless helicopter, the FC6350HX can be set up and tuned using your Spektrum transmitter as a forward programming interface. All the flight controller settings can be programmed through your transmitter. Using AS3X and SAFE technology, the FC6350HX offers self-leveling beginner modes, as well as pro-level flight performance.

      Add a Spektrum Smart ESC to your heli to expand integrated features without extra wires or sensors. When the flight controller detects a Smart ESC connection, it feeds a telemetry stream to the transmitter, putting live battery data power in your hands.

      The FC6350HX can also be programmed, updated, and backed up using the Spektrum USB Programmer and PC programmer application.

      Smart ESC Ready with the Spektrum FC6350HX flight controller
      Smart ESC Ready

      Heli Pilots can easily monitor Voltage, Current, Rotor head RPM, and more when combined with a Spektrum Smart ESC. No extra modules, wires, or connections are required. All this data will automatically be displayed on a compatible Spektrum transmitter for easy viewing, logging, and alarm warnings.

      Forward Programming with the Spektrum FC6350HX flight controller
      Forward Programming

      Forward Programming allows pilots to easily setup, program, and tune the FC6350HX with no need for extra hardware, devices, or computers. Pilots can quickly make tuning changes on the flight line to the swashplate, tail rotor, SAFE stability, flight modes and more, right from their compatible Spektrum transmitter. All this is available with all current DX, iX, and NX transmitter models (an update may be required).

      Advanced AS3X Stability and SAFE Technology with the Spektrum FC6350HX flight controller
      Advanced AS3X Stability and SAFE Technology

      The FC6350HX features the latest in AS3X and SAFE Stabilization Technology. SAFE technology allows pilots to operate within user-defined flight modes that automatically keep the model in a manageable attitude and constantly level the model when the control sticks are returned to the center. Additionally, pilots can use SAFE technology to utilize a Panic Recovery option, which will nearly instantly right the model into an upright and controllable attitude to within four degrees of level. All these features are completely setup and tuned straight from your compatible Spektrum transmitter via the Forward Programming Menu.

      Compact Design Ready for Mini to 700+ Size Heli Models with the Spektrum FC6350HX flight controller
      Compact Design Ready for Mini to 700+ Size Heli Models

      Ideal for 3D aerobatic, F3C Precision, and Scale helicopter models up to 700 size. Featuring a leading-edge 6-axis M.E.M.S. inertial gyro, powerful and fast 32-bit ARM M4 Cortex processor, and proprietary advanced adaptive flight control algorithms, pilots will enjoy predictable and precise flight characteristics, excellent tail holding, and rock-solid piro-compensation. Vibration is effortlessly rejected thanks to the CNC mounting case and included high-quality dampening mounting pads.

      PC Programmer for Easy Model Setting Management with the Spektrum FC6350HX flight controller
      PC Programmer for Easy Model Setting Management

      Take advantage of the FC6350HX PC Programmer App to set up and adjust settings from the convenience of your personal computer. The PC Programmer also makes it convenient to export and import model setups for easy sharing of model setups and settings. Please note that the Spektrum USB Programming Cable (SPMA3065) is required.

      Specifications

      Application
      Heli
      Band
      2.4GHz
      Bind Method
      Bind Button
      Channels
      6
      Data Port
      Yes
      Failsafe
      Yes
      Flight Log Compatible
      Yes
      Forward Programming
      Yes
      Input Voltage
      4.8 – 8.4V
      Modulation
      DSMX/DSM2
      Product Height
      0.94" (24 mm)
      Product Length
      1.67" (42 mm)
      Product Weight
      .46 oz (13g)
      Product Width
      0.54" (14 mm)
      Programmable
      Yes
      Range
      Full
      Remote Receiver Ports
      2
      Resolution
      2048
      Serial Out
      SRXL2
      Technology
      AS3X and SAFE
      Telemetry
      Yes
      Telemetry Range
      Full
      Water-Resistant
      No
