Features
- High Voltage (HV) capable (6.0-8.4v input range)
- Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
- Durable and long-lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Operating Frequency: 200hz to 333hz

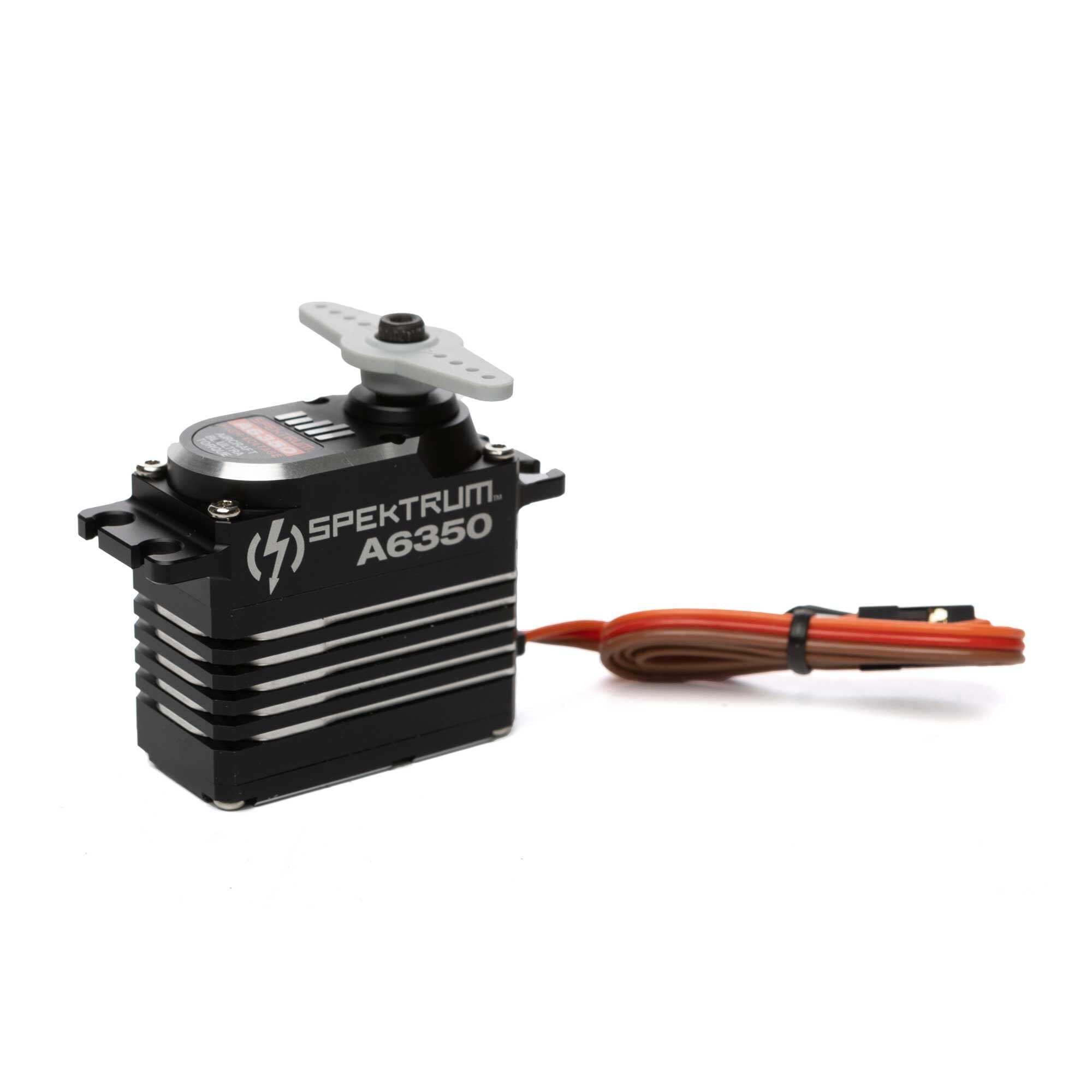

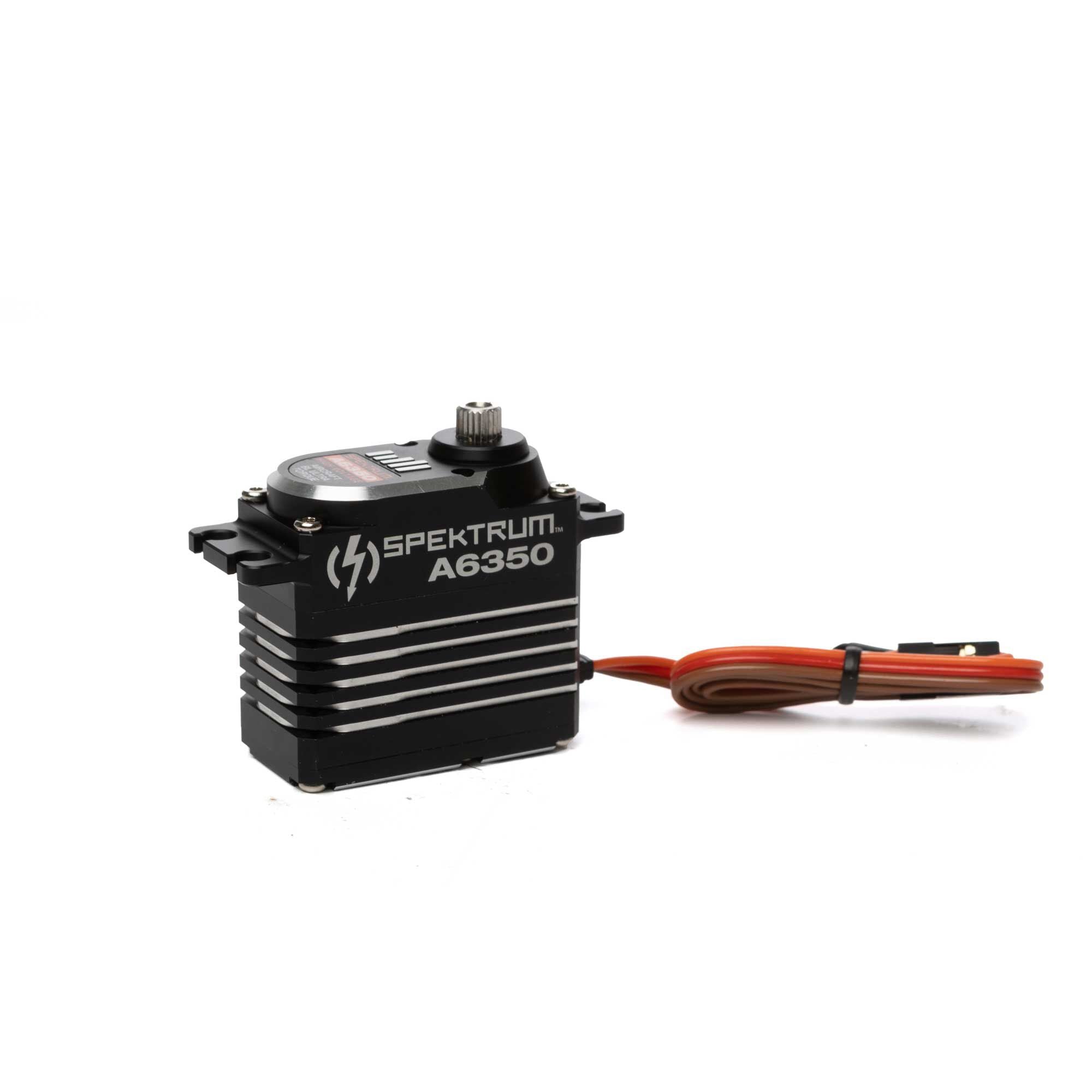

A6350 Ultra Torque High Speed Brushless MG HV Servo
The Spektrum™ A6350 Ultra-Torque / High Speed Brushless HV Servo is the next evolution in the expanding line of leading-edge performance servos from Spektrum". Designed with the extraordinarily strong and reliable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that's ready for the demands of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is also a good choice for any application that requires high performance, high speed, and ultimate power.
Product Specifications
| Bearing |
Dual BB |
| Bushing Or Bearing |
Bearing |
| Gear Type |
Metal |
| Input Voltage |
6.0V to 8.4V |
| Material |
Aluminium |
| Maximum Servo Speed |
0.145 sec/60 deg @ 6.0V; 0.115 sec/60 deg @7.4V; 0.095 sec/60 deg @ 8.4V |
| Maximum Servo Torque |
500+ oz-in |
| Motor Type |
Brushless |
| Overload Protection |
Yes |

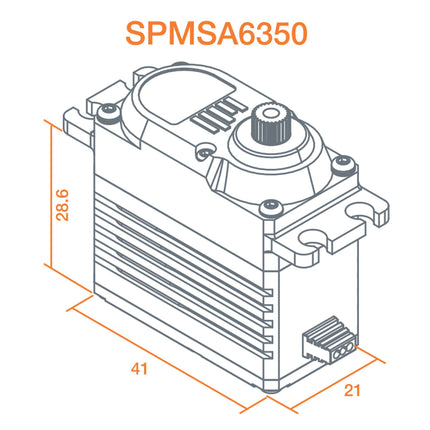

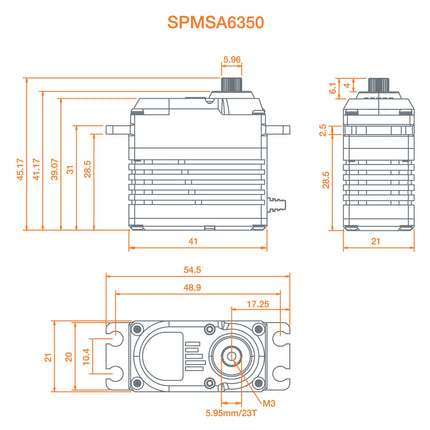

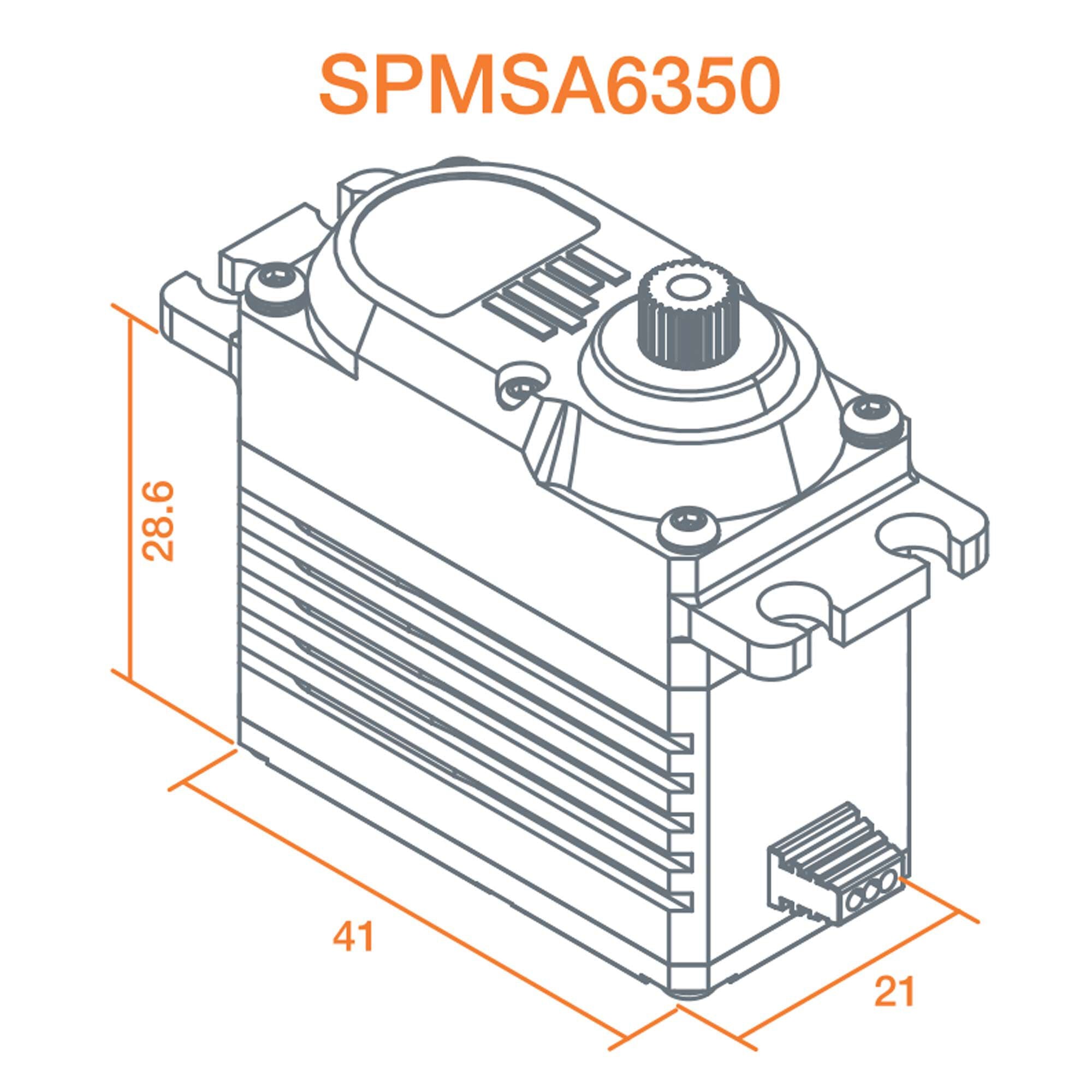

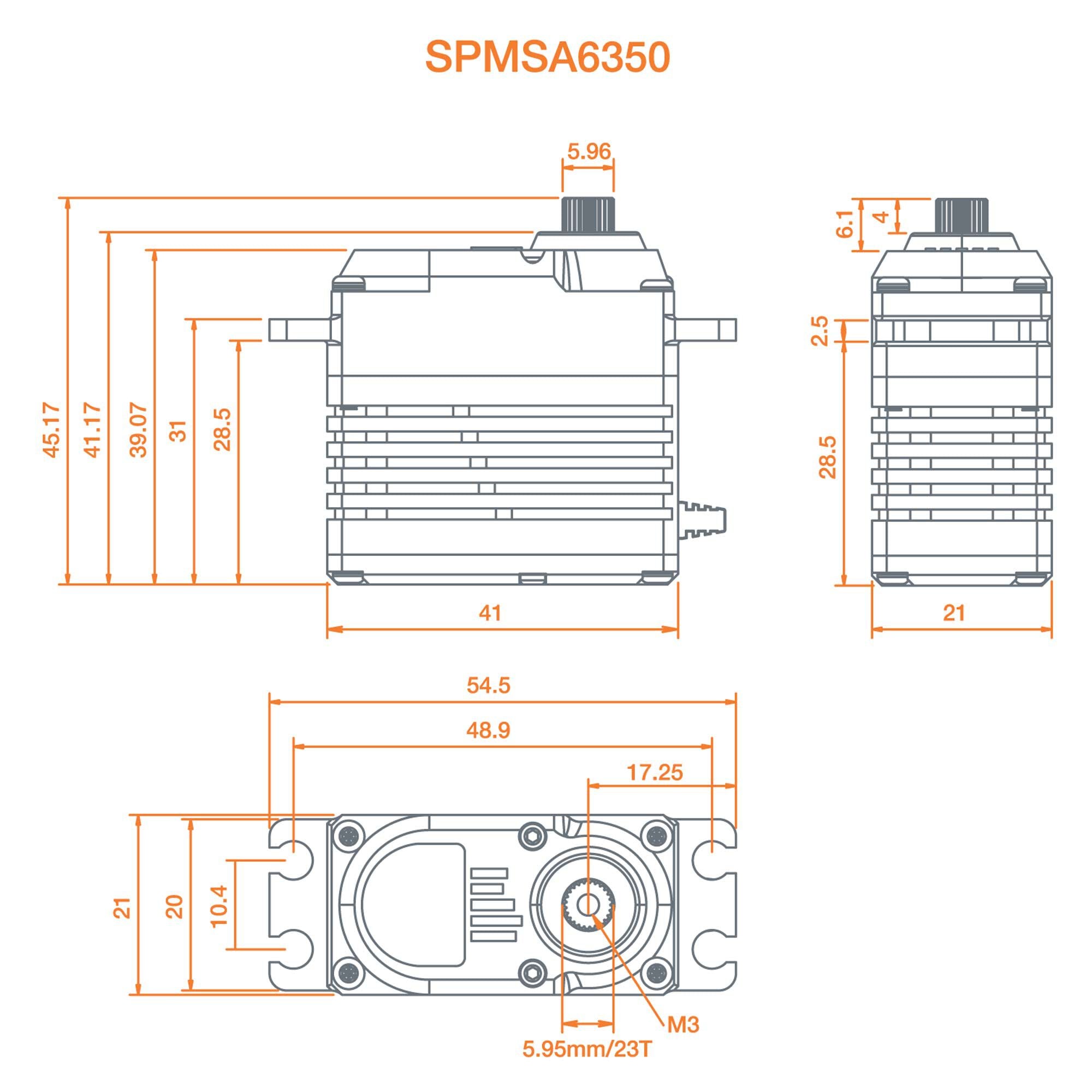

| Product Height |
1.61" (41 mm) |
| Product Length |
1.61" (41 mm) |
| Product Weight |
3 oz (85g) |
| Product Width |
0.83" (21 mm) |
| Servo Operating Voltage |
4.8 - 8.4V (HV) |
| Servo Size Category |
Standard |
| Servo Type |
Digital |
| Spline Count |
23 - Tooth |
| Torque |
576 oz-in (41.5 kg-cm) @ 6.0V; 725 oz-in (52.2 kg-cm) @ 7.4V; 852 oz-in (61.4 kg-cm) @ 8.4V |
