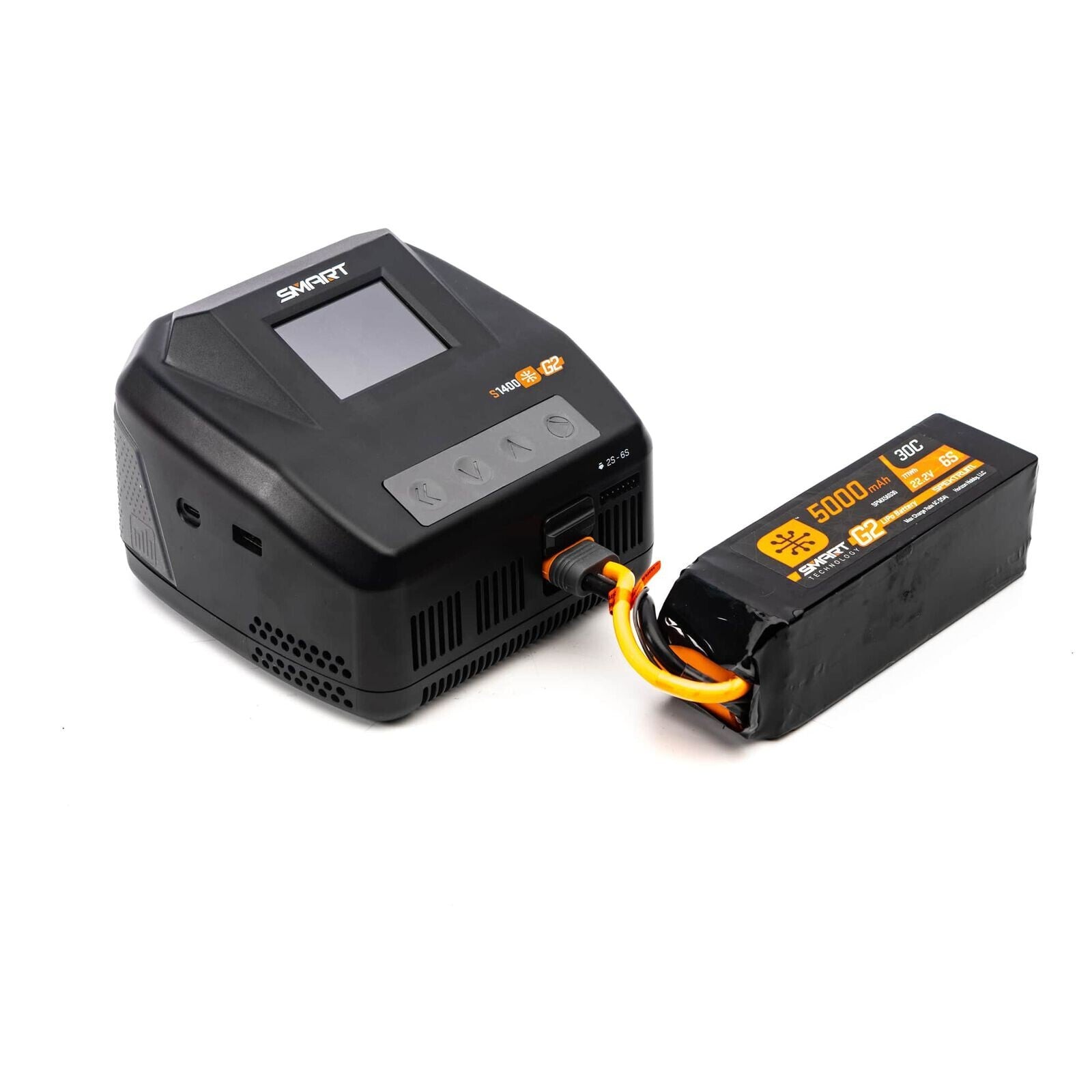

SPEKTRUM SMART BATTERIES
You’ll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest. Our Spektrum Smart 30C LiPos are ready to fit into your RC Aircraft for better performance, power, and reliability. These battery packs are a great upgrade for those looking to get more punch and power on nearly any setup.
Key Features:
- Integrated microchip stores unique parameters for each battery.
- Smart discharge allows batteries to automatically discharge to a safe voltage.
- Save time and hassle, while improving battery life.
- 30C continuous discharge rating to deliver high performance and longevity.
- Impact resistant ABS plastic hardcase.
- No soldering required, equipped with IC3 and IC5 Connectors that are compatible with EC3 and EC5.

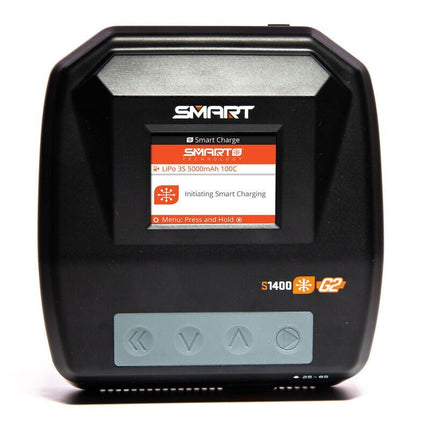

SPEKTRUM SMART CHARGER
With its 400W power, improved user interface, and ability to fast charge Smart batteries on either the IC3® or IC5® integrated output port, the S1400 charger offers a versatile and truly hassle-free charging experience. You can charge virtually any RC battery with the S1400 charger. Use it together with Smart G1 or G2 batteries and you'll be amazed by its incredible functionality and performance.
Key Features:
- Allows hyper-fast charging with up to 400W power
- Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
- Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected

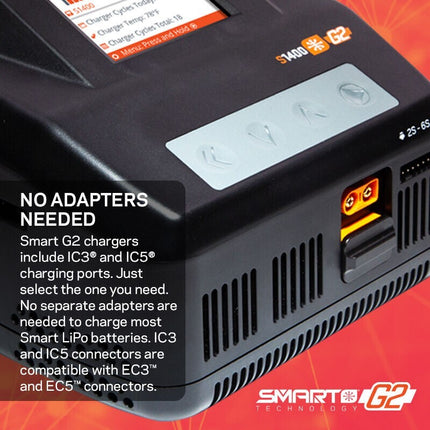

- Includes IC3® and IC5® charging output ports — no separate adapters required to charge different Spektrum™ Smart batteries
- An on-screen clock counts down remaining charge time until your Smart battery is fully charged and ready to use
- USB input and output ports are included for updating firmware and charging secondary devices
Product Specifications
| Normal/Standard Charge Current |
0.1 - 20.0A |
| Voltage Meter |
Yes |
| Watt Hours |
111 |
| Battery Voltage |
22.2V |
| Connector Type |
IC5 |
| Maximum Charge Rate |
400W |
| Product Length |
5.7" (145 mm) |
| Reverse Polarity Protection |
Yes |
| Thermal Protection |
Yes |
| Battery Temperature Monitoring |
Yes |
| Battery Type |
LiPo (3.7V per cell) |
| Capacity |
5000mAh |
| Charge Protection Circuitry |
Yes |
| PC Connectivity |
Yes |
| Number of Cells |
1 - 6S LiPo, LiIon, LiFe, 1-16 cell NiMH, NiCd, 1-12 cell Pb |
| Selectable Charge Rate |
Yes |
| Wire Gauge |
10 AWG |
| Display |
2.8" LCD |
| Hard Case |
Yes |
| Input Voltage |
100-240V AC |
| Maximum Burst Discharge Rate |
20.0A |
| Maximum Continuous Discharge Rate |
1.5A |
| Product Height |
4.13" (105 mm) |
| Programmable |
Yes |
| Safety Timer |
Yes |
| Amp Meter |
Yes |
| Application |
RC Aircraft With 6S Compatibility |
| Cell Configuration |
Stick |
| Output |
1x400W |
| Output Connector |
IC3 and IC5 (Selectable) |
| Peak Detection |
Yes |
| Product Weight |
35.9 oz (1015g) |
| Short Circuit Protection |
Yes |
| Low Input Voltage Protection |
Yes |
| Product Width |
5.66" (144 mm) |
| Technology |
Smart |
| Integrated Balancing |
Yes - Internal Balancer & Internal Adapter |
| Over Current Protection |
Yes |
