Description

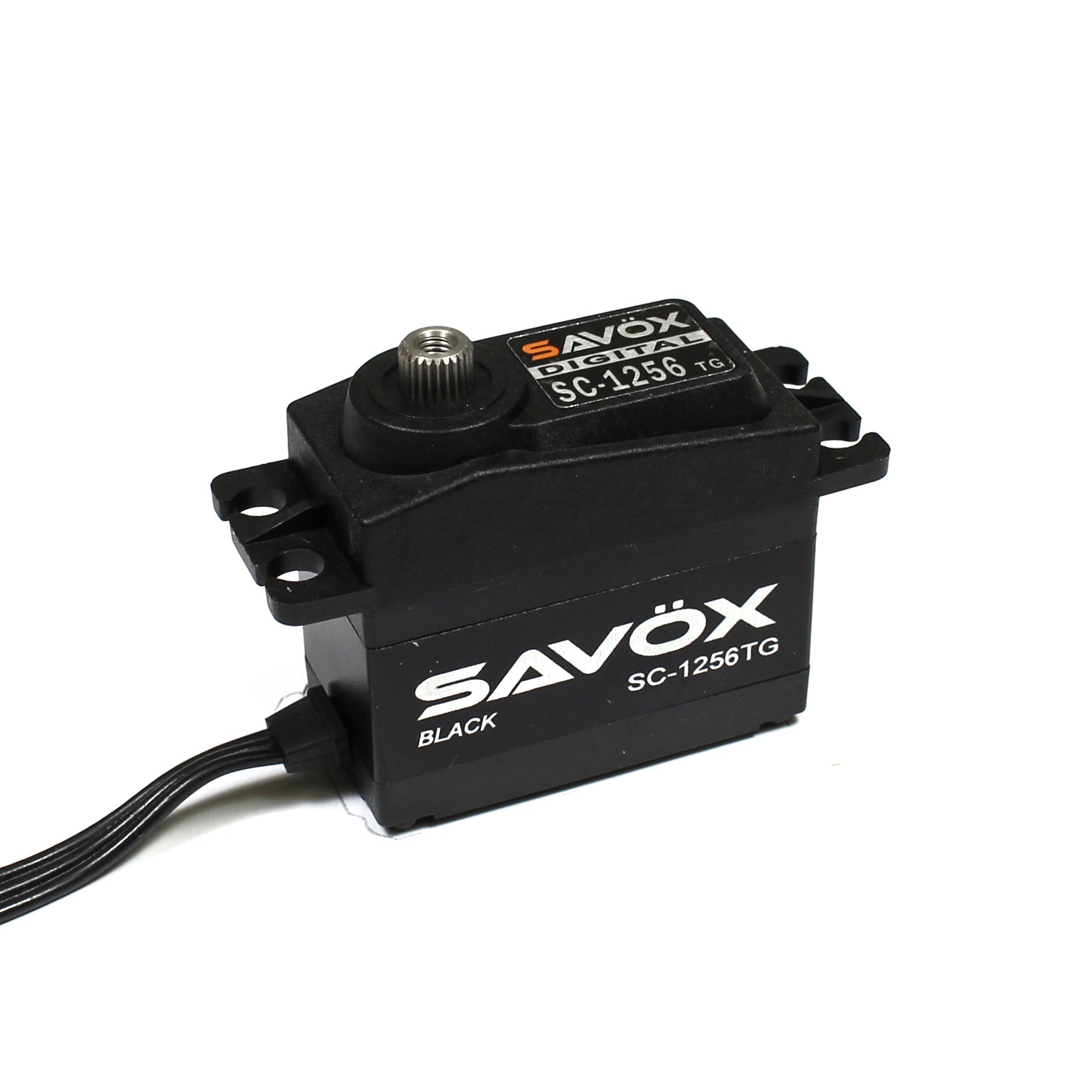

Savox's SC-1256TG Black Edition Standard Digital "High Torque" Titanium Gear Servo features a sleek black aluminum center case with laser etched details, as well as a shorter 200mm long heavy duty wire. The SC-1256TG is ideal for steering applications in 1/8 scale buggies, monster trucks and rock crawlers.
Features:
- Black aluminum center case.
- Shorter 200mm black shielded lead wire.
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
- Super light-weight.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Titanium gears ensure long life and durability.
- The aluminum case design not only looks good but also allows for cooler operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for steering applications in 1/8 scale buggies, monster trucks and rock crawlers.
Specifications:
-

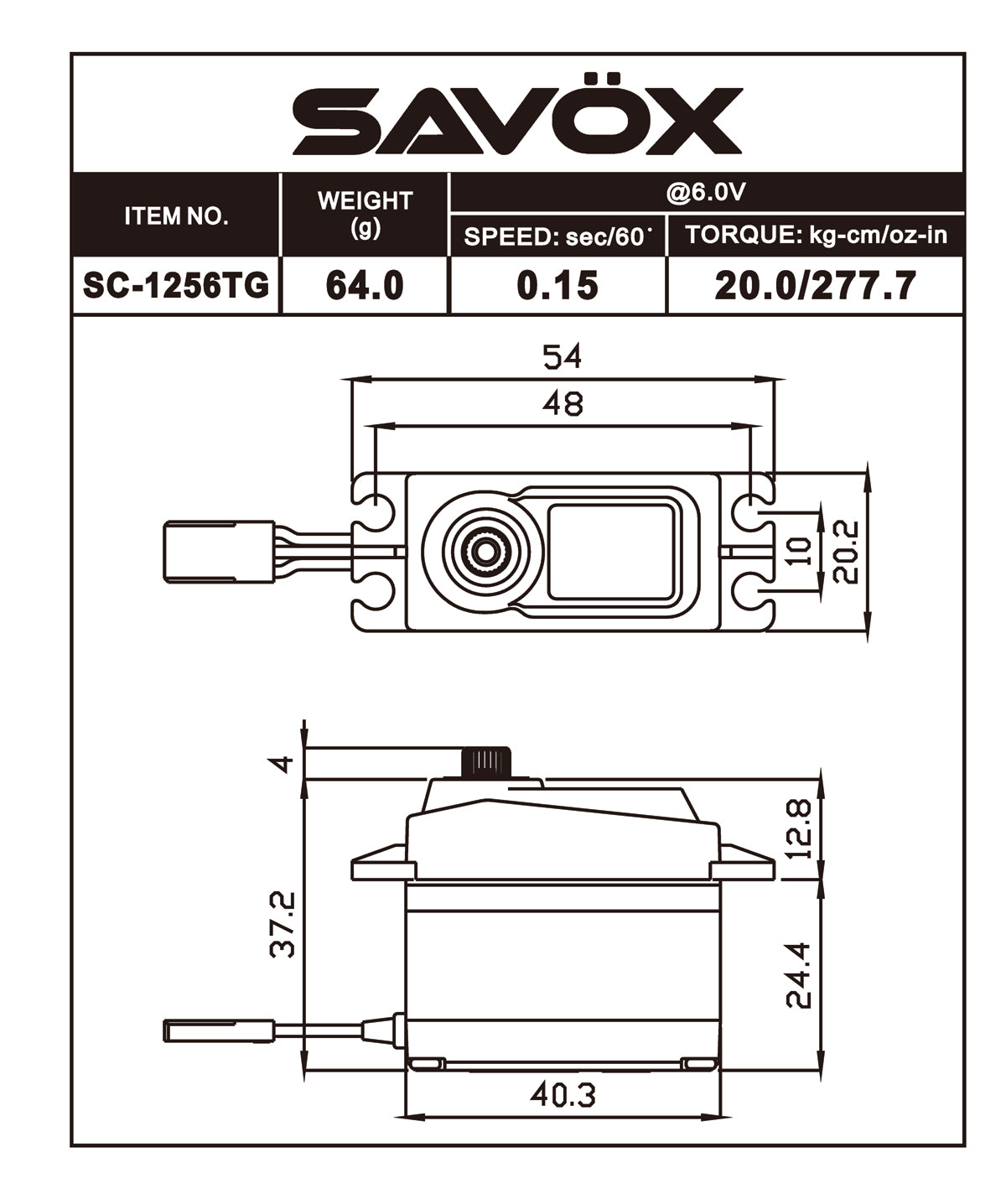

Dimensions: 40.3x20.2x37.2mm
-
Weight: 52.4g
- Speed:
-
@4.8V: .18 sec/60
-
@6.0V: .15 sec/60
- Torque:
-
@4.8V: 222.2 oz-in
-
@6.0V: 277.7 oz-in
-
Gear: Titanium & Aluminum
-
Bearing: 2BB
-
Case: Aluminum
-
Output Shaft: 25 Tooth Spline
-
Frequency: 250-333hz
-
Pulse Width Frequency: 1520
